NSN 5306-01-015-8714 9632M29P08, 9632M29-P08, 01-015-8714
Product Details | SHOULDER BOLT
5306-01-015-8714 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is not designed to be held or driven with an inserted drivers. A locking feature may be incorporated in the design of the head or threads. For items with a thread diameter smaller than No. 10 (0.190 IN.) (5 mm) and those items with an inserted drive head, use SCREW, SHOULDER. For items which are No. 10 (0.190 IN.) (5 mm) or larger in size and are both shouldered and have an externally relieved body, use BOLT, EXTERNALLY RELIEVED BODY. Excludes THUMBSCREW.
Part Alternates: 9632M29P08, 9632M29-P08, 5306-01-015-8714, 01-015-8714, 5306010158714, 010158714
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 JAN 1976 | 01-015-8714 | 04905 ( BOLT, SHOULDER ) |

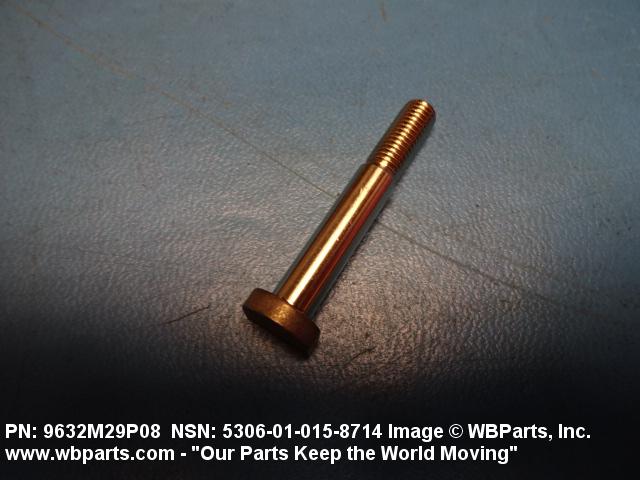

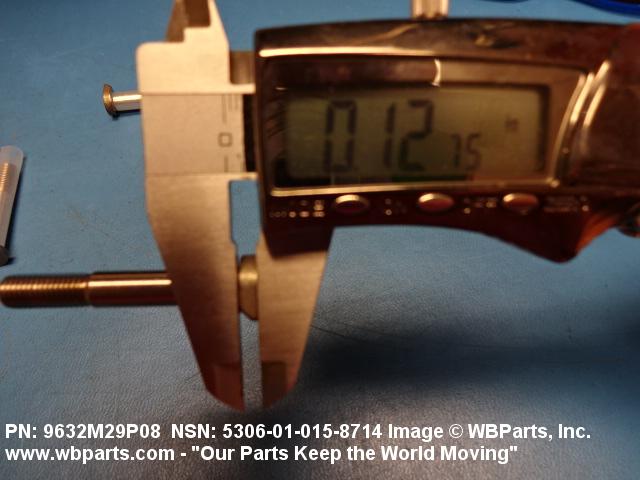

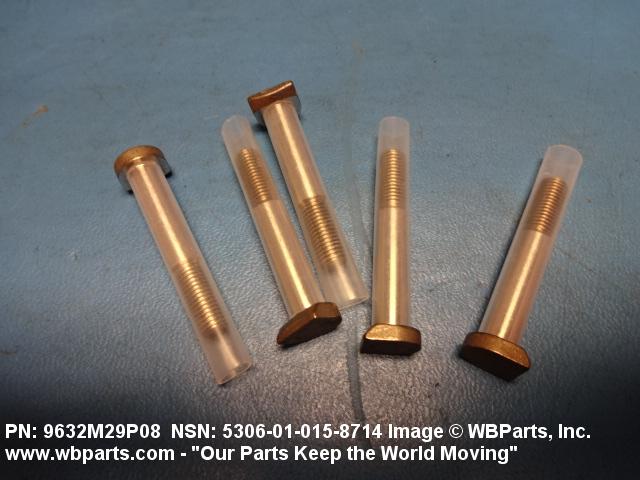

Drawings & Photos | NSN 5306-01-015-8714
Demand History | NSN 5306-01-015-8714
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9632M29P08 | 2024-08-233 | 296 | DIBBS |
| 5306-01-015-8714 | 2018-05-124 | 5 | Taiwan |
| 5306-01-015-8714 | 2016-04-118 | 110 | DIBBS |
| 5306-01-015-8714 | 2015-12-341 | 200 | DIBBS |
| 5306-01-015-8714 | 2013-09-267 | 342 | DIBBS |
| 5306-01-015-8714 | 2010-09-273 | 118 | DIBBS |
| 5306-01-015-8714 | 2009-10-281 | 280 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-015-8714
Technical Data | NSN 5306-01-015-8714
| Characteristic | Specifications |
|---|---|

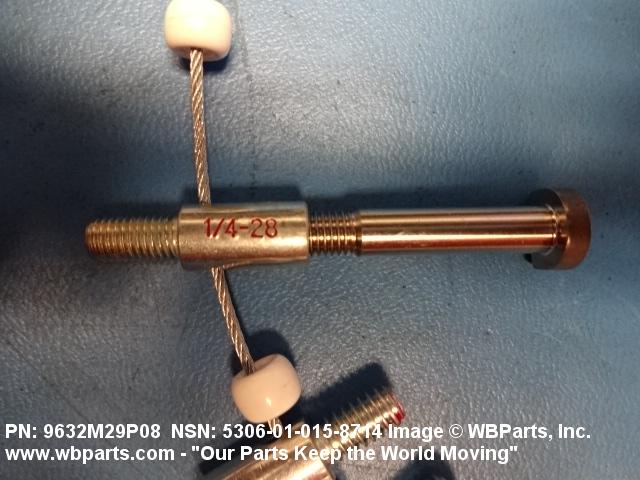

| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.620 INCHES MINIMUM AND 0.650 INCHES MAXIMUM |

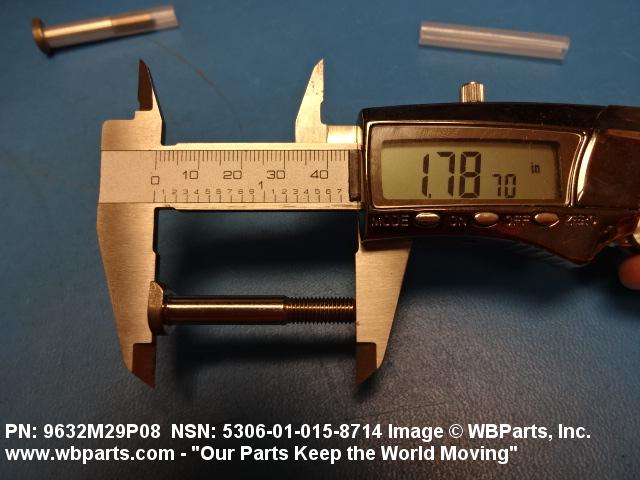

| FASTENER LENGTH | 1.650 INCHES MINIMUM AND 1.670 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |

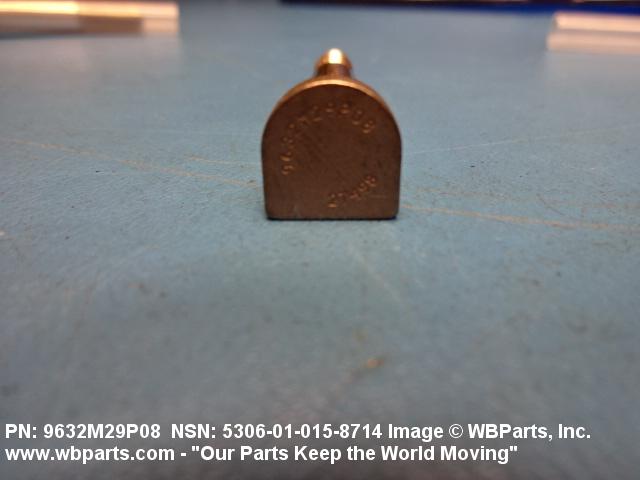

| HEAD STYLE | C25 DEE |

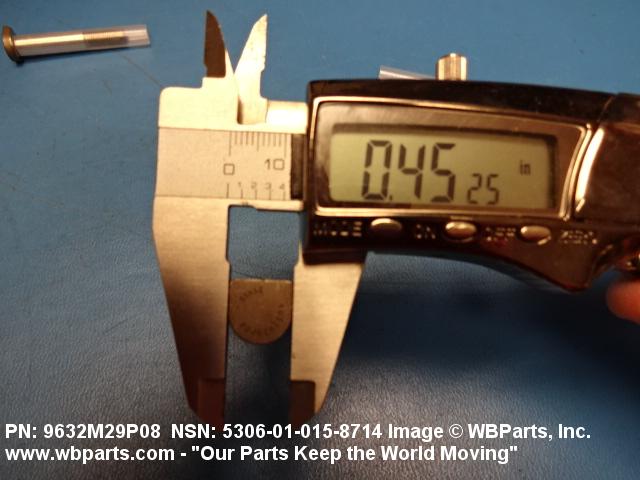

| HEAD DIAMETER | 0.448 INCHES NOMINAL |
| HEAD HEIGHT | 0.110 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |

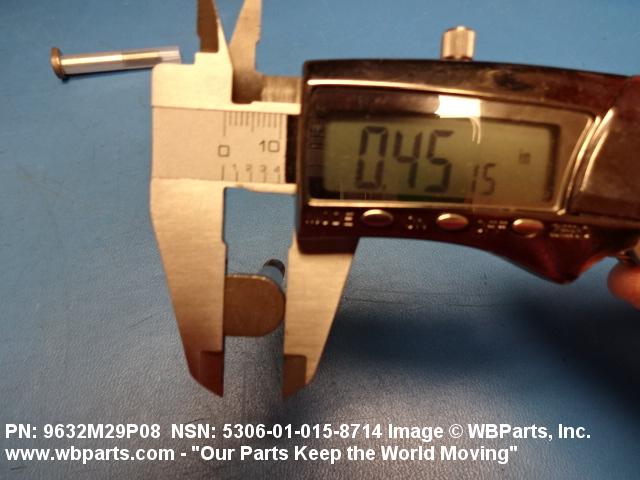

| DISTANCE FROM CENTERLINE TO FLAT | 0.220 INCHES MINIMUM AND 0.230 INCHES MAXIMUM |
| SHOULDER SHAPE | ROUND FIRST SHOULDER |

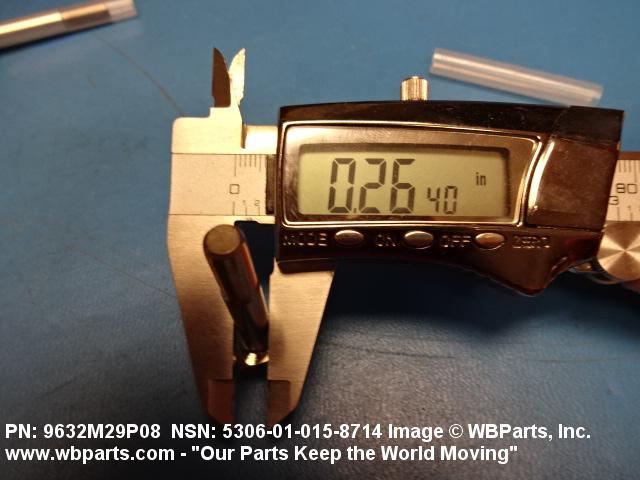

| SHOULDER DIAMETER | 0.264 INCHES NOMINAL FIRST SHOULDER |

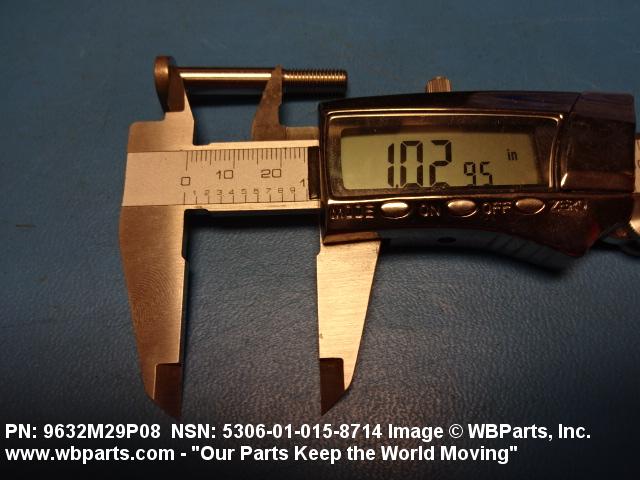

| SHOULDER LENGTH | 1.031 INCHES NOMINAL FIRST SHOULDER |
| FEATURES PROVIDED | FINISHED HEAD |
| MANUFACTURERS CODE | 07482 |
| DESIGN CONTROL REFERENCE | 9632M29P08 |
Restrictions/Controls & Freight Information | NSN 5306-01-015-8714
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-015-8714
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
