NSN 5306-00-914-9007 NAS673V4, 10114435 , 00-914-9007
Product Details | SHEAR BOLT
5306-00-914-9007 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: NAS673V4, 10114435 , 5306-00-914-9007, 00-914-9007, 5306009149007, 009149007
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 JUL 1966 | 00-914-9007 | 15903 ( BOLT, SHEAR ) |

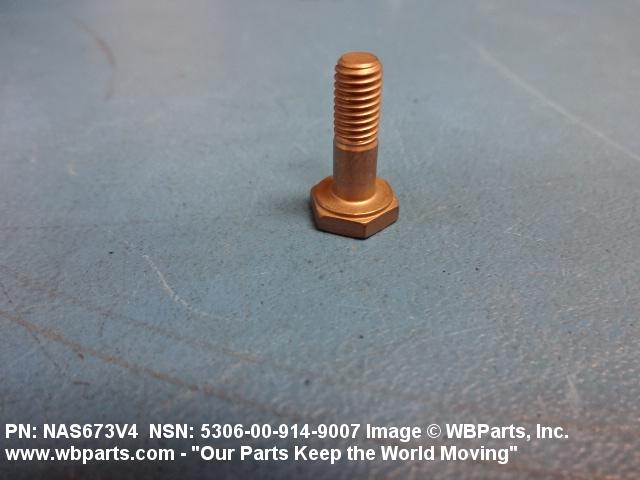

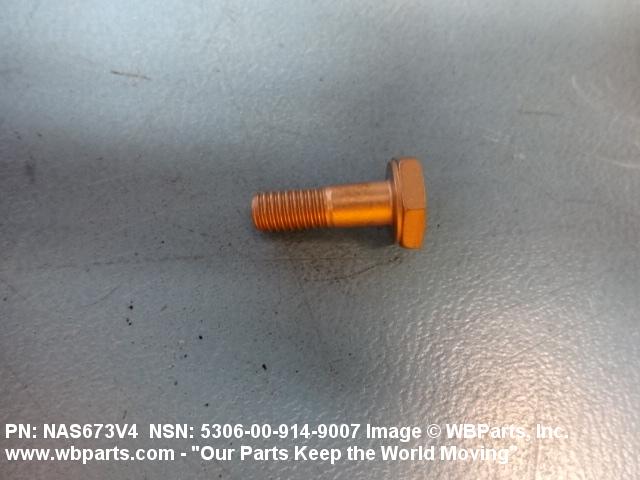

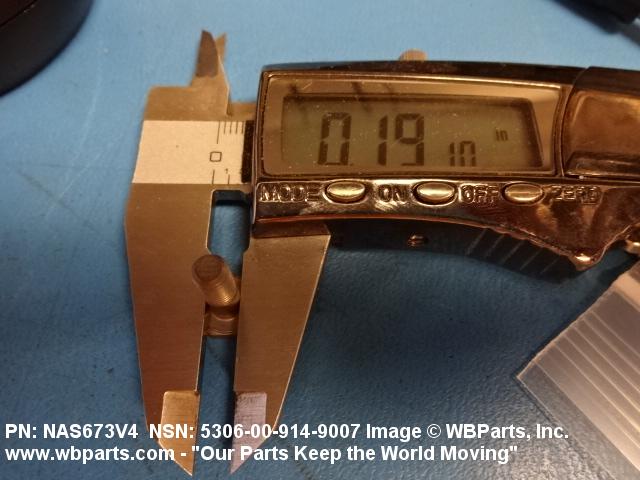

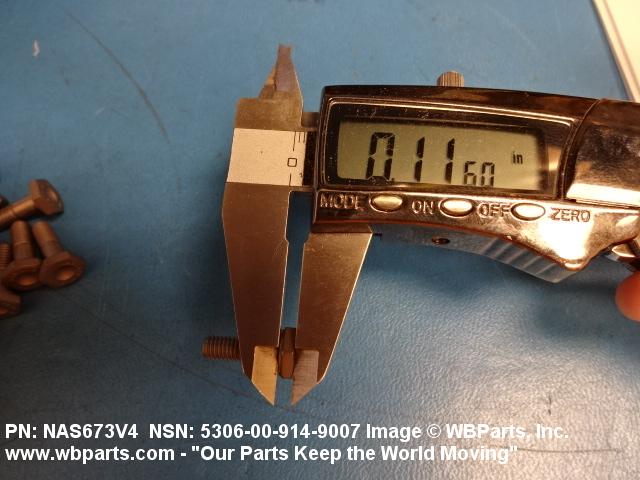

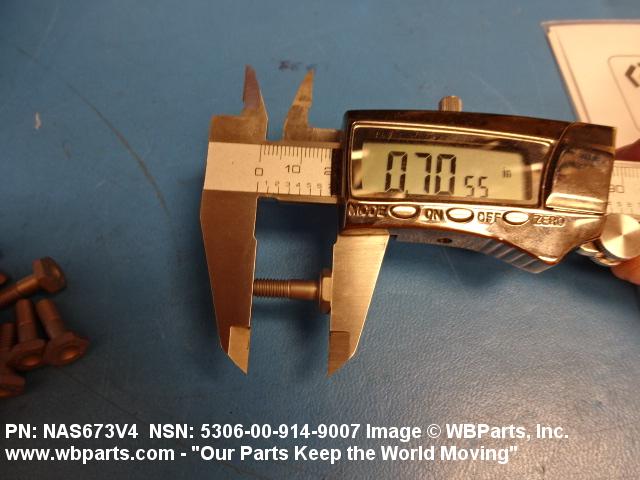

Drawings & Photos | NSN 5306-00-914-9007
Demand History | NSN 5306-00-914-9007
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-914-9007 | 2024-09-270 | 75 | Malaysia |
| NAS673V4 | 2024-08-214 | 85 | us |
| NAS673V4 | 2024-07-193 | 35 | United States |
| 5306-00-914-9007 | 2021-11-313 | 346 | DIBBS |
| 5306-00-914-9007 | 2021-10-280 | 1128 | DIBBS |
| 5306-00-914-9007 | 2021-09-263 | 286 | DIBBS |
| 5306-00-914-9007 | 2021-09-252 | 286 | DIBBS |
| 5306-00-914-9007 | 2021-09-244 | 12 | DIBBS |
| 5306-00-914-9007 | 2021-08-243 | 16 | DIBBS |
| NAS673V4 | 2019-12-343 | 50 | United States |
| 5306-00-914-9007 | 2019-12-339 | 4 | United States |
| 5306-00-914-9007 | 2015-01-29 | 200 | US |
| NAS673V4 | 2015-01-28 | 100 | United States |
| NAS673V4 | 2009-04-114 | 576 | us |
Cross Reference | NSN 5306-00-914-9007
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS673V4 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-914-9007
Technical Data | NSN 5306-00-914-9007
| Characteristic | Specifications |
|---|---|

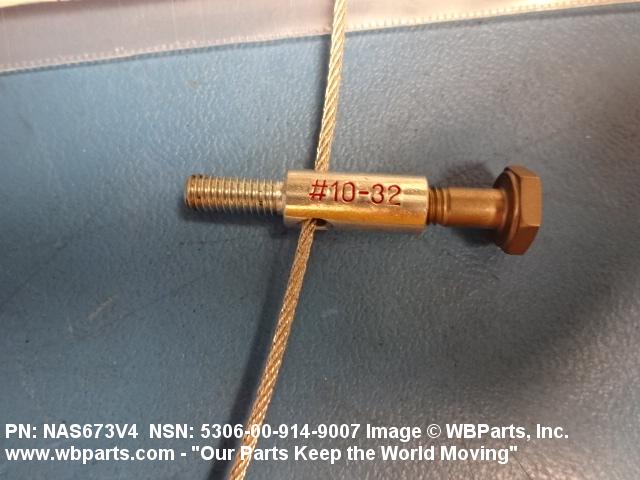

| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

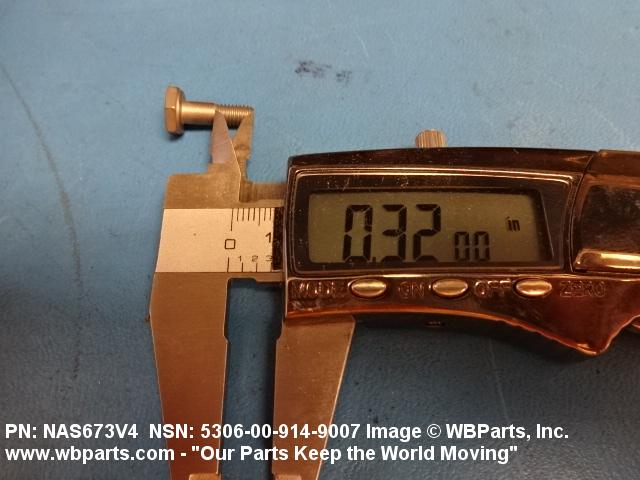

| THREAD LENGTH | 0.313 INCHES MINIMUM AND 0.363 INCHES MAXIMUM |

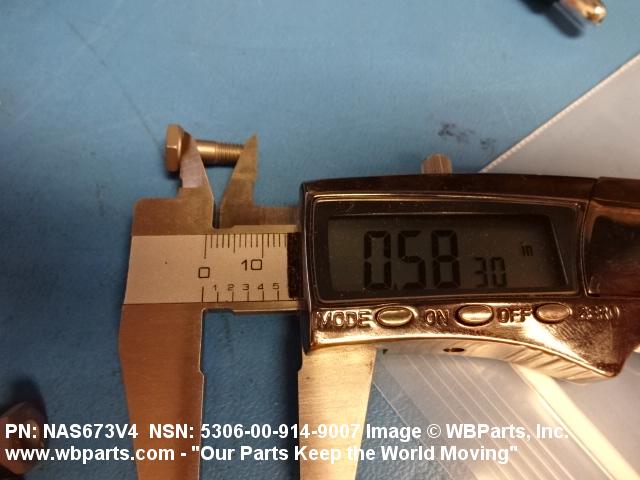

| FASTENER LENGTH | 0.573 INCHES MINIMUM AND 0.603 INCHES MAXIMUM |
| MATERIAL | TITANIUM ALLOY UNS R56400 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS4967 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |

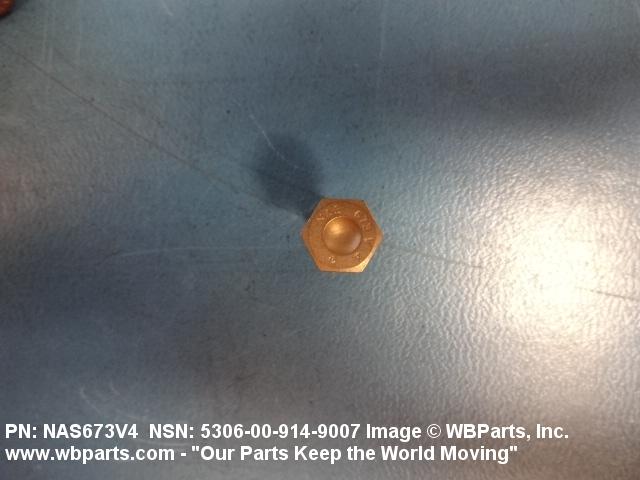

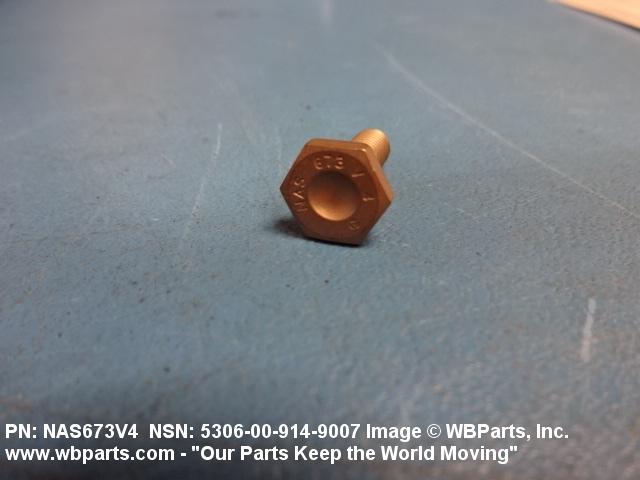

| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.110 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |

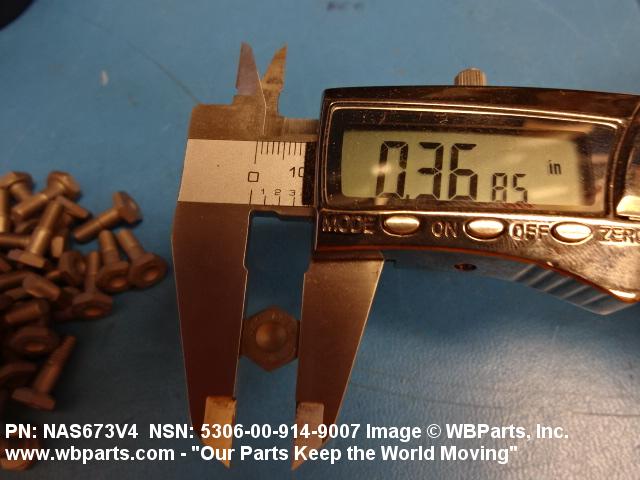

| WIDTH BETWEEN FLATS | 0.367 INCHES MINIMUM AND 0.376 INCHES MAXIMUM |
| GRIP LENGTH | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| GRIP DIAMETER | 0.1890 INCHES MINIMUM AND 0.1895 INCHES MAXIMUM |
| SURFACE FINISH | 63.0 MICROINCHES BEARING SURFACE OF HEAD 63.0 MICROINCHES GRIP 16.0 MICROINCHES THREADS |
| SPECIFICATION/STANDARD DATA | 80205-NAS673 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5306-00-914-9007
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5306-00-914-9007
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
