Product Details | MACHINE BOLT
5306-00-873-7162 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: 66-1928-800, 5306-00-873-7162, 00-873-7162, 5306008737162, 661928800, 008737162
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-873-7162 | 01847 ( BOLT, MACHINE ) |

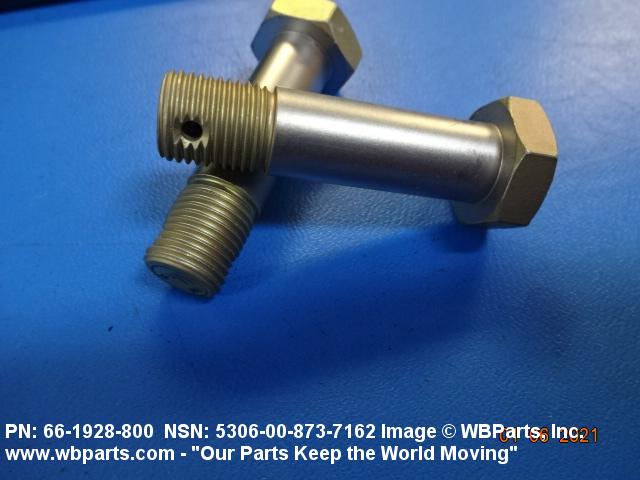

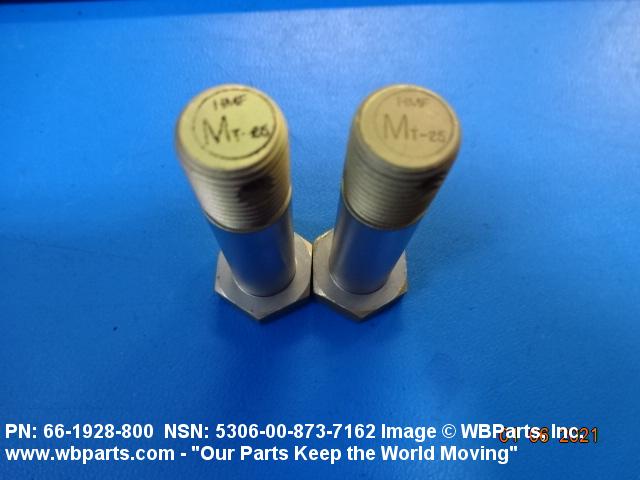

Drawings & Photos | NSN 5306-00-873-7162
Demand History | NSN 5306-00-873-7162
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 661928800 | 2021-05-141 | 2 | United States |
Cross Reference | NSN 5306-00-873-7162
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 66-1928-800 | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-873-7162
Technical Data | NSN 5306-00-873-7162

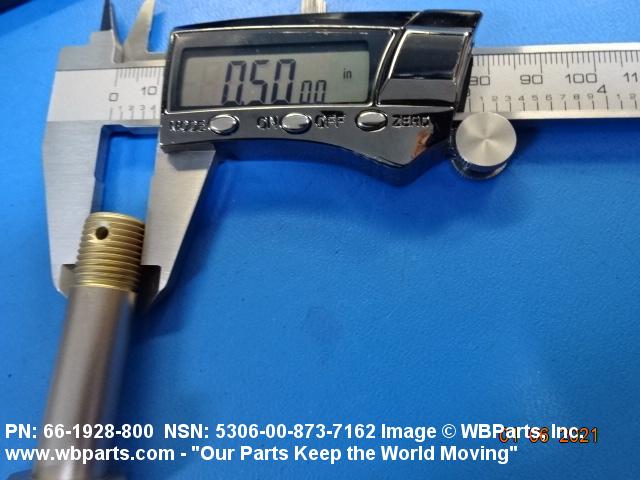

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

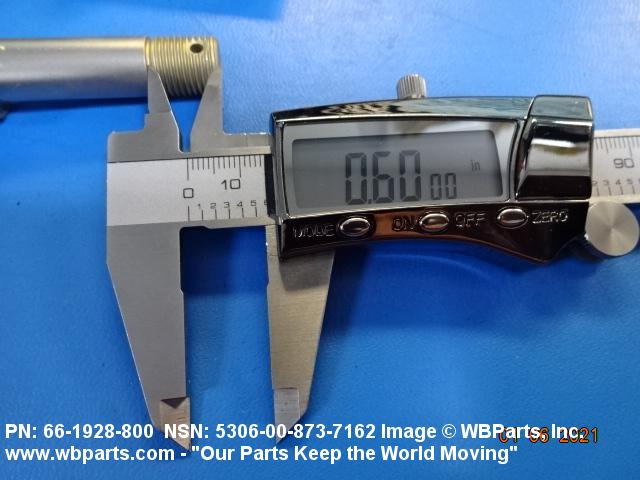

| THREAD LENGTH | 0.600 INCHES MINIMUM |

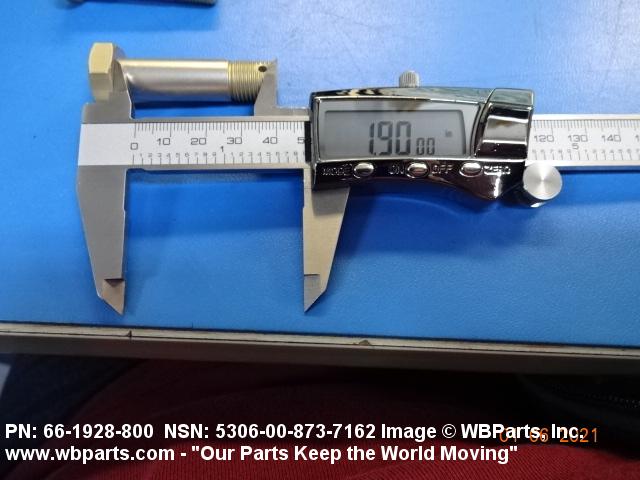

| FASTENER LENGTH | 1.900 INCHES NOMINAL |
| MATERIAL | STEEL COMP E4340 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM HEAD NICKEL GRIP CADMIUM THREADS |

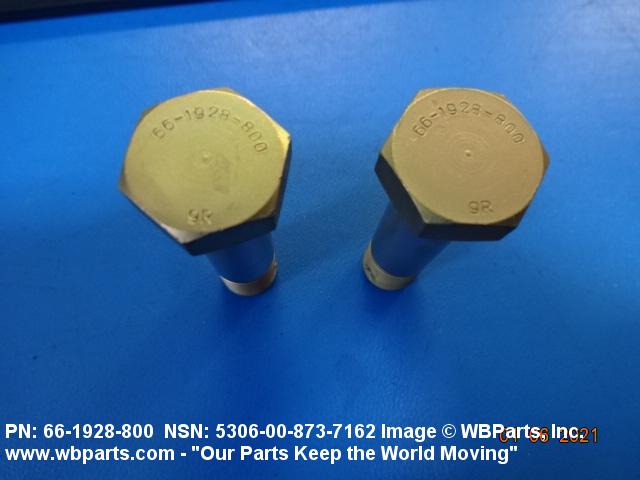

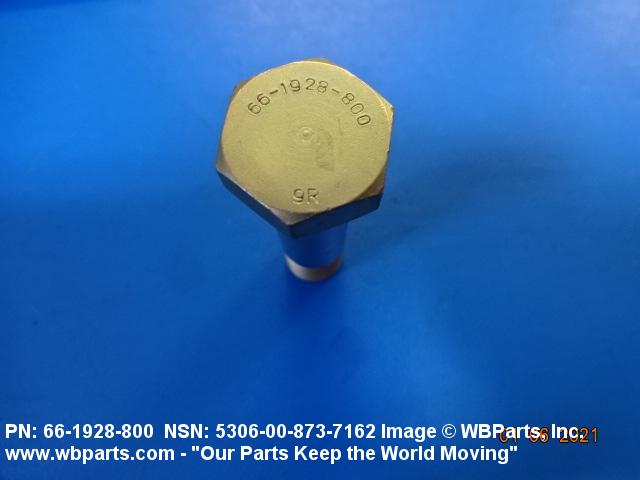

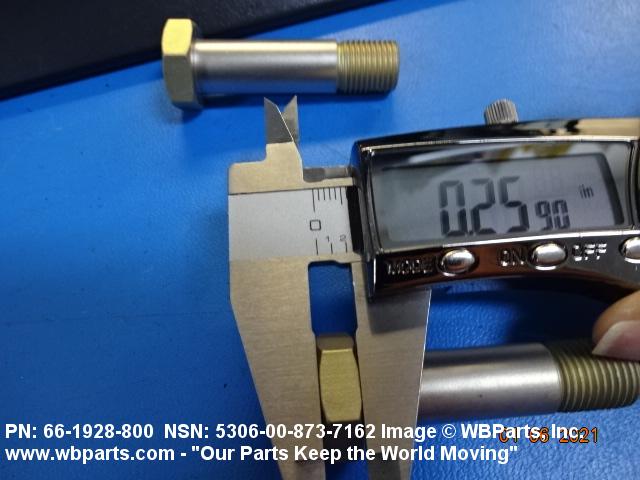

| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.250 INCHES NOMINAL |

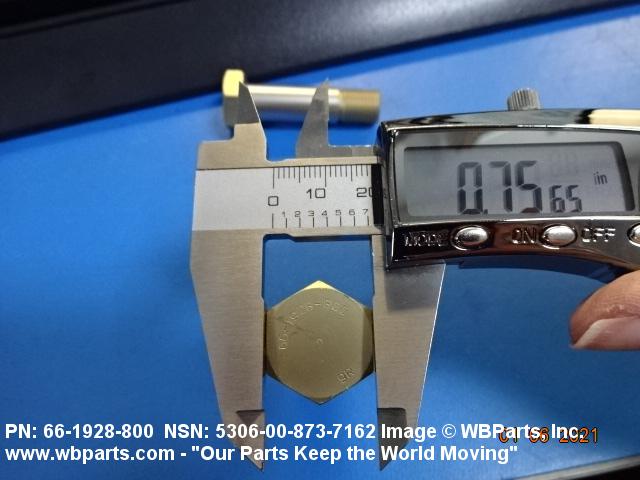

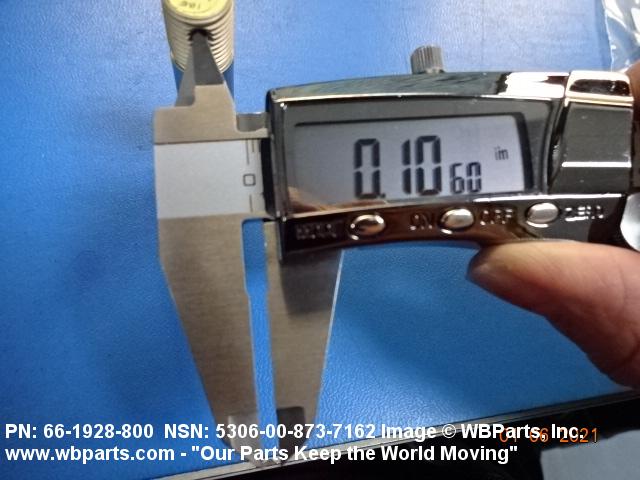

| WIDTH BETWEEN FLATS | 0.750 INCHES NOMINAL |
| GRIP LENGTH | 1.300 INCHES NOMINAL |
| DISTANCE FROM HEAD LARGEST BEARING SURFACE TO SHANK HOLE CENTER | 1.750 INCHES NOMINAL FIRST HOLE |
| SHANK UNTHREADED HOLE DIAMETER | 0.106 INCHES NOMINAL FIRST HOLE |
| FEATURES PROVIDED | FINISHED HEAD |
| MANUFACTURERS CODE | 81205 |
| DESIGN CONTROL REFERENCE | 66-1928-800 |
