NSN 5306-00-834-5915 3116861, 3-11686-1, 00-834-5915
Product Details | SHOULDER BOLT
5306-00-834-5915 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is not designed to be held or driven with an inserted drivers. A locking feature may be incorporated in the design of the head or threads. For items with a thread diameter smaller than No. 10 (0.190 IN.) (5 mm) and those items with an inserted drive head, use SCREW, SHOULDER. For items which are No. 10 (0.190 IN.) (5 mm) or larger in size and are both shouldered and have an externally relieved body, use BOLT, EXTERNALLY RELIEVED BODY. Excludes THUMBSCREW.
Part Alternates: 3116861, 3-11686-1, 5306-00-834-5915, 00-834-5915, 5306008345915, 008345915
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-834-5915 | 04905 ( BOLT, SHOULDER ) |

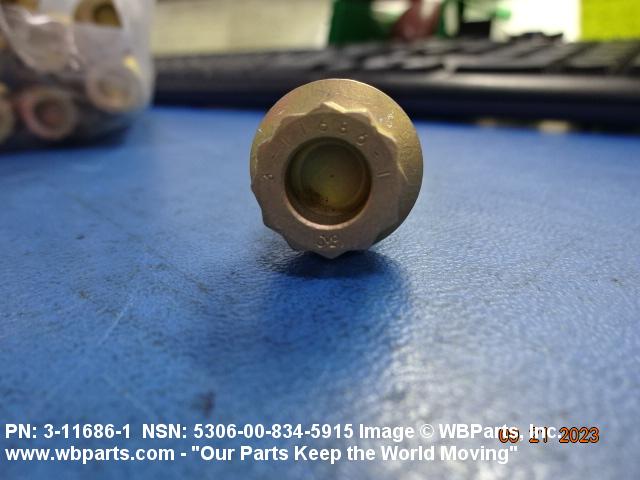

Drawings & Photos | NSN 5306-00-834-5915
Demand History | NSN 5306-00-834-5915
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3-11686-1 | 2024-09-269 | 463 | DIBBS |
| 3116861 | 2023-09-251 | 204 | United States |
| 5306-00-834-5915 | 2023-08-241 | 204 | US |
| 3-11686-1 | 2022-06-177 | 673 | DIBBS |
| 5306-00-834-5915 | 2018-11-310 | 565 | DIBBS |
| 5306-00-834-5915 | 2018-07-189 | 884 | DIBBS |
| 5306-00-834-5915 | 2017-08-243 | 884 | DIBBS |
| 5306-00-834-5915 | 2016-06-167 | 539 | DIBBS |
| 5306-00-834-5915 | 2013-02-42 | 1520 | DIBBS |
| 5306-00-834-5915 | 2011-08-231 | 495 | DIBBS |
| 5306-00-834-5915 | 2011-06-181 | 1001 | DIBBS |
| 5306-00-834-5915 | 2011-04-104 | 433 | DIBBS |
| 5306-00-834-5915 | 2010-12-341 | 552 | DIBBS |
| 5306-00-834-5915 | 2010-12-337 | 552 | DIBBS |
Cross Reference | NSN 5306-00-834-5915
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3-11686-1 | 06710 | VALLEY-TODECO, INC. |
| 3-11686-1 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| 3-11686-1 | 0HR65 | INGERSOLL-RAND CO |
| 3-11686-1 | 0JRC1 | NORTHROP GRUMMAN TECHNICAL SERVICES, INC. |
| 3-11686-1 | 0JV78 | J M PRECISION INC |
| 3-11686-1 | 0UCY9 | M.S. AEROSPACE INC. |
| 3-11686-1 | 1DN91 | STANDARD AERO PARTS, INC. |
| 3-11686-1 | 3N586 | A1 TECHNOLOGIES INC |
| 3-11686-1 | 4GP55 | ACUFAST AIRCRAFT PRODUCTS INC. |
| 3-11686-1 | 57928 | SONIC INDUSTRIES INC. |
| 3-11686-1 | 59563 | REID PRODUCTS INC. DBA REID PRODUCTS |
| 3-11686-1 | 5U074 | ACE G & M OF TEXAS INC. DBA ACE G & M OF TEXAS |
| 3-11686-1 | 75154 | KAYCO |
| 3-11686-1 | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-834-5915
Related Products | NSN 5306-00-834-5915
Technical Data | NSN 5306-00-834-5915
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |

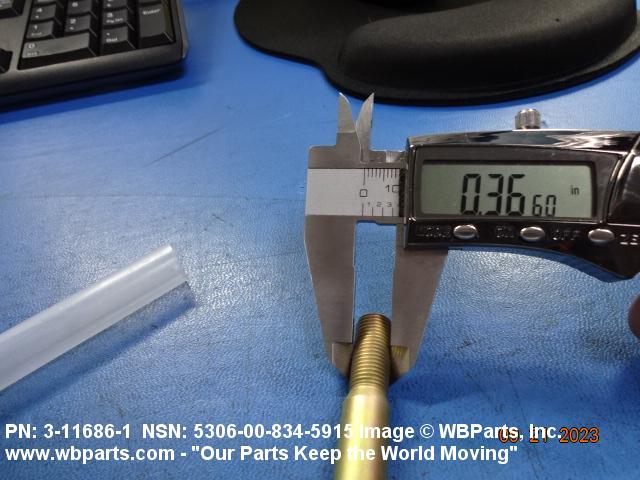

| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

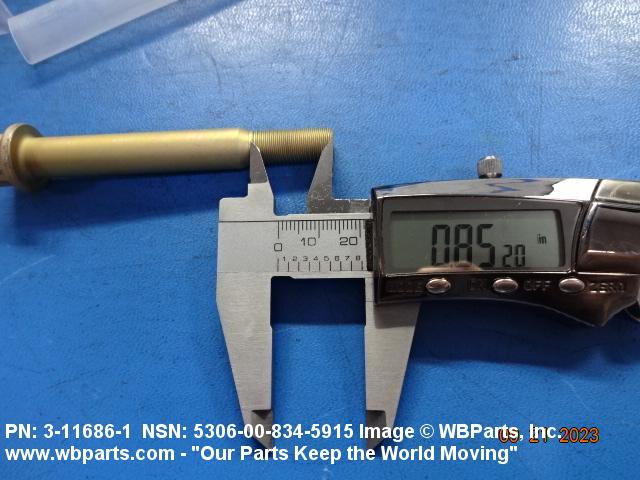

| THREAD LENGTH | 0.797 INCHES MINIMUM AND 0.880 INCHES MAXIMUM |

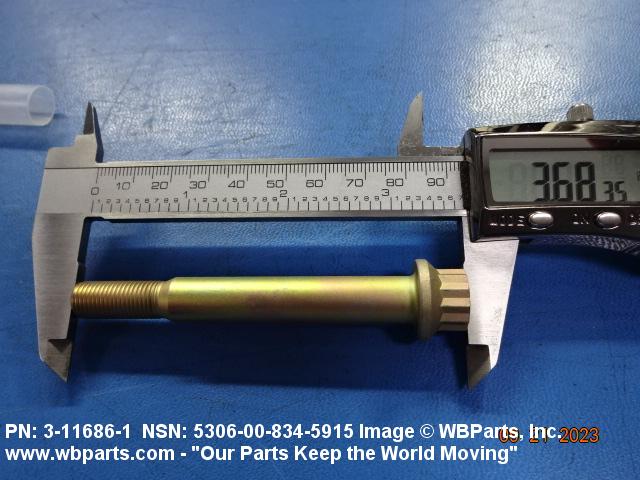

| FASTENER LENGTH | 3.240 INCHES NOMINAL |
| MATERIAL | STEEL COMP H11 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS6485 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| MINIMUM YIELD STRENGTH | 220000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C9 DOUBLE HEXAGON EXTENDED WASHER |

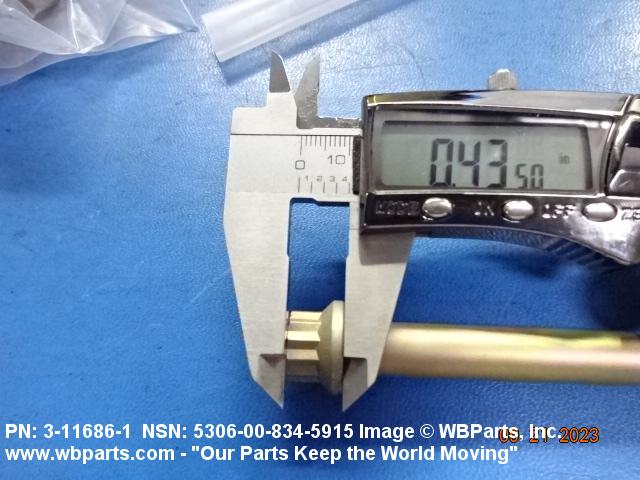

| HEAD HEIGHT | 0.435 INCHES NOMINAL |

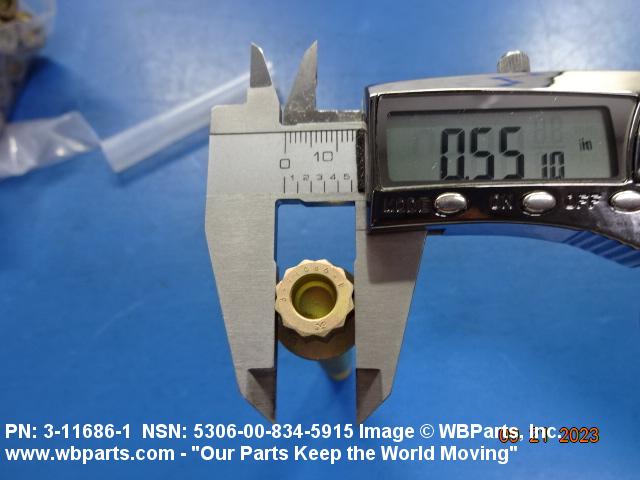

| WIDTH BETWEEN FLATS | 0.576 INCHES NOMINAL |

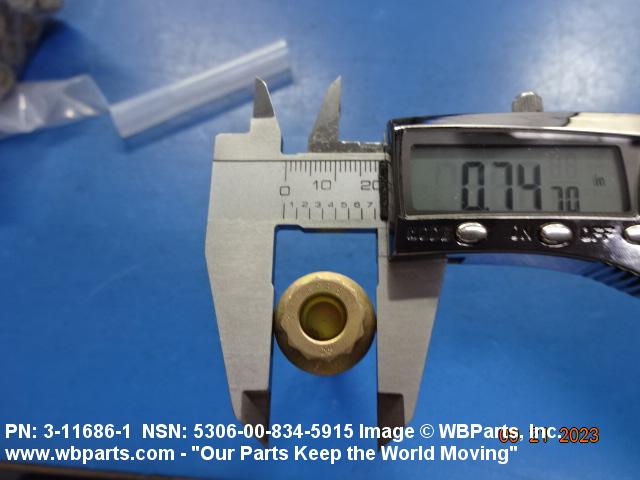

| EXTENDED WASHER DIAMETER | 0.740 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| EXTENDED WASHER THICKNESS | 0.099 INCHES NOMINAL |
| SHOULDER SHAPE | ROUND FIRST SHOULDER |

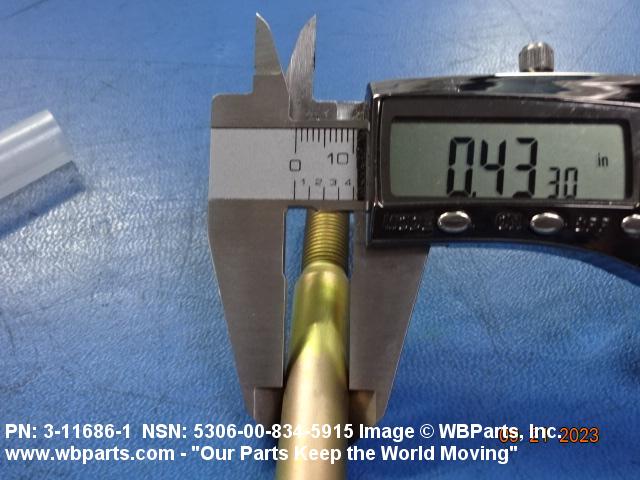

| SHOULDER DIAMETER | 0.4355 INCHES MINIMUM AND 0.4375 INCHES MAXIMUM FIRST SHOULDER |
| SHOULDER LENGTH | 2.260 INCHES NOMINAL FIRST SHOULDER |
| MANUFACTURERS CODE | 76823 |
| DESIGN CONTROL REFERENCE | 3-11686-1 |
Restrictions/Controls & Freight Information | NSN 5306-00-834-5915
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-00-834-5915
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Materiel Management Aggregation Code | XE | SU:T-38 TALON |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
