NSN 5306-00-834-4311 NAS56623, NAS566-23, 00-834-4311

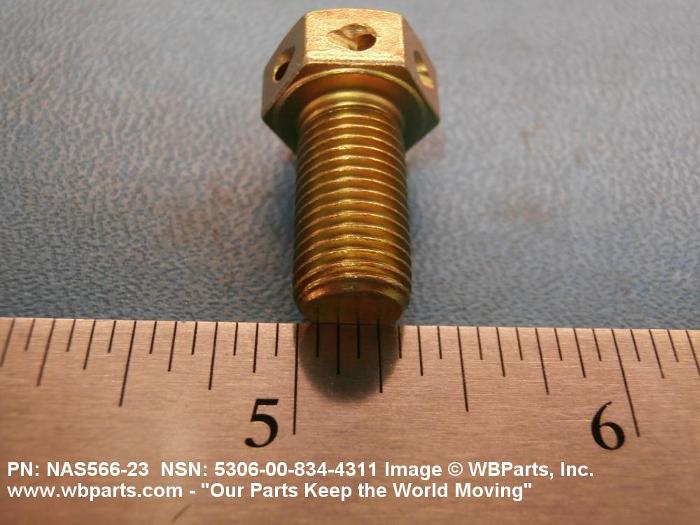

Product Details | MACHINE BOLT

5306-00-834-4311 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.

Part Alternates: NAS56623, NAS566-23, 5306-00-834-4311, 00-834-4311, 5306008344311, 008344311

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-834-4311	01847 ( BOLT, MACHINE )

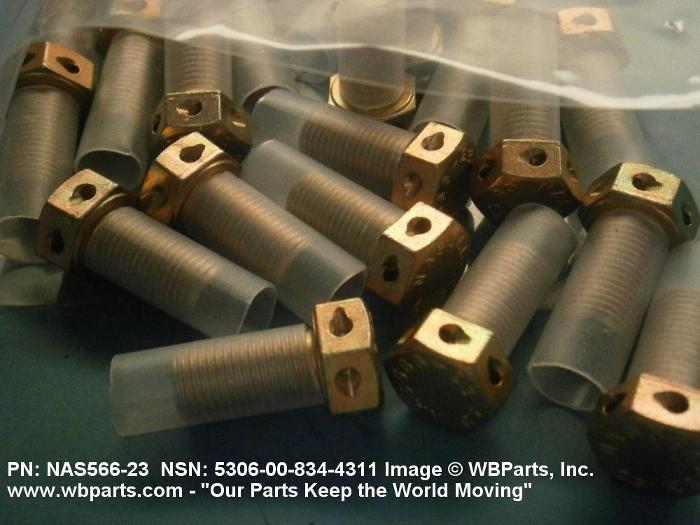

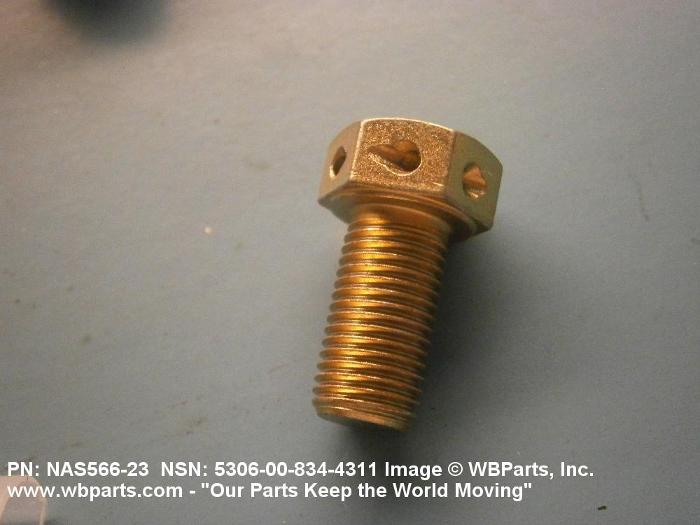

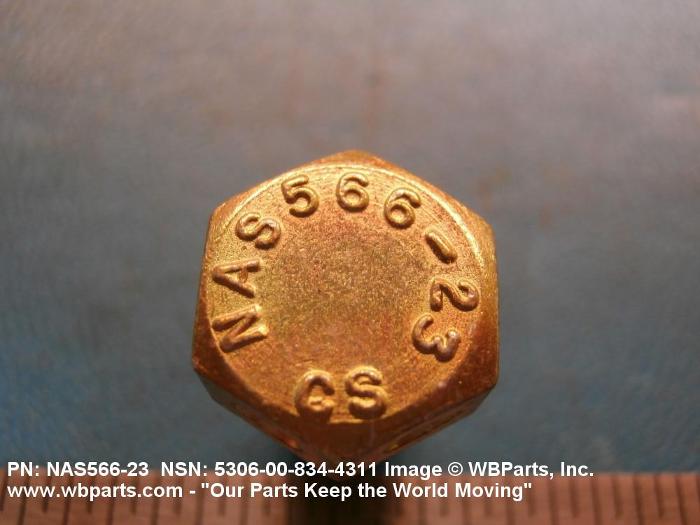

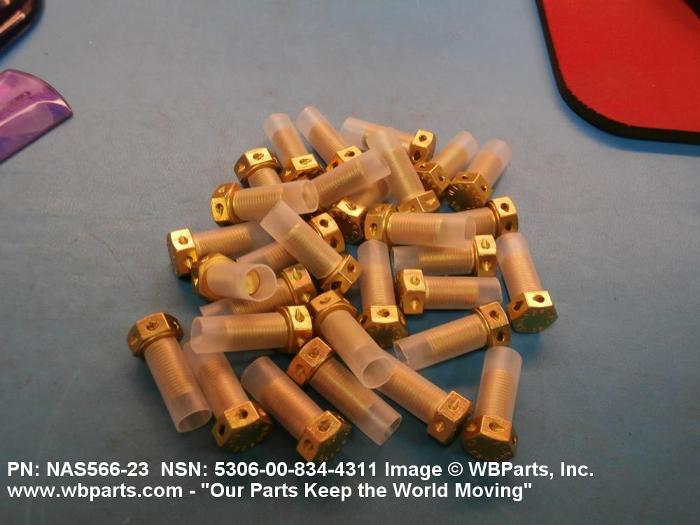

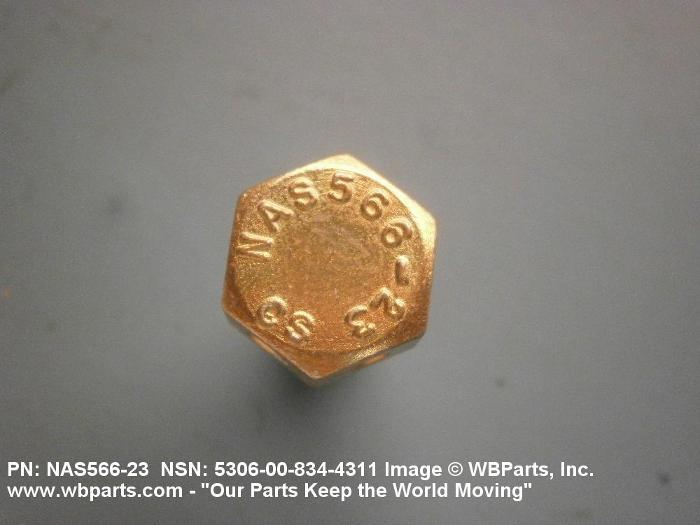

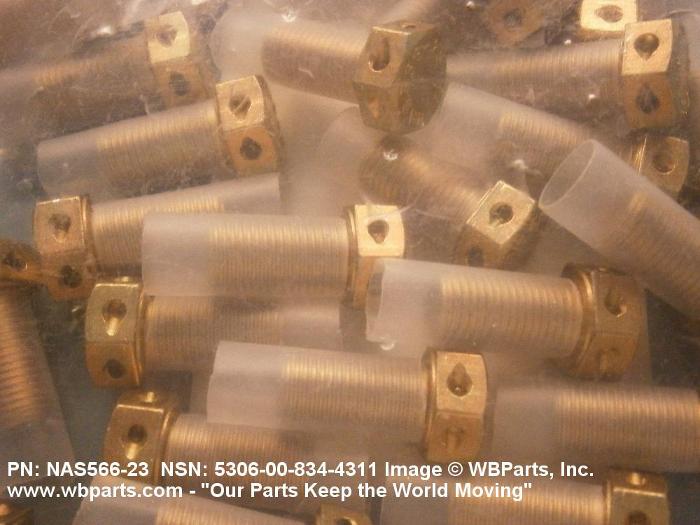

Drawings & Photos | NSN 5306-00-834-4311

Part Number	Request Date	QTY	Origin
NAS56623	2016-10-293	370	US
5306-00-834-4311	2016-10-293	340	US
NAS56623	2012-11-312	30	United States
NAS56623	2012-10-277	10	United States
NAS56623	2012-10-277	40	United States
NAS56623	2012-05-152	30	United States
NAS56623	2012-04-118	50	United States

Cross Reference | NSN 5306-00-834-4311

Part Number	Cage Code	Manufacturer
NAS566-23	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-00-834-4311

Compare

Related Products | NSN 5306-00-834-4311

5306-00-834-4531, 5306-00-834-4532, 5306-00-834-4533, 5306-00-834-4534, 5306-00-834-4552

Technical Data | NSN 5306-00-834-4311

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD DIAMETER	0.375 INCHES
THREAD QUANTITY PER INCH	24
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.659 INCHES MINIMUM AND 0.689 INCHES MAXIMUM
FASTENER LENGTH	0.719 INCHES NOMINAL
MATERIAL	STEEL COMP 4037 OR STEEL COMP 4130 OR STEEL COMP 8630 OR STEEL COMP 8735 OR STEEL COMP 8740 OR STEEL COMP 4140 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-B-6812 MIL SPEC ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	160000 POUNDS PER SQUARE INCH
HEAD STYLE	C1 HEXAGON
HEAD HEIGHT	0.281 INCHES NOMINAL
WIDTH BETWEEN FLATS	0.562 INCHES NOMINAL
HOLE CONFIGURATION STYLE	E5 HEXAGON LONGITUDINAL HOLE
HOLE TYPE	DRILLED
HOLE QUANTITY	6
HOLE DIAMETER	0.070 INCHES NOMINAL
GRIP LENGTH	0.030 INCHES MINIMUM AND 0.060 INCHES MAXIMUM
FEATURES PROVIDED	FINISHED HEAD
