NSN 5306-00-833-4964 R191P14SL, 00-833-4964, 008334964
Product Details | MACHINE BOLT
5306-00-833-4964 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: R191P14SL, 5306-00-833-4964, 00-833-4964, 5306008334964, 008334964
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-833-4964 | 01847 ( BOLT, MACHINE ) |

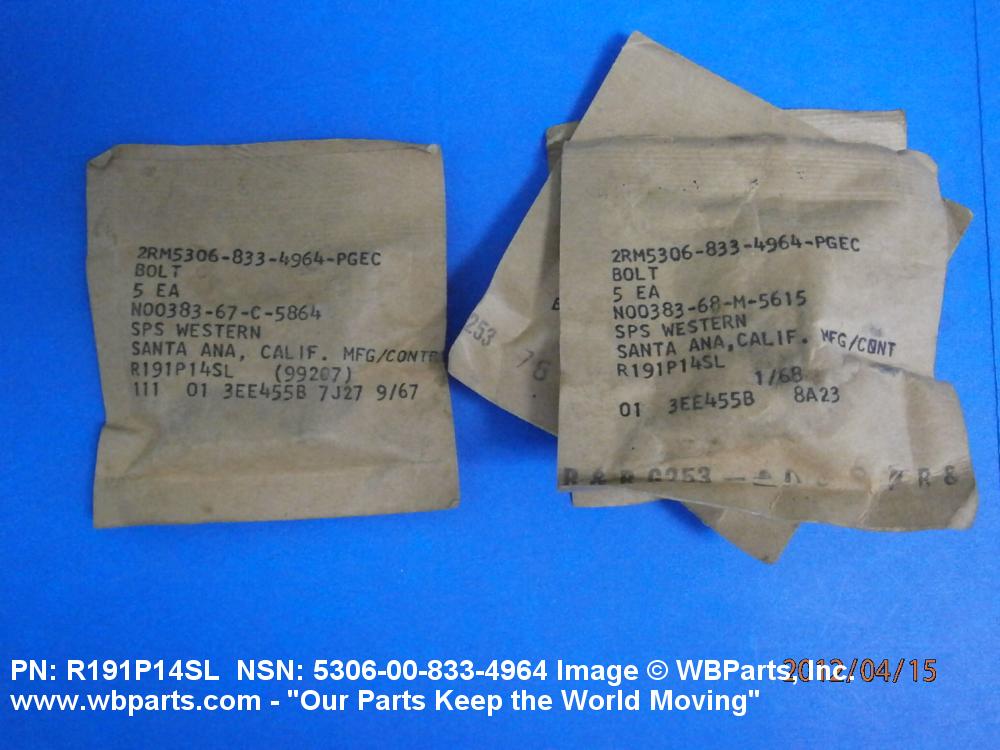

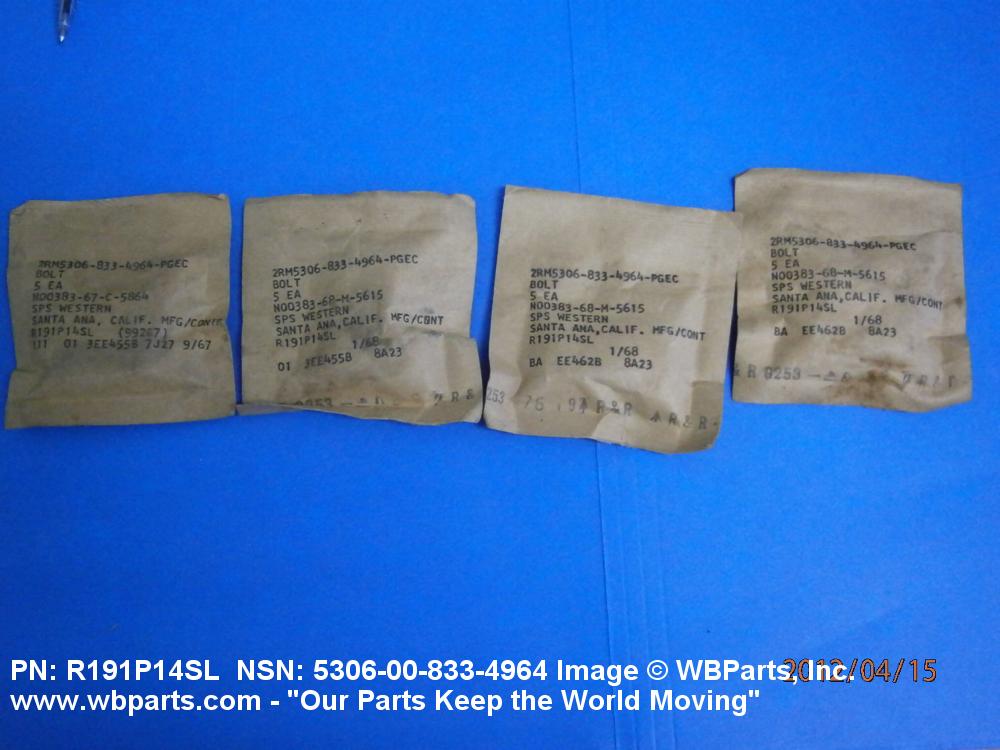

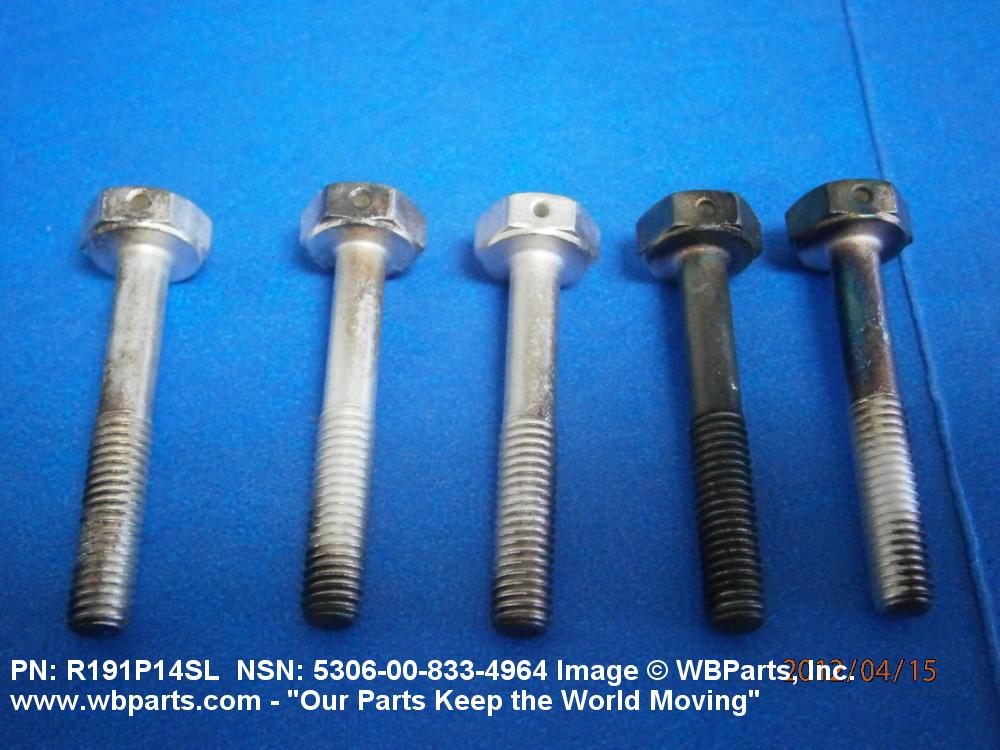

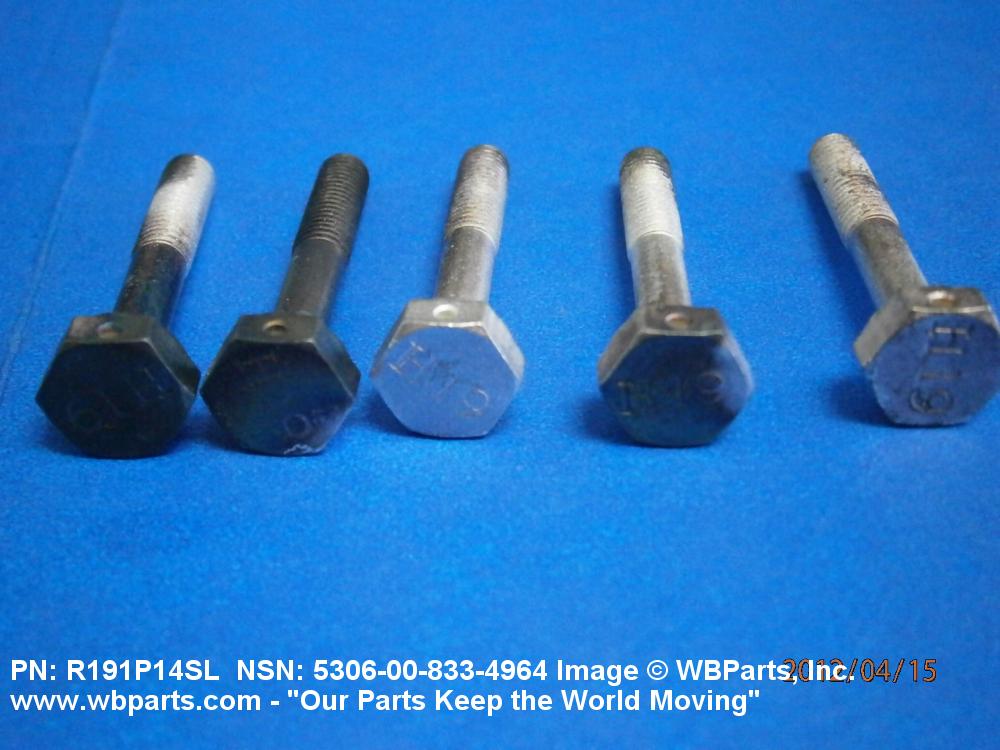

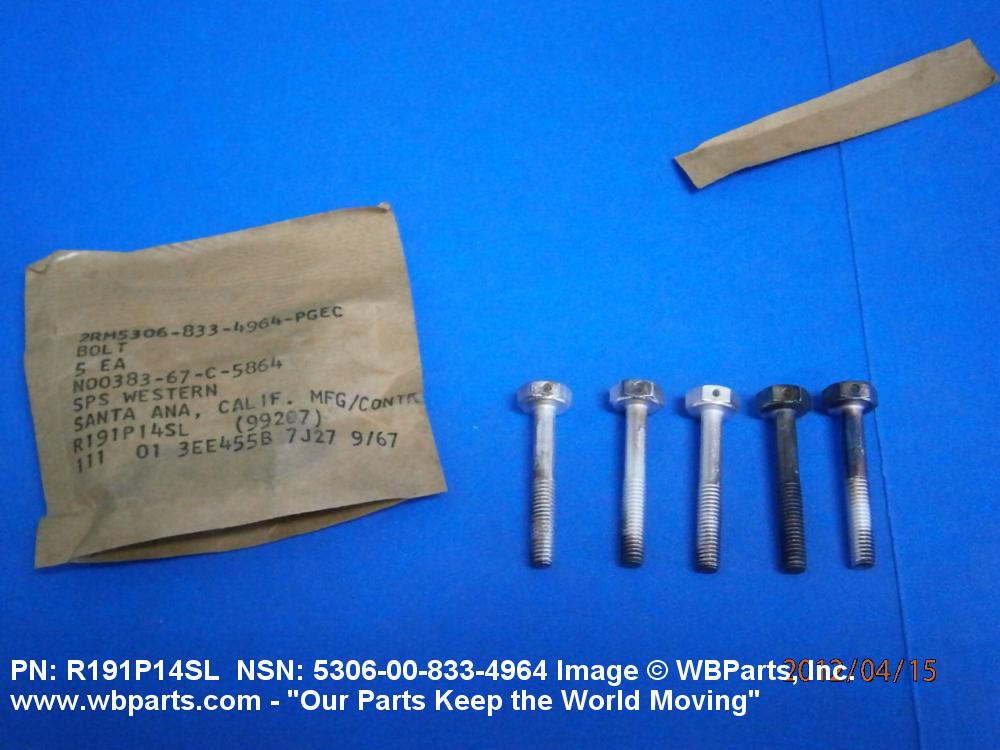

Drawings & Photos | NSN 5306-00-833-4964
Demand History | NSN 5306-00-833-4964
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| R191P14SL | 2012-03-83 | 20 | Turkey |
| R191P14SL | 2012-02-45 | 8 | Turkey |
| R191P14SL | 2012-01-27 | 20 | Turkey |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-833-4964
Technical Data | NSN 5306-00-833-4964
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| NONSTANDARD THREAD PITCH DIAMETER | 0.1644 TO 0.1667 INCHES |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.625 INCHES MINIMUM |
| FASTENER LENGTH | 1.250 INCHES NOMINAL |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.146 INCHES MINIMUM AND 0.166 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.367 INCHES MINIMUM AND 0.376 INCHES MAXIMUM |
| GRIP LENGTH | 0.625 INCHES NOMINAL |
| FEATURES PROVIDED | FINISHED HEAD |
| III PRECIOUS MATERIAL | SILVER |
Restrictions/Controls & Freight Information | NSN 5306-00-833-4964
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-00-833-4964
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
