Product Details | TOGGLE BOLT
5306-00-811-4252 An externally threaded fastener whose threaded portion is of one nominal diameter having a wing or wings mounted on the bolt head or on a trunnion nut. The wing or wings upset when the toggle bolt is inserted in a constricted passage in a hollow wall and when the bolt is tightened, the wing or wings assume a transverse or athwart position. It is used for securely holding fixtures or devices to hollow walls.
Part Alternates: DS1084, 5306-00-811-4252, 00-811-4252, 5306008114252, 008114252
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-811-4252 | 00799 ( BOLT, TOGGLE ) |
Drawings & Photos | NSN 5306-00-811-4252
Cross Reference | NSN 5306-00-811-4252
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DS1084 | 70996 | BINGHAM W CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-811-4252
Technical Data | NSN 5306-00-811-4252
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |

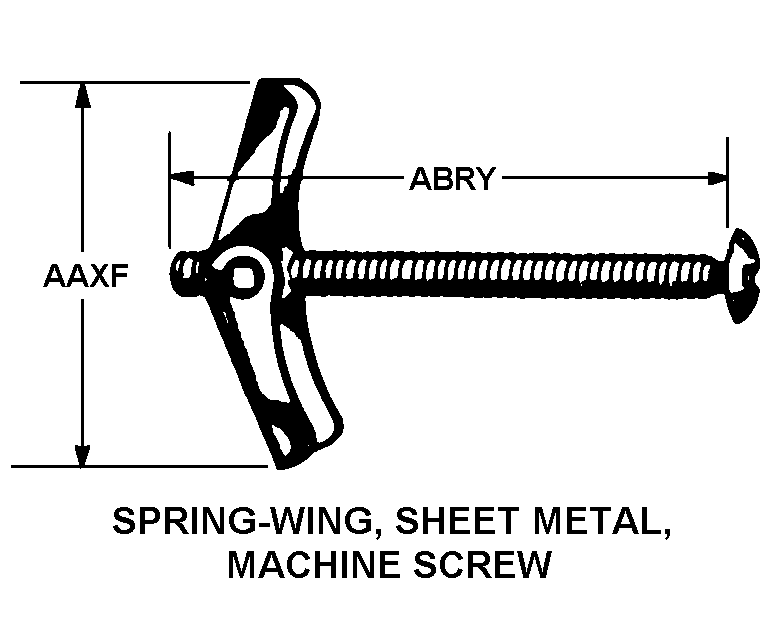

| STYLE DESIGNATOR | B60 SPRING-WING, SHEET METAL WINGS, MACHINE SCREW |
| WING SPREAD WIDTH | 0.750 INCHES MINIMUM |
| LENGTH | 4.000 INCHES NOMINAL |
| MANUFACTURERS CODE | 70996 |
| DESIGN CONTROL REFERENCE | DS1084 |
Restrictions/Controls & Freight Information | NSN 5306-00-811-4252
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 097240 | TOGGLE BOLTS I/S IN BOXES/CRATES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
