NSN 5306-00-685-3027 AN311A, AN3-11A, 932.19.21.031

Product Details | MACHINE BOLT

5306-00-685-3027 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.

Part Alternates: AN311A, AN3-11A, 932.19.21.031, 9321921031, 2010144, 30909B21, 401 270, 401270, 40321453, 403214-53, 5100003110, 5-100-0-03-110, 5306-00-685-3027, 00-685-3027, 5306006853027, 006853027

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1961	00-685-3027	01847 ( BOLT, MACHINE )

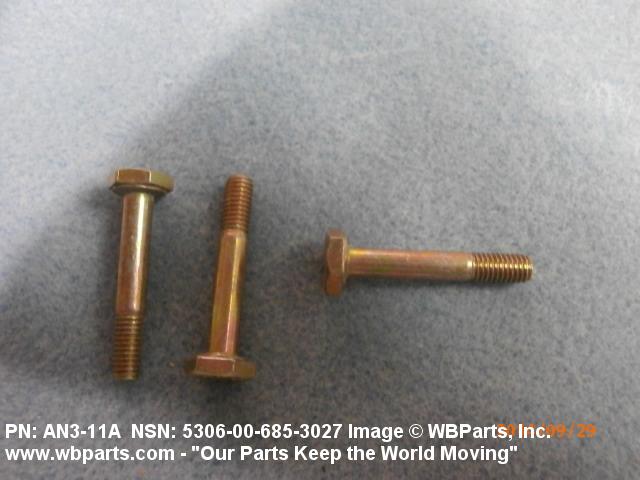

Drawings & Photos | NSN 5306-00-685-3027

Part Number	Request Date	QTY	Origin
AN311A	2024-11-309	500	United States
AN311A	2024-08-222	450	United States
AN311A	2024-06-164	400	United States
AN311A	2024-04-110	400	United States
AN311A	2023-09-264	1000	United States
AN311A	2023-09-249	1000	United States
5306-00-685-3027	2023-06-178	275	DIBBS
AN311A	2023-03-80	100	US
AN311A	2022-04-108	30	United States
AN311A	2022-02-35	5000	United States
AN311A	2020-03-79	31	Taiwan
AN311A	2020-03-70	60	Hong Kong
AN311A	2019-02-37	400	United States
AN3-11A	2016-04-118	8	UY
AN311A	2016-01-22	250	us
AN311A	2015-07-210	5	Egypt
AN3-11A	2015-05-138	1	United States
AN3-11A	2015-05-138	6	United States
AN3-11A	2015-05-138	1	United States
AN3-11A	2015-05-138	6	United States
AN311A	2014-08-225	1	Thailand
AN3-11A	2014-05-142	5000	United States
AN311A	2013-10-291	12	ZA
AN311A	2011-06-179	4	US
5306-00-685-3027	2011-06-175	4	US
5306-00-685-3027	2007-12-348	2000	US

Cross Reference | NSN 5306-00-685-3027

Part Number	Cage Code	Manufacturer
2010144	001JK	EMBRAER S/A
2010144	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
30909B21	70898	BEECHCRAFT CORPORATION DBA HAWKER BEECHCRAFT
401 270	77294	PIPER AIRCRAFT INC.
403214-53	35351	GE AVIATION SYSTEMS LLC
5-100-0-03-110	F0086	SOCATA
5100003110	F0086	SOCATA
932.19.21.031	S4080	PILATUS AIRCRAFT LTD
AN3-11A	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
AN3-11A	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-00-685-3027

Compare

Related Products | NSN 5306-00-685-3027

5306-00-685-3056, 5306-00-685-3060, 5306-00-685-3061, 5306-00-685-3062, 5306-00-685-3063

Technical Data | NSN 5306-00-685-3027

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF

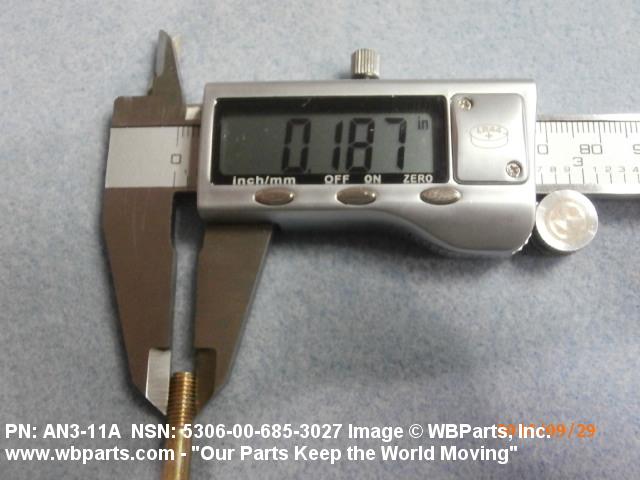

NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

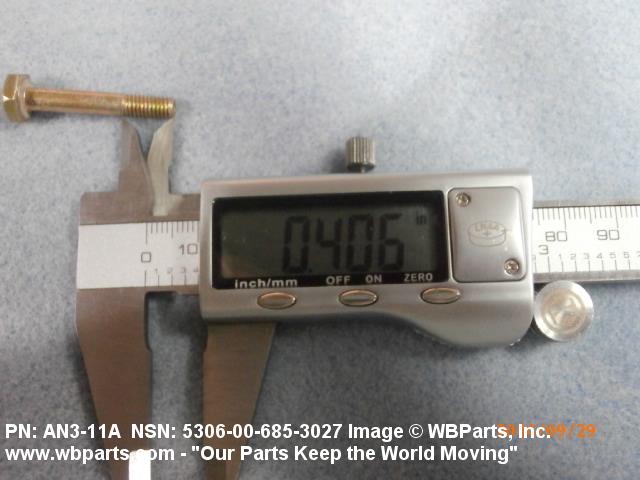

THREAD LENGTH	0.406 INCHES MINIMUM
FASTENER LENGTH	1.156 INCHES NOMINAL
MATERIAL	STEEL COMP 4037 OR STEEL COMP 4130 OR STEEL COMP 8630 OR STEEL COMP 8735 OR STEEL COMP 8740 OR STEEL COMP 4140 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-B-6812 MIL SPEC ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	125000 POUNDS PER SQUARE INCH
HEAD STYLE	C1 HEXAGON
HEAD HEIGHT	0.109 INCHES MINIMUM AND 0.141 INCHES MAXIMUM

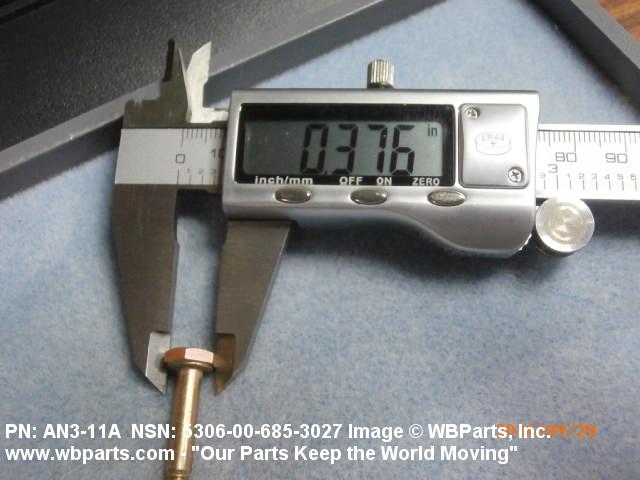

WIDTH BETWEEN FLATS	0.365 INCHES MINIMUM AND 0.377 INCHES MAXIMUM

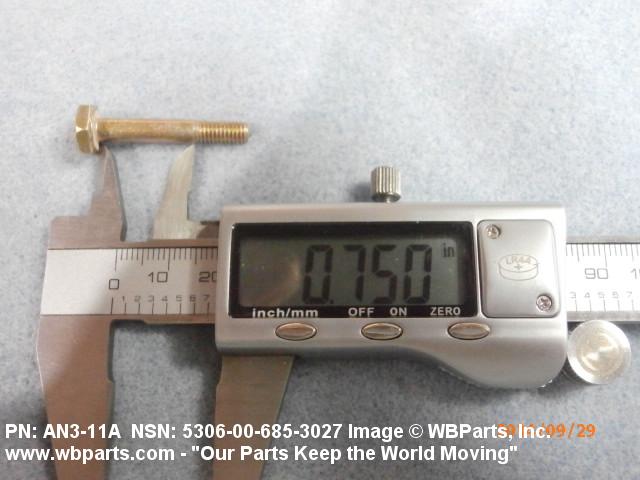

GRIP LENGTH	0.750 INCHES NOMINAL
FEATURES PROVIDED	FINISHED HEAD

Restrictions/Controls & Freight Information | NSN 5306-00-685-3027

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5306-00-685-3027

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
