NSN 5306-00-656-0358 AN3119, AN3-119, AN36A

Product Details | MACHINE BOLT

5306-00-656-0358 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.

Part Alternates: AN3119, AN3-119, AN36A, AN3-6A, BACB30NF36, BACB30NF3-6, MILB6812, 6026-8397-1, 6026900131, 6026-9001-31, 908124, 932.19.21.028, 9321921028, 6026-7001-5, 6026-7235-3, 6026-8309-2, 6026-8332-1, 14554090106, 145-540-90106, 2010116, 400 440, 400440, 4107100001, 4107100-001, 60261021, 6026-102-1, 6026-3002-8, 6026-4260-1, 6026-8382-2, 5306-00-656-0358, 00-656-0358, 5306006560358, 006560358, 602630028, 602670015, 602642601, 602683822, 602683321, 602683092, 602672353, 602683971

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-656-0358	01847 ( BOLT, MACHINE )

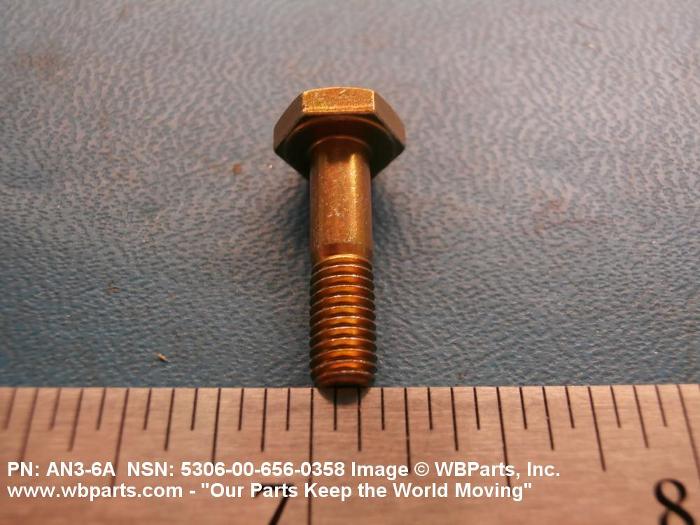

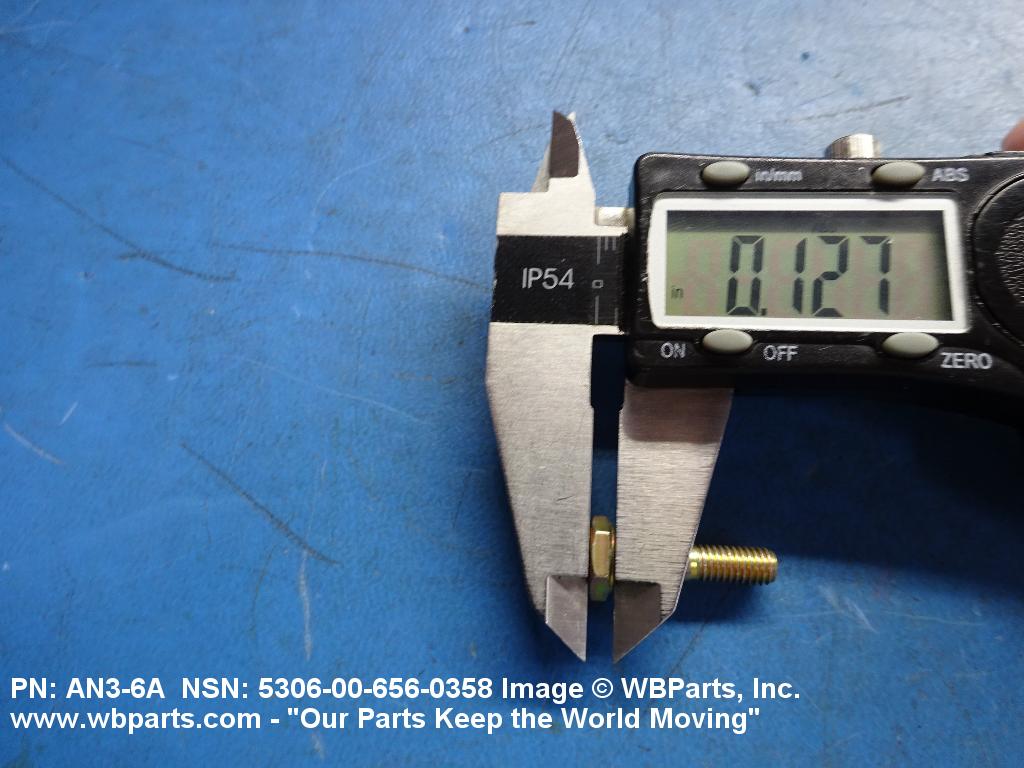

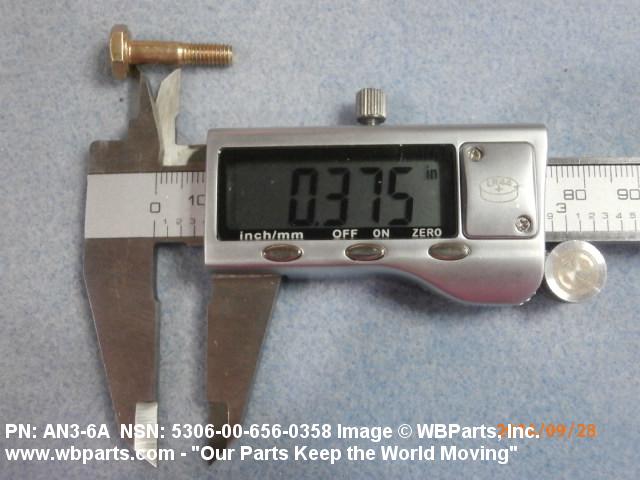

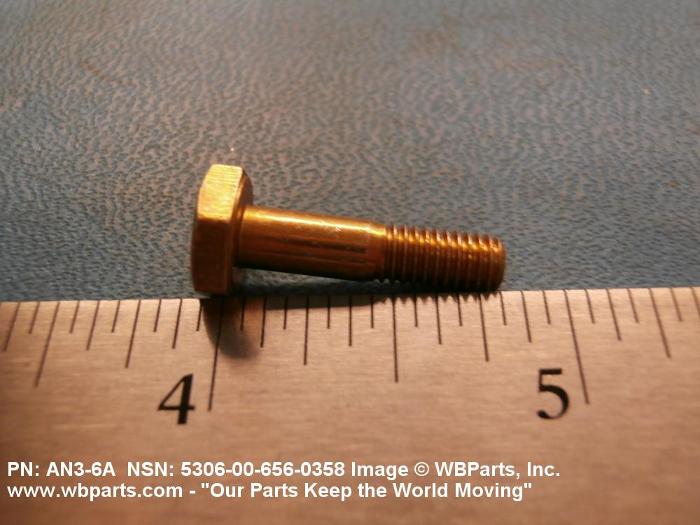

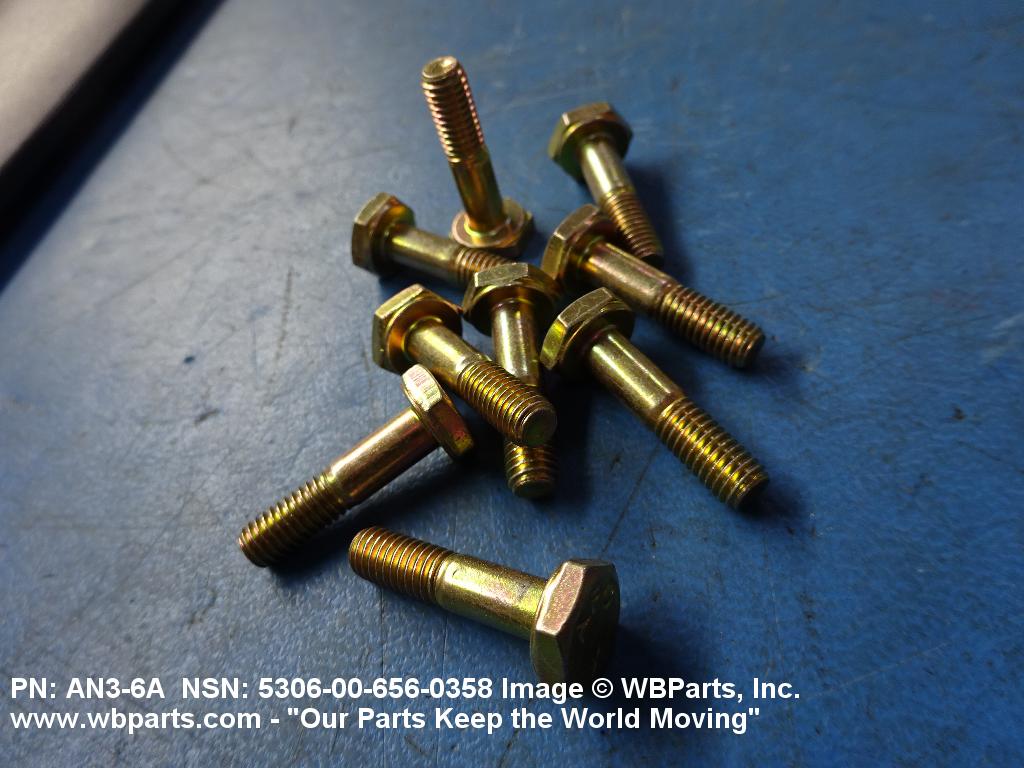

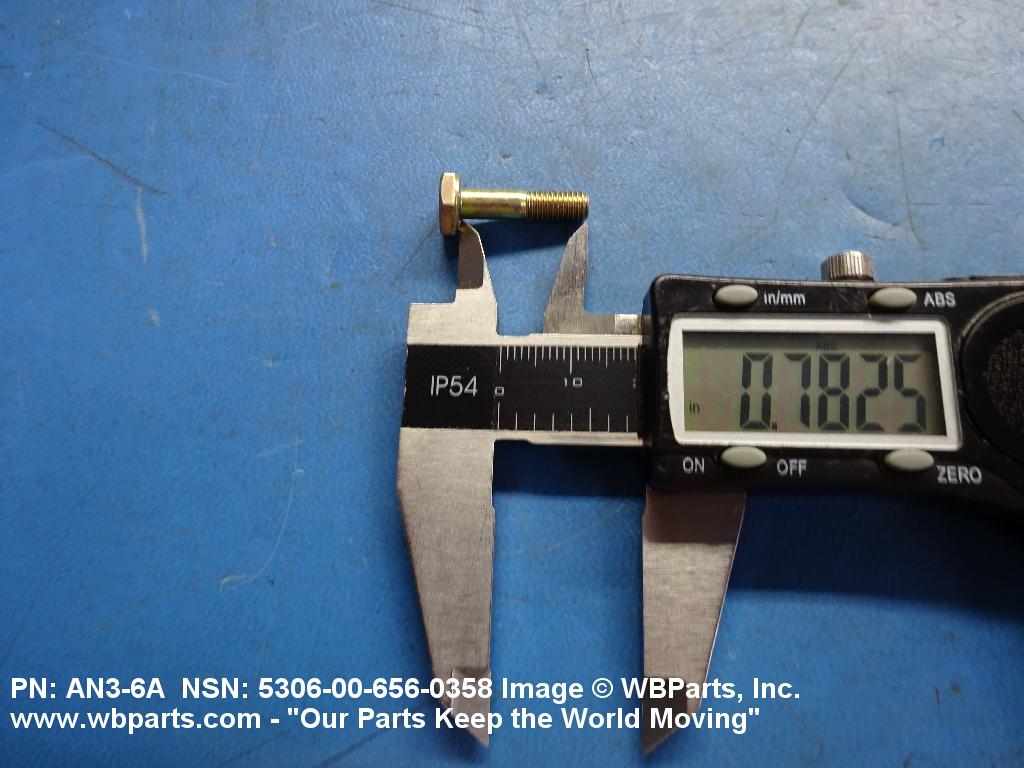

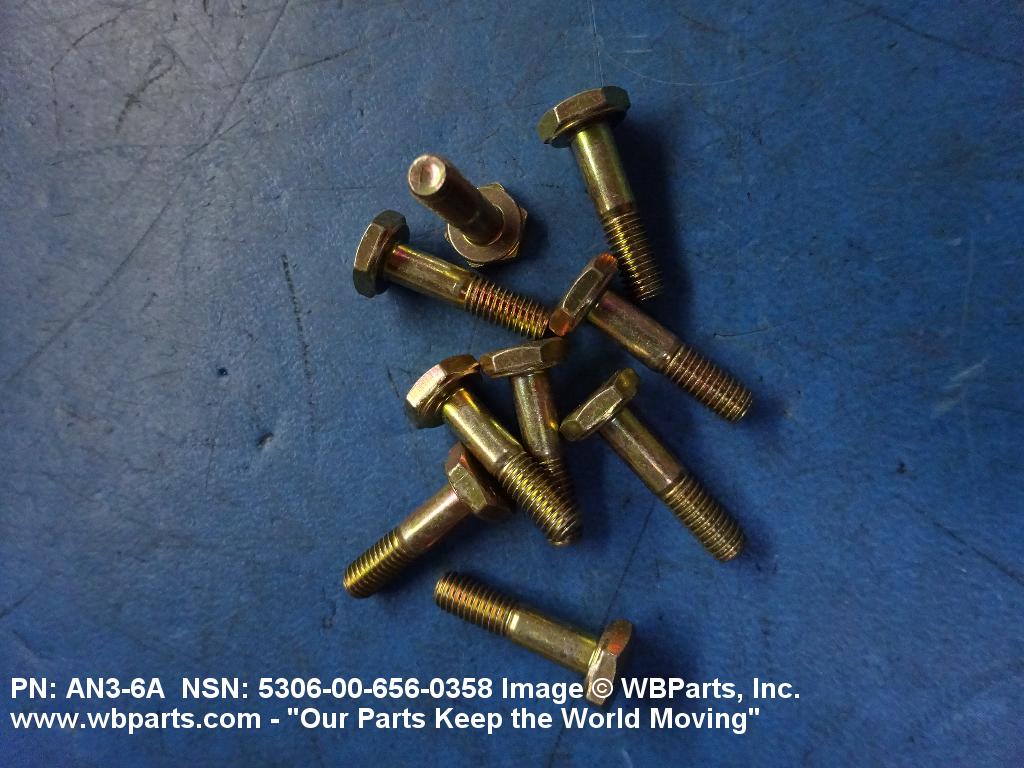

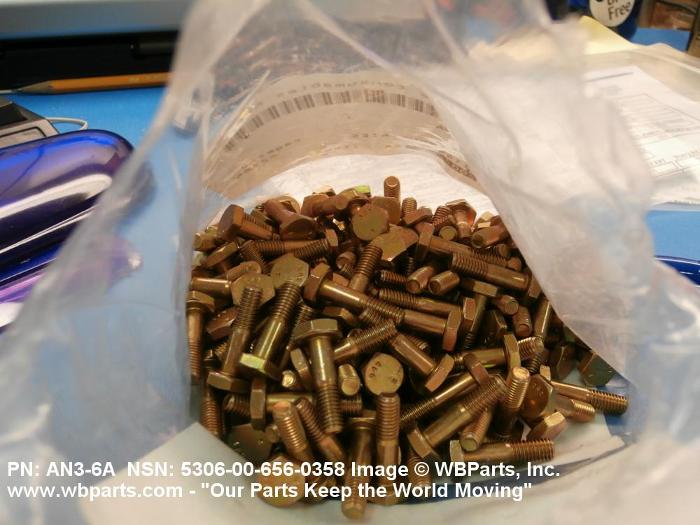

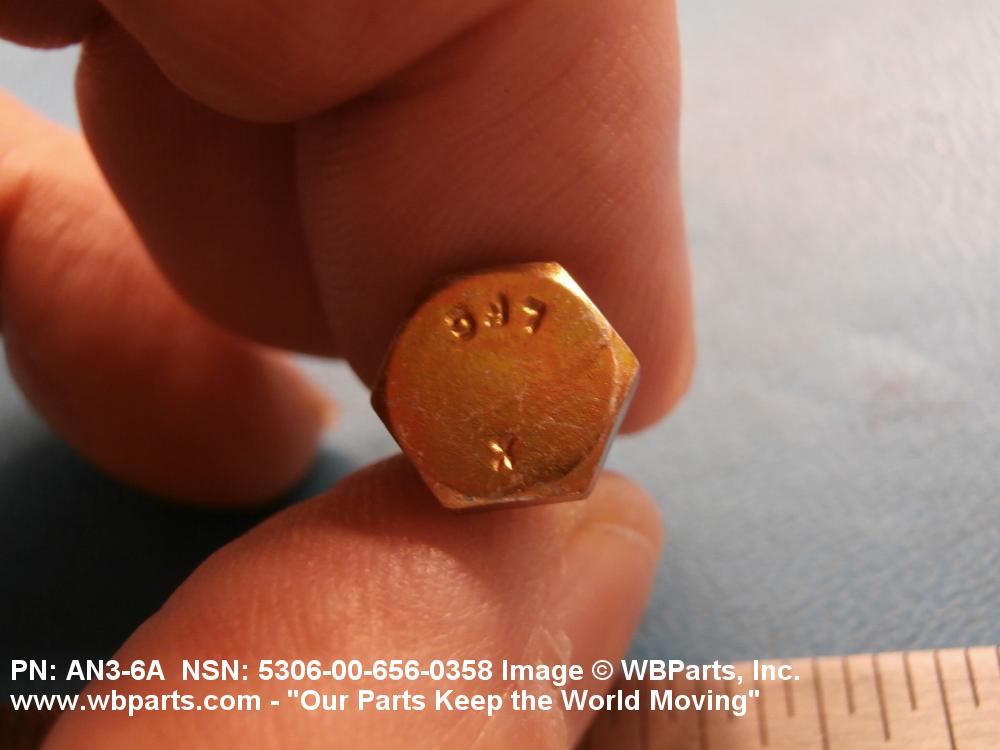

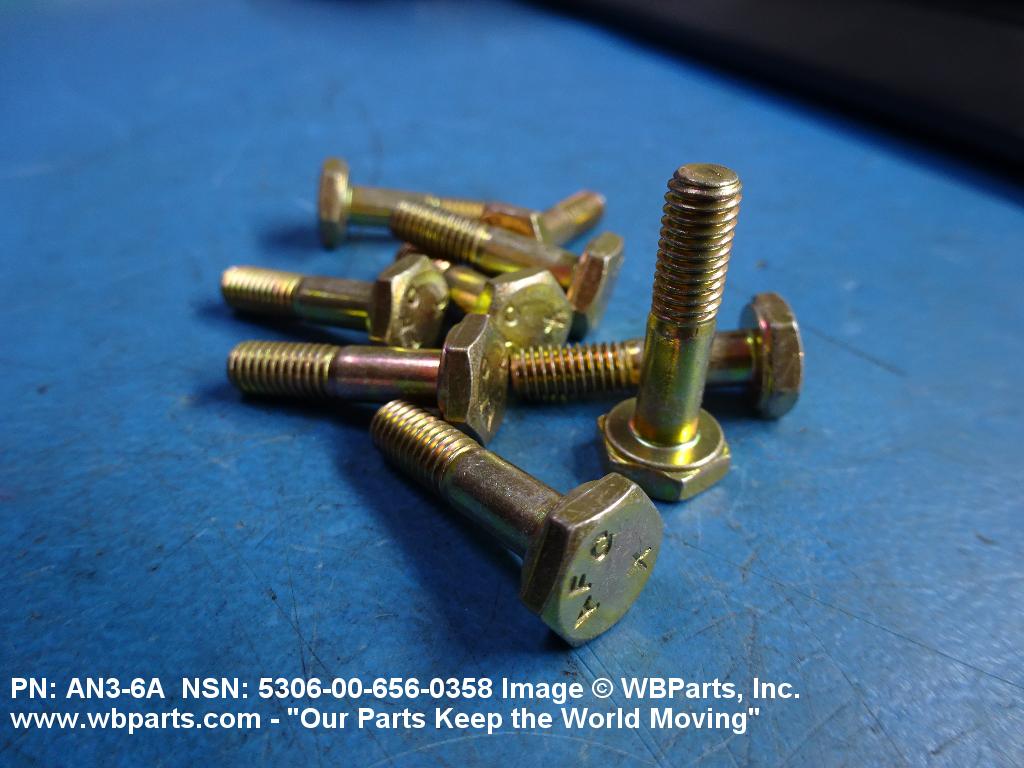

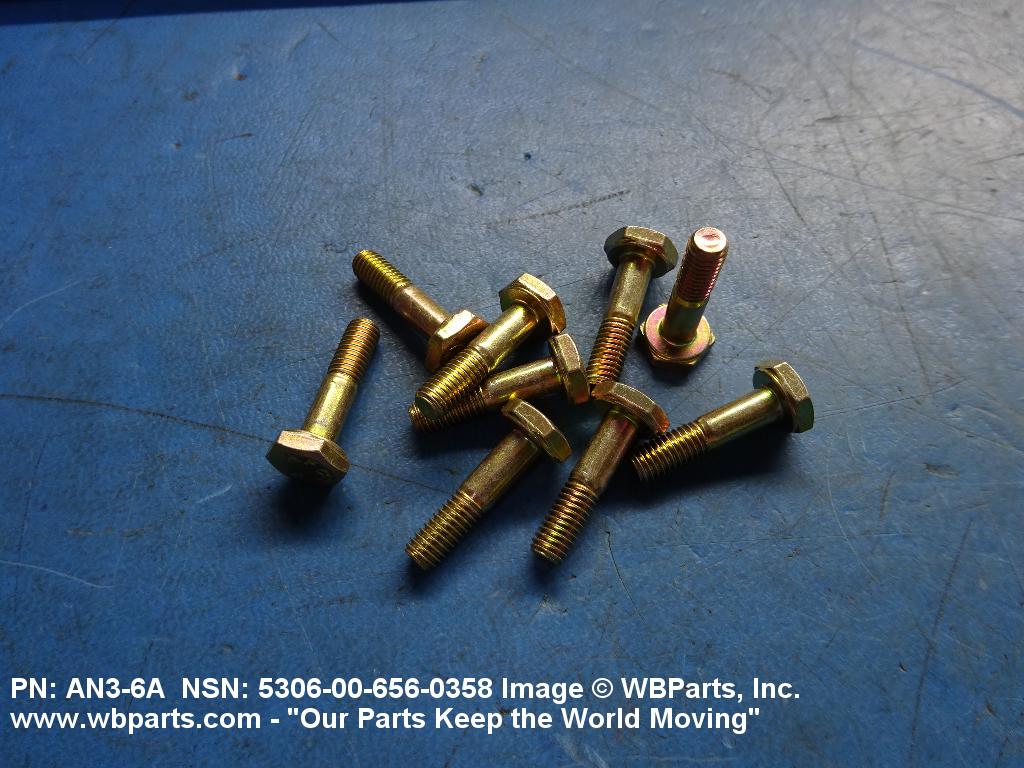

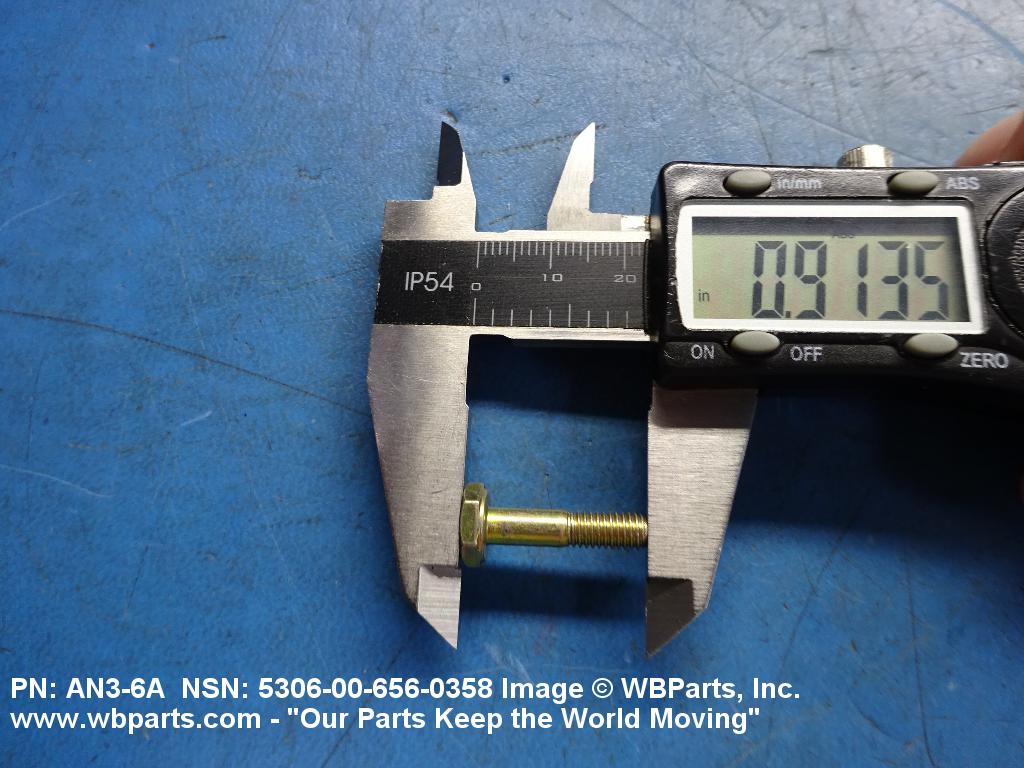

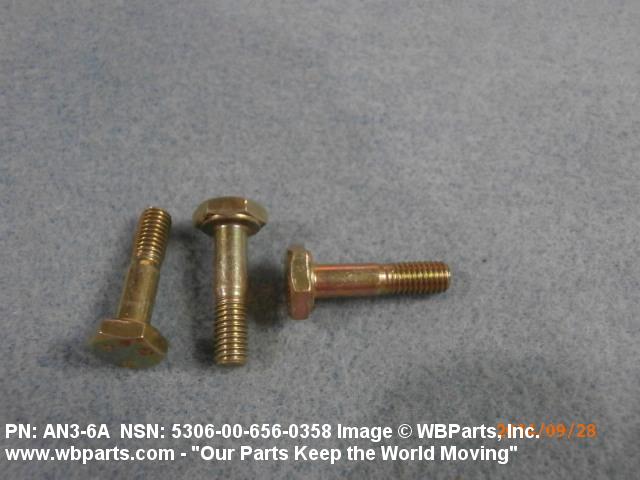

Drawings & Photos | NSN 5306-00-656-0358

Part Number	Request Date	QTY	Origin
AN36A	2024-09-255	36	US
AN36A	2024-05-150	500	United States
AN36A	2024-03-85	35	IN
AN36A	2024-02-60	200	US
AN36A	2023-12-352	1200	United States
AN36A	2023-11-314	8497	us
AN36A	2023-09-264	500	United States
AN36A	2023-09-249	200	United States
AN36A	2023-08-230	1	AE
AN36A	2023-08-216	500	United States
AN36A	2023-07-209	25	US
5306-00-656-0358	2023-07-188	48	US
AN36A	2023-06-160	1	United States
AN36A	2022-11-307	4700	United States
AN36A	2020-01-06	50	United States
5306-00-656-0358	2019-07-200	3	US
5306-00-656-0358	2018-12-344	7000	TR
AN36A	2018-10-292	367	South Africa
AN36A	2018-02-37	25	China
AN36A	2018-02-37	25	China
AN36A	2017-03-79	10	United States
5306-00-656-0358	2017-02-53	4	MANUAL
AN36A	2016-09-273	25	United States
AN36A	2016-07-204	20	CA
AN36A	2015-09-272	200	Singapore
AN36A	2015-07-190	500	Egypt
AN36A	2015-06-163	25	CN
AN36A	2015-05-140	1000	US
AN3-6A	2015-05-138	12	United States
AN3-6A	2015-05-138	15	United States
AN3-6A	2015-05-138	4	United States
AN3-6A	2015-05-138	13	United States
AN3-6A	2015-05-138	4	United States
AN3-6A	2015-05-138	12	United States
AN3-6A	2015-05-138	15	United States
AN3-6A	2015-05-138	4	United States
AN3-6A	2015-05-138	13	United States
AN3-6A	2015-05-138	4	United States
AN3-6A	2015-03-78	15000	United States
5306-00-656-0358	2015-01-29	150	US
AN36A	2014-09-251	2	United States
AN3-6A	2014-05-142	5000	United States
AN3-6A	2014-05-135	1	PH
400440	2013-05-149	2	us
400440	2013-05-149	3	us
AN36A	2012-12-346	200	Switzerland
AN36A	2012-12-344	200	Switzerland
5306006560358	2012-11-311	20	Singapore
AN36A	2011-10-304	12	United States
AN36A	2011-06-179	8	US
5306-00-656-0358	2011-06-175	8	US
AN36A	2009-05-138	360	China
5306-00-656-0358	2008-08-219	586	United States
908124	2008-01-30	640	US
5306-00-656-0358	2007-06-170	490	United States

Cross Reference | NSN 5306-00-656-0358

Part Number	Cage Code	Manufacturer
145-540-90106	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
2010116	001JK	EMBRAER S/A
2010116	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
400 440	77294	PIPER AIRCRAFT INC.
4107100-001	05869	RAYTHEON COMPANY DBA RAYTHEON
4107100-001	82577	RAYTHEON COMPANY DBA RAYTHEON
6026-102-1	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-3002-8	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-4260-1	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-7001-5	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-7235-3	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-8309-2	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-8332-1	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-8382-2	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-8397-1	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-9001-31	36378	RAYTHEON TECHNICAL SERVICES COMPANY
908124	06848	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
908124	55284	HONEYWELL INTERNATIONAL INC DBA HONEYWELL
932.19.21.028	S4080	PILATUS AIRCRAFT LTD
AN3-119	25472	BFGOODRICH CO THE
AN3-6A	00539	DEL MAR AVIONICS, LLC
AN3-6A	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
AN3-6A	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN3-6A	88444	AMERICAN SAFETY TECHNOLOGIES INC DIV ITW AMERICAN SAFETY TECHNOLOGIES
BACB30NF3-6	81205	THE BOEING COMPANY DBA BOEING
MILB6812	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MILB6812	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-00-656-0358

Compare

Related Products | NSN 5306-00-656-0358

5306-00-656-0360, 5306-00-656-0431, 5306-00-656-0433, 5306-00-656-4795, 5306-00-656-5031

Technical Data | NSN 5306-00-656-0358

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF

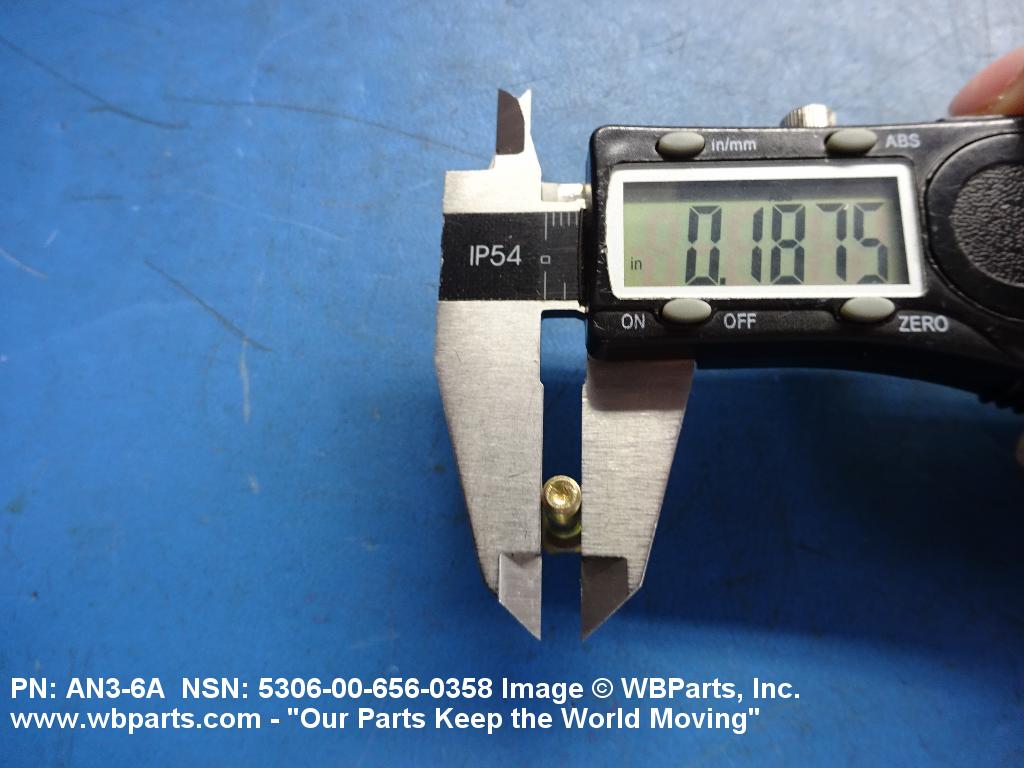

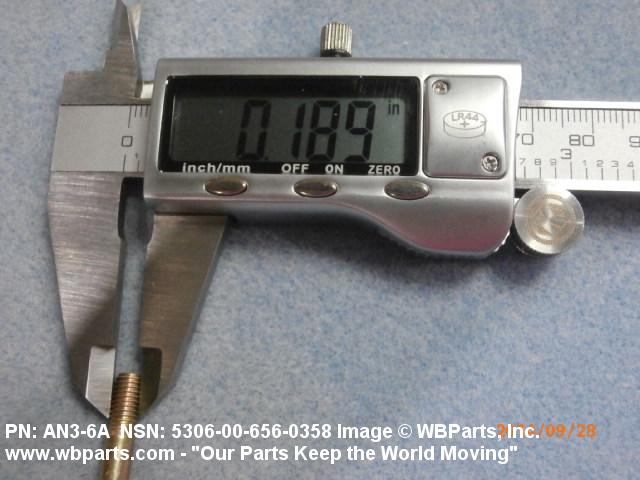

NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

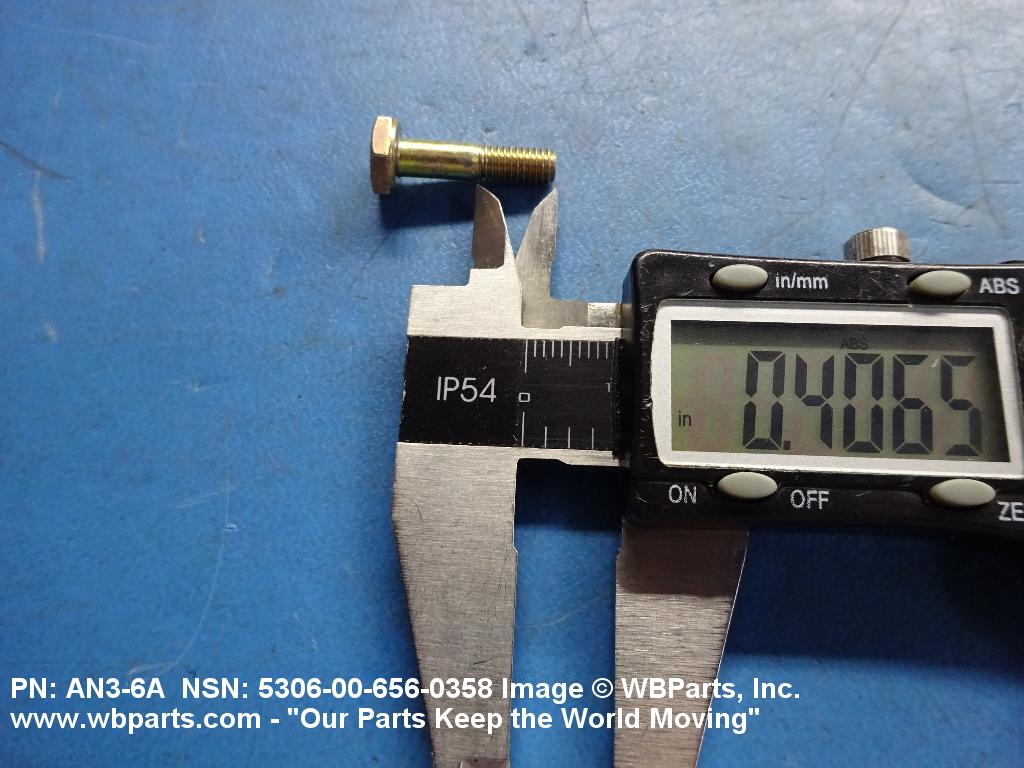

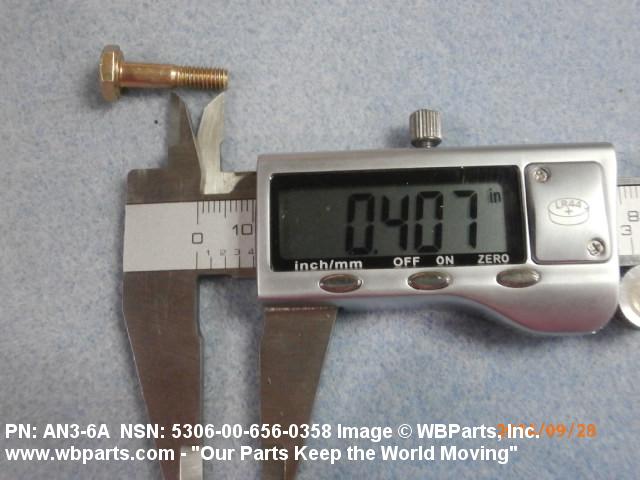

THREAD LENGTH	0.406 INCHES MINIMUM
FASTENER LENGTH	0.781 INCHES NOMINAL
MATERIAL	STEEL COMP 4037 OR STEEL COMP 4130 OR STEEL COMP 8630 OR STEEL COMP 8735 OR STEEL COMP 8740 OR STEEL COMP 4140 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-B-6812 MIL SPEC ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 2 CL 3 FED SPEC ALL TREATMENT RESPONSES OVERALL
HARDNESS RATING	26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	125000 POUNDS PER SQUARE INCH
HEAD STYLE	C1 HEXAGON
HEAD HEIGHT	0.109 INCHES MINIMUM AND 0.141 INCHES MAXIMUM

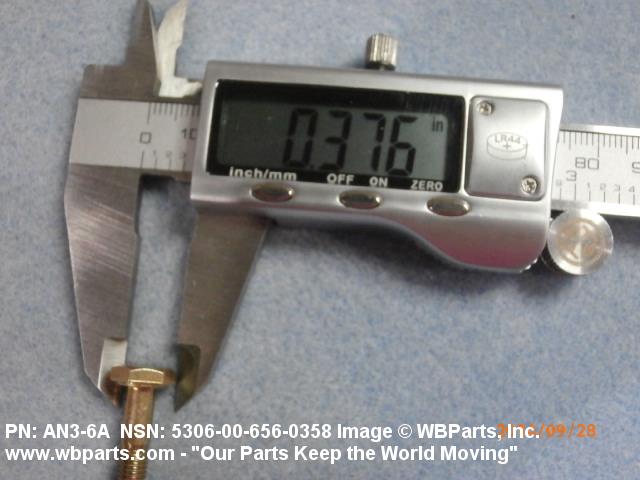

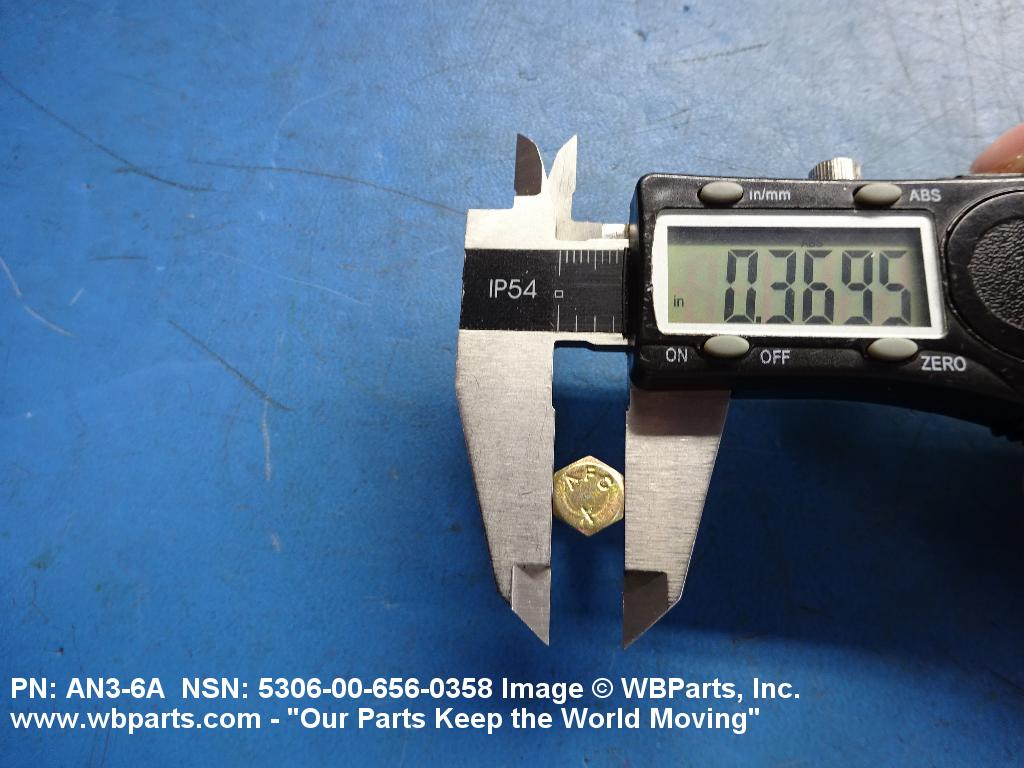

WIDTH BETWEEN FLATS	0.365 INCHES MINIMUM AND 0.377 INCHES MAXIMUM

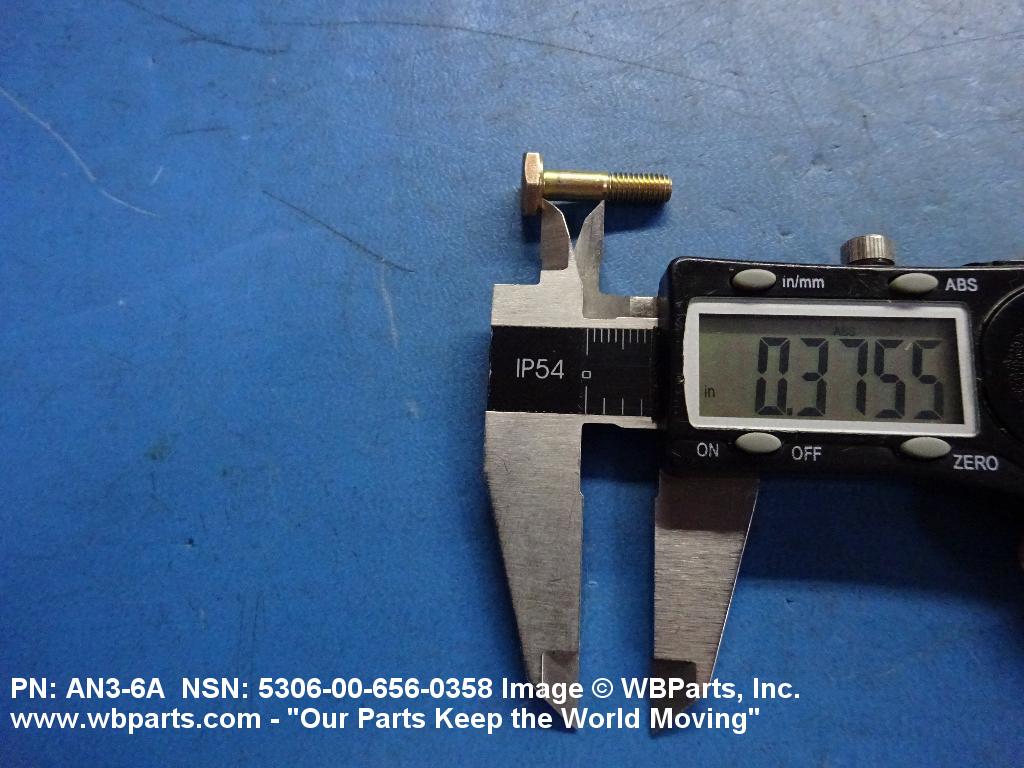

GRIP LENGTH	0.375 INCHES NOMINAL
FEATURES PROVIDED	FINISHED HEAD
III END ITEM IDENTIFICATION	B-1 SUPPORT EQUIPMENT; AIRCRAFT;B-1B TRAINER;HARPOON MISSILE;TF-56 EN;2320-01-097-0248,2320-01-097-0 249,2320-01-100-7672,2320-01-097- 0260,2320-01-195-7641, HEMTT FAMILY (HEAVY EXPANDED MOBILITY TACTICAL TRUCKS)

Restrictions/Controls & Freight Information | NSN 5306-00-656-0358

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5306-00-656-0358

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
