NSN 5306-00-515-0549 J643P12A, 2C133, 2C13-3
Product Details | MACHINE BOLT
5306-00-515-0549 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: J643P12A, 2C133, 2C13-3 , 5306-00-515-0549, 00-515-0549, 5306005150549, 005150549
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 AUG 1974 | 00-515-0549 | 01847 ( BOLT, MACHINE ) |

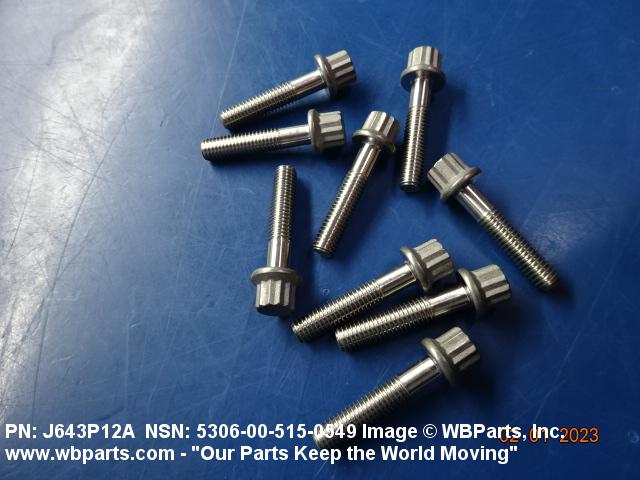

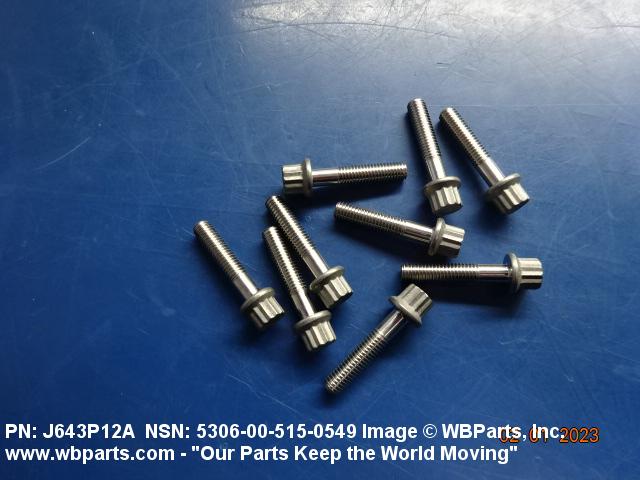

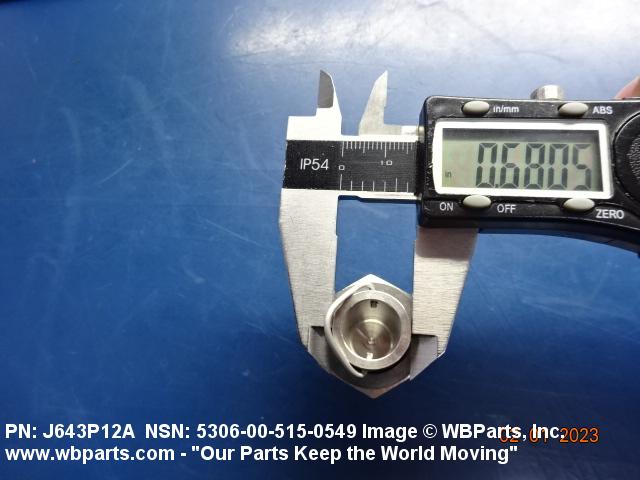

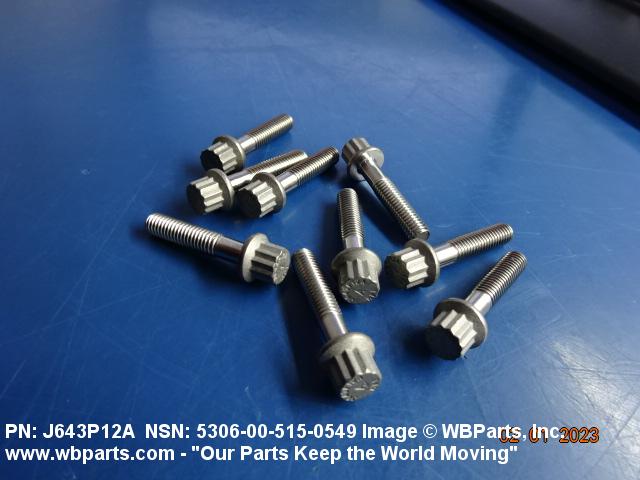

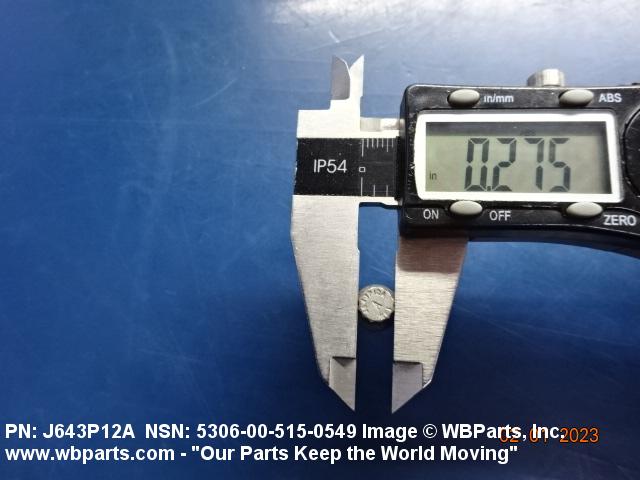

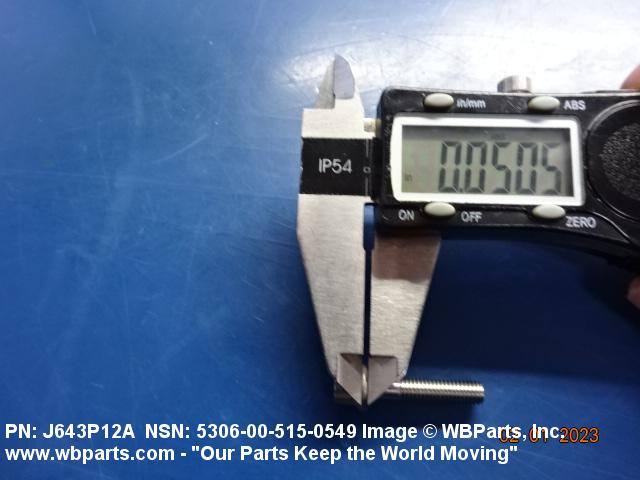

Drawings & Photos | NSN 5306-00-515-0549
Demand History | NSN 5306-00-515-0549
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| J643P12A | 2024-02-45 | 25 | United States |
| J643P12A | 2023-09-269 | 100 | United States |
| 5306-00-515-0549 | 2023-08-229 | 1 | US |
| 5306-00-515-0549 | 2023-01-19 | 20 | United States |
| 5306-00-515-0549 | 2023-01-17 | 20 | United States |
| 5306-00-515-0549 | 2022-10-286 | 10 | United States |
| J643P12A | 2021-10-293 | 30 | Taiwan |
| 5306-00-515-0549 | 2021-06-154 | 100 | MANUAL |
| J643P12A | 2021-04-110 | 4100 | DIBBS |
| J643P12A | 2021-02-47 | 4082 | DIBBS |
| J643P12A | 2020-07-189 | 2052 | DIBBS |
| 5306-00-515-0549 | 2020-04-120 | 13211 | US |
| J643P12A | 2020-01-21 | 4081 | DIBBS |
| J643P12A | 2019-09-258 | 13211 | DIBBS |
| 5306-00-515-0549 | 2019-06-177 | 3 | United States |
| 5306-00-515-0549 | 2019-06-171 | 1 | DIBBS-RFPs |
| 5306-00-515-0549 | 2019-03-89 | 1 | DIBBS-RFPs |
| J643P12A | 2019-01-22 | 6470 | DIBBS |
| J643P12A | 2019-01-08 | 6470 | DIBBS |
| 5306-00-515-0549 | 2017-03-86 | 3000 | DIBBS |
| 5306-00-515-0549 | 2017-01-08 | 2069 | DIBBS |
| 5306-00-515-0549 | 2016-09-272 | 16435 | DIBBS |
| 5306-00-515-0549 | 2016-08-216 | 3000 | DIBBS |
| 5306-00-515-0549 | 2016-07-193 | 7901 | DIBBS |
| 5306-00-515-0549 | 2016-06-165 | 11689 | DIBBS |
| 5306-00-515-0549 | 2016-05-131 | 786 | DIBBS |
| 5306-00-515-0549 | 2016-05-125 | 1238 | DIBBS |
| 5306-00-515-0549 | 2016-04-101 | 4672 | DIBBS |
| 5306-00-515-0549 | 2016-03-62 | 8065 | DIBBS |
| 5306-00-515-0549 | 2015-06-165 | 7541 | DIBBS |
| 5306-00-515-0549 | 2014-09-254 | 90 | MANUAL |
| 5306-00-515-0549 | 2013-09-260 | 50 | United States |
| J643P12A | 2013-09-248 | 50 | United States |
| 5306-00-515-0549 | 2010-09-246 | 19841 | DIBBS |
| 5306-00-515-0549 | 2010-03-71 | 25000 | DIBBS |
| J643P12A | 2010-02-32 | 125 | Canada |
| 5306-00-515-0549 | 2010-01-31 | 125 | Turkey |
| 5306-00-515-0549 | 2009-10-281 | 1000 | DIBBS |
| 5306-00-515-0549 | 2009-10-279 | 90 | DIBBS |
| 5306-00-515-0549 | 2009-05-138 | 25000 | DIBBS |
| 5306-00-515-0549 | 2009-05-130 | 25000 | DIBBS |
| 5306-00-515-0549 | 2009-02-42 | 10701 | DIBBS |
| 5306-00-515-0549 | 2009-01-22 | 2288 | DIBBS |
| 5306-00-515-0549 | 2008-11-318 | 25500 | DIBBS |
| 5306-00-515-0549 | 2008-11-316 | 4410 | DIBBS |
| 5306-00-515-0549 | 2008-11-313 | 25000 | DIBBS |
| 5306-00-515-0549 | 2008-10-294 | 3500 | DIBBS |
| J643P12A | 2008-07-200 | 4256 | US |
| J643P12A | 2007-08-242 | 10 | us |
Cross Reference | NSN 5306-00-515-0549
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| J643P12A | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-515-0549
Technical Data | NSN 5306-00-515-0549
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |

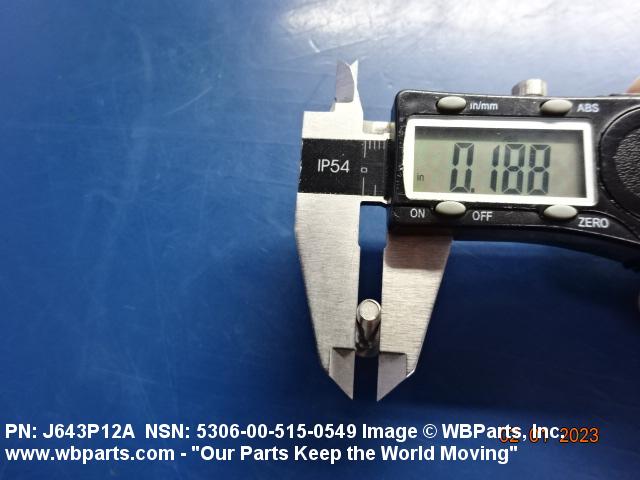

| NOMINAL THREAD DIAMETER | 0.190 INCHES |

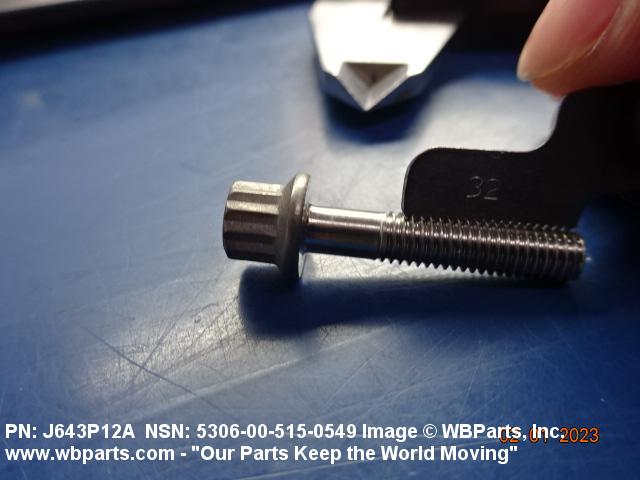

| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

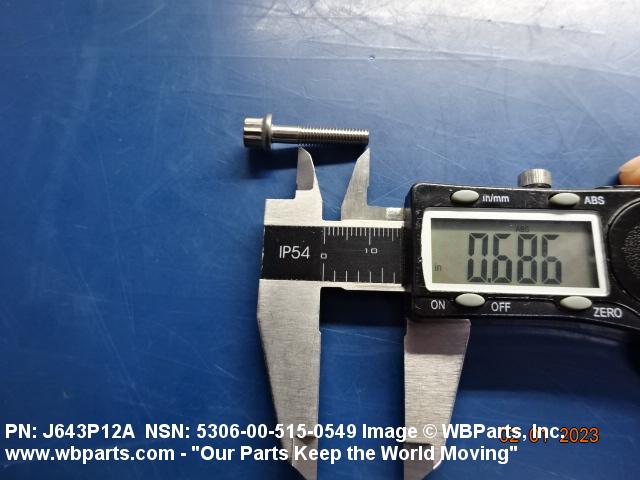

| THREAD LENGTH | 0.616 INCHES MINIMUM AND 0.696 INCHES MAXIMUM |

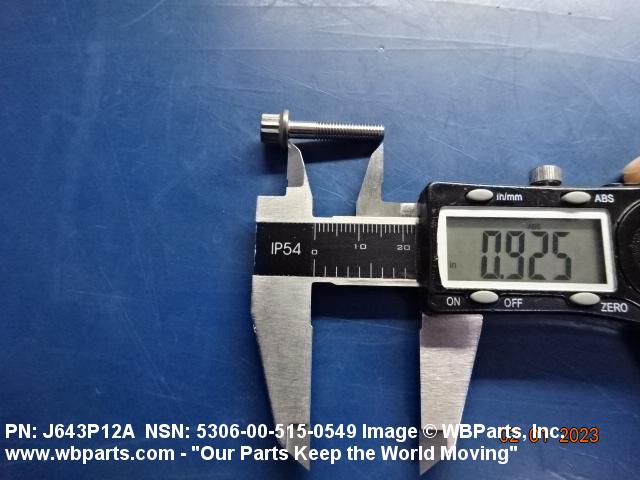

| FASTENER LENGTH | 0.928 INCHES MINIMUM AND 0.948 INCHES MAXIMUM |
| MATERIAL | NICKEL ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | C50TF13,CL B,FSCM 07482 MFR REF SINGLE MATERIAL RESPONSE OVERALL |
| HEAD STYLE | C9 DOUBLE HEXAGON EXTENDED WASHER |

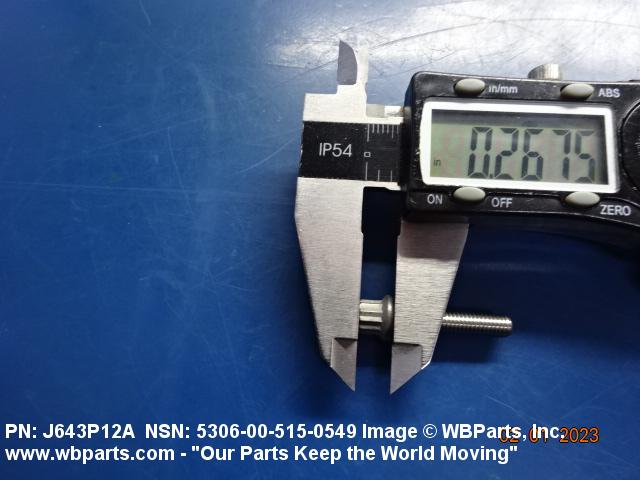

| HEAD HEIGHT | 0.248 INCHES MINIMUM AND 0.268 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.250 INCHES NOMINAL |

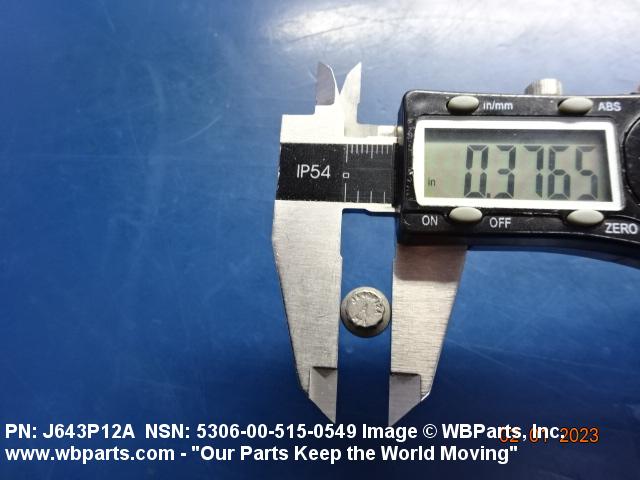

| EXTENDED WASHER DIAMETER | 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| EXTENDED WASHER THICKNESS | 0.040 INCHES MINIMUM AND 0.050 INCHES MAXIMUM |
| GRIP LENGTH | 0.252 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| SURFACE FINISH | 32.0 MICROINCHES GRIP 32.0 MICROINCHES THREADS |
| FEATURES PROVIDED | FINISHED HEAD |
| MANUFACTURERS CODE | 07482 |
| DESIGN CONTROL REFERENCE | J643P12A |
Restrictions/Controls & Freight Information | NSN 5306-00-515-0549
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
