NSN 5306-00-514-8108 169199, 8746832-01, 00-514-8108
Product Details | MACHINE BOLT
5306-00-514-8108 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: 169199, 8746832-01, 5306-00-514-8108, 00-514-8108, 5306005148108, 005148108, 874683201
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-514-8108 | 01847 ( BOLT, MACHINE ) |

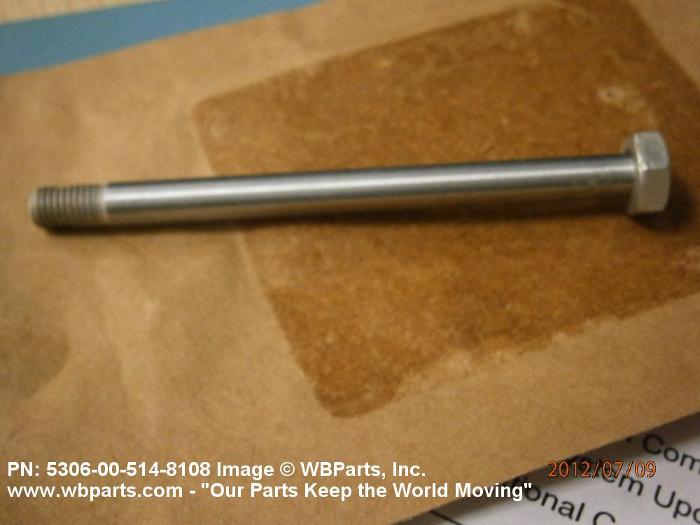

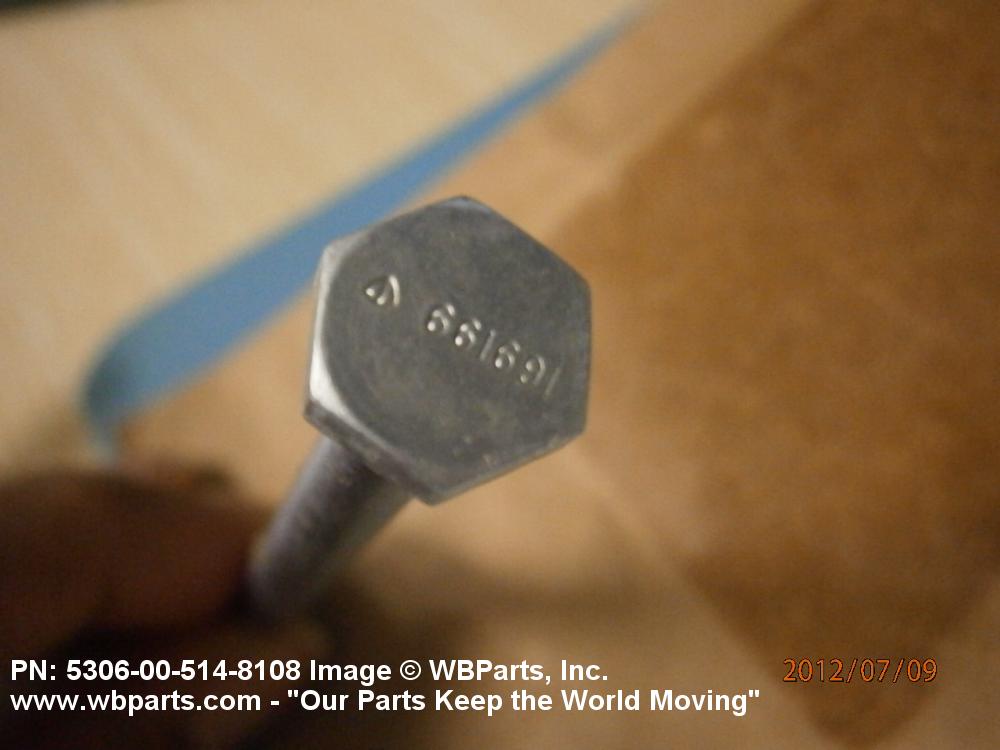

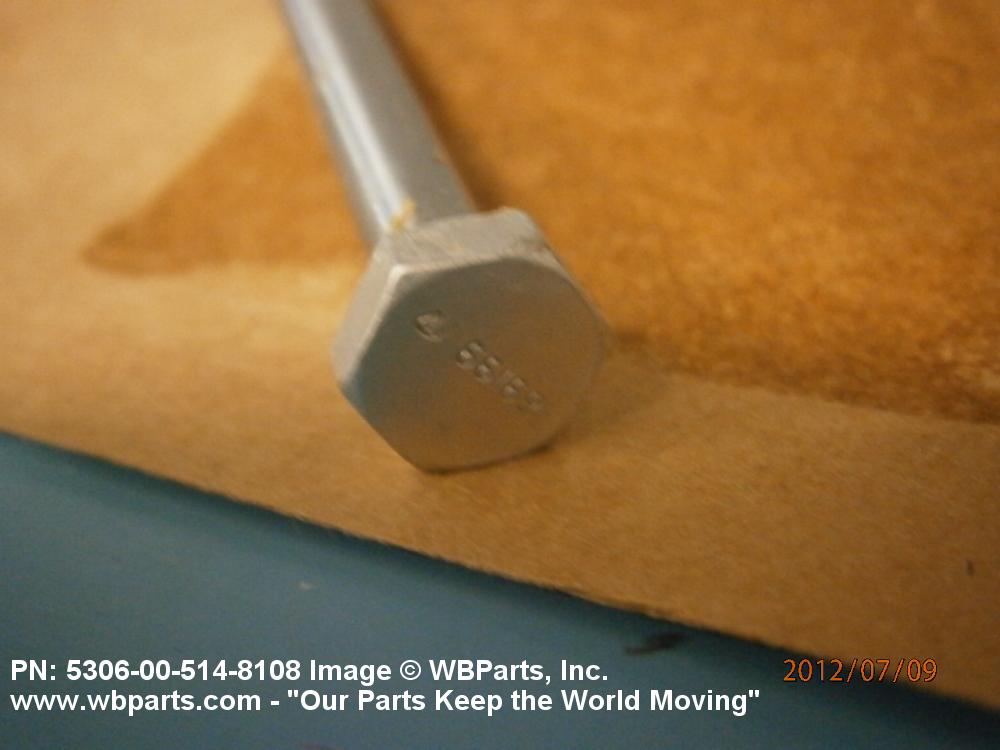

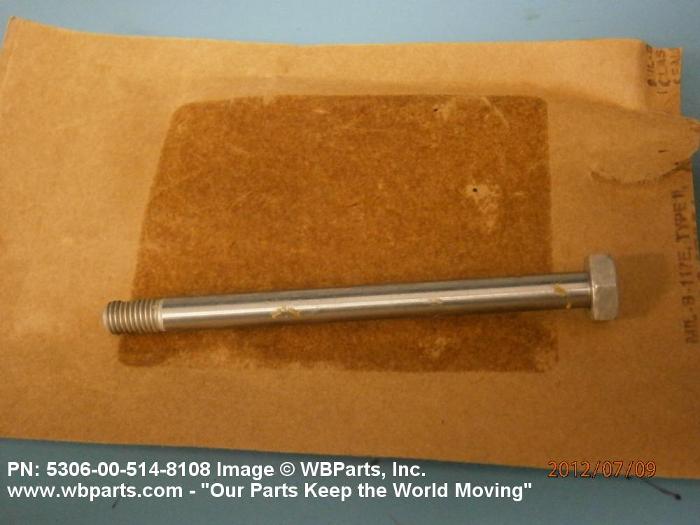

Drawings & Photos | NSN 5306-00-514-8108
Demand History | NSN 5306-00-514-8108
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-514-8108 | 2017-02-32 | 100 | DIBBS |
| 5306-00-514-8108 | 2014-04-120 | 124 | DIBBS |
| 5306-00-514-8108 | 2014-04-111 | 50 | DIBBS |
| 5306-00-514-8108 | 2014-04-111 | 34 | DIBBS |
| 5306-00-514-8108 | 2014-04-100 | 34 | DIBBS |
| 5306-00-514-8108 | 2014-04-99 | 50 | DIBBS |
| 5306-00-514-8108 | 2012-06-178 | 1 | United States |
| 5306-00-514-8108 | 2012-06-172 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-514-8108
Technical Data | NSN 5306-00-514-8108
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.354 INCHES MINIMUM AND 0.394 INCHES MAXIMUM |
| FASTENER LENGTH | 3.302 INCHES MINIMUM AND 3.322 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE OR MIL-P-6871 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 180000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.146 INCHES MINIMUM AND 0.166 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.428 INCHES MINIMUM AND 0.448 INCHES MAXIMUM |
| GRIP LENGTH | 2.928 INCHES MINIMUM AND 2.948 INCHES MAXIMUM |
| SURFACE FINISH | 67.0 MICROINCHES GRIP 100.0 MICROINCHES THREADS |
| DISTANCE FROM HEAD LARGEST BEARING SURFACE TO SHANK HOLE CENTER | 3.131 INCHES MINIMUM AND 3.151 INCHES MAXIMUM FIRST HOLE |
| SHANK UNTHREADED HOLE DIAMETER | 0.066 INCHES MINIMUM AND 0.086 INCHES MAXIMUM FIRST HOLE |
| FEATURES PROVIDED | FINISHED HEAD |
| MANUFACTURERS CODE | 98747 |
| DESIGN CONTROL REFERENCE | 8746832-01 |
Restrictions/Controls & Freight Information | NSN 5306-00-514-8108
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-00-514-8108
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | LE | SU:LANDING GEAR SYSTEMS AND COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
