NSN 5306-00-512-8044 S1046452, 00046, 1046452
Product Details | MACHINE BOLT
5306-00-512-8044 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: S1046452, 00046, 1046452, 5306-00-512-8044, 00-512-8044, 5306005128044, 005128044
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-512-8044 | 01847 ( BOLT, MACHINE ) |

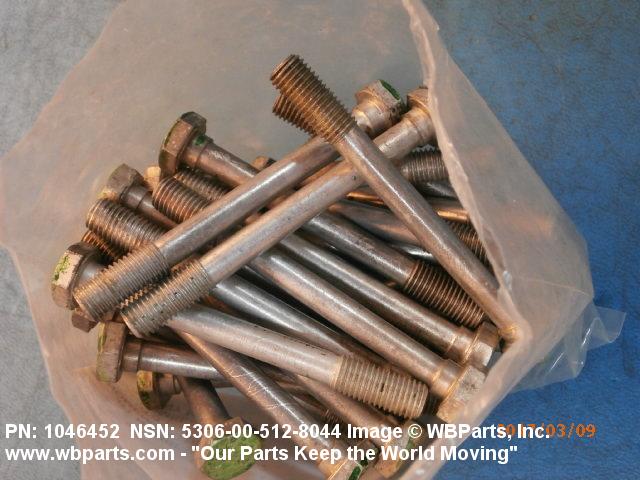

Drawings & Photos | NSN 5306-00-512-8044
Demand History | NSN 5306-00-512-8044
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-512-8044 | 2017-02-36 | 40 | Australia |
Cross Reference | NSN 5306-00-512-8044
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-512-8044
Technical Data | NSN 5306-00-512-8044
| Characteristic | Specifications |
|---|---|

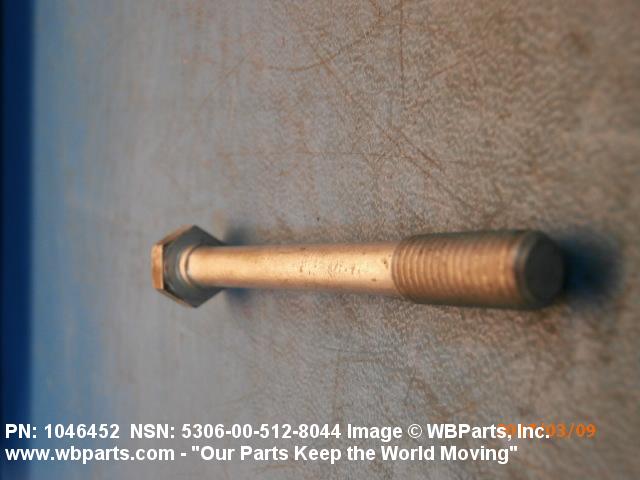

| THREAD SERIES DESIGNATOR | UNF |

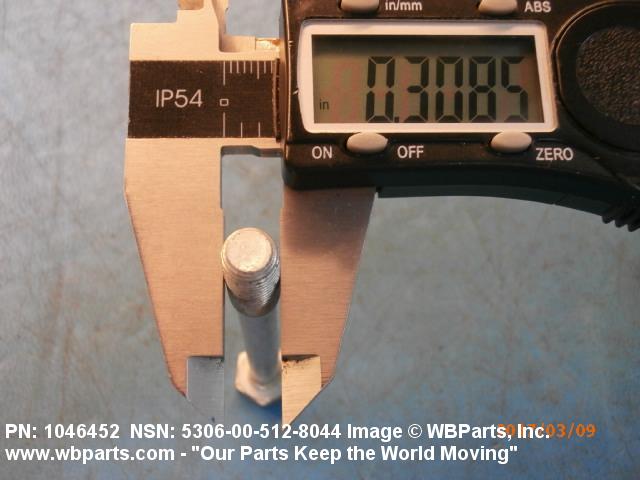

| NOMINAL THREAD DIAMETER | 0.312 INCHES |

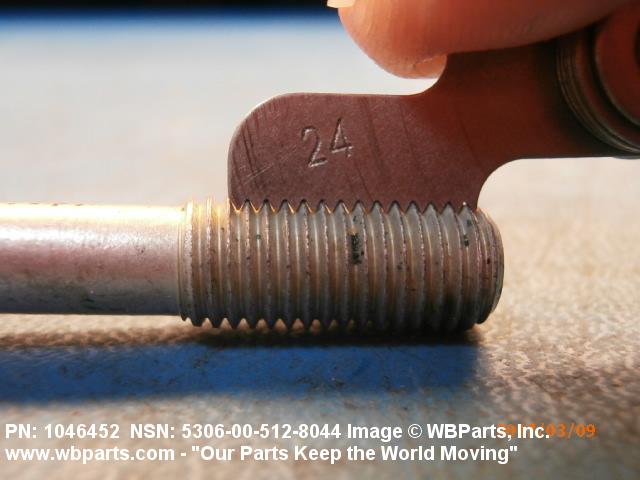

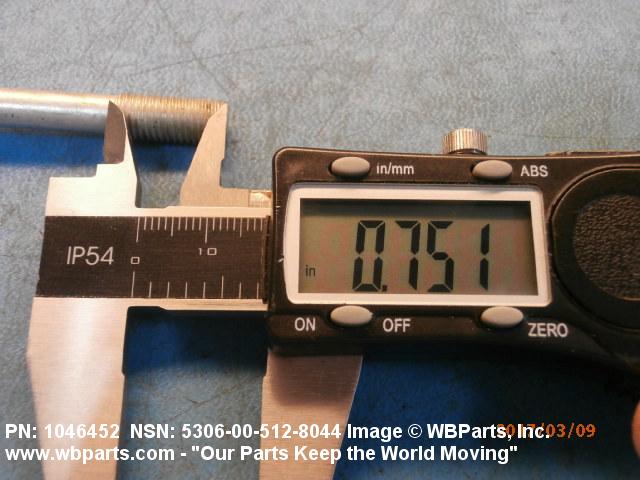

| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.688 INCHES MINIMUM |

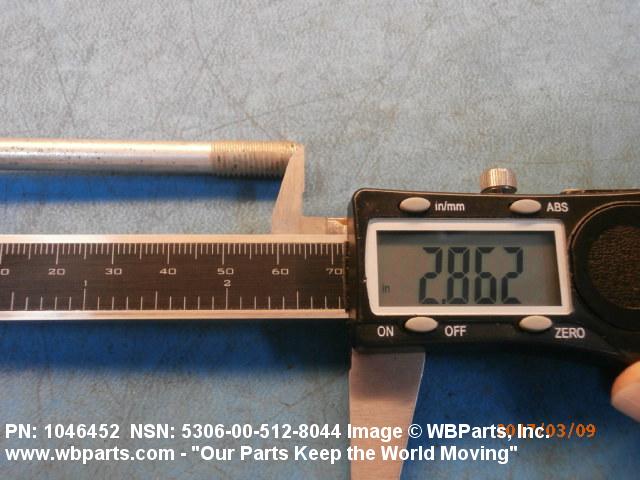

| FASTENER LENGTH | 2.859 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-624 COMP 4337 (CANCELLED) FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY1 CL3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 25.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 125000 POUNDS PER SQUARE INCH |

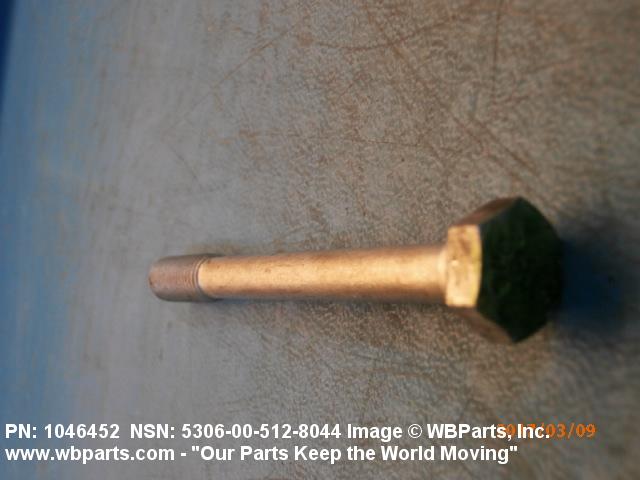

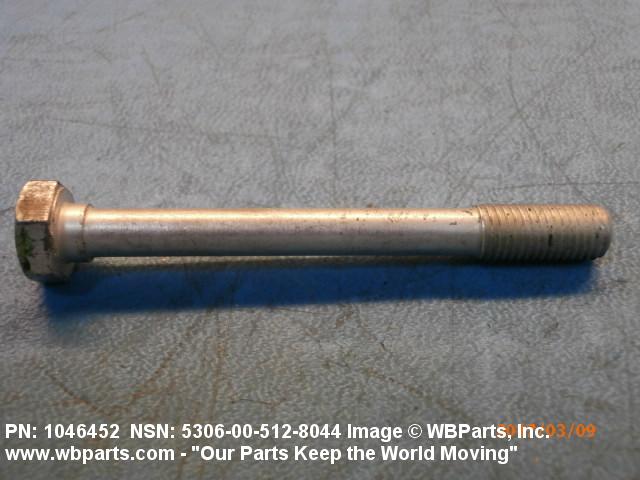

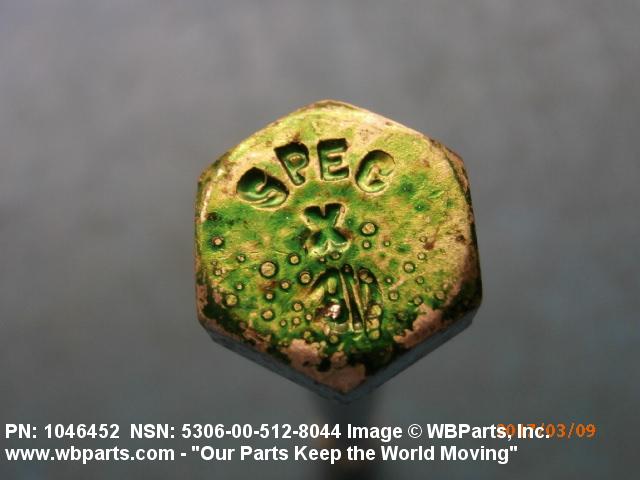

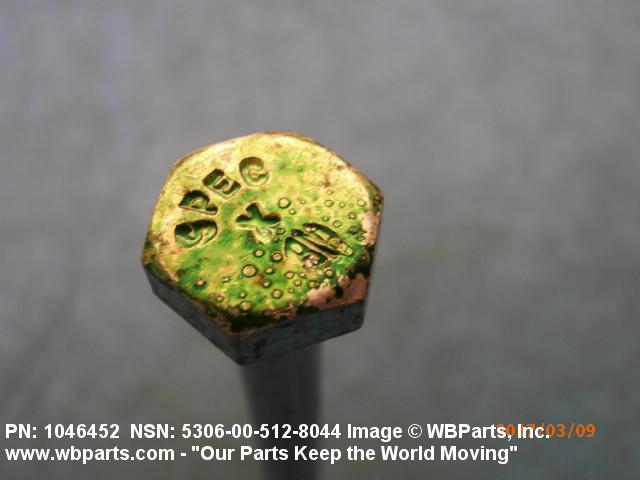

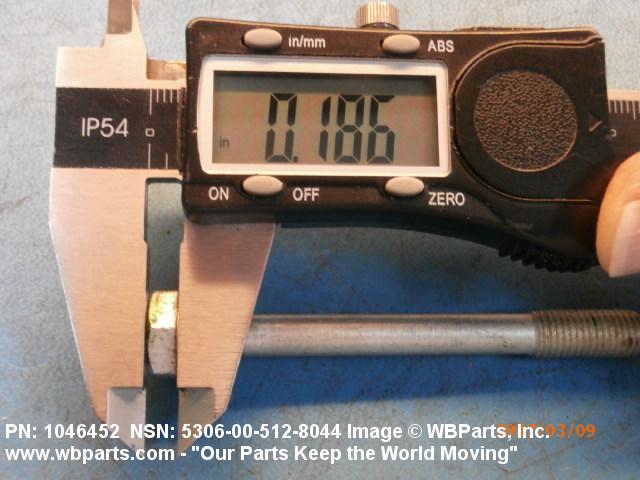

| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.188 INCHES NOMINAL |

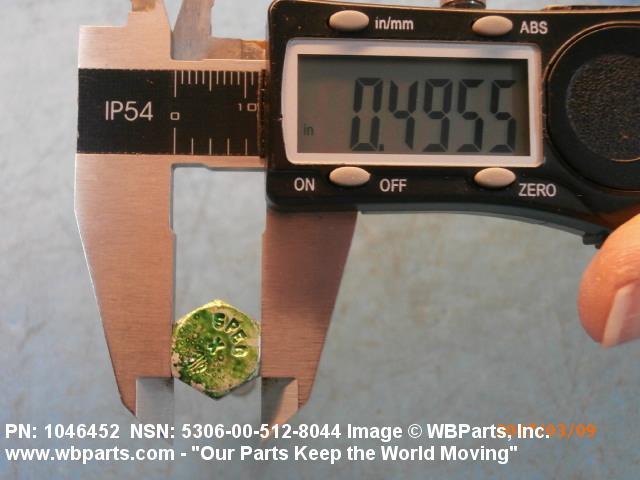

| WIDTH BETWEEN FLATS | 0.500 INCHES NOMINAL |

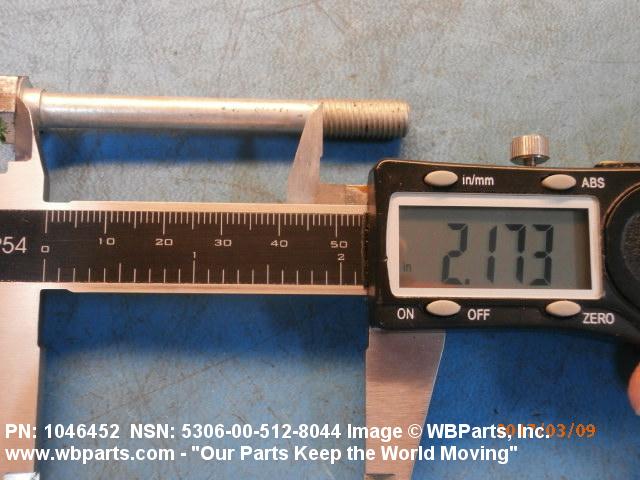

| GRIP LENGTH | 2.171 INCHES NOMINAL |
| SURFACE FINISH | 63.0 MICROINCHES GRIP |
| FEATURES PROVIDED | FINISHED HEAD |
| MANUFACTURERS CODE | 88277 |
| DESIGN CONTROL REFERENCE | S1046452 |
