Product Details | MACHINE BOLT
5306-00-453-5583 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: 11633399, 5306-00-453-5583, 00-453-5583, 5306004535583, 004535583
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 APR 1969 | 00-453-5583 | 01847 ( BOLT, MACHINE ) |

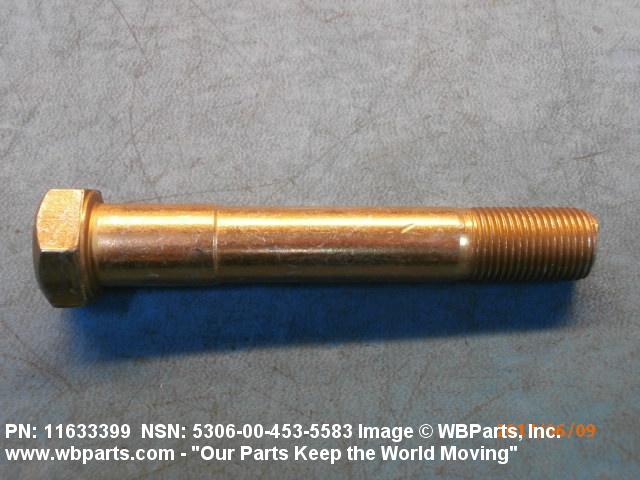

Drawings & Photos | NSN 5306-00-453-5583
Demand History | NSN 5306-00-453-5583
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-453-5583 | 2017-05-122 | 100 | Taiwan |
| 5306-00-453-5583 | 2017-04-103 | 200 | Taiwan |
| 5306-00-453-5583 | 2017-02-40 | 1 | DIBBS-RFPs |
| 11633399 | 2010-05-133 | 12 | United Arab Emirates |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-453-5583
Related Products | NSN 5306-00-453-5583
Technical Data | NSN 5306-00-453-5583

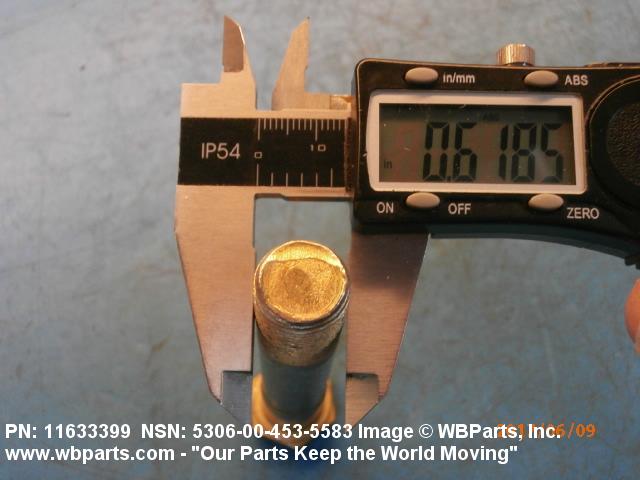

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.625 INCHES |

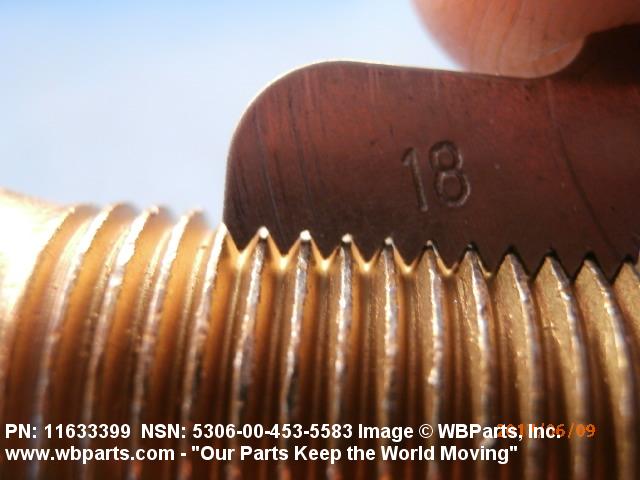

| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

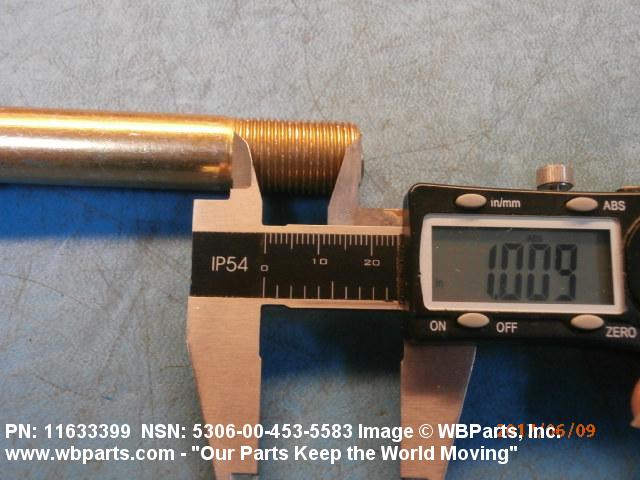

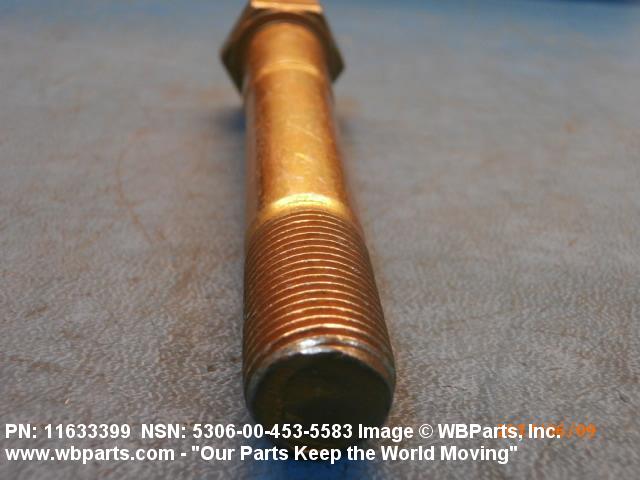

| THREAD LENGTH | 1.000 INCHES NOMINAL |

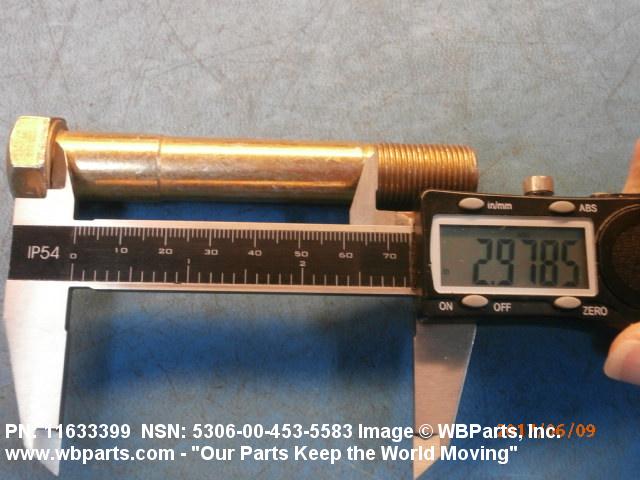

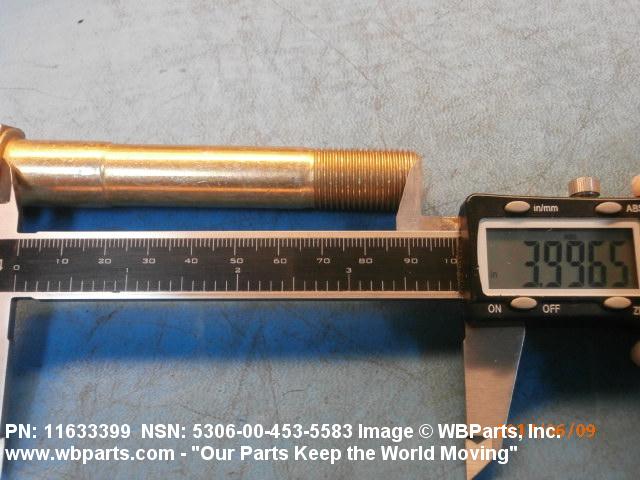

| FASTENER LENGTH | 4.000 INCHES NOMINAL |
| MATERIAL | STEEL COMP 1345 OR STEEL COMP 4130 OR STEEL COMP 4135 OR STEEL COMP 4137 OR STEEL COMP 4140 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-624 FED SPEC ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 1 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 23.0 ROCKWELL C MINIMUM AND 30.0 ROCKWELL C MAXIMUM OVERALL |

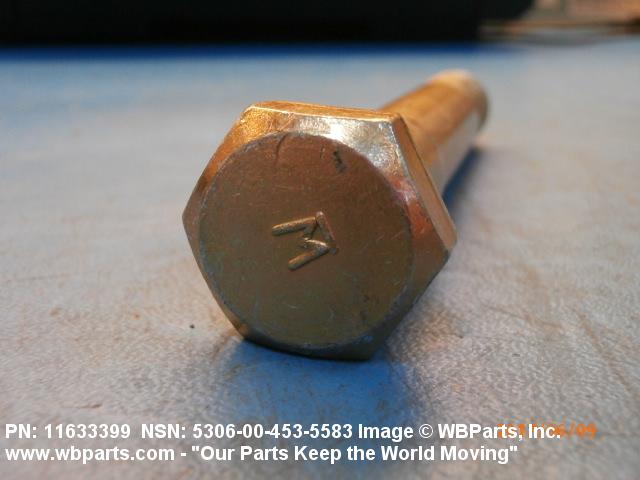

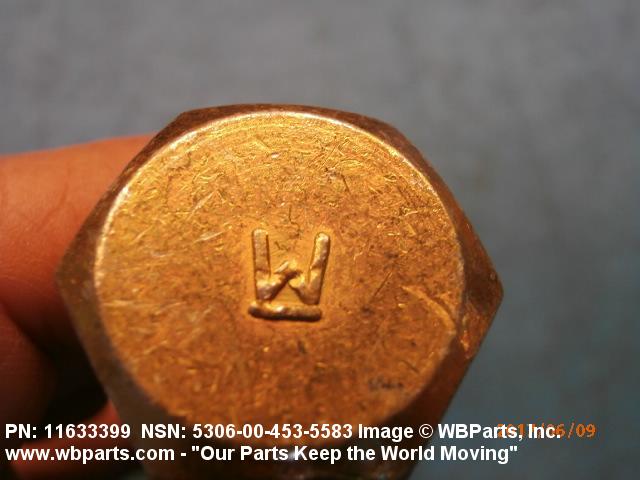

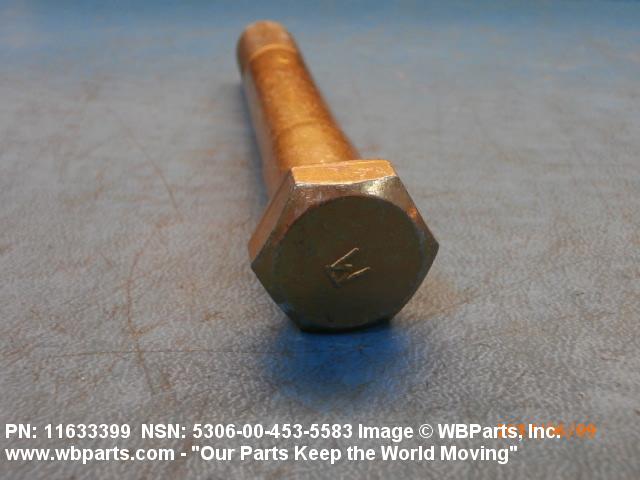

| HEAD STYLE | C1 HEXAGON |

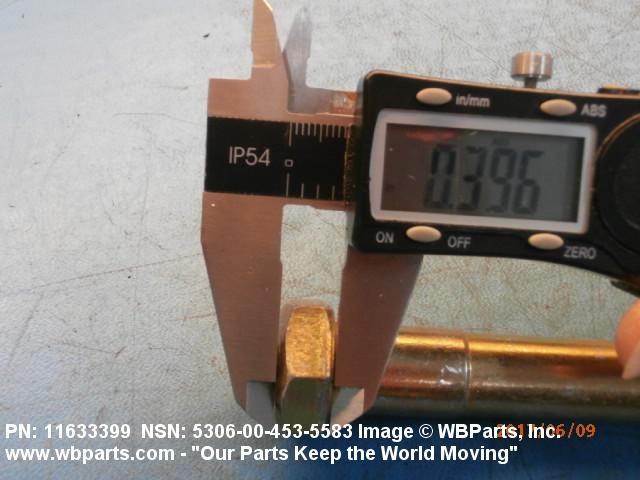

| HEAD HEIGHT | 0.370 INCHES MINIMUM AND 0.430 INCHES MAXIMUM |
| GRIP LENGTH | 3.000 INCHES NOMINAL |
| FEATURES PROVIDED | CASEHARDENED |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 11633399 |
Restrictions/Controls & Freight Information | NSN 5306-00-453-5583
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | BE | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
