NSN 5306-00-383-7088 ADH5013A, CADH5013A, 315563
Product Details | SHOULDER BOLT
5306-00-383-7088 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is not designed to be held or driven with an inserted drivers. A locking feature may be incorporated in the design of the head or threads. For items with a thread diameter smaller than No. 10 (0.190 IN.) (5 mm) and those items with an inserted drive head, use SCREW, SHOULDER. For items which are No. 10 (0.190 IN.) (5 mm) or larger in size and are both shouldered and have an externally relieved body, use BOLT, EXTERNALLY RELIEVED BODY. Excludes THUMBSCREW.
Part Alternates: ADH5013A, CADH5013A, 315563, 5306-00-383-7088, 00-383-7088, 5306003837088, 003837088
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-383-7088 | 04905 ( BOLT, SHOULDER ) |
Drawings & Photos | NSN 5306-00-383-7088
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-383-7088
Technical Data | NSN 5306-00-383-7088
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3A |
| THREAD LENGTH | 0.625 INCHES MINIMUM |
| FASTENER LENGTH | 2.094 INCHES NOMINAL |
| MINIMUM TENSILE STRENGTH | 120000 POUNDS PER SQUARE INCH |
| MINIMUM YIELD STRENGTH | 105000 POUNDS PER SQUARE INCH |

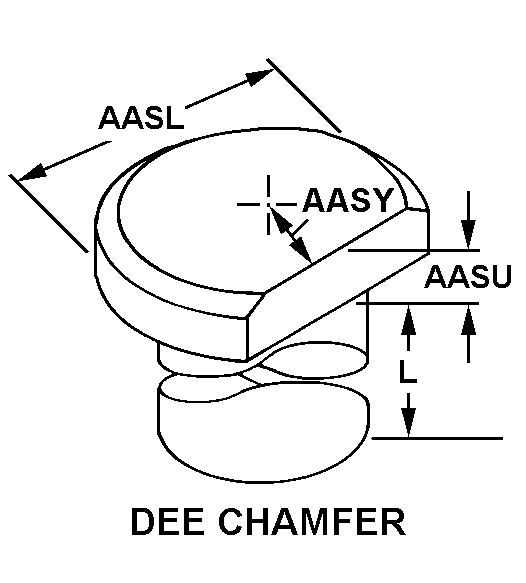

| HEAD STYLE | C26 DEE CHAMFER |
| HEAD DIAMETER | 0.875 INCHES NOMINAL |
| HEAD HEIGHT | 0.375 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE TO FLAT | 0.312 INCHES NOMINAL |
| SHOULDER SHAPE | ROUND FIRST SHOULDER |
| SHOULDER LENGTH | 1.344 INCHES NOMINAL FIRST SHOULDER |
| FEATURES PROVIDED | CASEHARDENED |
| MANUFACTURERS CODE | 53711 |
| DESIGN CONTROL REFERENCE | 315563 |
