Product Details | KEY HEAD BOLT
5306-00-377-6777 A headed externally threaded fastener whose threaded portion is of one nominal diameter with a single rectangular or triangular projection on the underside of the head.
Part Alternates: X5224, 5224, 5306-00-377-6777, 00-377-6777, 5306003776777, 003776777
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-377-6777 | 15942 ( BOLT, KEY HEAD ) |
Drawings & Photos | NSN 5306-00-377-6777
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-377-6777
Related Products | NSN 5306-00-377-6777
Technical Data | NSN 5306-00-377-6777
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 1.250 INCHES |
| THREAD QUANTITY PER INCH | 7 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 2.500 INCHES MINIMUM |
| FASTENER LENGTH | 6.500 INCHES NOMINAL |
| MATERIAL | STEEL COMP 4140 OVERALL |
| HARDNESS RATING | 38.0 ROCKWELL C MINIMUM AND 42.0 ROCKWELL C MAXIMUM OVERALL |

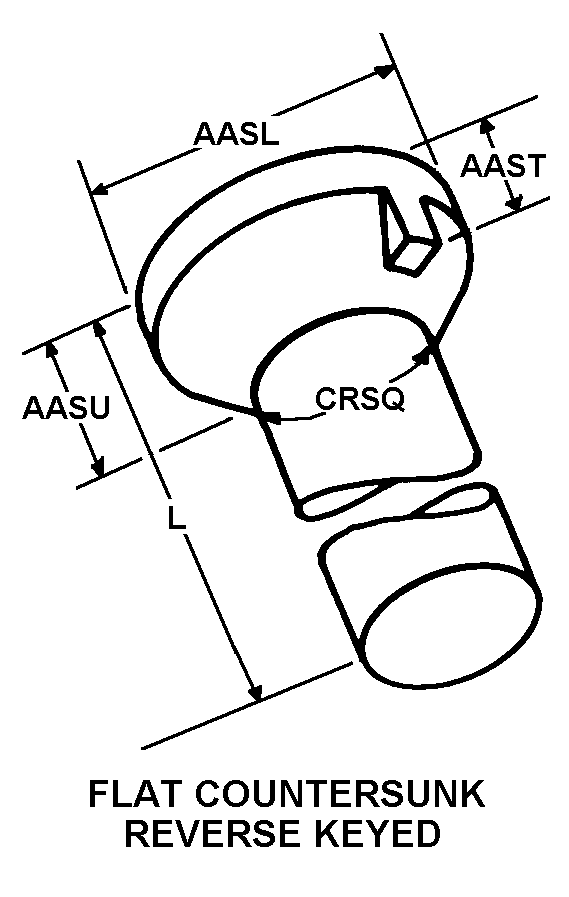

| HEAD STYLE | C61 FLAT COUNTERSUNK REVERSE KEYED |
| HEAD DIAMETER | 2.156 INCHES NOMINAL |
| KEY LENGTH | 0.469 INCHES NOMINAL |
| HEAD HEIGHT | 0.656 INCHES NOMINAL |
| COUNTERSINK ANGLE | 78.0 DEGREES NOMINAL |
| SPECIAL FEATURES | FURNISHED W/1 NUT AND 1 WASHER |
| MANUFACTURERS CODE | 46717 |
| DESIGN CONTROL REFERENCE | 5224 |
