NSN 5306-00-364-3797 K3229095, K-3229095, 3229095
Product Details | MACHINE BOLT
5306-00-364-3797 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: K3229095, K-3229095, 3229095, 5306-00-364-3797, 00-364-3797, 5306003643797, 003643797
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-364-3797 | 01847 ( BOLT, MACHINE ) |

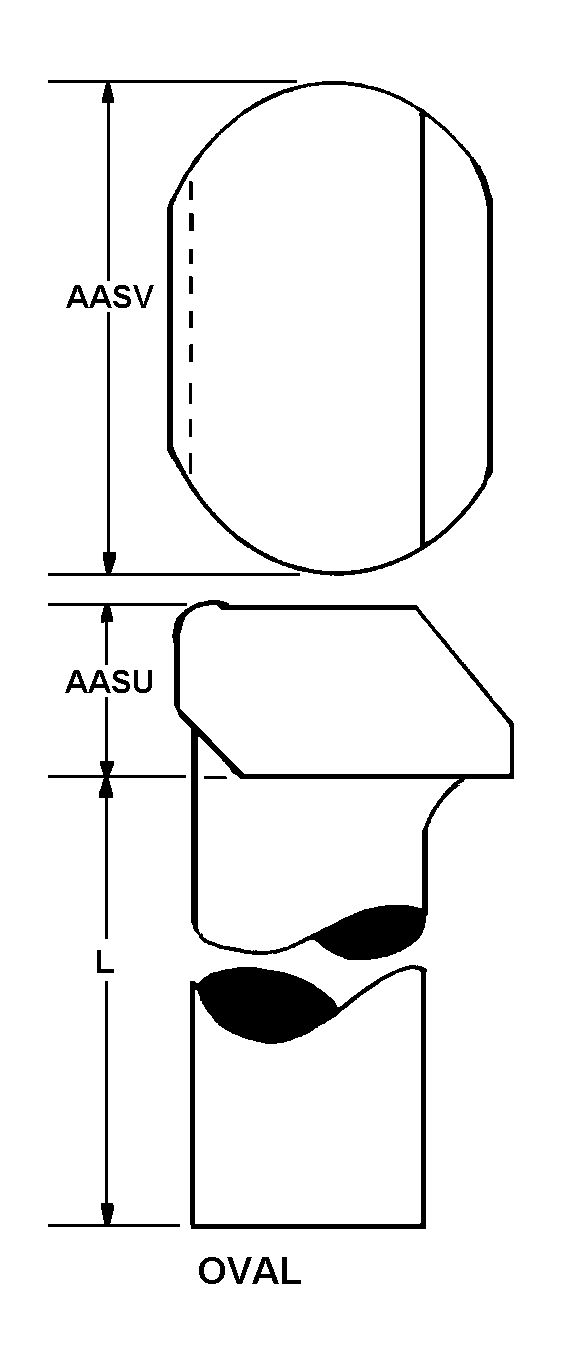

Drawings & Photos | NSN 5306-00-364-3797
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-364-3797
Technical Data | NSN 5306-00-364-3797
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.720 INCHES NOMINAL |
| FASTENER LENGTH | 5.560 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| HEAD STYLE | C113 OVAL |
| HEAD HEIGHT | 0.440 INCHES NOMINAL |
| HEAD LENGTH | 1.000 INCHES NOMINAL |
| SURFACE FINISH | 32.0 MICROINCHES GRIP 32.0 MICROINCHES THREADS |
| SPECIAL FEATURES | FLAT POINT, 0.280 IN. LENGTH, 0.410 IN. MIN AND 0.420 IN MAX DIA; 0.129 IN THRU HOLE IN POINT, 5.360 IN. DISTANCE FROM BEARING SURFACE OF HEAD TO CENTERLINE OF HOLE |
