NSN 5306-00-274-2119 AN35A, AN3-5A, 6026-8002-1

Product Details | MACHINE BOLT

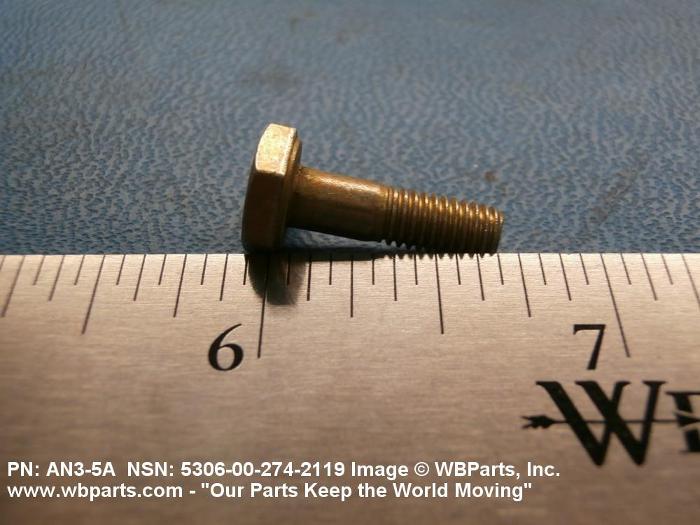

5306-00-274-2119 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.

Part Alternates: AN35A, AN3-5A, 6026-8002-1, 6026-7119-2, 6026723541, 6026-7235-41, 6026-3001-2, 60263002, 6026-3002, 60263004, 6026-3004, 60267001, 6026-7001, 2010100, 3260709, 326-0709, 326-0709-00, 401 266, 401266, 6026-102-24, 60261035, 6026-103-5, 6026300015, 6026-3000-15, 6026-8427-1, 6026900125, 6026-9001-25, 60269158, 6026-9158, 721009675000 , 7403147, 7601594, 80533800, 805338-00, 805388, 80538800, 805388-00, 8795954, 8812812, 932.19.21.027, 9321921027, 5306-00-274-2119, 00-274-2119, 5306002742119, 326070900, 002742119, 602610224, 602630012, 602671192, 602680021, 602684271

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1961	00-274-2119	01847 ( BOLT, MACHINE )

Drawings & Photos | NSN 5306-00-274-2119

Part Number	Request Date	QTY	Origin
5306-00-274-2119	2025-06-165	5	AE
AN35A	2025-04-120	500	United States
AN35A	2024-11-309	500	United States
AN35A	2024-07-194	500	United States
AN35A	2024-04-110	500	United States
AN35A	2023-12-354	500	United States
AN35A	2023-12-352	400	United States
AN35A	2023-11-314	7639	us
AN35A	2023-09-264	600	United States
AN35A	2023-09-249	665	United States
AN35A	2023-08-233	201	US
AN35A	2023-07-209	25	us
AN35A	2023-06-160	1	United States
AN35A	2023-06-157	50	us
AN35A	2022-10-278	50	us
AN35A	2020-10-290	3600	United States
AN35A	2020-03-70	100	Hong Kong
AN35A	2020-01-06	50	United States
5306-00-274-2119	2019-07-197	50	United States
5306-00-274-2119	2018-04-107	20	Russian Federation
AN35A	2018-02-57	50	United States
5306-00-274-2119	2018-02-54	20	United States
5306-00-274-2119	2018-02-52	300	US
5306-00-274-2119	2017-02-40	1	DIBBS-RFPs
AN35A	2017-01-27	228	United States
5306-00-274-2119	2016-11-309	30	Thailand
AN35A	2016-08-235	2	US
5306-00-274-2119	2015-11-306	80	Malaysia
AN35A	2015-07-191	100	United States
AN35A	2015-07-190	5000	Egypt
AN3-5A	2015-05-138	24	United States
AN3-5A	2015-05-138	20	United States
AN3-5A	2015-05-138	14	United States
AN3-5A	2015-05-138	60	United States
AN3-5A	2015-05-138	23	United States
AN3-5A	2015-05-138	21	United States
AN3-5A	2015-05-138	24	United States
AN3-5A	2015-05-138	20	United States
AN3-5A	2015-05-138	14	United States
AN3-5A	2015-05-138	60	United States
AN3-5A	2015-05-138	23	United States
AN3-5A	2015-05-138	21	United States
5306-00-274-2119	2015-01-29	150	US
AN35A	2015-01-28	1104	US
AN35A	2014-08-225	1	Thailand
AN3-5A	2014-05-142	5000	United States
AN3-5A	2014-05-135	4	PH
AN35A	2013-08-218	100	US
5306-00-274-2119	2013-05-151	40	United States
401266	2013-05-149	6	us
AN35A	2013-02-43	10	United States
AN35A	2012-12-346	300	Switzerland
AN35A	2012-12-344	300	Switzerland
5306002742119	2012-11-311	54	Singapore
AN35A	2012-05-151	100	United States
AN35A	2012-04-102	500	US
5306-00-274-2119	2012-03-90	432	MANUAL
AN3-5A	2012-03-67	229	China
5306-00-274-2119	2011-05-126	8	US
5306-00-274-2119	2010-03-65	4	Cyprus
AN35A	2009-09-251	10	Colombia
5306-00-274-2119	2009-08-215	3404	DIBBS
AN35A	2009-05-145	3	Brazil
AN35A	2009-05-138	261	China
AN35A	2008-08-219	586	United States
AN35A	2007-10-282	120	RU

Cross Reference | NSN 5306-00-274-2119

Part Number	Cage Code	Manufacturer
2010100	001JK	EMBRAER S/A
2010100	FB459	EMBRAER AVIATION INTERNATIONAL
2010100	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
326-0709	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
326-0709-00	0FYH3	SPS TECHNOLOGIES INC RESEARCH AND DEVELOPMENT LABORATORY
401 266	77294	PIPER AIRCRAFT INC.
5306002742119	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
6026-102-24	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-103-5	1PQF4	L-3 COMMUNICATIONS CORPORATION DBA LINK SIMULATION & TRAINING
6026-103-5	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-3000-15	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-3001-2	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-3002	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-3004	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-7001	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-7119-2	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-7235-41	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-8002-1	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-8427-1	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-9001-25	36378	RAYTHEON TECHNICAL SERVICES COMPANY
6026-9158	36378	RAYTHEON TECHNICAL SERVICES COMPANY
721009675000	A1140	OTO MELARA SPA UNITA'' BREDA MECCANICA BRESCIANA
7403147	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
7601594	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
805338-00	32345	DEFENSE REDUCTION AGENCY
805388	19203	PICATINNY ARSENAL
805388-00	32345	DEFENSE REDUCTION AGENCY
8795954	19203	PICATINNY ARSENAL
8812812	19203	PICATINNY ARSENAL
932.19.21.027	S4080	PILATUS AIRCRAFT LTD
AN3-5A	3G1W3	HERNDON PRODUCTS, INC.
AN3-5A	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
AN3-5A	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-00-274-2119

Compare

Related Products | NSN 5306-00-274-2119

5306-00-274-2120, 5306-00-274-2126, 5306-00-274-2128, 5306-00-274-2129, 5306-00-274-2130

Technical Data | NSN 5306-00-274-2119

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF

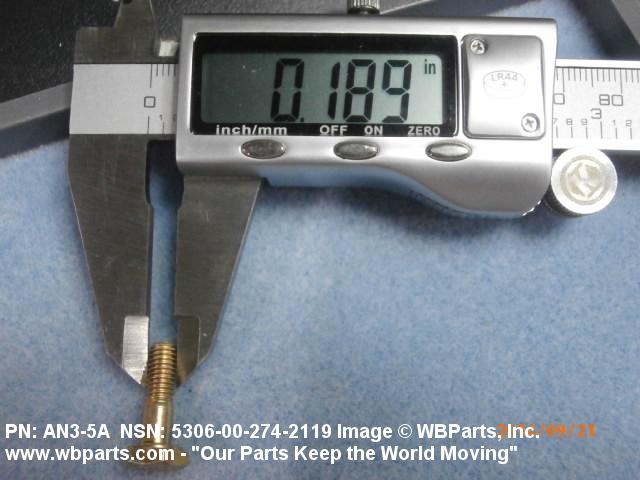

NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.406 INCHES MINIMUM

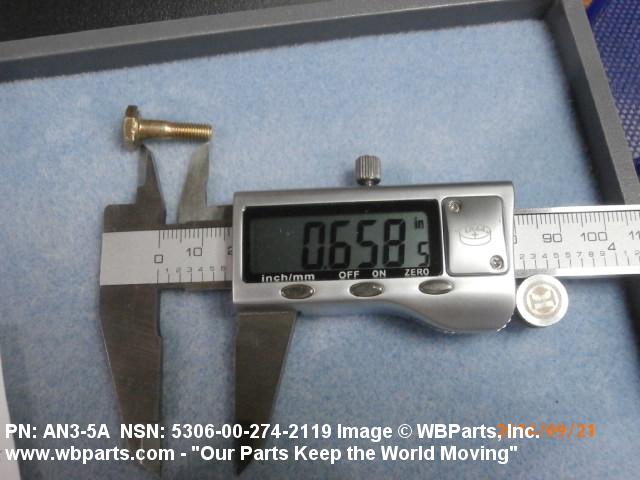

FASTENER LENGTH	0.656 INCHES NOMINAL
MATERIAL	STEEL COMP 4037 OR STEEL COMP 4130 OR STEEL COMP 8630 OR STEEL COMP 8735 OR STEEL COMP 8740 OR STEEL COMP 4140 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-B-6812 MIL SPEC ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	125000 POUNDS PER SQUARE INCH

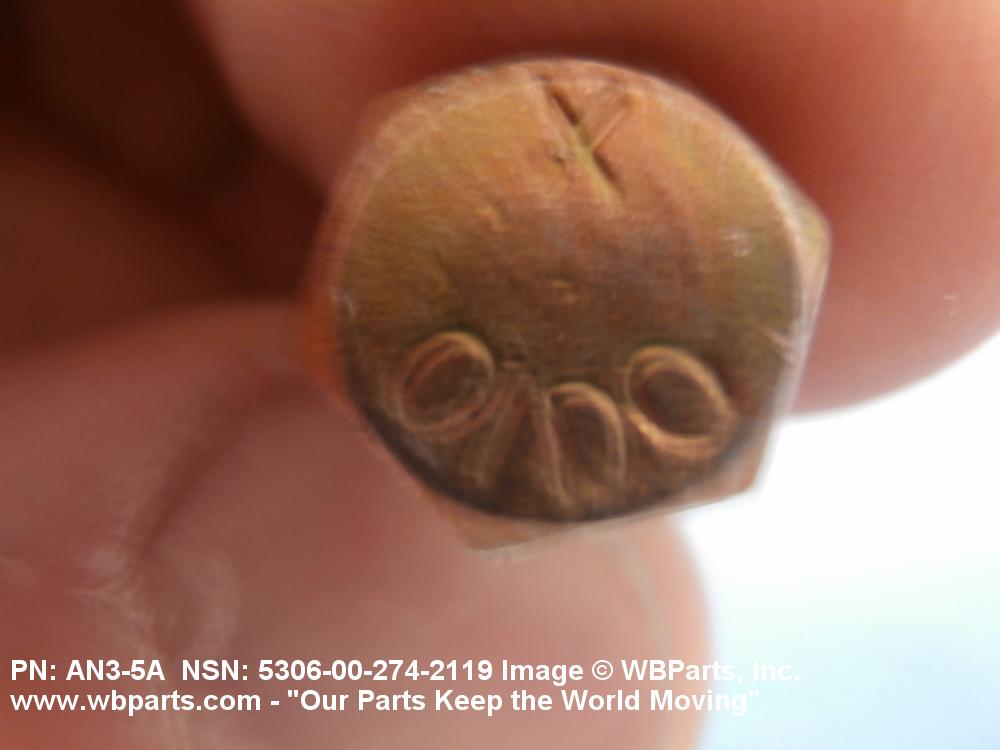

HEAD STYLE	C1 HEXAGON
HEAD HEIGHT	0.109 INCHES MINIMUM AND 0.141 INCHES MAXIMUM

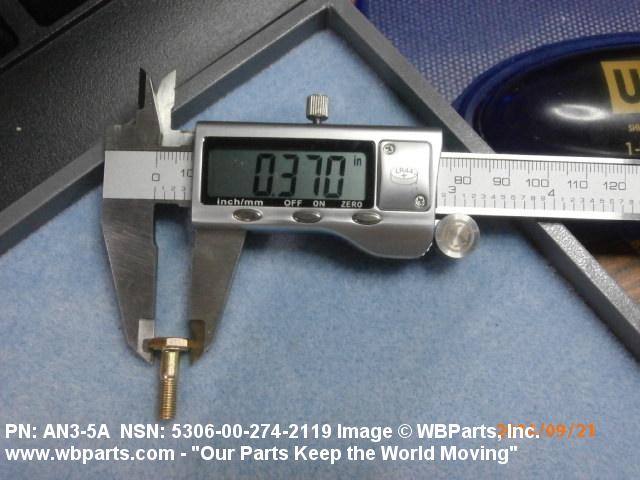

WIDTH BETWEEN FLATS	0.365 INCHES MINIMUM AND 0.377 INCHES MAXIMUM
