NSN 5306-00-226-4824 MS9072831, MS90728-31, AEB02C312625WA6AA1

Product Details | MACHINE BOLT

5306-00-226-4824 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.

Part Alternates: MS9072831, MS90728-31, AEB02C312625WA6AA1, B.18.2.1 , B1821, B1821BH031C063N, B1831BH031C063N , E108609 FIND 256, E108609FIND256, FFS85, G1921 , G1921BH031C063N, 13014410-6 , 186618, 2CK121, 301551 , 3945712, 7118150550, 7-118-150550, 92620A579 , 9436150, 9437766, 5306-00-226-4824, 00-226-4824, 5306002264824 , 130144106, 002264824

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-226-4824	01847 ( BOLT, MACHINE )

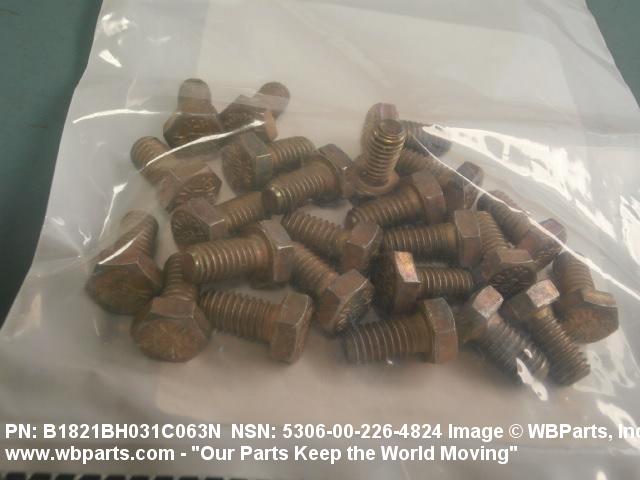

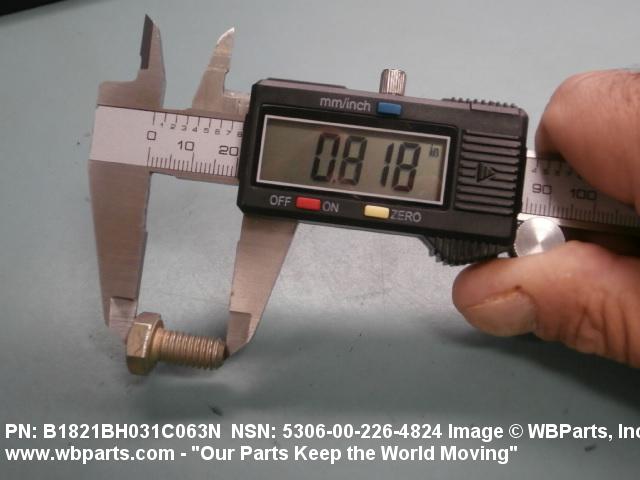

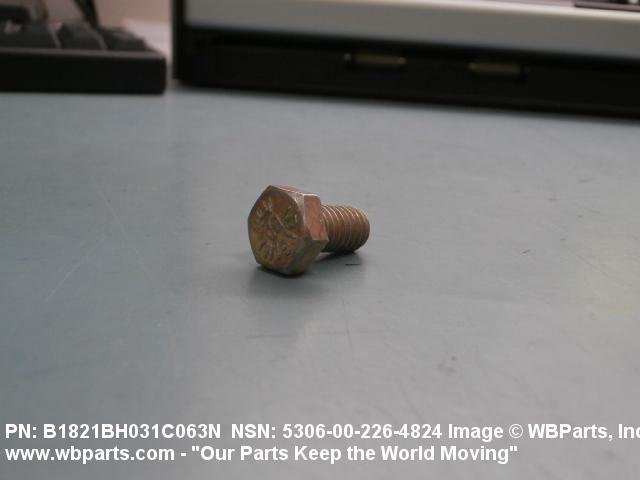

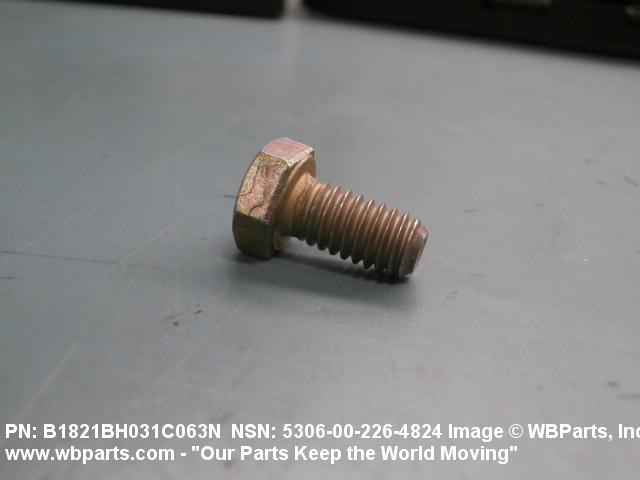

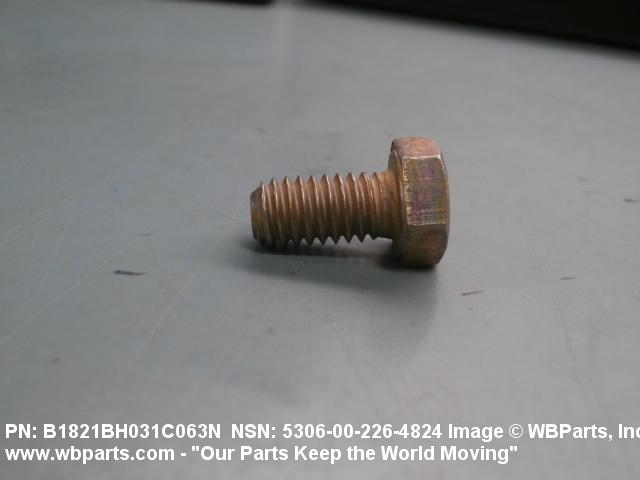

Drawings & Photos | NSN 5306-00-226-4824

Part Number	Request Date	QTY	Origin
5306-00-226-4824	2024-07-183	2000	United States
5306-00-226-4824	2024-07-183	1000	United States
5306-00-226-4824	2017-02-40	1	DIBBS-RFPs
5306-00-226-4824	2016-08-236	119995	DIBBS
5306-00-226-4824	2016-07-213	77082	DIBBS
MS90728-31	2016-05-137	4
5306-00-226-4824	2015-09-256	119638	DIBBS
B1821BH031C063N	2013-10-281	24	United States
FFS85	2013-01-11	473	US
B1821	2012-06-164	25	United States
5306-00-226-4824	2012-06-163	16	CL
B1821BH031C063N	2012-06-159	3680	US
B1821BH031C063N	2012-04-117	448	US
FFS85	2011-10-280	95	United States
FFS85	2011-09-265	14	US
B1821BH031C063N	2011-07-202	125	us
B1821BH031C063N	2011-04-110	5500	VA
5306-00-226-4824	2011-02-48	210	US
FFS85	2010-03-84	100	US
FFS85	2010-02-43	10	United States
FFS85	2009-09-272	50	US
5306-00-226-4824	2009-04-107	29537	DIBBS

Cross Reference | NSN 5306-00-226-4824

Part Number	Cage Code	Manufacturer
13014410-6	19200	US ARMY ARDEC RDECOM
186618	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
2CK121	45152	OSHKOSH CORPORATION
2CK121	75Q65	OSHKOSH DEFENSE, LLC
301551	H0G87	WIBA ZEVENAAR B.V.
3945712	11862	GENERAL MOTORS CORP CHEVROLET MOTOR DIV
5306002264824	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
7-118-150550	12361	GROVE U.S. L.L.C DBA MANITOWOC CRANE GROUP
92620A579	39428	MCMASTER-CARR SUPPLY COMPANY
9436150	24617	GENERAL MOTORS CORP
9437766	11862	GENERAL MOTORS CORP CHEVROLET MOTOR DIV
AEB02C312625WA6AA1	05047	AMERICAN SOCIETY OF MECHANICAL ENGINEERS
B.18.2.1	05047	AMERICAN SOCIETY OF MECHANICAL ENGINEERS
B1821BH031C063N	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
B1831BH031C063N	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
E108609 FIND 256	3X894	CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV
FFS85	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
G1921	01417	GENERAL DYNAMICS LAND SYSTEMS INC. DBA GENERAL DYNAMICS LAND SYSTEMS
G1921BH031C063N	01417	GENERAL DYNAMICS LAND SYSTEMS INC. DBA GENERAL DYNAMICS LAND SYSTEMS
MS90728-31	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-00-226-4824

Compare

Related Products | NSN 5306-00-226-4824

5306-00-226-4825, 5306-00-226-4826, 5306-00-226-4827, 5306-00-226-4828, 5306-00-226-4829

Technical Data | NSN 5306-00-226-4824

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC

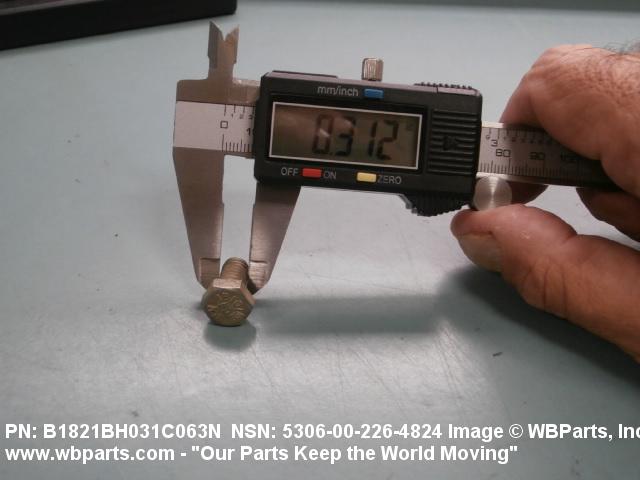

NOMINAL THREAD DIAMETER	0.312 INCHES
THREAD QUANTITY PER INCH	18
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.455 INCHES MINIMUM AND 0.625 INCHES MAXIMUM
FASTENER LENGTH	0.594 INCHES MINIMUM AND 0.625 INCHES MAXIMUM
MATERIAL	STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	SAE J429 GRADE 8 ASSN STD SINGLE MATERIAL RESPONSE OR ASTM A354 GRADE BD ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ZINC AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM B633 TY 2 SC 3 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
MINIMUM TENSILE STRENGTH	150000 POUNDS PER SQUARE INCH

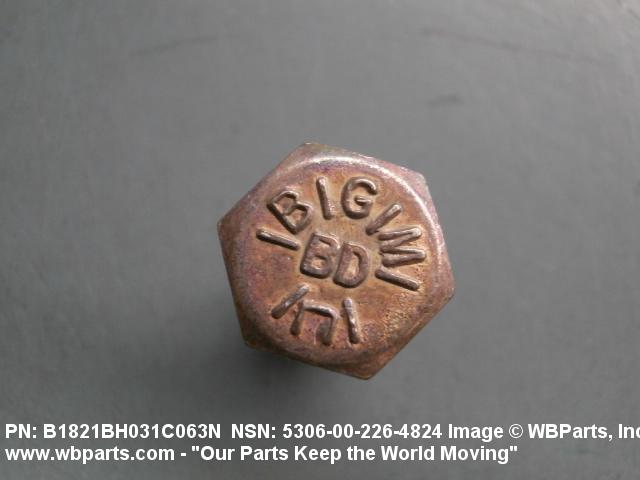

HEAD STYLE	C1 HEXAGON

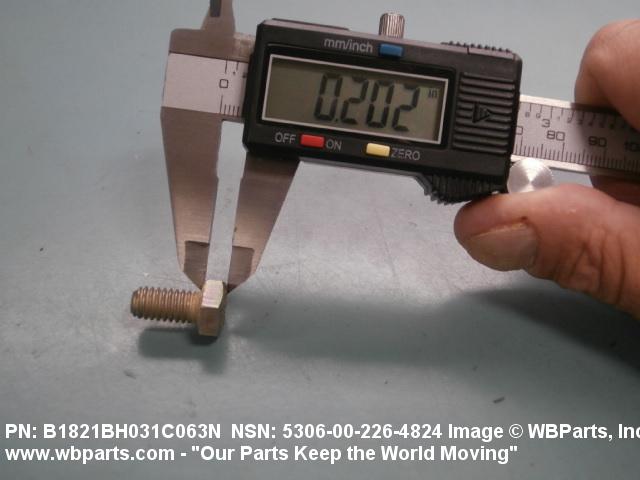

HEAD HEIGHT	0.195 INCHES MINIMUM AND 0.211 INCHES MAXIMUM
WIDTH BETWEEN FLATS	0.489 INCHES MINIMUM AND 0.500 INCHES MAXIMUM
SURFACE FINISH	63.0 MICROINCHES THREADS
FEATURES PROVIDED	FINISHED HEAD

Restrictions/Controls & Freight Information | NSN 5306-00-226-4824

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093460	BOLTS/NUTS NOI BBC/ZINC
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5306-00-226-4824

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
