NSN 5306-00-182-2014 AN43A, AN4-3A, AN4H3A
Product Details | MACHINE BOLT
5306-00-182-2014 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: AN43A, AN4-3A, AN4H3A, NASM3 THRU NASM20-AN4H3A, NASM3THRUNASM20AN4H3A, B6812, 5306-00-182-2014, 00-182-2014, 5306001822014, 001822014
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-182-2014 | 01847 ( BOLT, MACHINE ) |

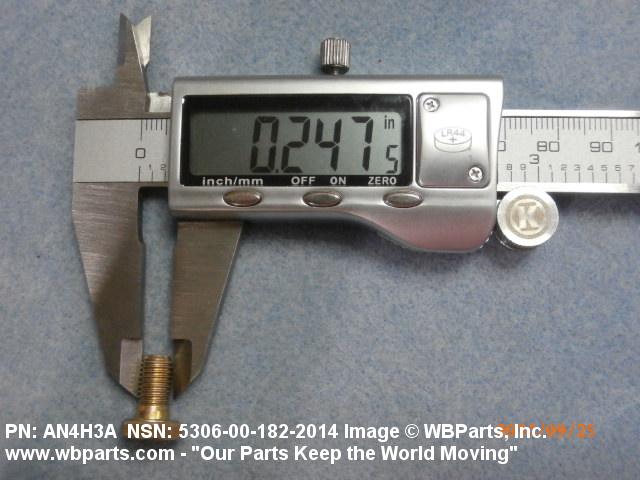

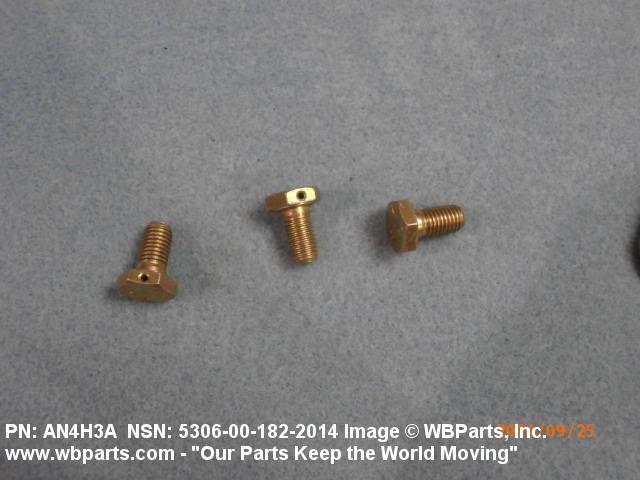

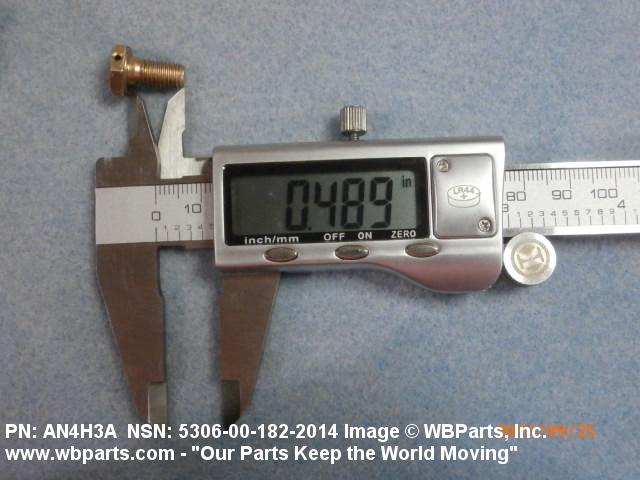

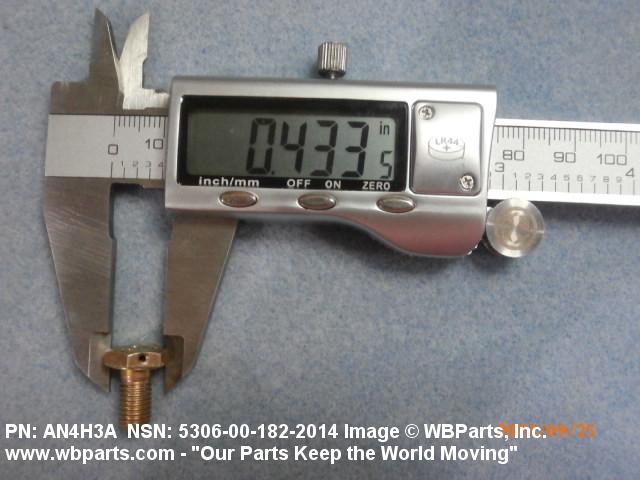

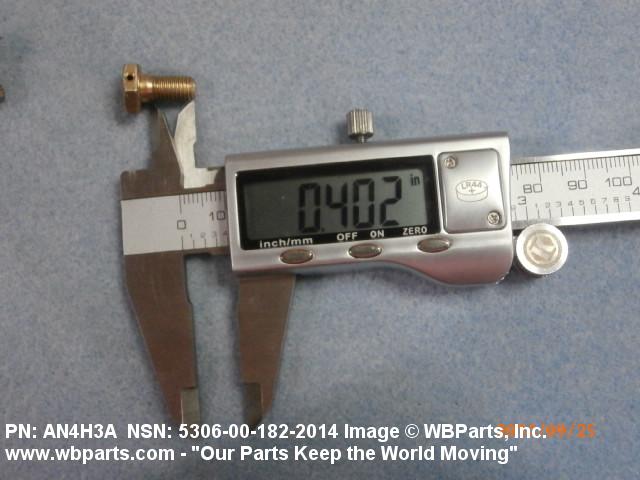

Drawings & Photos | NSN 5306-00-182-2014
Demand History | NSN 5306-00-182-2014
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN4H3A | 2025-03-62 | 300 | China |
| AN43A | 2024-10-277 | 200 | US |
| AN4H3A | 2024-04-92 | 30 | US |
| 5306-00-182-2014 | 2024-02-53 | 30 | AE |
| AN43A | 2021-10-300 | 350 | us |
| AN43A | 2020-01-06 | 50 | United States |
| AN43A | 2019-10-290 | 2 | Poland |
| 5306-00-182-2014 | 2019-01-08 | 1249 | DIBBS |
| AN43A | 2018-11-311 | 10500 | us |
| 5306-00-182-2014 | 2018-09-256 | 470 | DIBBS |
| 5306-00-182-2014 | 2018-08-214 | 831 | United States |
| 5306-00-182-2014 | 2018-07-207 | 831 | DIBBS |
| 5306-00-182-2014 | 2018-07-199 | 831 | DIBBS |
| AN43A | 2018-03-82 | 50 | Hong Kong |
| AN4H3A | 2017-12-345 | 1 | US |
| AN43A | 2017-12-345 | 1 | US |
| AN4-3A | 2016-04-118 | 2 | UY |
| AN43A | 2016-01-22 | 500 | us |
| B6812 | 2015-06-173 | 47 | us |
| B6812 | 2015-05-147 | 15 | us |
| AN4-3A | 2014-05-142 | 5000 | United States |
| AN4H3A | 2014-05-142 | 1000 | United States |
| AN43A | 2014-05-131 | 40 | AE |
| AN4-3A | 2013-11-322 | 32 | Belgium |
| AN43A | 2013-10-284 | 1500 | United States |
| B6812 | 2013-09-260 | 50 | us |
| B6812 | 2012-12-340 | 2 | Serbia |
| B6812 | 2012-11-324 | 2 | YU |
| AN4-3A | 2012-11-310 | 109 | |
| AN43A | 2012-10-305 | 8 | US |
| AN4H3A | 2012-05-135 | 660 | United States |
| 5306-00-182-2014 | 2011-12-363 | 50 | US |
| AN4H3A | 2011-12-353 | 100 | United States |
| AN4H3A | 2011-11-327 | 100 | United States |
| B6812 | 2010-05-134 | 25 | us |
| AN43A | 2009-07-183 | 1 | US |
| 5306-00-182-2014 | 2009-04-105 | 998 | DIBBS |
| 5306-00-182-2014 | 2009-03-79 | 1100 | US |
| 5306-00-182-2014 | 2009-03-75 | 1149 | DIBBS |
| B6812 | 2008-11-315 | 50 | Turkey |
| 5306-00-182-2014 | 2008-09-267 | 60 | UM |
| B6812 | 2008-08-214 | 50 | United States |
| B6812 | 2008-08-214 | 100 | United States |
Cross Reference | NSN 5306-00-182-2014
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5306001822014 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| AN4-3A | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN4H3A | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| AN4H3A | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| B6812 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-182-2014
Technical Data | NSN 5306-00-182-2014
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.407 INCHES MAXIMUM |
| FASTENER LENGTH | 0.469 INCHES NOMINAL |
| MATERIAL | STEEL COMP 4037 OR STEEL COMP 4130 OR STEEL COMP 8630 OR STEEL COMP 8735 OR STEEL COMP 8740 OR STEEL COMP 4140 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-B-6812 MIL SPEC ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 3 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 125000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.140 INCHES MINIMUM AND 0.172 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.428 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| HOLE CONFIGURATION STYLE | E6 HEXAGON FLATS |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 1 |
| HOLE DIAMETER | 0.046 INCHES NOMINAL |
| GRIP LENGTH | 0.062 INCHES NOMINAL |
| FEATURES PROVIDED | FINISHED HEAD |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN4H3A |
Restrictions/Controls & Freight Information | NSN 5306-00-182-2014
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
