NSN 5306-00-180-2779 AN4CH5A, NASM3 THRU NASM20-AN4CH5A, NASM3THRUNASM20AN4CH5A

Product Details | MACHINE BOLT

5306-00-180-2779 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.

Part Alternates: AN4CH5A, NASM3 THRU NASM20-AN4CH5A, NASM3THRUNASM20AN4CH5A, LYC489C408H, LYC489C4-08H, 017008017PC014, 0-170-080-17PC014, 21C2207178, 21C2207-178, 932.19.60.152, 9321960152, 5306-00-180-2779, 00-180-2779, 5306001802779, 001802779

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-180-2779	01847 ( BOLT, MACHINE )

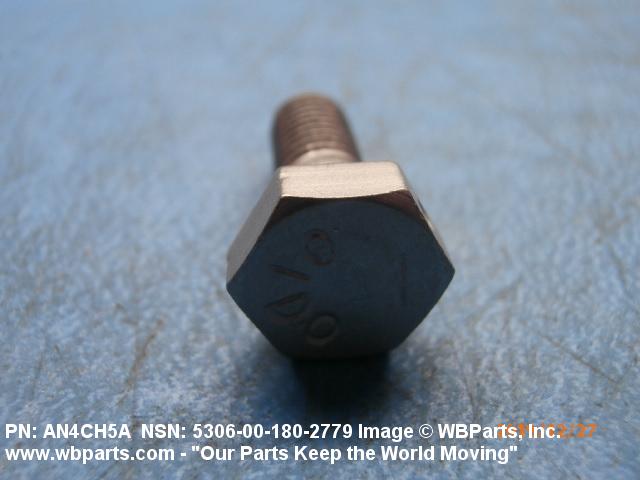

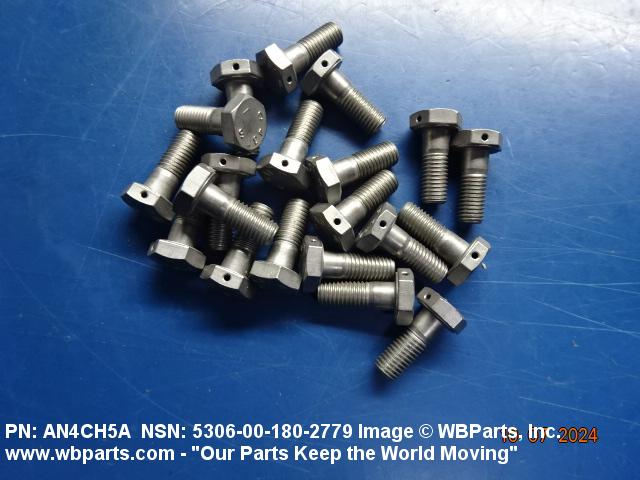

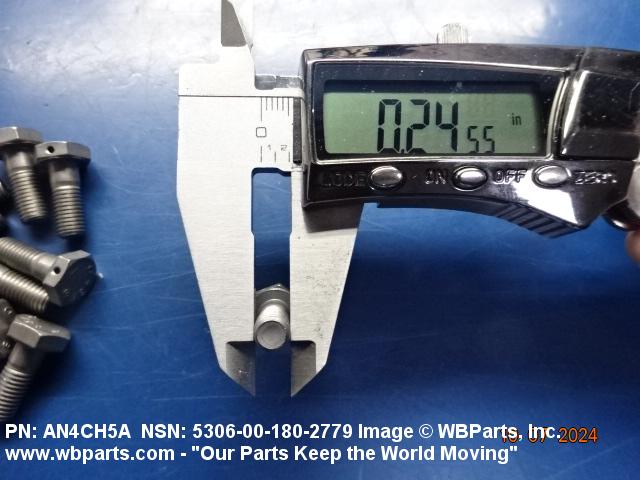

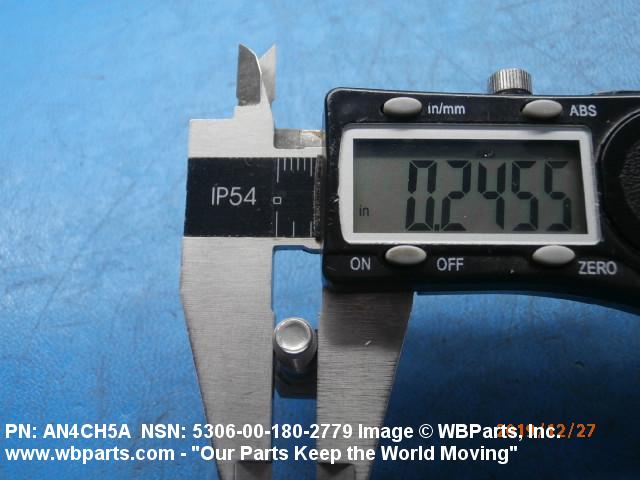

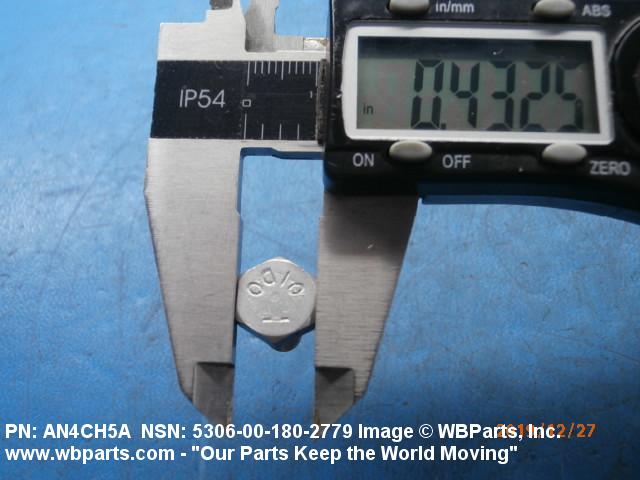

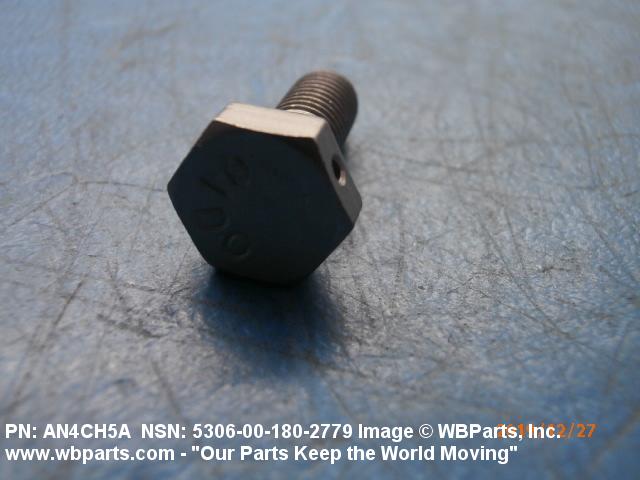

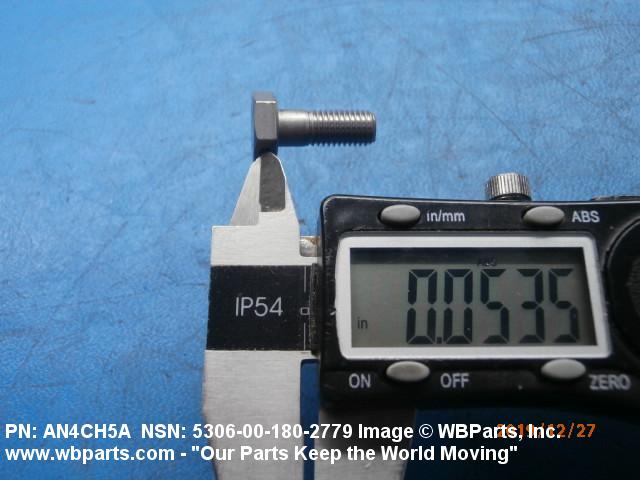

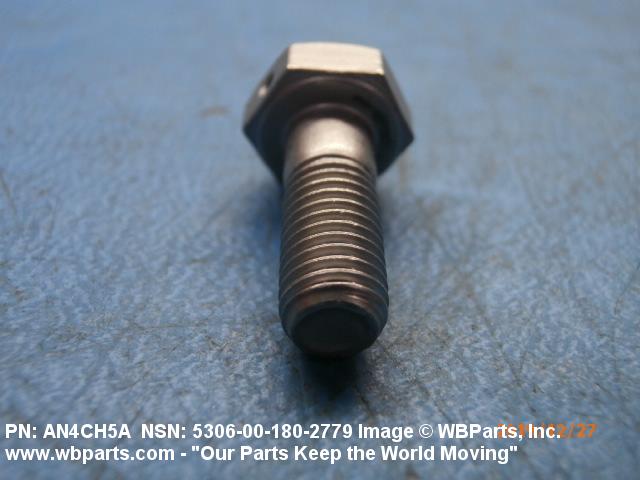

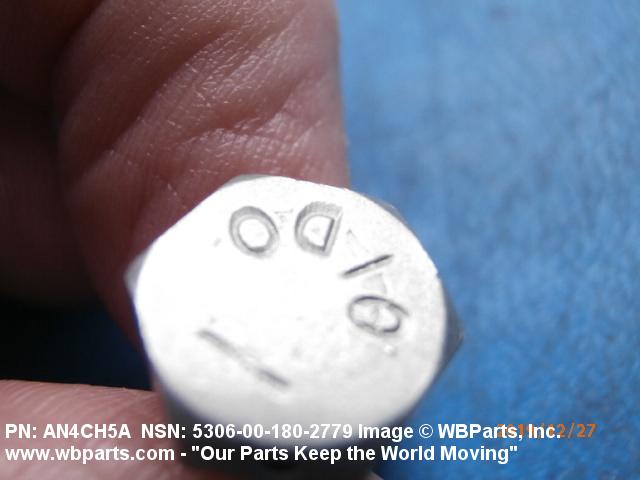

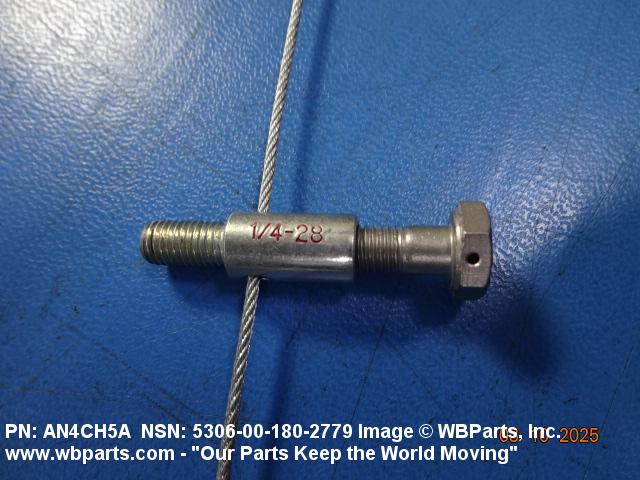

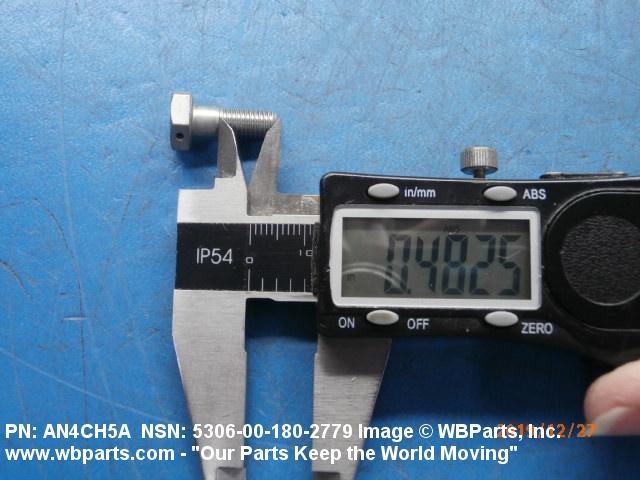

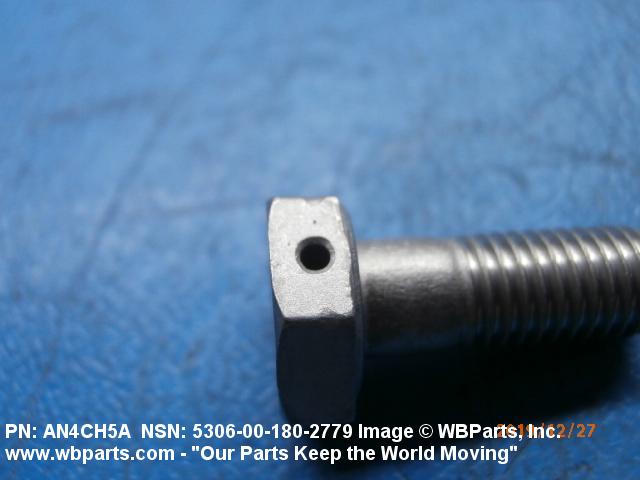

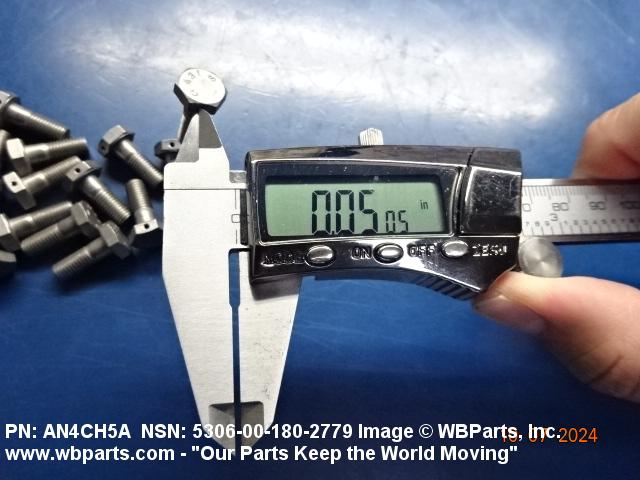

Drawings & Photos | NSN 5306-00-180-2779

Part Number	Request Date	QTY	Origin
5306-00-180-2779	2024-09-264	20	Sweden
5306-00-180-2779	2024-09-247	50	Sweden
5306-00-180-2779	2023-04-104	14	Sweden
5306-00-180-2779	2022-12-339	14	Sweden
5306-00-180-2779	2019-12-345	25	Sweden
5306-00-180-2779	2019-08-228	4	US
AN4CH5A	2018-04-115	50	United States
AN4CH5A	2017-06-170	300	CN
AN4CH5A	2012-11-310	50
5306-00-180-2779	2012-06-171	8	MANUAL
AN4CH5A	2011-10-289	24	United Kingdom
LYC489C408H	2011-04-101	1000	US
LYC489C408H	2011-02-56	48	Singapore
AN4CH5A	2010-10-277	100	US
5306-00-180-2779	2010-01-19	100	Colombia

Cross Reference | NSN 5306-00-180-2779

Part Number	Cage Code	Manufacturer
0-170-080-17PC014	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
21C2207-178	07482	GENERAL ELECTRIC COMPANY DBA GE
932.19.60.152	S4080	PILATUS AIRCRAFT LTD
AN4CH5A	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
AN4CH5A	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
LYC489C4-08H	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
NASM3 THRU NASM20-AN4CH5A	60205	CONTROL PANELS INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-00-180-2779

Compare

Related Products | NSN 5306-00-180-2779

5306-00-180-2780, 5306-00-180-2781, 5306-00-180-2782, 5306-00-180-2783, 5306-00-180-2784

Technical Data | NSN 5306-00-180-2779

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD DIAMETER	0.250 INCHES

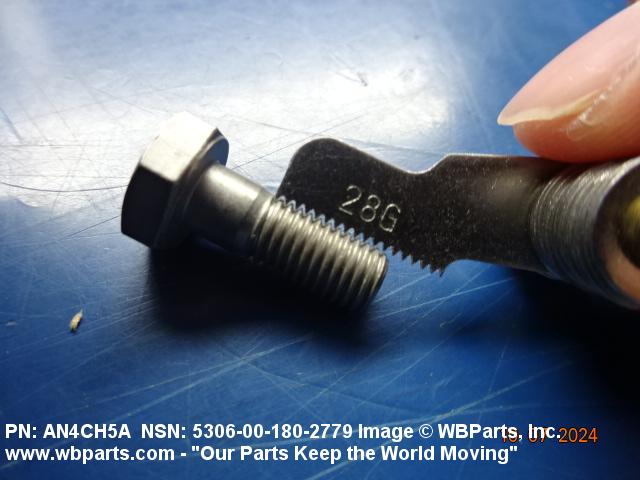

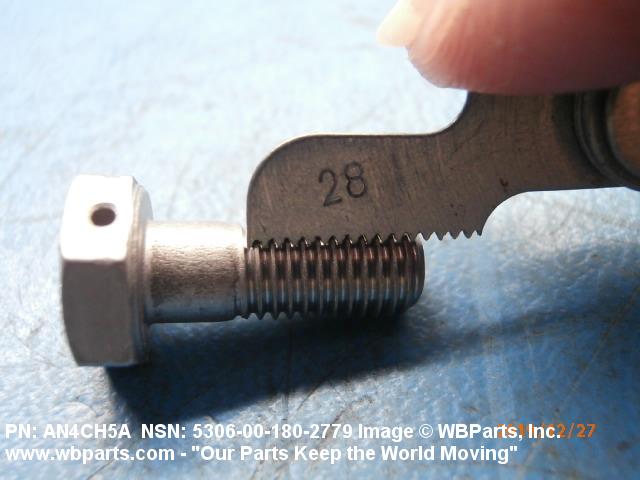

THREAD QUANTITY PER INCH	28
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.468 INCHES MINIMUM

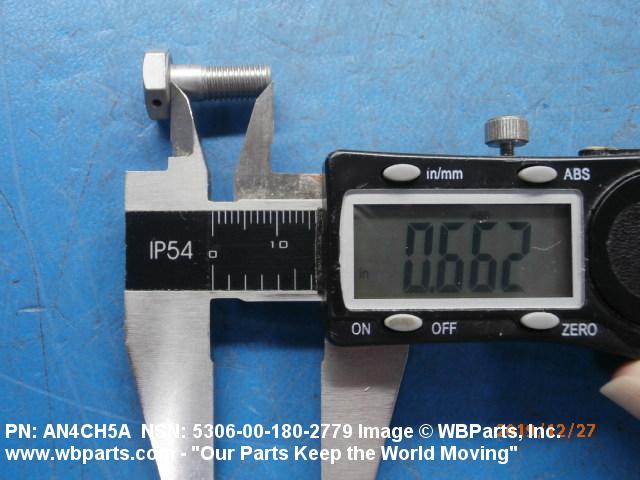

FASTENER LENGTH	0.656 INCHES NOMINAL
MATERIAL	STEEL CORROSION RESISTING OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-770 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
MINIMUM TENSILE STRENGTH	125000 POUNDS PER SQUARE INCH
HEAD STYLE	C1 HEXAGON

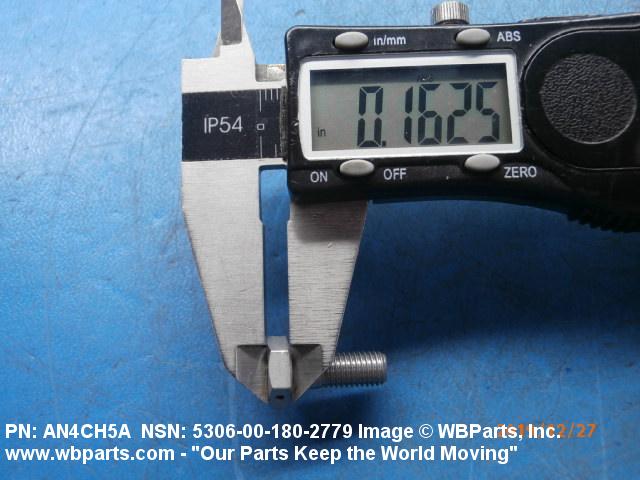

HEAD HEIGHT	0.140 INCHES MINIMUM AND 0.172 INCHES MAXIMUM
WIDTH BETWEEN FLATS	0.428 INCHES MINIMUM AND 0.440 INCHES MAXIMUM

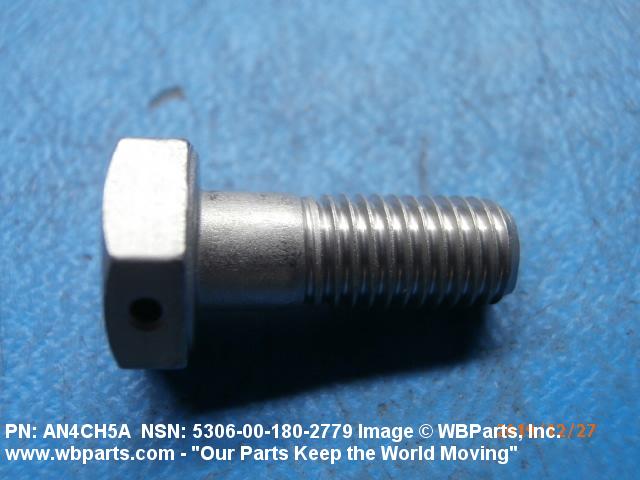

HOLE CONFIGURATION STYLE	E6 HEXAGON FLATS
HOLE TYPE	DRILLED
HOLE QUANTITY	1
HOLE DIAMETER	0.046 INCHES NOMINAL

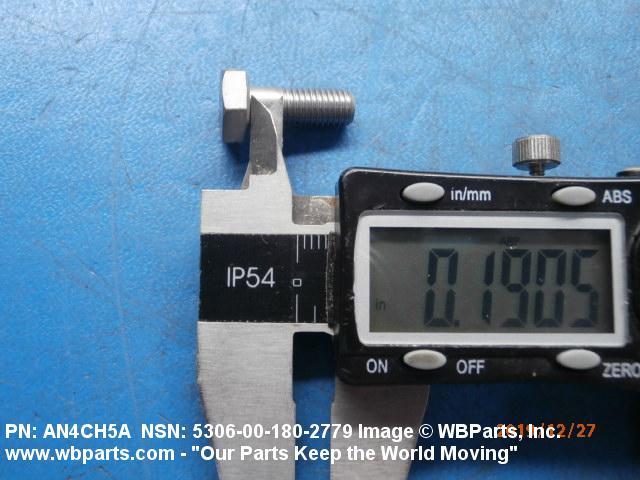

GRIP LENGTH	0.188 INCHES NOMINAL
FEATURES PROVIDED	FINISHED HEAD
MANUFACTURERS CODE	88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN4CH5A

Restrictions/Controls & Freight Information | NSN 5306-00-180-2779

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5306-00-180-2779

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each
