NSN 5306-00-177-0031 610795, 610795PC1, 610814
Product Details | SHOULDER BOLT
5306-00-177-0031 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is not designed to be held or driven with an inserted drivers. A locking feature may be incorporated in the design of the head or threads. For items with a thread diameter smaller than No. 10 (0.190 IN.) (5 mm) and those items with an inserted drive head, use SCREW, SHOULDER. For items which are No. 10 (0.190 IN.) (5 mm) or larger in size and are both shouldered and have an externally relieved body, use BOLT, EXTERNALLY RELIEVED BODY. Excludes THUMBSCREW.
Part Alternates: 610795, 610795PC1, 610814, 5306-00-177-0031, 00-177-0031, 5306001770031, 001770031
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-177-0031 | 04905 ( BOLT, SHOULDER ) |
Drawings & Photos | NSN 5306-00-177-0031
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-177-0031
Technical Data | NSN 5306-00-177-0031
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.688 INCHES NOMINAL |
| FASTENER LENGTH | 2.250 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-890, ALLOY NO. 2 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-16232, TYPE 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |

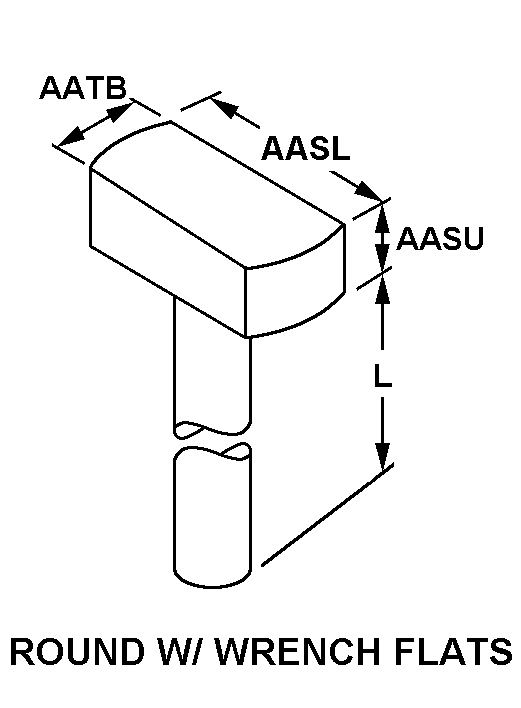

| HEAD STYLE | C23 ROUND WITH WRENCH FLATS |
| HEAD DIAMETER | 1.375 INCHES NOMINAL |
| HEAD HEIGHT | 0.125 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 1.125 INCHES NOMINAL |
| SHOULDER SHAPE | ROUND ALL SHOULDERS |
| SHOULDER DIAMETER | 0.9364 INCHES MINIMUM AND 0.9367 INCHES MAXIMUM FIRST SHOULDER 0.7495 INCHES MINIMUM AND 0.7499 INCHES MAXIMUM SECOND SHOULDER |
| SHOULDER LENGTH | 0.625 INCHES MINIMUM AND 0.630 INCHES MAXIMUM FIRST SHOULDER 0.844 INCHES NOMINAL SECOND SHOULDER |
