NSN 5306-00-156-2338 AN3C10A, AN4C6A, AN4C6ACP

Product Details | MACHINE BOLT

5306-00-156-2338 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.

Part Alternates: AN3C10A, AN4C6A, AN4C6ACP, MILB6812AAMEND2, 21C2207181, 21C2207-181 , 5413463114, 5-4-1346-31-14, 7767956 , 932.19.60.128, 9321960128, 5306-00-156-2338, 00-156-2338, 5306001562338, 001562338

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-156-2338	01847 ( BOLT, MACHINE )

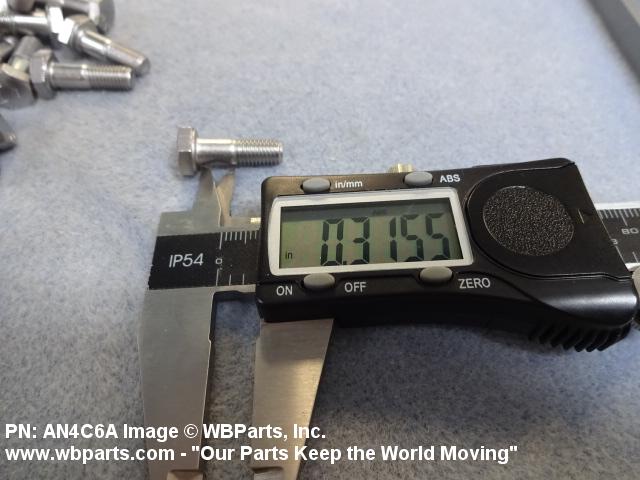

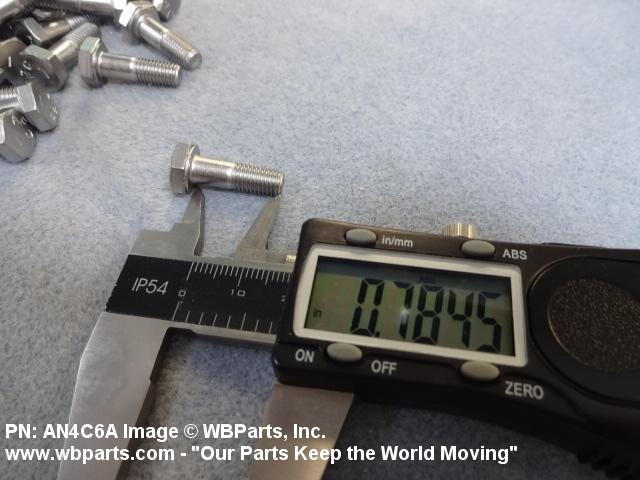

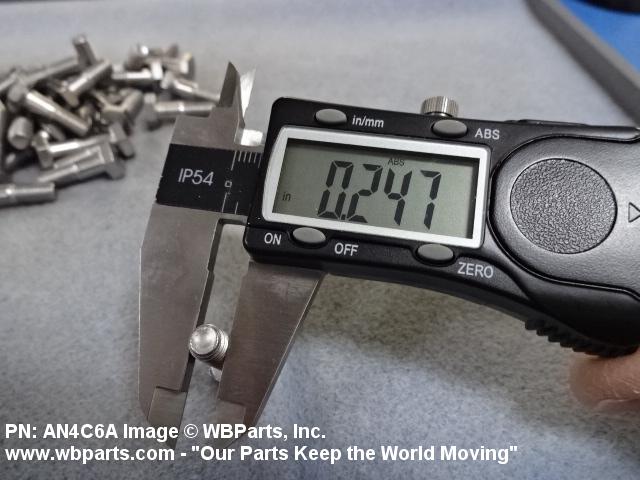

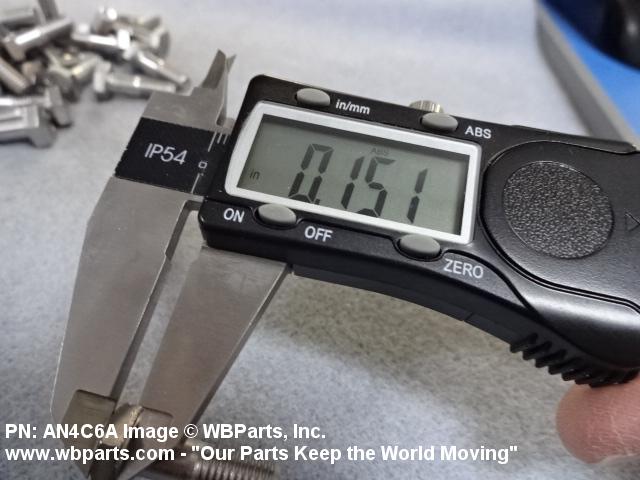

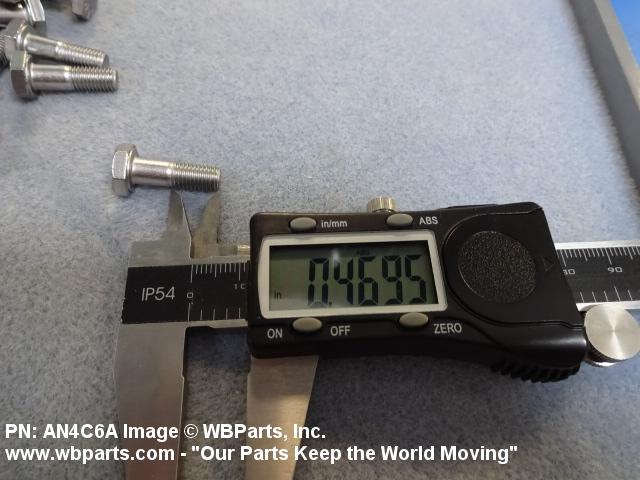

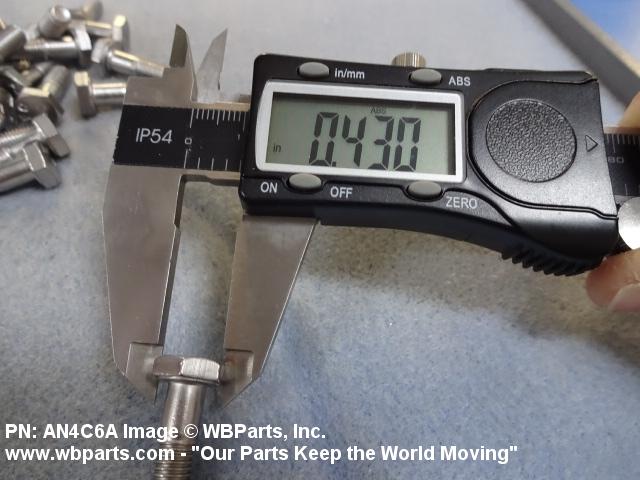

Drawings & Photos | NSN 5306-00-156-2338

Part Number	Request Date	QTY	Origin
5306-00-156-2338	2024-05-140	52	DIBBS
5306-00-156-2338	2024-02-60	404	DIBBS
5306-00-156-2338	2024-02-52	404	DIBBS
5306-00-156-2338	2024-02-44	404	DIBBS
AN3C10A	2023-09-268	50	Croatia
5306-00-156-2338	2023-09-261	369	DIBBS
5306-00-156-2338	2023-09-253	369	DIBBS
5306-00-156-2338	2023-06-178	18	DIBBS
5306-00-156-2338	2023-06-170	18	DIBBS
5306-00-156-2338	2023-03-79	97	DIBBS
5306-00-156-2338	2023-03-72	500	United States
5306-00-156-2338	2023-03-71	97	DIBBS
5306-00-156-2338	2023-02-57	10	DIBBS
AN4C6A	2023-02-32	88	DIBBS
AN3C10A	2021-08-224	10	IN
AN4C6A	2017-04-108	25	Canada
5306-00-156-2338	2016-09-269	321	DIBBS
AN4C6A	2016-01-06	3	United States
AN3C10A	2015-09-250	1	SG
AN4C6A	2015-05-146	100	ZA
AN4C6A	2014-11-314	45	IN
AN3C10A	2014-03-65	12	US
AN4C6A	2014-02-49	96	United States
AN3C10A	2013-08-219	50	us
AN3C10A	2013-08-219	100	us
AN3C10A	2012-11-310	50
AN4C6A	2012-05-137	83	Italy
AN3C10A	2012-01-23	105	US
AN3C10A	2012-01-23	500	US
AN4C6A	2011-11-312	24	US
AN4C6A	2011-03-74	500	US
AN4C6A	2010-09-250	50	KR
AN4C6A	2010-05-144	50	Italy
5306-00-156-2338	2010-04-103	10	Malaysia
5306-00-156-2338	2010-04-102	8	United States
AN3C10A	2009-09-273	300	US
5306-00-156-2338	2009-05-151	1646	DIBBS
AN4C6A	2008-04-112	200	India
5306-00-156-2338	2006-10-278	2000	US

Cross Reference | NSN 5306-00-156-2338

Part Number	Cage Code	Manufacturer
5-4-1346-31-14	05699	BRUNSWICK CORP DEFENSE DIV
5-4-1346-31-14	81337	ARMY, UNITED STATES DEPARTMENT OF THE
5306001562338	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
932.19.60.128	S4080	PILATUS AIRCRAFT LTD
AN4C6A	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN4C6ACP	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MILB6812AAMEND2	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MILB6812AAMEND2	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-00-156-2338

Compare

Related Products | NSN 5306-00-156-2338

5306-00-156-2339, 5306-00-156-2340, 5306-00-156-2341, 5306-00-156-2342, 5306-00-156-2343

Technical Data | NSN 5306-00-156-2338

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD DIAMETER	0.250 INCHES
THREAD QUANTITY PER INCH	28
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.469 INCHES MINIMUM
FASTENER LENGTH	0.781 INCHES NOMINAL
MATERIAL	STEEL CORROSION RESISTING OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-770 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
MINIMUM TENSILE STRENGTH	125000 POUNDS PER SQUARE INCH
HEAD STYLE	C1 HEXAGON
HEAD HEIGHT	0.140 INCHES MINIMUM AND 0.172 INCHES MAXIMUM
WIDTH BETWEEN FLATS	0.428 INCHES MINIMUM AND 0.440 INCHES MAXIMUM
GRIP LENGTH	0.312 INCHES NOMINAL
FEATURES PROVIDED	FINISHED HEAD
MANUFACTURERS CODE	88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN4C6A

Restrictions/Controls & Freight Information | NSN 5306-00-156-2338

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5306-00-156-2338

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
