NSN 5306-00-151-2613 AN532A, AN5-32A, 00-151-2613
Product Details | MACHINE BOLT
5306-00-151-2613 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: AN532A, AN5-32A, 5306-00-151-2613, 00-151-2613, 5306001512613, 001512613
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-151-2613 | 01847 ( BOLT, MACHINE ) |

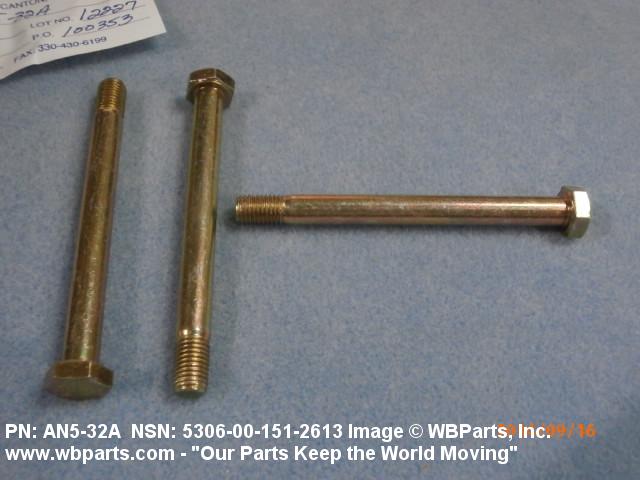

Drawings & Photos | NSN 5306-00-151-2613
Demand History | NSN 5306-00-151-2613
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN532A | 2024-09-263 | 50 | United States |
| AN532A | 2024-09-263 | 50 | United States |
| AN532A | 2024-09-263 | 50 | United States |
| AN532A | 2023-09-264 | 100 | United States |
| AN532A | 2023-09-249 | 100 | United States |
| AN532A | 2020-06-181 | 100 | United States |
| AN5-32A | 2015-05-138 | 4 | United States |
| AN5-32A | 2015-05-138 | 4 | United States |
| AN5-32A | 2014-05-142 | 1000 | United States |
Cross Reference | NSN 5306-00-151-2613
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN5-32A | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-151-2613
Related Products | NSN 5306-00-151-2613
Technical Data | NSN 5306-00-151-2613
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |

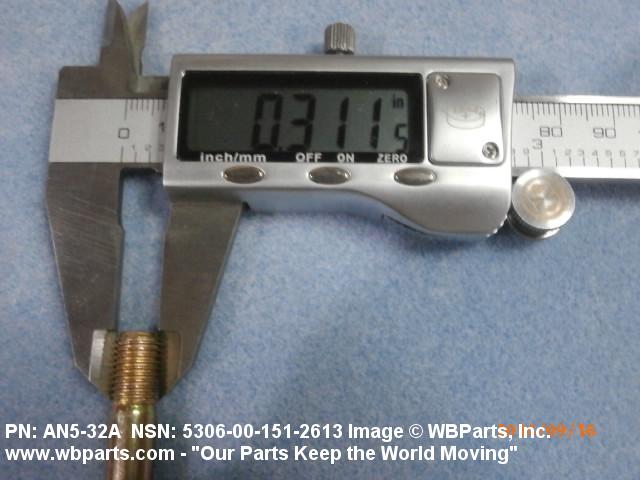

| NOMINAL THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

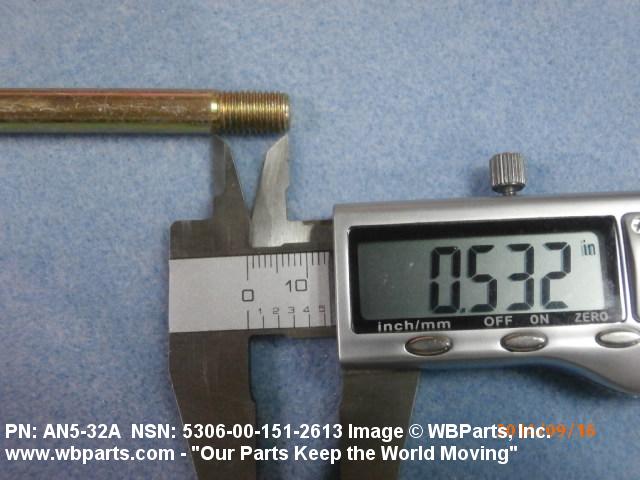

| THREAD LENGTH | 0.532 INCHES MINIMUM |
| FASTENER LENGTH | 3.344 INCHES NOMINAL |
| MATERIAL | STEEL COMP 4037 OR STEEL COMP 4130 OR STEEL COMP 8630 OR STEEL COMP 8735 OR STEEL COMP 8740 OR STEEL COMP 4140 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-B-6812 MIL SPEC ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 125000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.172 INCHES MINIMUM AND 0.204 INCHES MAXIMUM |

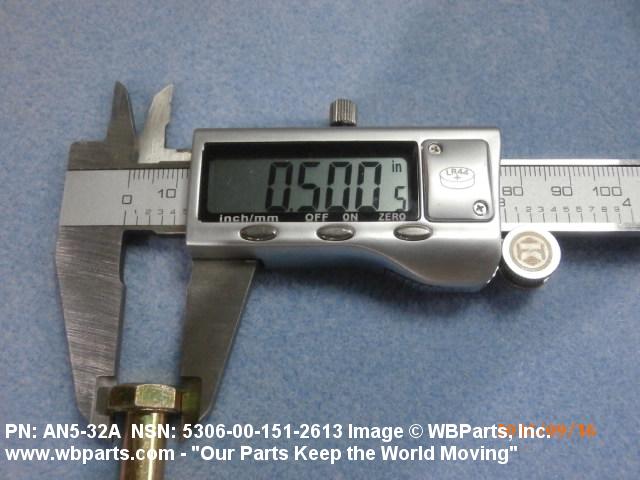

| WIDTH BETWEEN FLATS | 0.490 INCHES MINIMUM AND 0.502 INCHES MAXIMUM |

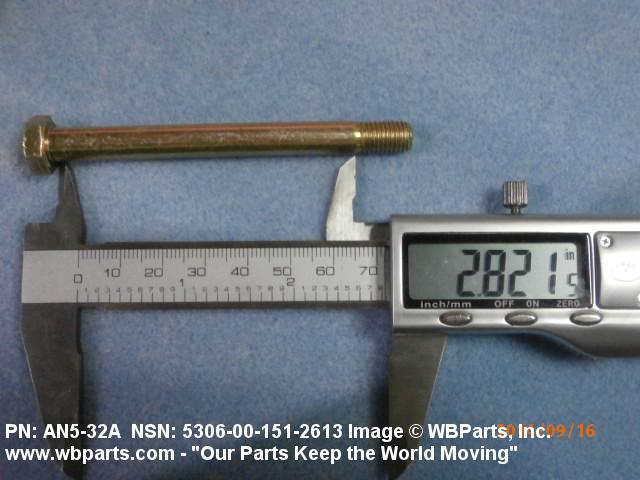

| GRIP LENGTH | 2.812 INCHES NOMINAL |
