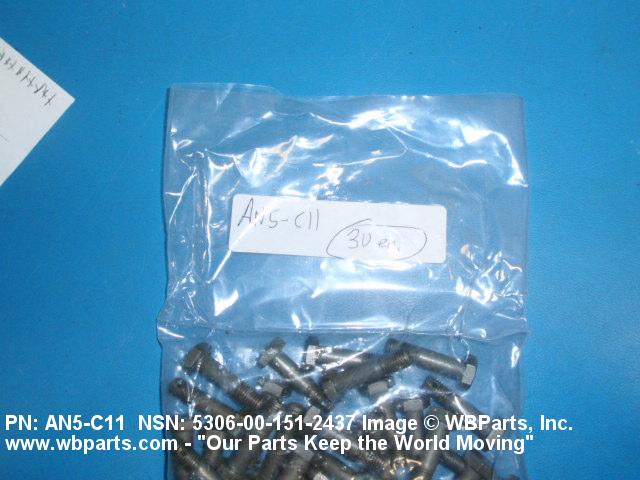

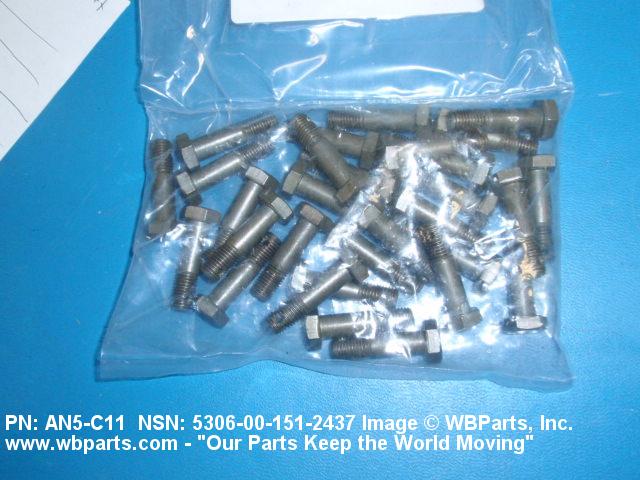

NSN 5306-00-151-2437 AN5C11, 00-151-2437, 001512437
Product Details | MACHINE BOLT
5306-00-151-2437 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: AN5C11, 5306-00-151-2437, 00-151-2437, 5306001512437, 001512437
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-151-2437 | 01847 ( BOLT, MACHINE ) |
Drawings & Photos | NSN 5306-00-151-2437
Demand History | NSN 5306-00-151-2437
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN5C11 | 2014-06-157 | 50 | United States |
| AN5C11 | 2010-02-47 | 30 | US |
| AN5C11 | 2009-09-258 | 30 | United States |
Cross Reference | NSN 5306-00-151-2437
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN5C11 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-151-2437
Related Products | NSN 5306-00-151-2437
Technical Data | NSN 5306-00-151-2437
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.500 INCHES MINIMUM AND 0.578 INCHES MAXIMUM |
| FASTENER LENGTH | 1.203 INCHES MINIMUM AND 1.250 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 431 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-18732 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 125000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.172 INCHES MINIMUM AND 0.204 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.490 INCHES MINIMUM AND 0.502 INCHES MAXIMUM |
| GRIP LENGTH | 0.672 INCHES MINIMUM AND 0.703 INCHES MAXIMUM |
| DISTANCE FROM HEAD LARGEST BEARING SURFACE TO SHANK HOLE CENTER | 1.031 INCHES MINIMUM AND 1.062 INCHES MAXIMUM FIRST HOLE |
| SHANK UNTHREADED HOLE DIAMETER | 0.076 INCHES MINIMUM AND 0.086 INCHES MAXIMUM FIRST HOLE |
| FEATURES PROVIDED | FINISHED HEAD |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN5C11 |
Restrictions/Controls & Freight Information | NSN 5306-00-151-2437
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
