NSN 5306-00-150-9105 AN44A, AN4-4A, S13210044

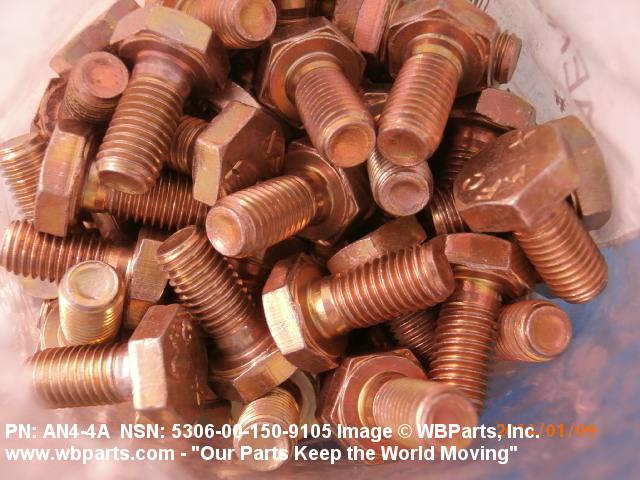

Product Details | MACHINE BOLT
5306-00-150-9105 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: AN44A, AN4-4A, S13210044, S132100-4-4, TK44A, TK4-4A, 2010233, 401 307, 401 335, 401307, 401335, 6026403532, 6026-4035-32, 6628706P8, 6628864P8, 6628936P8, 7376018, 5306-00-150-9105, 00-150-9105, 5306001509105, 001509105
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-150-9105 | 01847 ( BOLT, MACHINE ) |

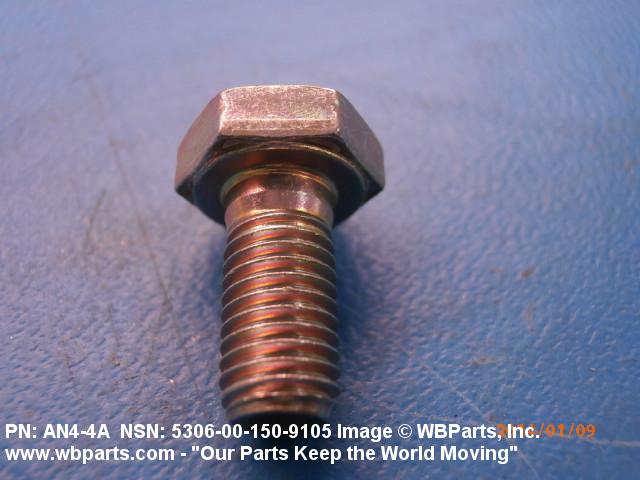

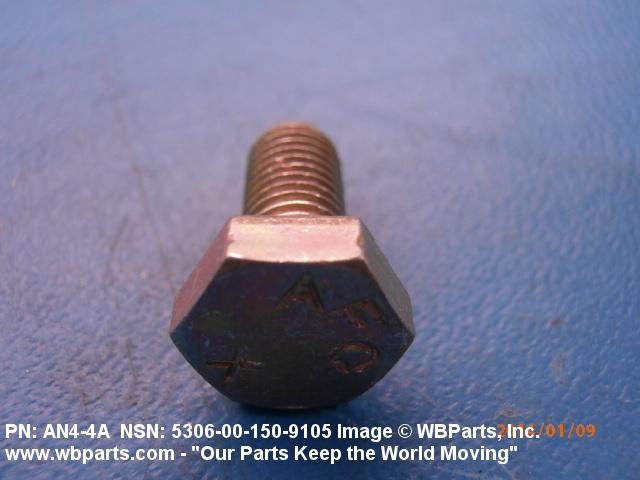

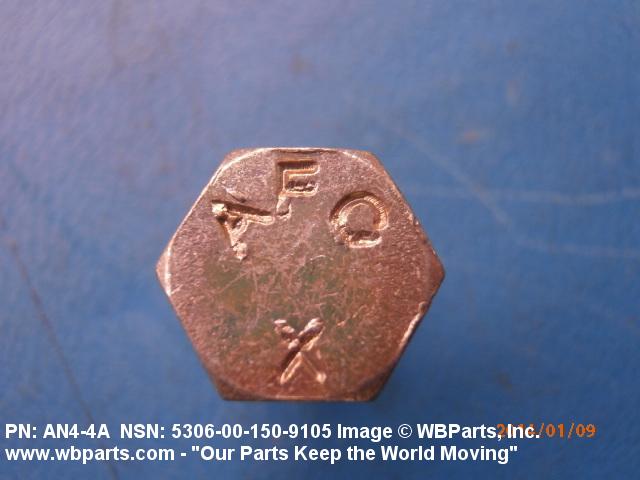

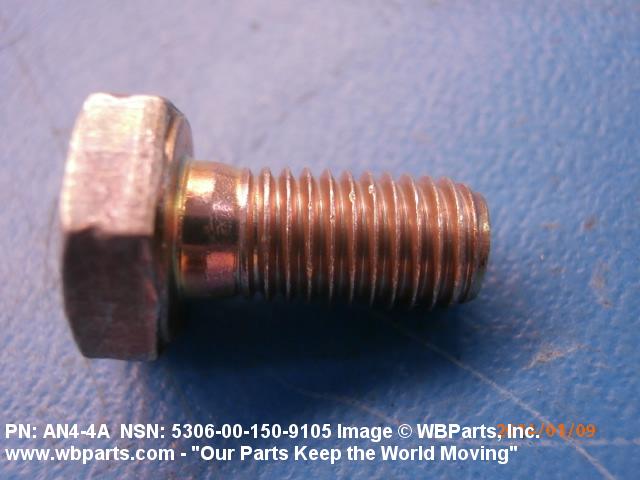

Drawings & Photos | NSN 5306-00-150-9105
Demand History | NSN 5306-00-150-9105
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN44A | 2024-04-94 | 50 | United States |
| AN44A | 2023-09-264 | 40 | United States |
| AN44A | 2023-09-249 | 20 | United States |
| AN44A | 2021-06-181 | 50 | Canada |
| 5306-00-150-9105 | 2021-05-151 | 70 | DE |
| 5306-00-150-9105 | 2020-06-182 | 240 | MANUAL |
| AN44A | 2020-01-06 | 50 | United States |
| 2010233 | 2019-01-04 | 1 | IN |
| 5306-00-150-9105 | 2018-12-354 | 395 | DIBBS |
| 5306-00-150-9105 | 2018-12-347 | 358 | DIBBS |
| 5306-00-150-9105 | 2018-12-346 | 395 | DIBBS |
| 5306-00-150-9105 | 2018-01-10 | 1840 | DIBBS |
| AN4-4A | 2016-07-211 | 359 | MX |
| AN4-4A | 2015-05-138 | 8 | United States |
| AN4-4A | 2015-05-138 | 8 | United States |
| AN4-4A | 2014-07-210 | 9 | India |
| AN4-4A | 2014-05-142 | 5000 | United States |
| AN44A | 2014-01-06 | 200 | Canada |
| AN44A | 2013-08-213 | 30 | US |
| AN4-4A | 2012-11-310 | 50 | |
| 5306-00-150-9105 | 2012-10-305 | 200 | Canada |
| AN44A | 2011-11-314 | 10 | United States |
| 5306-00-150-9105 | 2011-09-244 | 21600 | United States |
| AN44A | 2009-06-180 | 100 | US |
| 5306-00-150-9105 | 2009-01-31 | 50 | Canada |
| 5306-00-150-9105 | 2008-07-191 | 81700 | US |
| AN44A | 2008-03-63 | 250 | Sri Lanka |
Cross Reference | NSN 5306-00-150-9105
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2010233 | 001JK | EMBRAER S/A |
| 2010233 | FB459 | EMBRAER AVIATION INTERNATIONAL |
| 2010233 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 401 307 | 77294 | PIPER AIRCRAFT INC. |
| 401 335 | 77294 | PIPER AIRCRAFT INC. |
| 5306001509105 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5306PL0887407 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
| 6026-4035-32 | 1PQF4 | L-3 COMMUNICATIONS CORPORATION DBA LINK SIMULATION & TRAINING |
| 6026-4035-32 | 20551 | CAE-LINK CORP |
| 6026-4035-32 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 6628706P8 | 24446 | GENERAL ELECTRIC CO |
| 6628864P8 | 24446 | GENERAL ELECTRIC CO |
| 6628936P8 | 24446 | GENERAL ELECTRIC CO |
| 7376018 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| AN4-4A | 0NFB8 | DIALOGIC CORP. DBA DIALOGIC FASTENERS |
| AN4-4A | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| AN4-4A | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| S132100-4-4 | 18355 | BOEING COMPANY, THE DBA BOEING |
| S132100-4-4 | 88277 | BOEING COMPANY, THE DBA BOEING |
| TK4-4A | 97928 | HUCK INTL INC |
| TK4-4A | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-150-9105
Technical Data | NSN 5306-00-150-9105

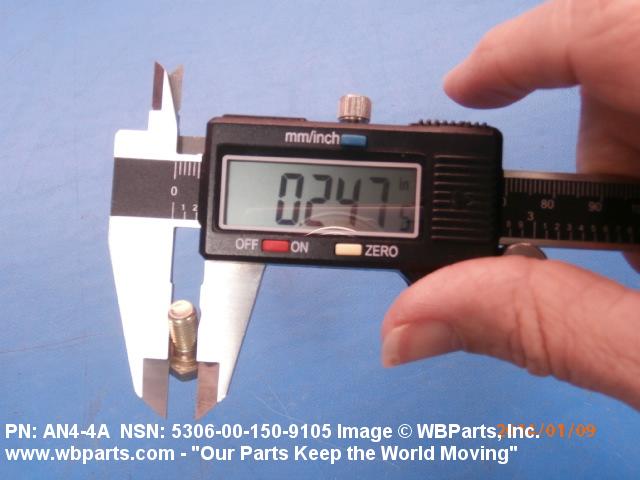

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

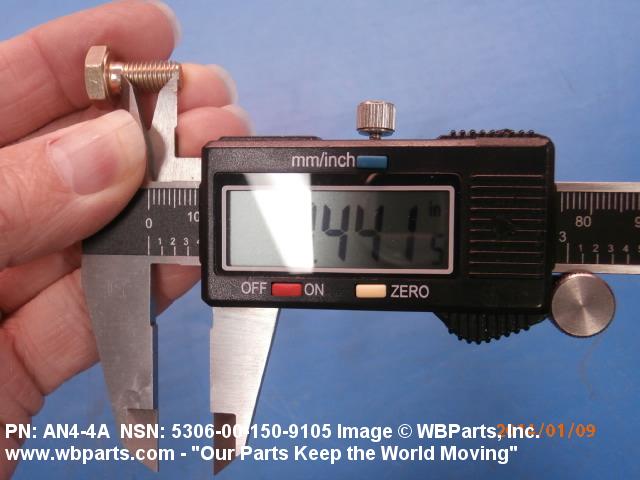

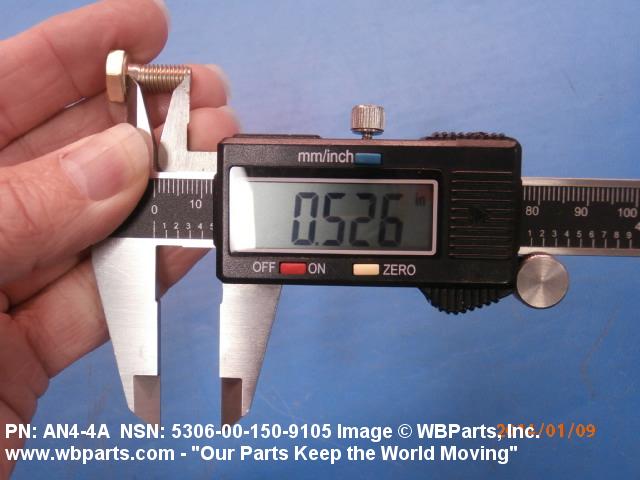

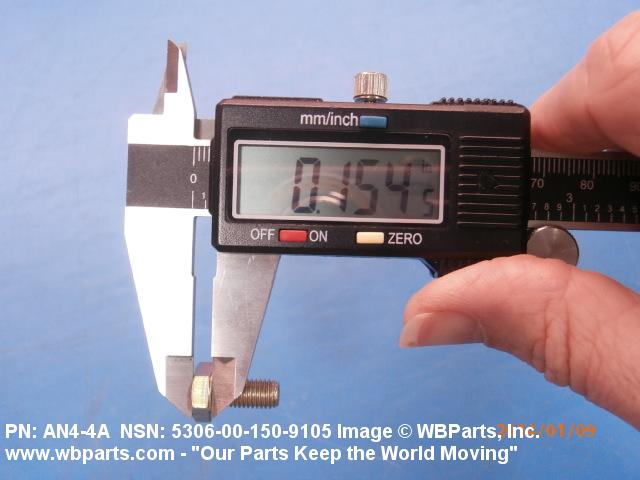

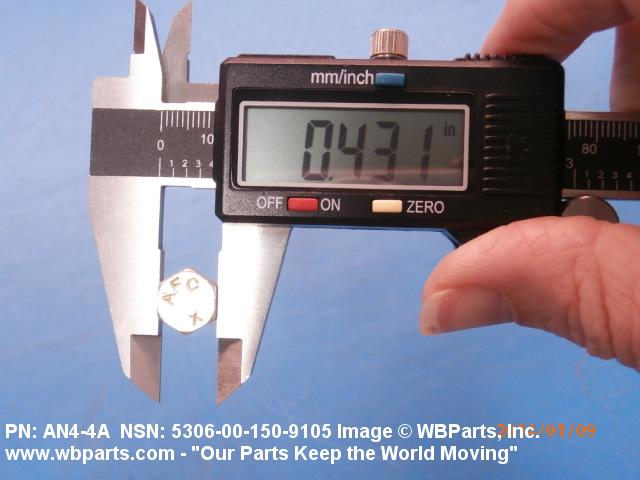

| THREAD LENGTH | 0.438 INCHES MINIMUM AND 0.516 INCHES MAXIMUM |
| FASTENER LENGTH | 0.516 INCHES MINIMUM AND 0.562 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 4140 OR STEEL COMP 8740 OR STEEL COMP 8630 OR STEEL COMP 8735 OR STEEL COMP 4130 OR STEEL COMP 4037 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6050 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-6098 MIL SPEC 4TH MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 5TH MATERIAL RESPONSE OR AMS 6300 ASSN STD 6TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P--16,TY2,CL3 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 125000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.140 INCHES MINIMUM AND 0.172 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.428 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| GRIP LENGTH | 0.046 INCHES MINIMUM AND 0.078 INCHES MAXIMUM |
| FEATURES PROVIDED | FINISHED HEAD |
| III END ITEM IDENTIFICATION | B-1 SUPPORT EQUIPMENT;SOF AIRCRAFT;TF-33 ENGINE;PHOENIX MISSILE;HARPOON MISSILE;TF-56 ENGINE;AIRCRAFT, C-2A (REPROCURED);ENGINE, AIRCRAFT, TF-33-P-7 |
