NSN 5306-00-145-7666 AN3DD3A, 00-145-7666, 001457666
Product Details | MACHINE BOLT
5306-00-145-7666 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: AN3DD3A, 5306-00-145-7666, 00-145-7666, 5306001457666, 001457666
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-145-7666 | 01847 ( BOLT, MACHINE ) |

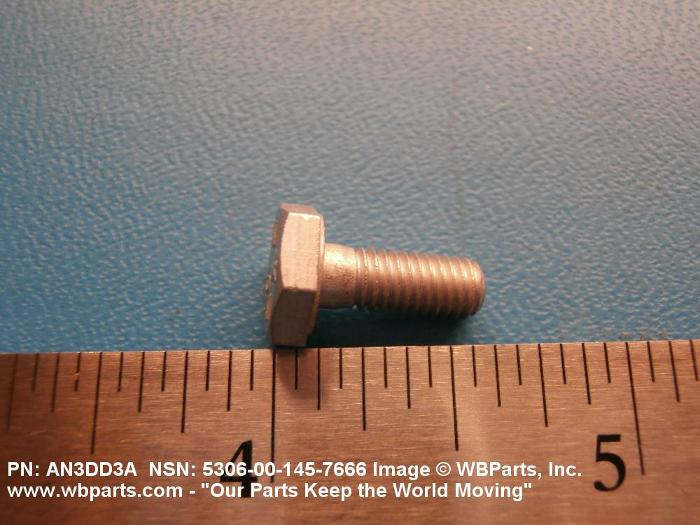

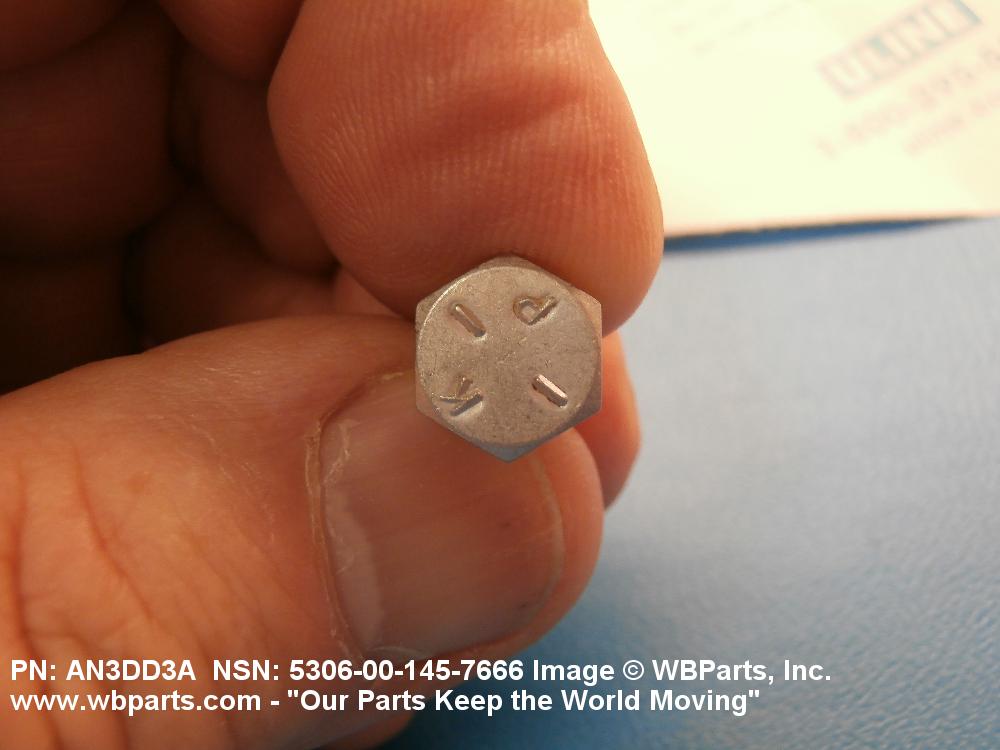

Drawings & Photos | NSN 5306-00-145-7666
Demand History | NSN 5306-00-145-7666
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN3DD3A | 2012-04-115 | 70 | IN |
Cross Reference | NSN 5306-00-145-7666
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN3DD3A | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-145-7666
Related Products | NSN 5306-00-145-7666
Technical Data | NSN 5306-00-145-7666
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.374 INCHES MINIMUM AND 0.453 INCHES MAXIMUM |
| FASTENER LENGTH | 0.453 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-225 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | OXIDE FILM AND ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC 1ST TREATMENT RESPONSE AND MIL-A-8625 MIL SPEC 2ND TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 62000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.109 INCHES MINIMUM AND 0.141 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.365 INCHES MINIMUM AND 0.377 INCHES MAXIMUM |
| GRIP LENGTH | 0.052 INCHES MINIMUM AND 0.072 INCHES MAXIMUM |
| FEATURES PROVIDED | FINISHED HEAD |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN3DD3A |
