NSN 5306-00-132-3951 68656572, 6865657-2, 00-132-3951
Product Details | SHOULDER BOLT
5306-00-132-3951 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is not designed to be held or driven with an inserted drivers. A locking feature may be incorporated in the design of the head or threads. For items with a thread diameter smaller than No. 10 (0.190 IN.) (5 mm) and those items with an inserted drive head, use SCREW, SHOULDER. For items which are No. 10 (0.190 IN.) (5 mm) or larger in size and are both shouldered and have an externally relieved body, use BOLT, EXTERNALLY RELIEVED BODY. Excludes THUMBSCREW.
Part Alternates: 68656572, 6865657-2, 5306-00-132-3951, 00-132-3951, 5306001323951, 001323951
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 DEC 1968 | 00-132-3951 | 04905 ( BOLT, SHOULDER ) |
Drawings & Photos | NSN 5306-00-132-3951
Cross Reference | NSN 5306-00-132-3951
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6865657-2 | 73342 | ALLISON TRANSMISSION, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-132-3951
Technical Data | NSN 5306-00-132-3951
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD DIAMETER | 0.372 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.511 INCHES MINIMUM AND 0.526 INCHES MAXIMUM |
| FASTENER LENGTH | 1.000 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5616 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HEAD STYLE | C24 ROUND WITH WRENCH FLATS CHAMFERED |
| HEAD DIAMETER | 0.285 INCHES MINIMUM AND 0.292 INCHES MAXIMUM |
| HEAD HEIGHT | 0.250 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.760 INCHES MINIMUM AND 0.790 INCHES MAXIMUM |

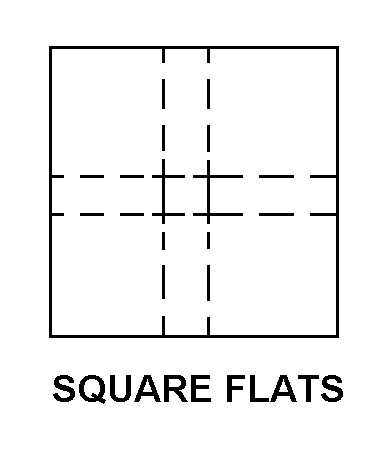

| HOLE CONFIGURATION STYLE | E16 SQUARE FLATS |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 1 |
| HOLE DIAMETER | 0.098 INCHES NOMINAL |
| DISTANCE FROM HEAD LARGEST BEARING SURFACE TO SHANK HOLE CENTER | 1.250 INCHES NOMINAL FIRST HOLE |
| SHANK UNTHREADED HOLE DIAMETER | 0.098 INCHES NOMINAL FIRST HOLE |
| MANUFACTURERS CODE | 73342 |
| DESIGN CONTROL REFERENCE | 6865657-2 |
