NSN 5306-00-113-3771 MS955608, MS9556-08, R1453P008

Product Details | MACHINE BOLT

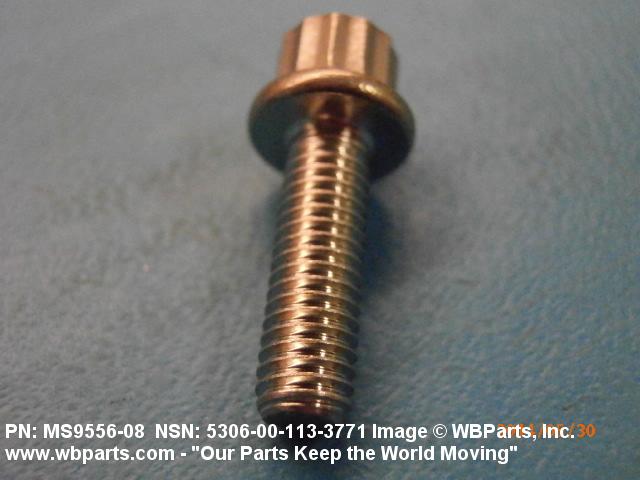

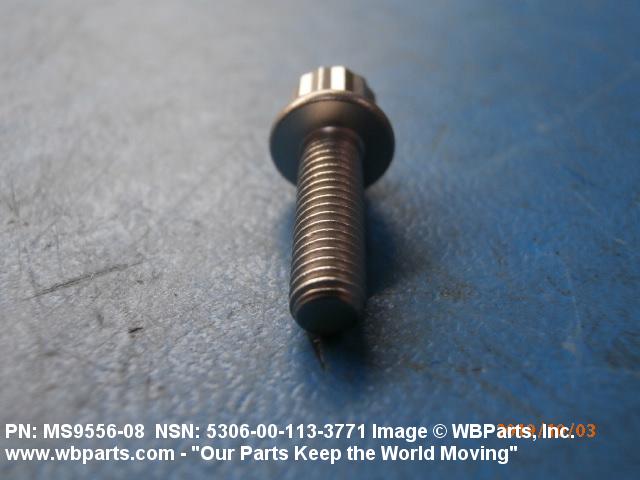

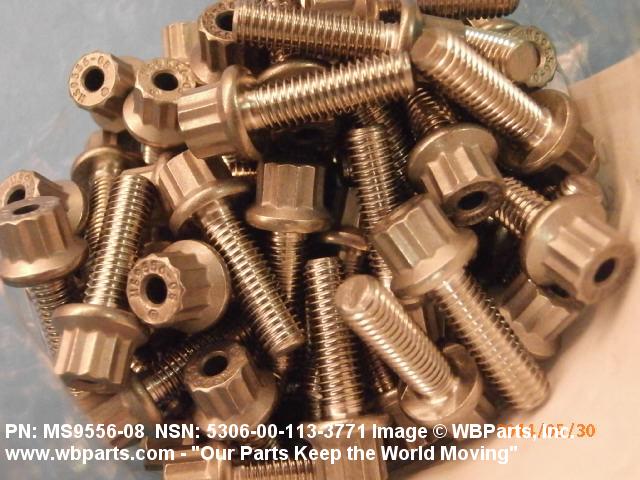

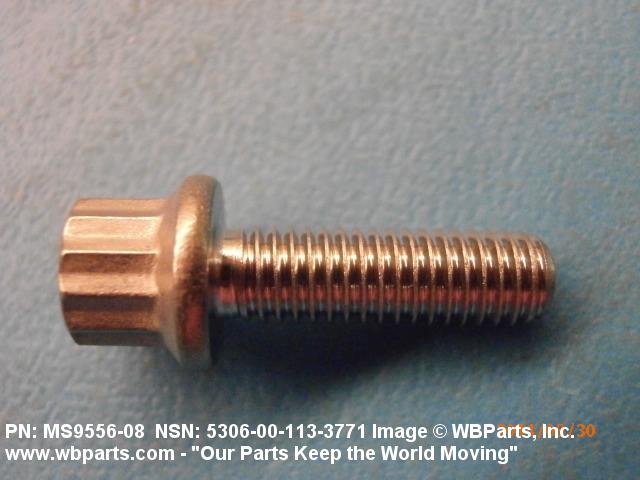

5306-00-113-3771 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.

Part Alternates: MS955608, MS9556-08, R1453P008, 10114160 , 5306-00-113-3771, 00-113-3771, 5306001133771, 001133771

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	25 SEP 1968	00-113-3771	01847 ( BOLT, MACHINE )

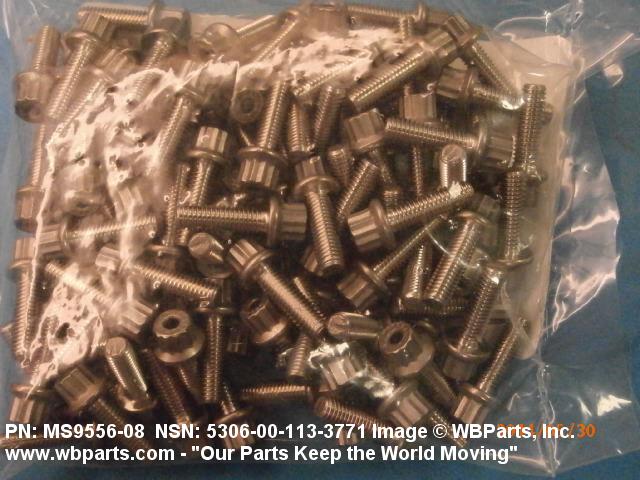

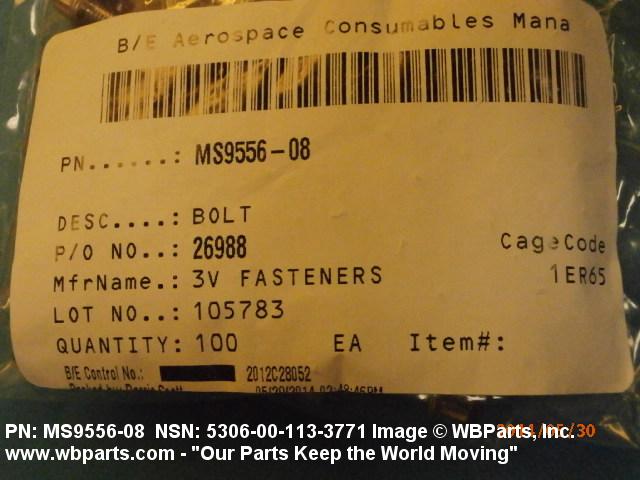

Drawings & Photos | NSN 5306-00-113-3771

Part Number	Request Date	QTY	Origin
MS955608	2025-03-73	15	Japan
MS955608	2024-09-247	190	Japan
5306-00-113-3771	2019-03-62	2655	DIBBS
5306-00-113-3771	2019-01-15	4200	US
5306-00-113-3771	2019-01-08	4179	DIBBS
MS955608	2018-11-306	2	US
5306-00-113-3771	2018-10-289	3960	DIBBS
5306-00-113-3771	2018-09-259	19566	DIBBS
5306-00-113-3771	2018-08-233	11942	DIBBS
5306-00-113-3771	2018-04-93	7624	DIBBS
MS955608	2018-02-32	3	United States
MS955608	2017-01-05	18	United States
5306-00-113-3771	2016-06-175	6511	DIBBS
5306-00-113-3771	2016-04-104	6733	DIBBS
MS9556-08	2015-07-206	3
MS9556-08	2015-03-85	4	US
MS9556-08	2015-03-69	500	US
5306-00-113-3771	2014-05-147	5	United States
MS9556-08	2013-05-134	50	CZ
MS9556-08	2013-04-112	30
MS955608	2012-12-341	640	Netherlands
R1453P008	2012-02-47	15	Canada
R1453P008	2012-02-47	15	Canada
R1453P008	2012-02-47	15	Canada
R1453P008	2012-02-47	15	Canada
R1453P008	2012-02-47	15	Canada
R1453P008	2012-02-47	15	Canada
R1453P008	2012-02-47	15	Canada
5306-00-113-3771	2011-03-77	38575	DIBBS
5306-00-113-3771	2010-10-298	33130	DIBBS
MS955608	2010-03-82	50	United States
MS955608	2010-03-68	2000	United States
MS955608	2010-03-67	10	Saudi Arabia
5306-00-113-3771	2010-03-65	10	Saudi Arabia
5306-00-113-3771	2009-12-342	29466	DIBBS
5306-00-113-3771	2009-10-296	24	US
5306-00-113-3771	2009-08-223	3	US
MS955608	2009-08-217	6	US
5306-00-113-3771	2009-06-180	5	Greece
MS955608	2009-06-180	2	Greece
5306-00-113-3771	2009-02-36	500	us
5306-00-113-3771	2008-04-105	200	United States

Cross Reference | NSN 5306-00-113-3771

Part Number	Cage Code	Manufacturer
MS9556-08	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
R1453P008	03350	GENERAL ELECTRIC COMPANY DBA GE STRUCTURED SERVICES DIV
R1453P008	99207	GENERAL ELECTRIC COMPANY DBA GE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-00-113-3771

Compare

Related Products | NSN 5306-00-113-3771

5306-00-113-3785, 5306-00-113-3786, 5306-00-113-3815, 5306-00-113-3816, 5306-00-113-3817

Technical Data | NSN 5306-00-113-3771

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF

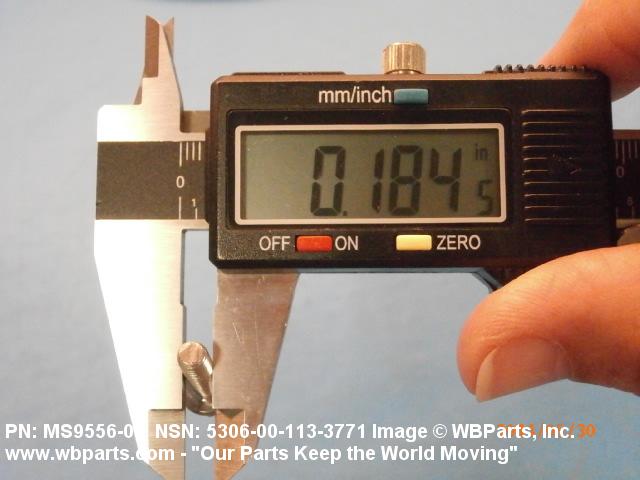

NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

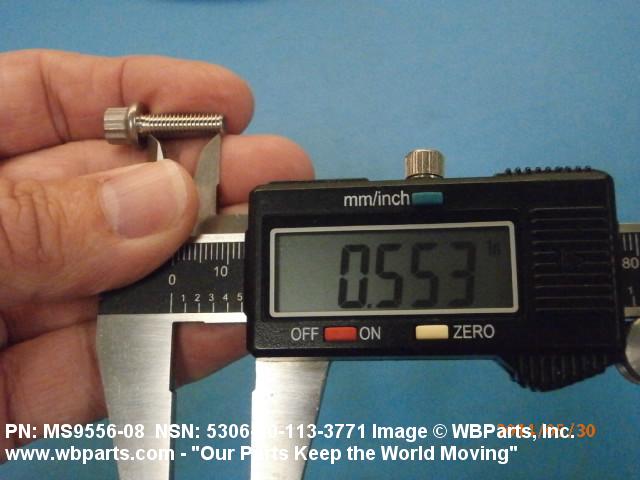

THREAD LENGTH	0.533 INCHES MINIMUM AND 0.553 INCHES MAXIMUM

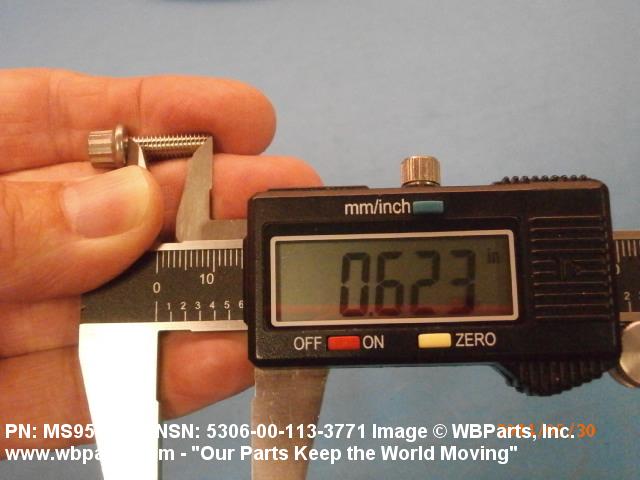

FASTENER LENGTH	0.625 INCHES NOMINAL
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5731 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
HARDNESS RATING	248.0 BRINELL STANDARD MINIMUM AND 341.0 BRINELL STANDARD MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	130000 POUNDS PER SQUARE INCH
MINIMUM YIELD STRENGTH	85000 POUNDS PER SQUARE INCH

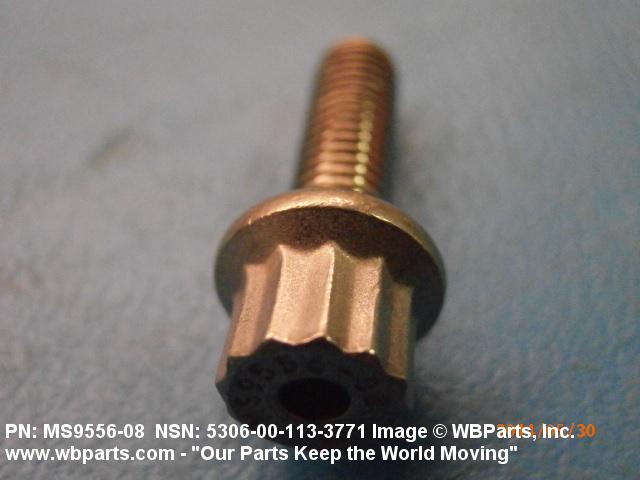

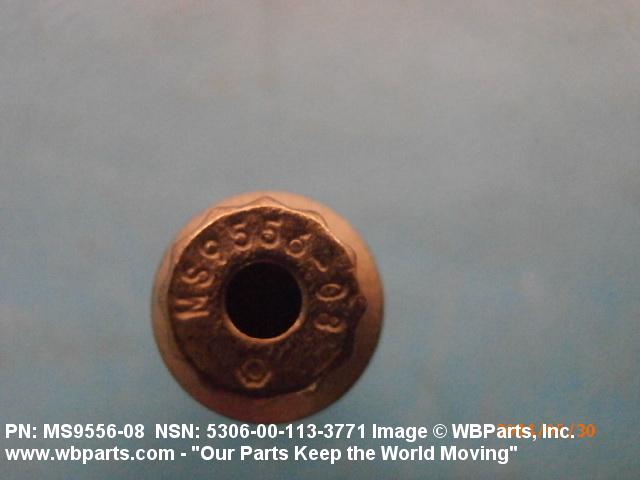

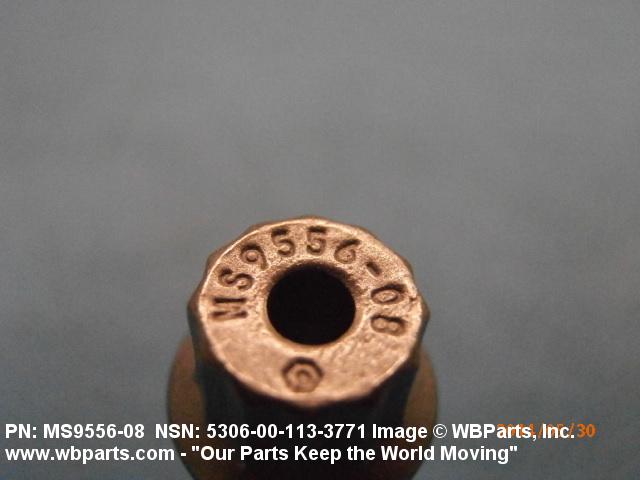

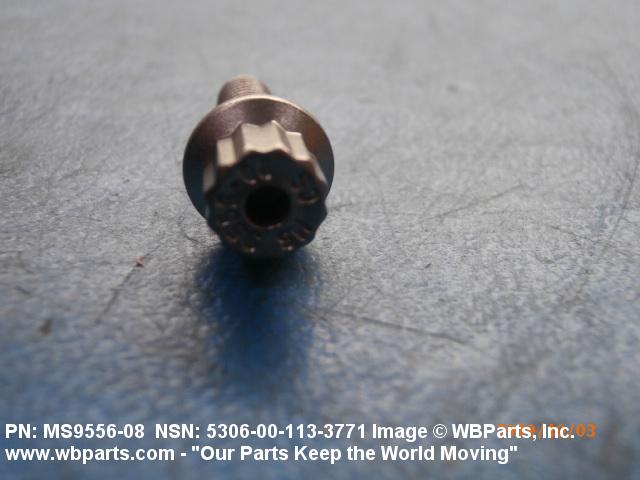

HEAD STYLE	C10 DOUBLE HEXAGON WITH HOLE

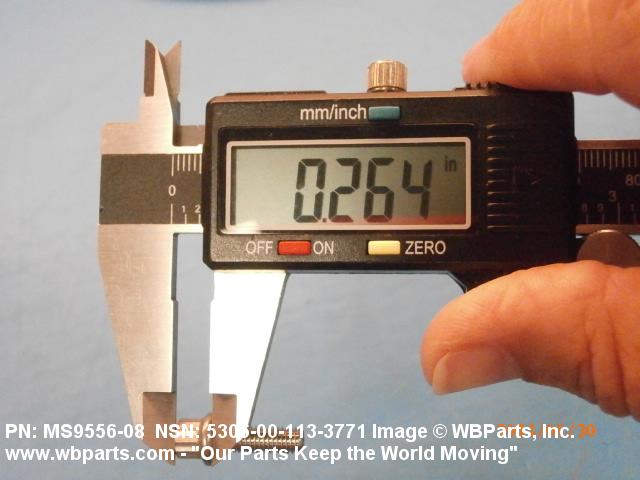

HEAD HEIGHT	0.260 INCHES NOMINAL

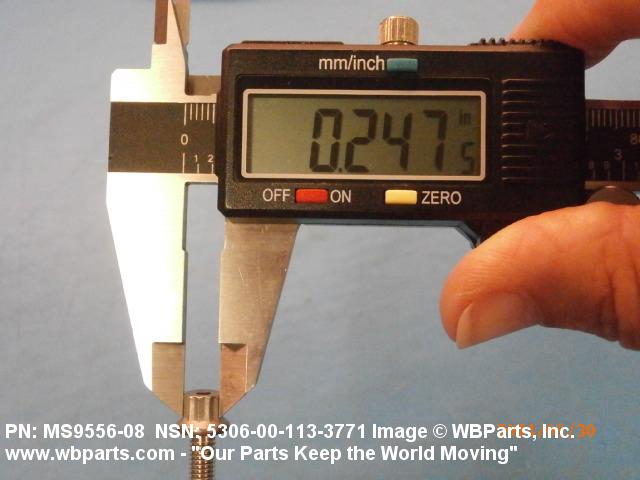

WIDTH BETWEEN FLATS	0.243 INCHES MINIMUM AND 0.251 INCHES MAXIMUM

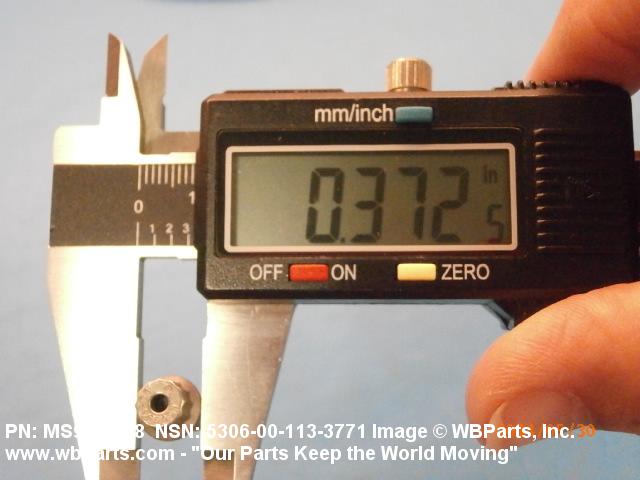

EXTENDED WASHER DIAMETER	0.375 INCHES NOMINAL
EXTENDED WASHER THICKNESS	0.040 INCHES MINIMUM AND 0.050 INCHES MAXIMUM
GRIP LENGTH	0.072 INCHES MINIMUM AND 0.092 INCHES MAXIMUM
SURFACE FINISH	32.0 MICROINCHES BEARING SURFACE OF HEAD 32.0 MICROINCHES GRIP 32.0 MICROINCHES THREADS
FEATURES PROVIDED	FINISHED HEAD
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS9556-08
