NSN 5306-00-059-4999 R1057P11SL, 00-059-4999, 000594999

Product Details | EXTERNALLY RELIEVED BODY BOLT

5306-00-059-4999 An externally threaded fastener whose threaded portion is of one nominal diameter, and whose unthreaded portion has been machined or ground in one or more places or over its entire length to a maximum diameter less than the minimum pitch diameter of the thread (excludes undercuts for thread relief). It is No. 10 (0.190 IN.) (5 mm) or larger in size and has a head which is not designed to be held or driven with an inserted driver or designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, INTERNAL WRENCHING and THUMBSCREW. See also SCREW, EXTERNALLY RELIEVED BODY.

Part Alternates: R1057P11SL, 5306-00-059-4999, 00-059-4999, 5306000594999, 000594999

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1961	00-059-4999	06675 ( BOLT, EXTERNALLY RELIEVED BODY )

Drawings & Photos | NSN 5306-00-059-4999

Part Number	Request Date	QTY	Origin
5306-00-059-4999	2017-09-271	1220	DIBBS
5306-00-059-4999	2017-03-68	977	DIBBS
5306-00-059-4999	2015-08-223	605	DIBBS
5306-00-059-4999	2015-07-210	605	DIBBS
5306-00-059-4999	2015-06-153	525	DIBBS
5306-00-059-4999	2015-04-120	293	DIBBS
5306-00-059-4999	2014-05-139	1029	DIBBS
5306-00-059-4999	2014-05-127	1029	DIBBS
5306-00-059-4999	2010-04-104	55	DIBBS
5306-00-059-4999	2010-04-97	1910	DIBBS
5306-00-059-4999	2010-03-62	1910	DIBBS
5306-00-059-4999	2010-03-61	1910	DIBBS
5306-00-059-4999	2009-09-252	395	DIBBS
5306-00-059-4999	2009-05-138	830	DIBBS

Cross Reference | NSN 5306-00-059-4999

Part Number	Cage Code	Manufacturer
R1057P11SL	03350	GENERAL ELECTRIC COMPANY DBA GE STRUCTURED SERVICES DIV
R1057P11SL	24446	GENERAL ELECTRIC CO
R1057P11SL	99207	GENERAL ELECTRIC COMPANY DBA GE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-00-059-4999

Compare

Related Products | NSN 5306-00-059-4999

5306-00-059-5502, 5306-00-059-5795, 5306-00-059-6330, 5306-00-059-6367, 5306-00-059-6368

Technical Data | NSN 5306-00-059-4999

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.164 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.624 INCHES MINIMUM
FASTENER LENGTH	0.812 INCHES NOMINAL
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
HARDNESS RATING	26.0 ROCKWELL C MINIMUM AND 33.0 ROCKWELL C MAXIMUM OVERALL
HEAD STYLE	C9 DOUBLE HEXAGON EXTENDED WASHER
HEAD HEIGHT	0.242 INCHES NOMINAL
WIDTH BETWEEN FLATS	0.212 INCHES NOMINAL
EXTENDED WASHER DIAMETER	0.312 INCHES NOMINAL
EXTENDED WASHER THICKNESS	0.030 INCHES NOMINAL

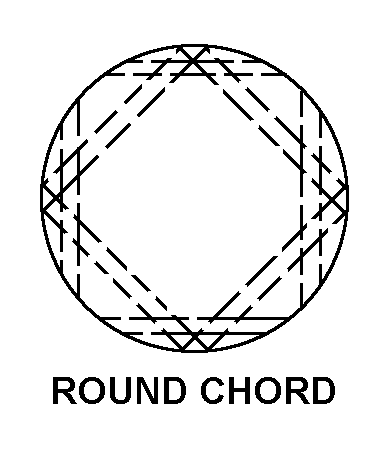

HOLE CONFIGURATION STYLE	E10 ROUND CHORD
HOLE TYPE	DRILLED
HOLE QUANTITY	4
HOLE DIAMETER	0.047 INCHES NOMINAL
EXTERNALLY RELIEVED BODY DIAMETER QUANTITY	2
FIRST DIAMETER FROM HEAD	0.1450 INCHES NOMINAL
SECOND DIAMETER FROM HEAD	0.164 INCHES NOMINAL
DISTANCE FROM LARGEST BEARING SURFACE OF HEAD TO END OF FIRST DIAMETER	0.163 INCHES NOMINAL
DISTANCE FROM LARGEST BEARING SURFACE OF HEAD TO END OF SECOND DIAMETER	0.188 INCHES NOMINAL
MANUFACTURERS CODE	03350
DESIGN CONTROL REFERENCE	R1057P11SL

Restrictions/Controls & Freight Information | NSN 5306-00-059-4999

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
