NSN 5306-00-050-1238 MS9072632, MS90726-32, MS9072732
Product Details | MACHINE BOLT

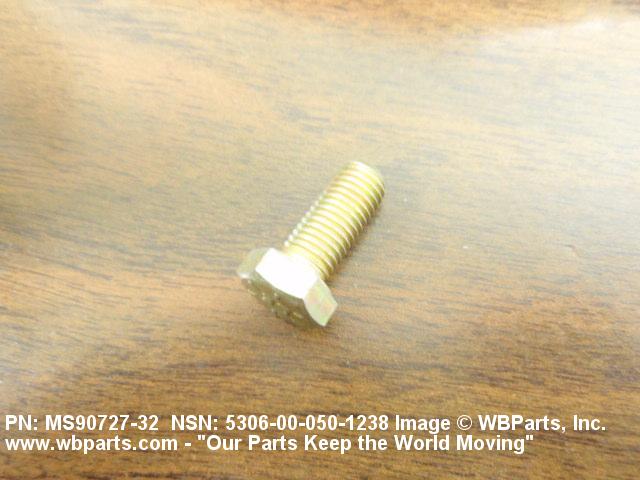

5306-00-050-1238 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: MS9072632, MS90726-32, MS9072732, MS90727-32, B1821BH031F075N, 7053156590, 705-3156-590 , 7114432, 71144-32, 5306-00-050-1238, 00-050-1238, 5306000501238, 000501238
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-050-1238 | 01847 ( BOLT, MACHINE ) |
Drawings & Photos | NSN 5306-00-050-1238
Demand History | NSN 5306-00-050-1238
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-050-1238 | 2025-02-56 | 136 | DIBBS |
| 5306-00-050-1238 | 2025-02-50 | 70 | Taiwan |
| MS9072732 | 2022-07-182 | 100 | US |
| 5306-00-050-1238 | 2017-03-73 | 12 | DIBBS-KIT |
| MS90726-32 | 2017-03-73 | 12 | |
| MS9072632 | 2013-10-287 | 500 | United States |
| MS9072632 | 2013-10-287 | 675 | United States |
| B1821BH031F075N | 2013-06-170 | 32 | US |
| 5306-00-050-1238 | 2012-06-168 | 300 | Canada |
| B1821BH031F075N | 2012-06-159 | 1380 | US |
| B1821BH031F075N | 2012-04-117 | 224 | US |
| B1821BH031F075N | 2011-01-17 | 38 | US |
| 5306-00-050-1238 | 2011-01-10 | 66 | us |
| 5306-00-050-1238 | 2010-11-326 | 200 | United States |
| MS9072632 | 2010-03-61 | 1000 | US |
| 5306-00-050-1238 | 2008-07-191 | 57700 | US |
Cross Reference | NSN 5306-00-050-1238
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5306000501238 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 71144-32 | 95097 | LITTLE GIANT CRANE AND SHOVEL INC |
| B1821BH031F075N | 80204 | AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED |
| MS90726-32 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS90727-32 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
