Product Details | SCREW

5305-14-344-6511 (All Except USA) A headed externally threaded fastener whose threaded portion may extend on part or whole of its shank. The head is designed to be held or driven with a tool. The threaded portion is cylindrical and its diameter 1.6 mm or more. For items with diameters below 1.6 mm see SCREW, INSTRUMENT. The item is designed to be driven in a preexisting mating screwthread or to accommodate a nut, insuring assembling of parts, with the part opposite the head acting as a nut, or insuring a grip between the bearing surface of its head and that of a nut screwed on its end. The threaded end may have a pilot for easier driving into a drilled hole. If the point is designed to prevent or restrict relative movements of parts see SETSCREW. Do not use if a more specific item name applies. If the item is furnished with attachments such as nut(s), washer(s), pin(s), and the like, see SCREW ASSEMBLY or BOLT (as modified).

Part Alternates: L222594012BCLE, L22259-40-12BCLE, 22259BC040012LE, 5305-14-344-6511, 14-344-6511, 5305143446511, 143446511

Hardware and Abrasives | Screws

Supply Group (FSG) NSN Assign. NIIN
53 14-344-6511

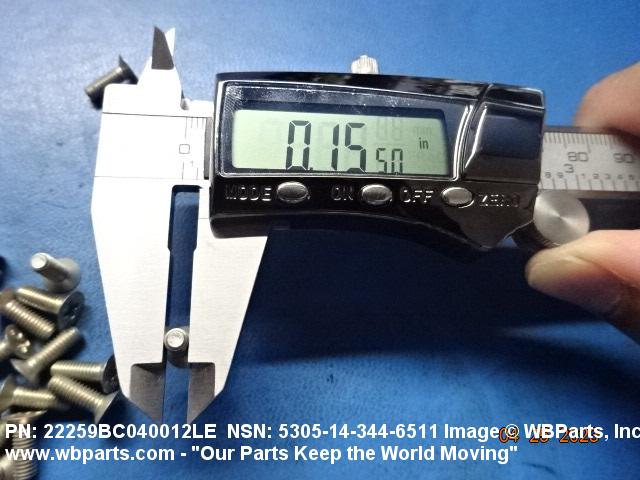

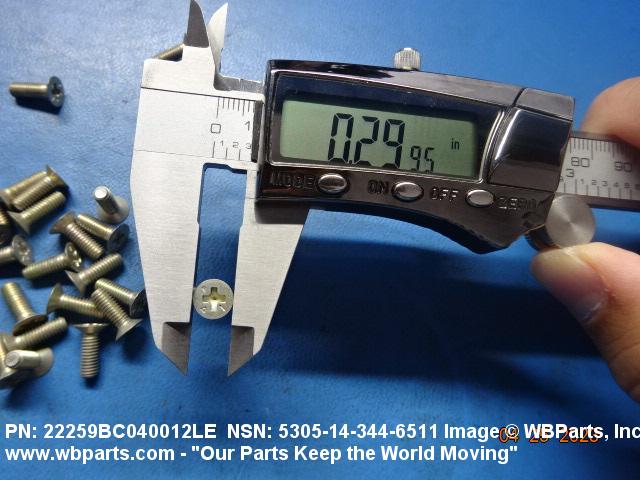

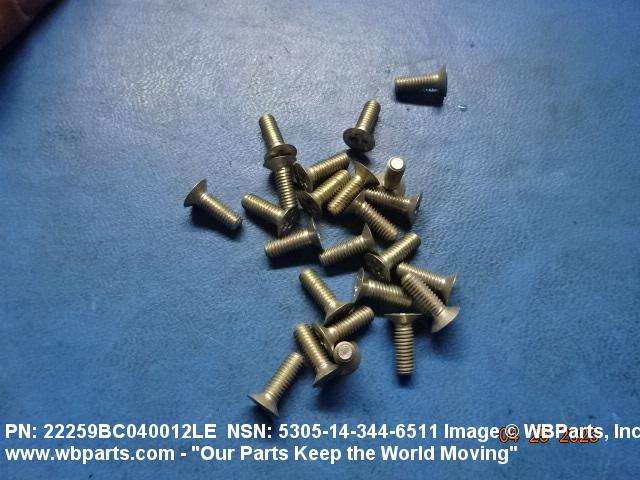

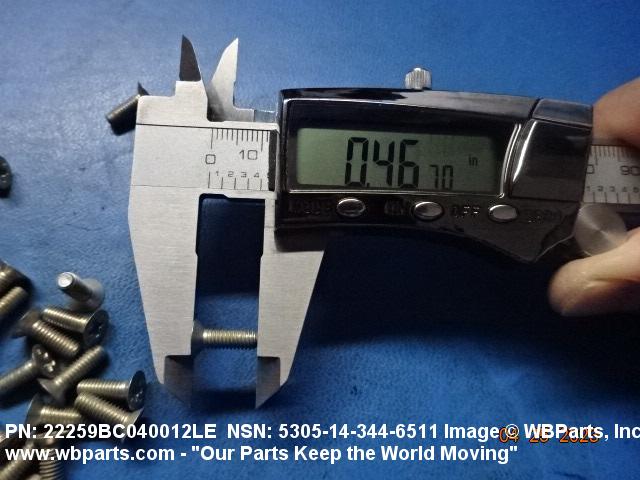

Drawings & Photos | NSN 5305-14-344-6511


Demand History | NSN 5305-14-344-6511

Part Number Request Date QTY Origin
22259BC040012LE 2023-03-89 24 Malaysia
22259BC040012LE 2023-01-09 24 Malaysia
5305-14-344-6511 2012-06-181 462 DIBBS
5305-14-344-6511 2011-08-213 947 DIBBS
5305-14-344-6511 2011-07-207 124 DIBBS
5305-14-344-6511 2010-12-336 114 DIBBS
5305-14-344-6511 2010-06-167 125 DIBBS
5305-14-344-6511 2010-06-167 185 DIBBS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5305-14-344-6511

Restrictions/Controls & Freight Information | NSN 5305-14-344-6511

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Category Code Description
No Freight Information
