NSN 5305-01-603-6349 NA0069A050016, 01-603-6349, 016036349
Product Details | SOCKET HEAD CAP SCREW
5305-01-603-6349 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: NA0069A050016, 5305-01-603-6349, 01-603-6349, 5305016036349, 016036349
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 MAR 2012 | 01-603-6349 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

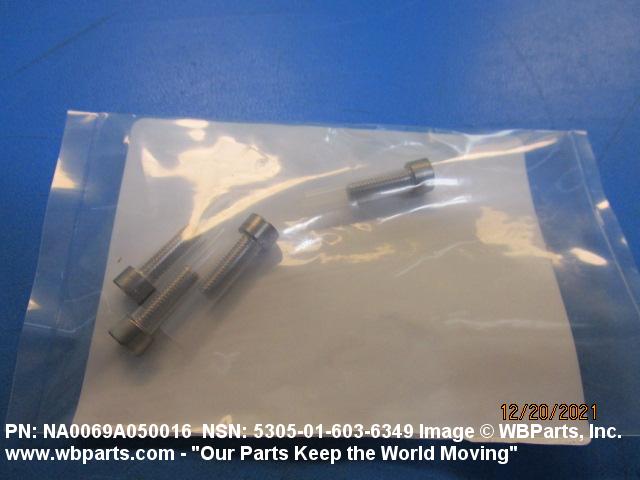

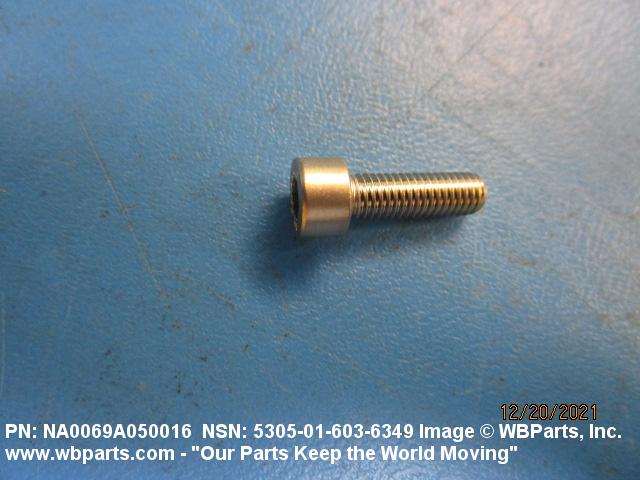

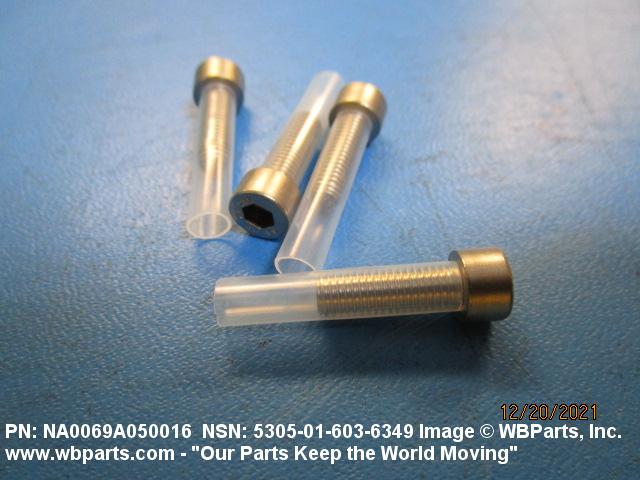

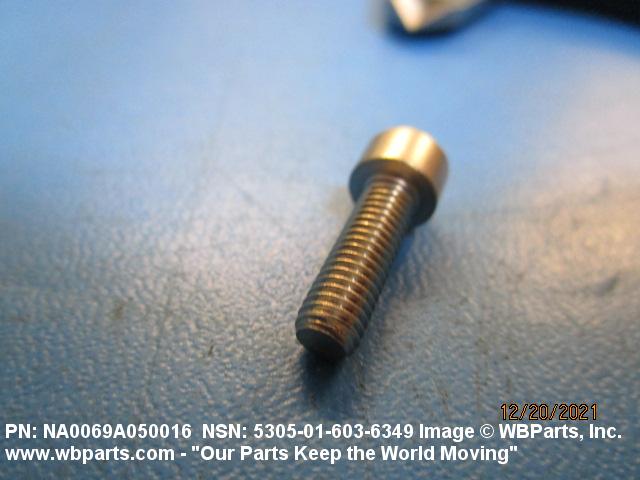

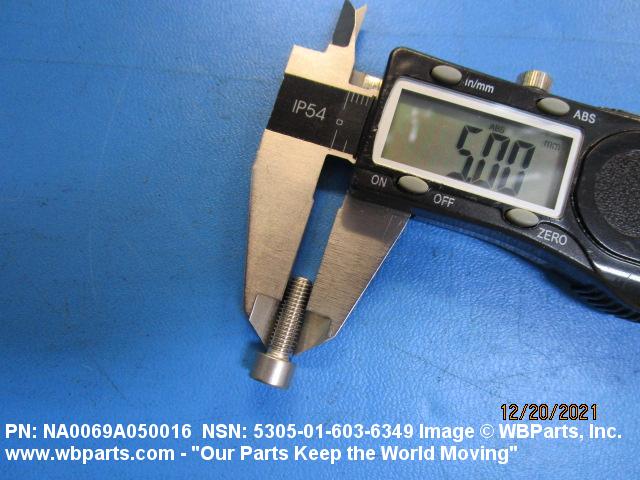

Drawings & Photos | NSN 5305-01-603-6349
Demand History | NSN 5305-01-603-6349
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-603-6349 | 2021-12-347 | 6 | United States |
Cross Reference | NSN 5305-01-603-6349
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NA0069A050016 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-603-6349
Related Products | NSN 5305-01-603-6349
Technical Data | NSN 5305-01-603-6349
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2700 METHOD 1,CLASS 4 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |

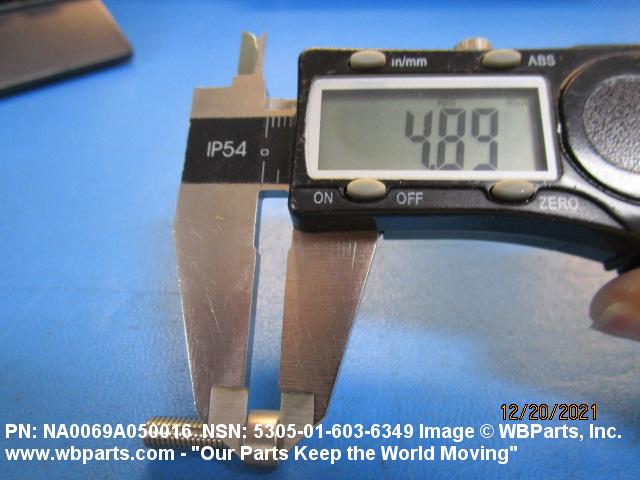

| HEAD HEIGHT | 4.86 MILLIMETERS MINIMUM AND 5.00 MILLIMETERS MAXIMUM |
| INTERNAL DRIVE STYLE | HEXAGON |
| NONSTANDARD THREAD PITCH DIAMETER | -0.8 TO 0.8 MILLIMETERS |

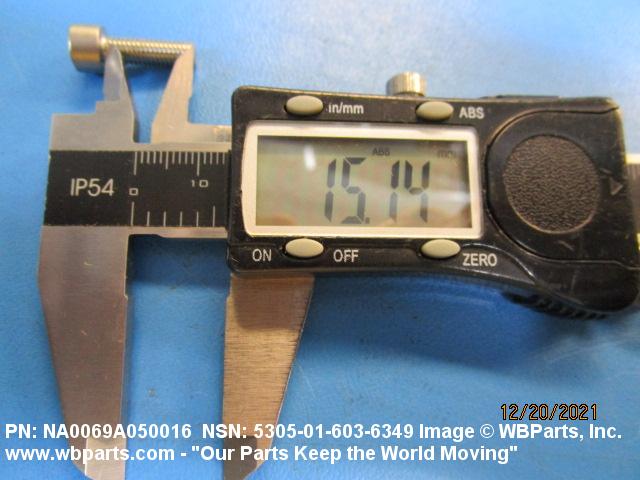

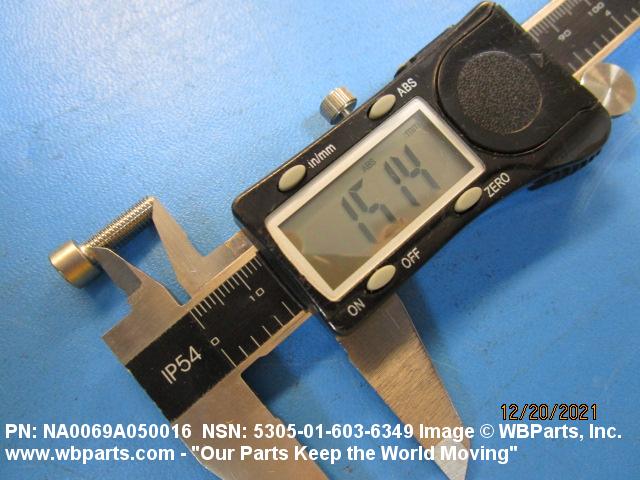

| THREAD LENGTH | 15.7 MILLIMETERS MINIMUM AND 16.3 MILLIMETERS MAXIMUM |
| WIDTH ACROSS FLATS | 4.020 MILLIMETERS MINIMUM AND 4.084 MILLIMETERS MAXIMUM |
| HEAD STYLE | FLAT CHAMFER |

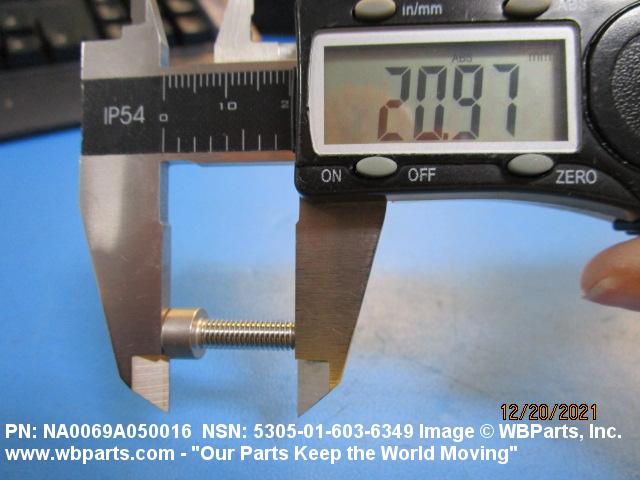

| FASTENER LENGTH | 20.56 MILLIMETERS MINIMUM AND 21.30 MILLIMETERS MAXIMUM |
| THREAD PITCH IN MILLIMETERS | 0.8 |
| THREAD SERIES DESIGNATOR | M |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5731 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5732 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5737 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5853 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| NOMINAL THREAD DIAMETER | 5.0 MILLIMETERS |
| SURFACE TREATMENT | PASSIVATE OVERALL |

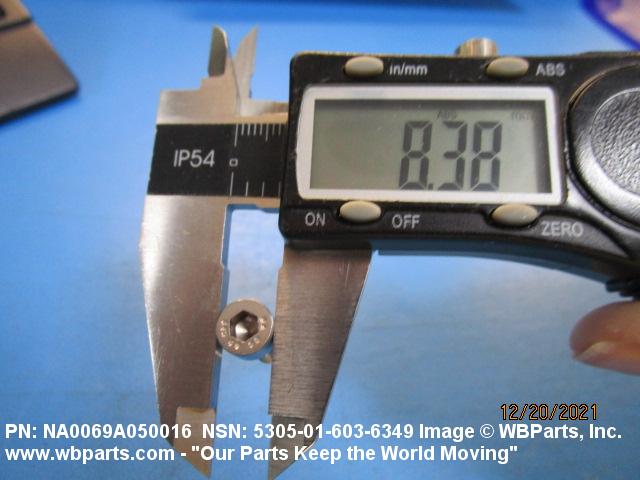

| HEAD DIAMETER | 8.27 MILLIMETERS MINIMUM AND 8.50 MILLIMETERS MAXIMUM |
| CHAMFER ANGLE | 50.0 DEGREES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5305-01-603-6349
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096640 | SCREWS, IRON OR STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KD | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-603-6349
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
