NSN 5305-01-587-9186 NAS18024D16, NAS1802-4D16, 01-587-9186
Product Details | MACHINE SCREW
5305-01-587-9186 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: NAS18024D16, NAS1802-4D16, 5305-01-587-9186, 01-587-9186, 5305015879186, 015879186
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 AUG 2010 | 01-587-9186 | 06657 ( SCREW, MACHINE ) |

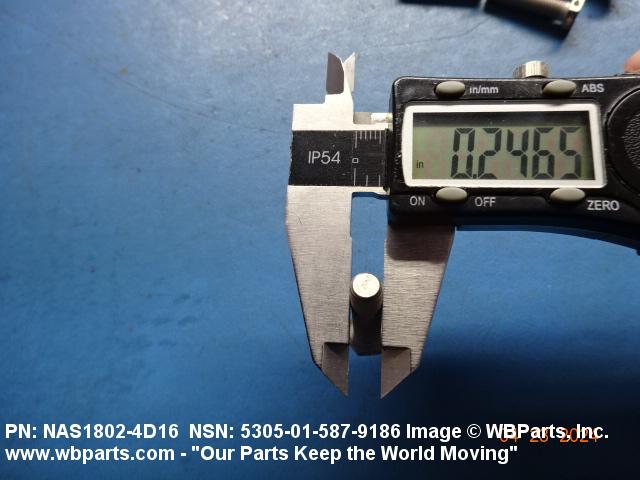

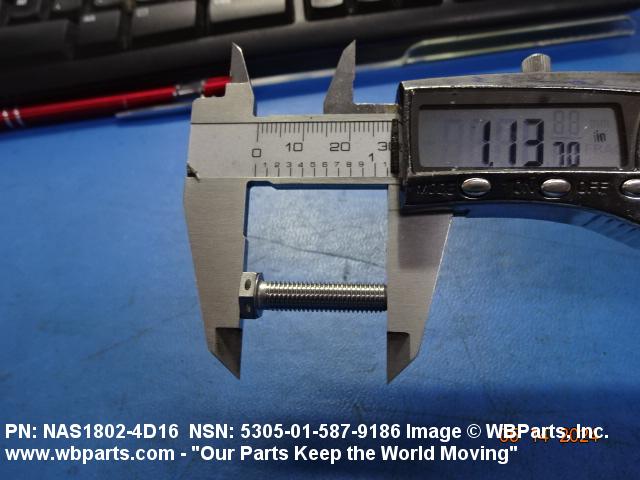

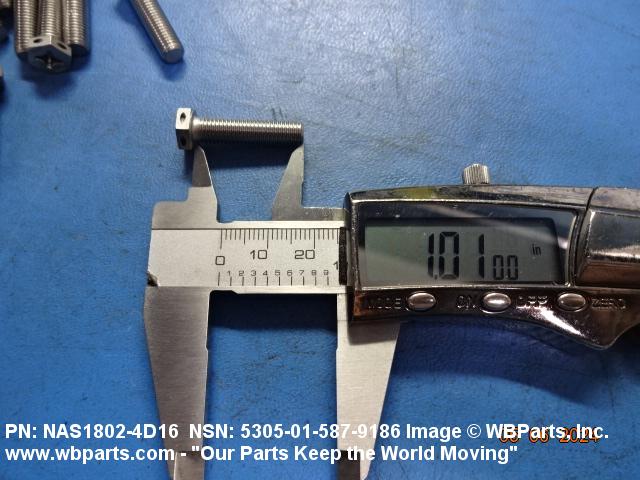

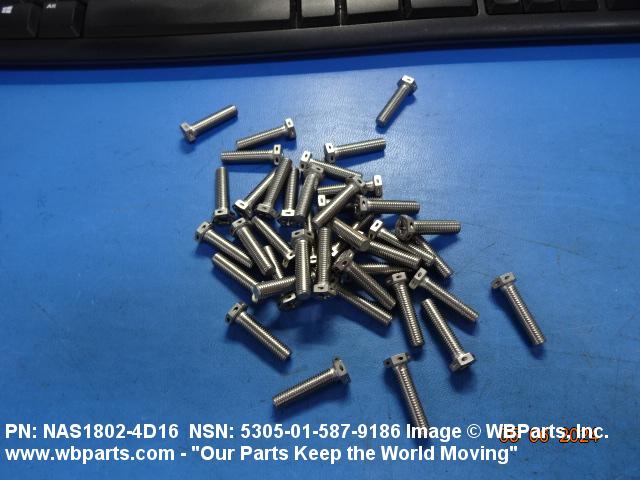

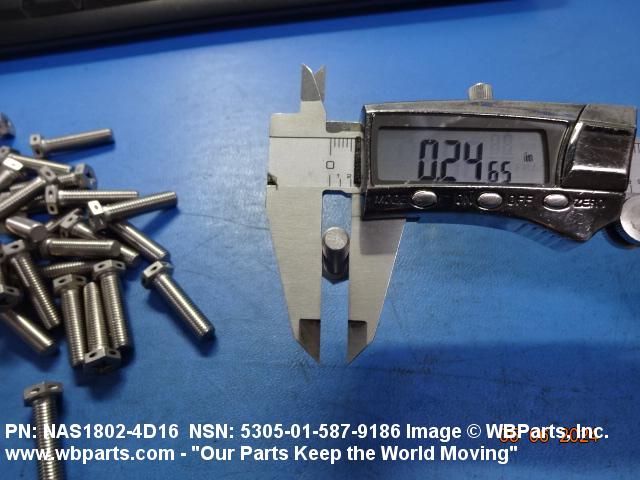

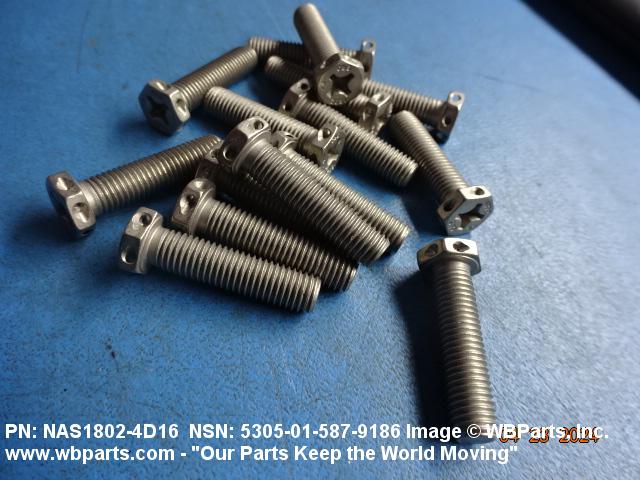

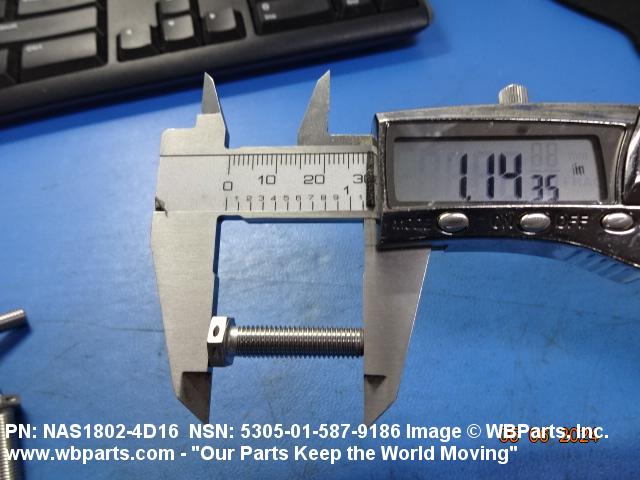

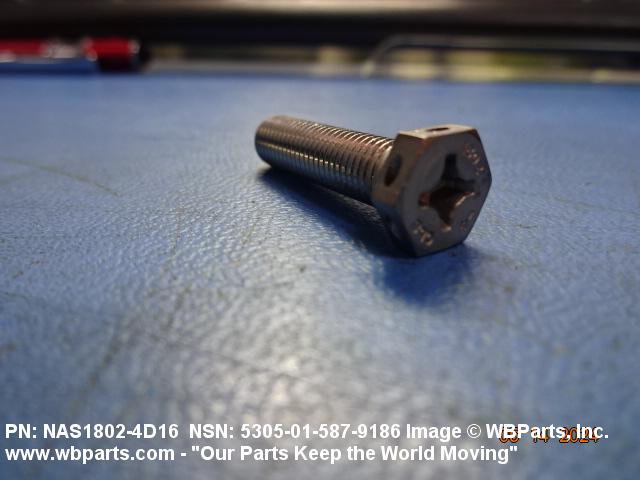

Drawings & Photos | NSN 5305-01-587-9186
Demand History | NSN 5305-01-587-9186
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-587-9186 | 2024-08-234 | 100 | United States |
| 5305-01-587-9186 | 2024-05-128 | 75 | United States |
| 5305-01-587-9186 | 2024-04-106 | 100 | United States |
| 5305-01-587-9186 | 2023-03-65 | 100 | United States |
| 5305-01-587-9186 | 2023-03-65 | 150 | United States |
| 5305-01-587-9186 | 2022-08-229 | 100 | United States |
| 5305-01-587-9186 | 2021-10-299 | 150 | United States |
| 5305-01-587-9186 | 2021-05-126 | 100 | United States |
| NAS18024D16 | 2019-08-232 | 100 | United States |
| NAS18024D16 | 2016-04-113 | 50 | CA |
Cross Reference | NSN 5305-01-587-9186
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1802-4D16 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-587-9186
Technical Data | NSN 5305-01-587-9186
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |

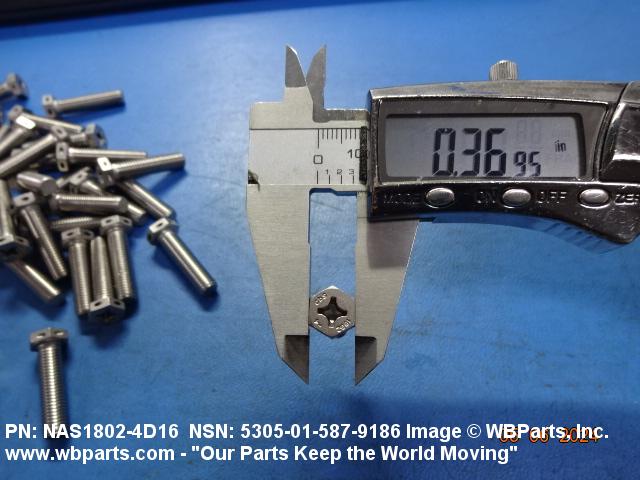

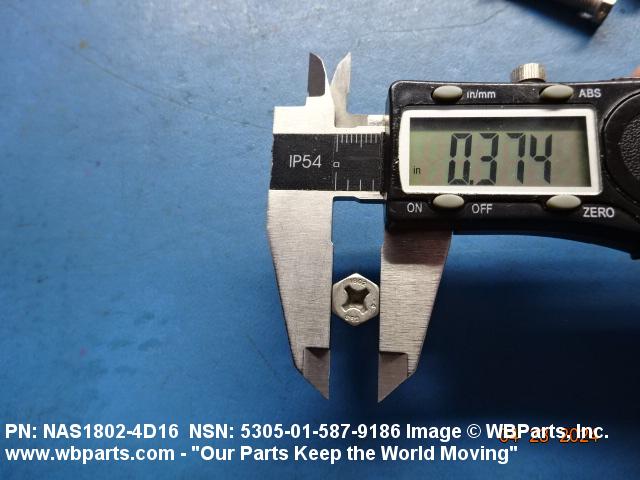

| WIDTH BETWEEN FLATS | 0.367 INCHES MINIMUM AND 0.376 INCHES MAXIMUM |
| SCREW SURFACE TREATMENT | PASSIVATE |

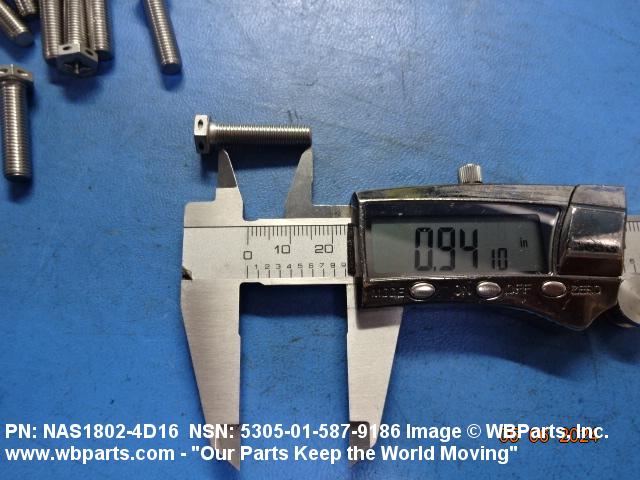

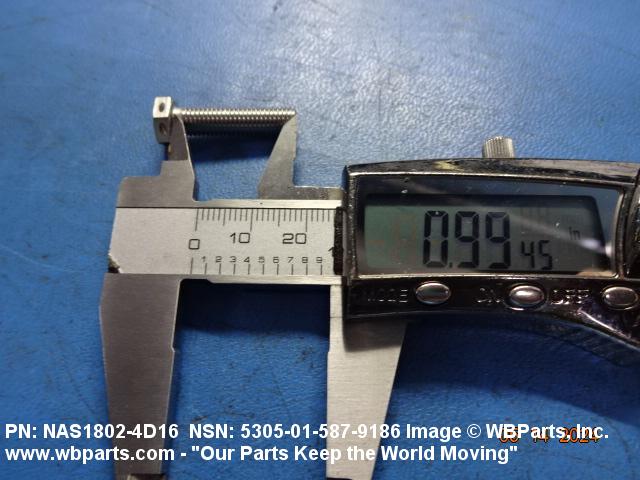

| THREAD LENGTH | 0.960 INCHES MINIMUM AND 1.039 INCHES MAXIMUM |
| THREAD QUANTITY PER INCH | 32 |
| HEAD STYLE | HEXAGON |
| THREAD SERIES DESIGNATOR | UNJF |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | A286 (UNS S66286) CONFORMING TO CHEMISTRY OF AMS5731 OR AMS5732 OR AMS5737 OR AMS5853 ASSN STD SINGLE MATERIAL RESPONSE |

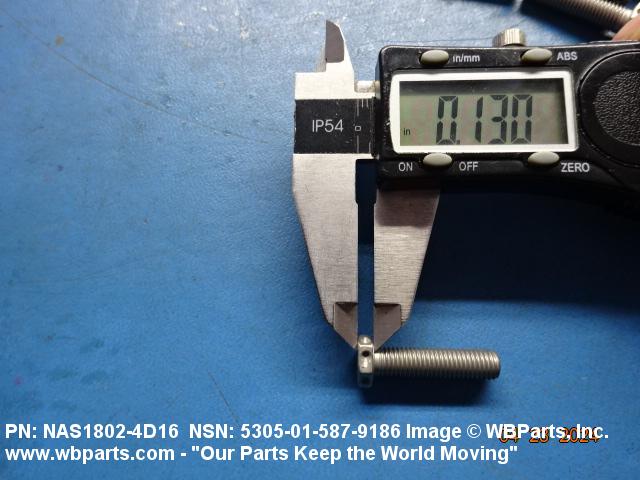

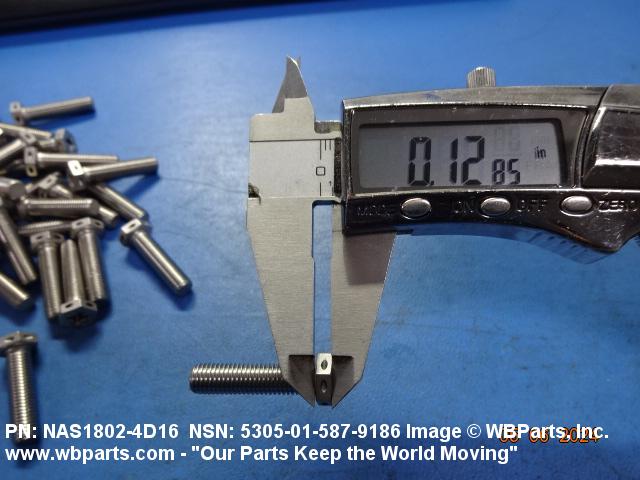

| HEAD HEIGHT | 0.125 INCHES MINIMUM AND 0.140 INCHES MAXIMUM |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS2700, METHOD 1, TYPE 2 OR TYPE 8, CLASS 1 ASSN STD SINGLE TREATMENT RESPONSE |

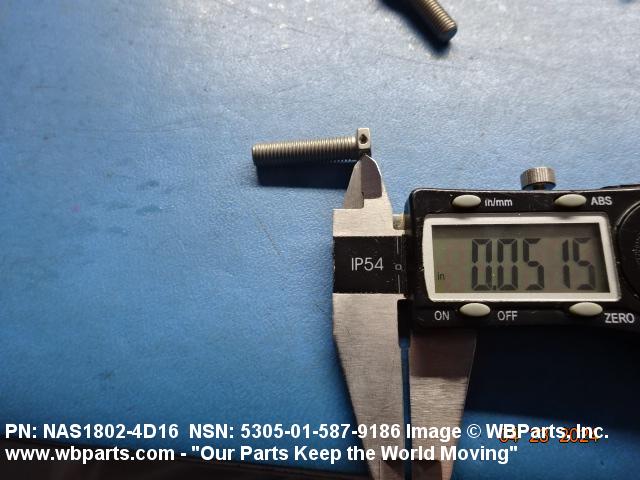

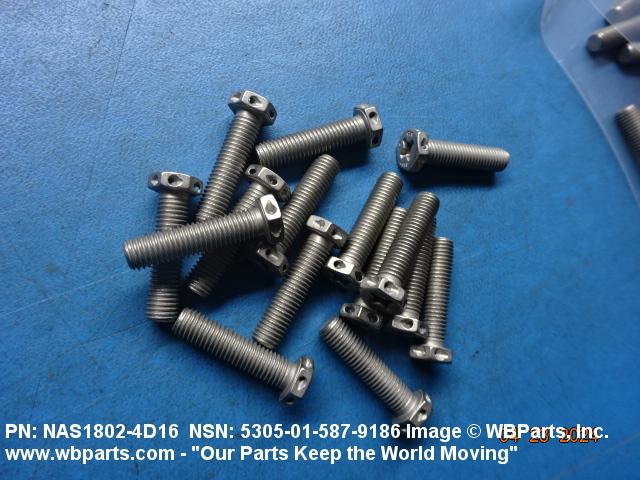

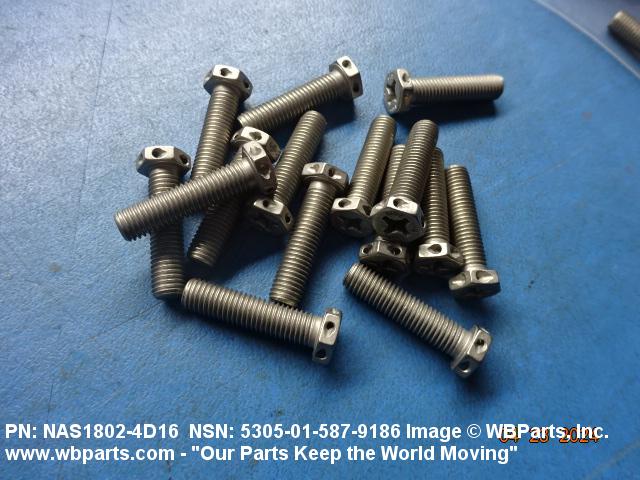

| SPECIAL FEATURES | HAS DRILLED HEAD WITH 3 HOLES DRILLED ACROSS ADJACENT SIDES; HOLES ARE 0.046 TO 0.056 INCH IN DIAMETER |

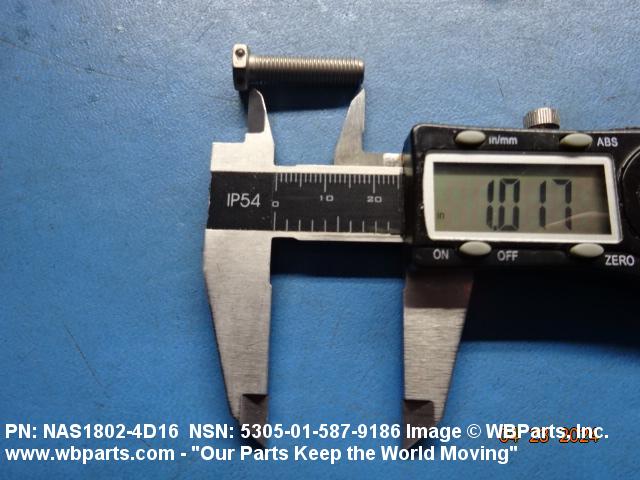

| FASTENER LENGTH | 1.024 INCHES MINIMUM AND 1.071 INCHES MAXIMUM |

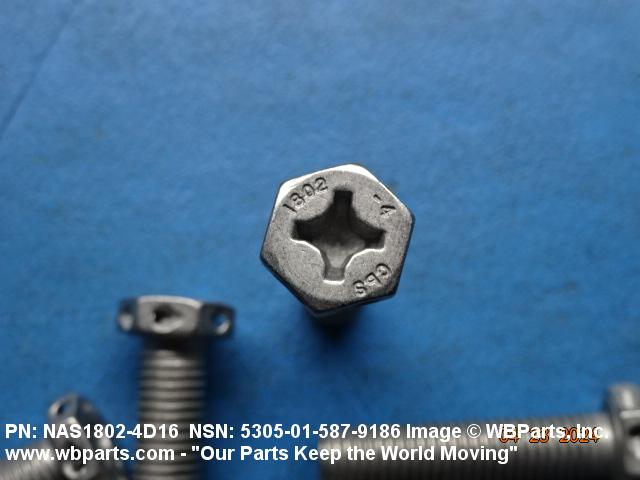

| INTERNAL DRIVE STYLE | CROSS RECESS TYPE III |
| SCREW MATERIAL | STEEL CORROSION RESISTING |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD CLASS | 3A |
Restrictions/Controls & Freight Information | NSN 5305-01-587-9186
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
