NSN 5305-01-585-3721 PS10F10CPG02NA, 01-585-3721, 015853721
Product Details | ASSEMBLED WASHER SCREW

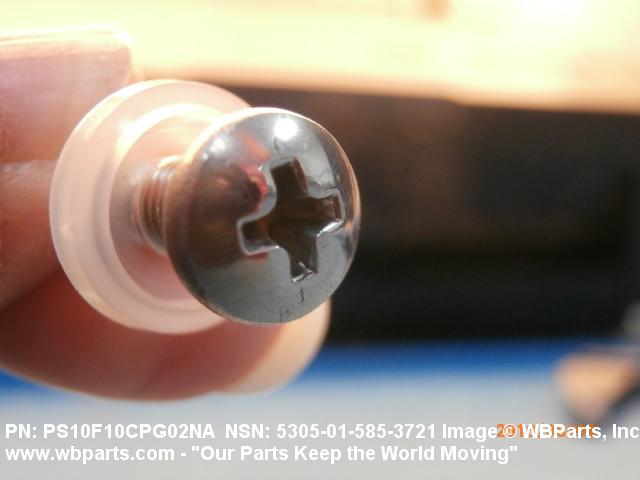

5305-01-585-3721 A SCREW, (as modified) to which has been assembled one or more nonremovable washer(s).
Part Alternates: PS10F10CPG02NA, 5305-01-585-3721, 01-585-3721, 5305015853721, 015853721
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 MAY 2010 | 01-585-3721 | 06660 ( SCREW, ASSEMBLED WASHER ) |

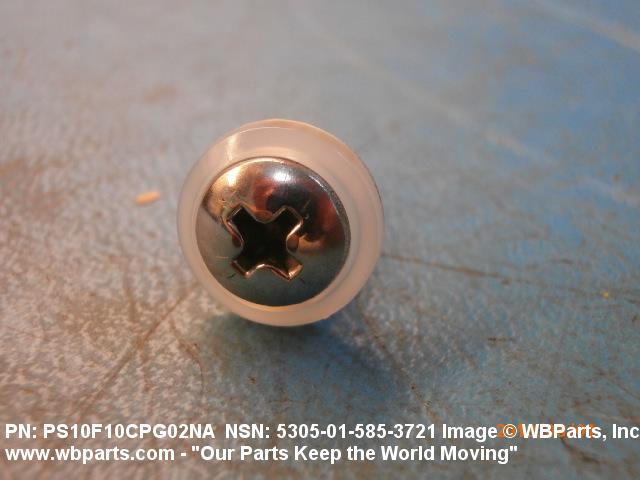

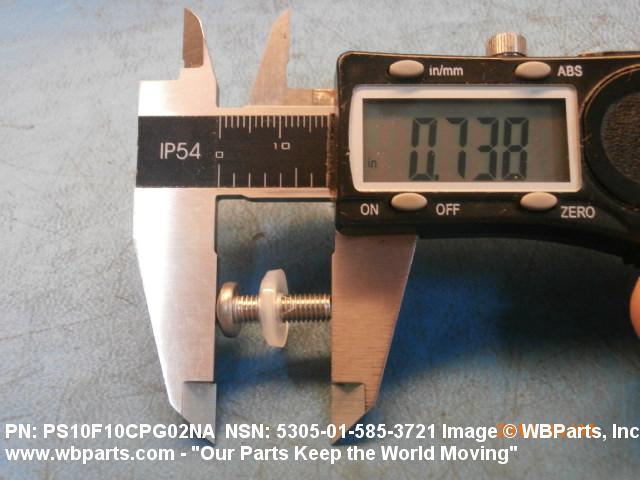

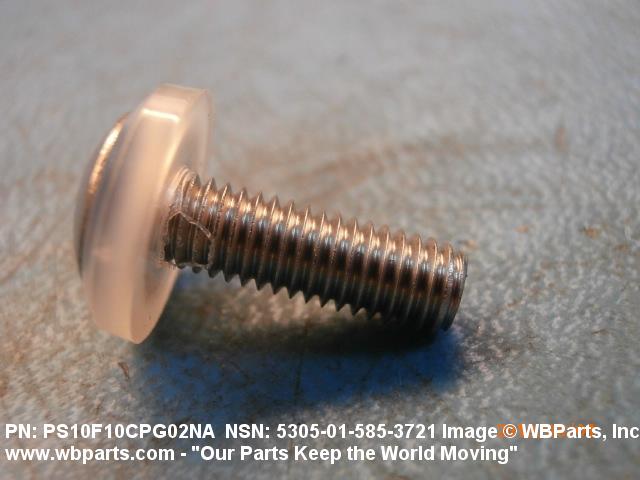

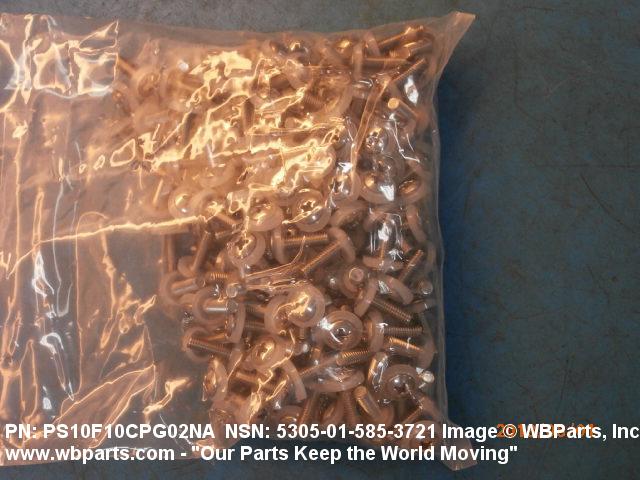

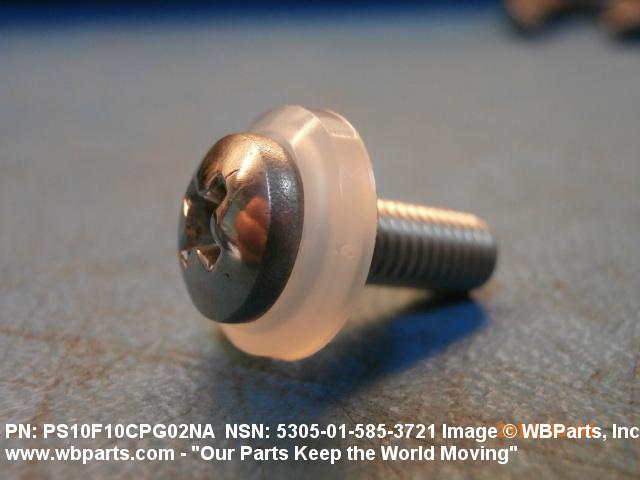

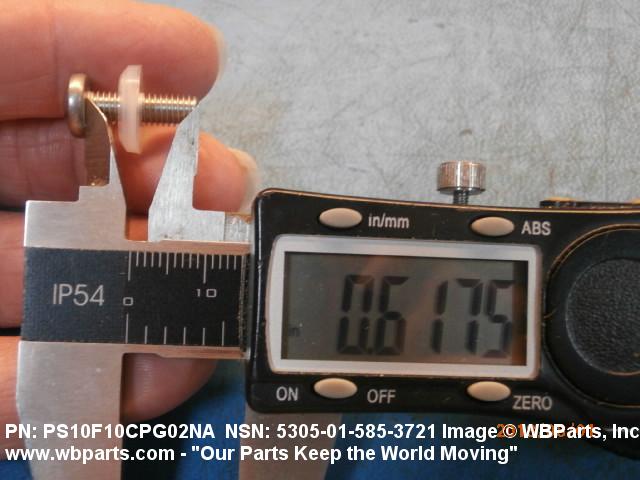

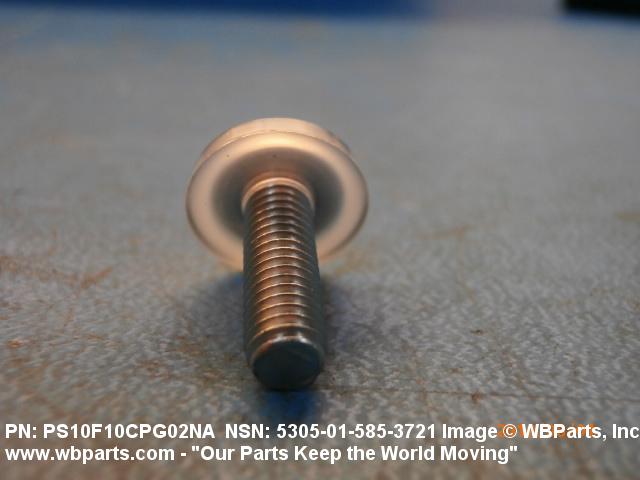

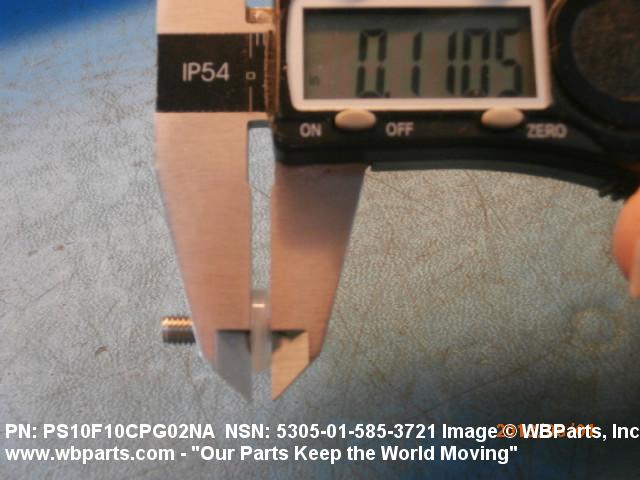

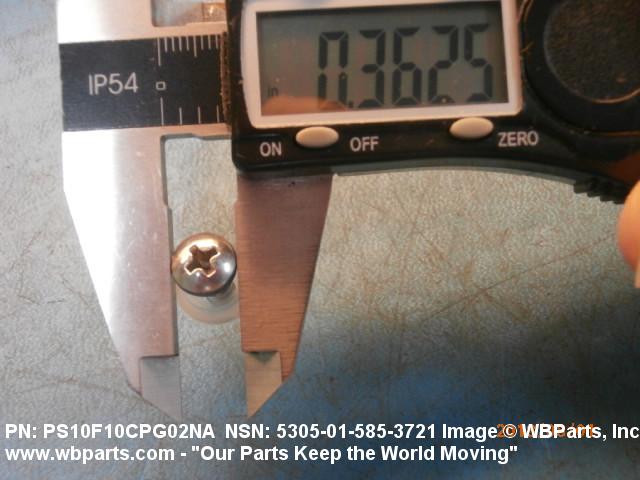

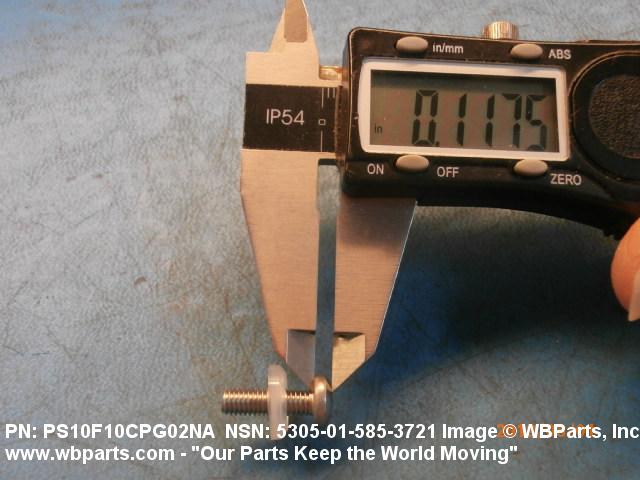

Drawings & Photos | NSN 5305-01-585-3721
Demand History | NSN 5305-01-585-3721
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-585-3721 | 2019-06-154 | 250 | United States |
| 5305-01-585-3721 | 2018-07-198 | 200 | Denmark |
| PS10F10CPG02NA | 2018-07-192 | 300 | US |
Cross Reference | NSN 5305-01-585-3721
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PS10F10CPG02NA | 66071 | DUPREE, INC. DBA STAKE FASTENER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-585-3721
Related Products | NSN 5305-01-585-3721
Technical Data | NSN 5305-01-585-3721
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| THREAD SERIES DESIGNATOR | UNF |

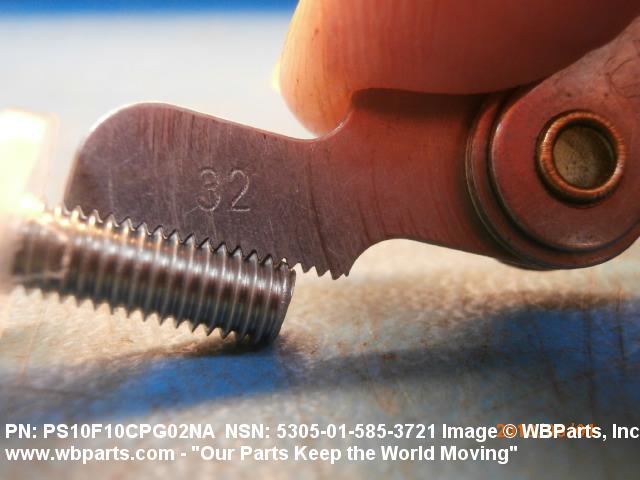

| THREAD QUANTITY PER INCH | 32 |
| HEAD DIAMETER | 0.500 INCHES NOMINAL |

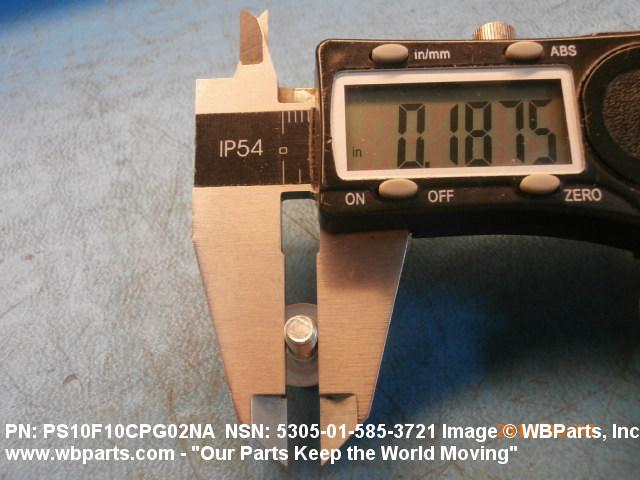

| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| MATERIAL | PLASTIC NYLON PRIMARY WASHER |
| THREAD CLASS | 2A |
| HEAD STYLE | PAN |
| FASTENER LENGTH | 0.804 INCHES NOMINAL |
| THREAD LENGTH | 0.625 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | CRUCIFORM RIBBED |
| HEAD HEIGHT | 0.179 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5305-01-585-3721
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
