NSN 5305-01-578-3485 HBX044012, HBX-0440-12, 01-578-3485
Product Details | MACHINE SCREW
5305-01-578-3485 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: HBX044012, HBX-0440-12, 5305-01-578-3485, 01-578-3485, 5305015783485, 015783485
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 OCT 2009 | 01-578-3485 | 06657 ( SCREW, MACHINE ) |

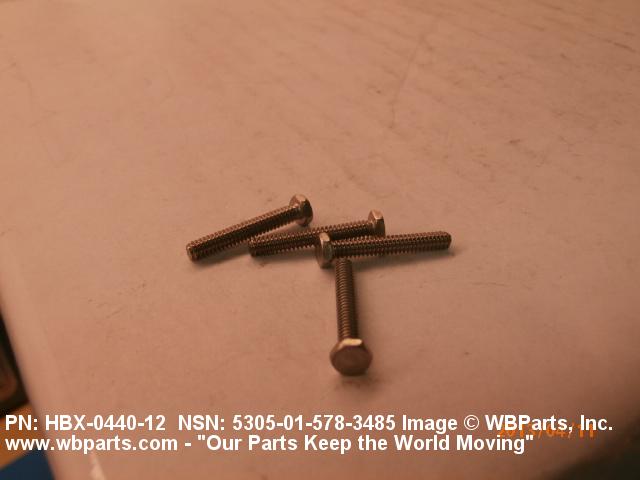

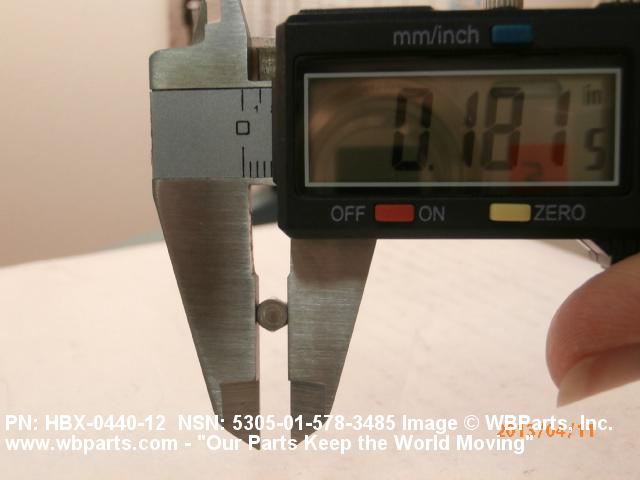

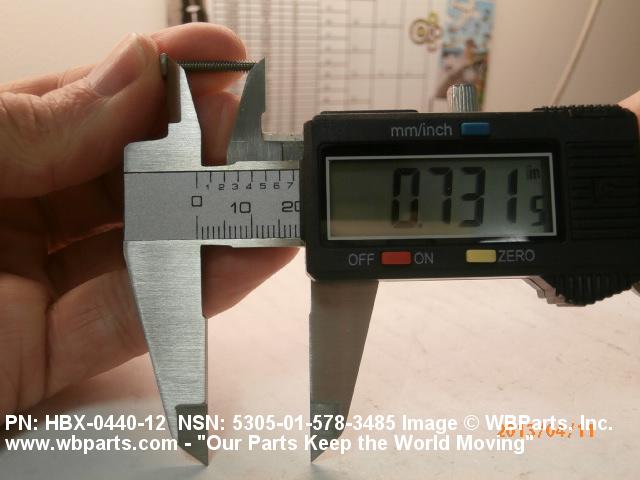

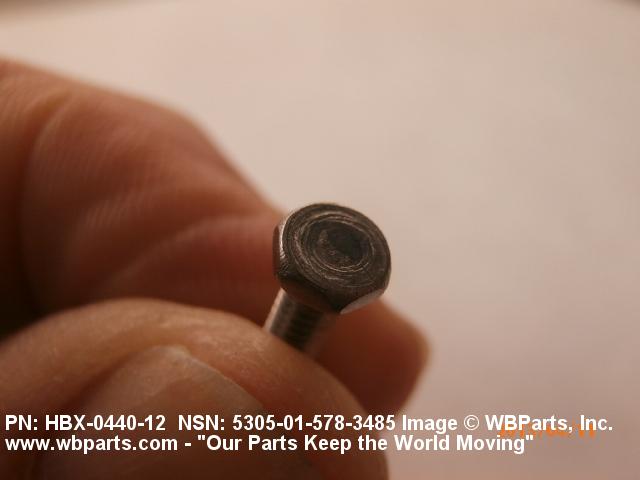

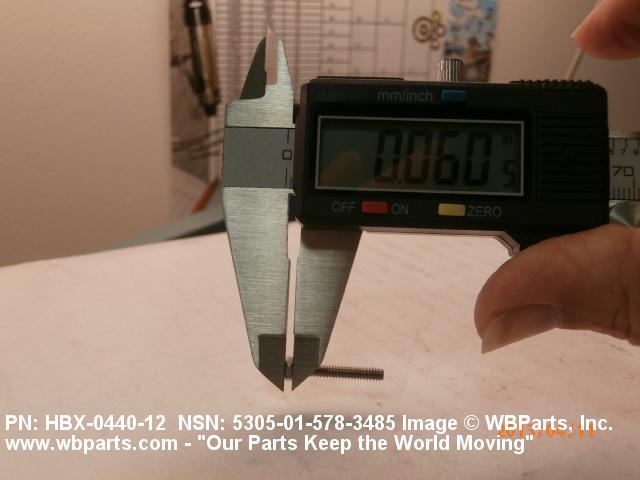

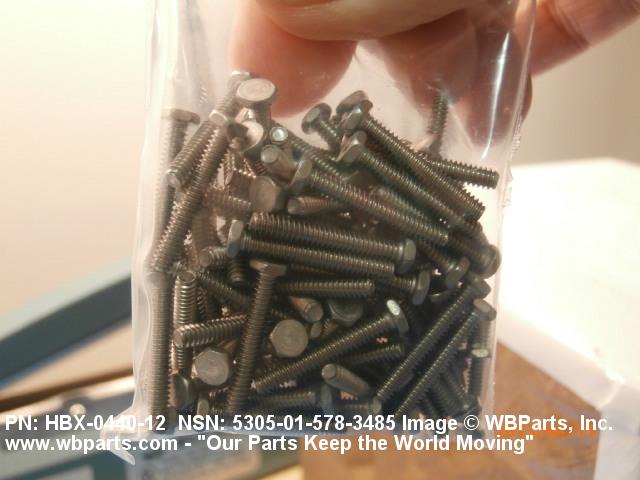

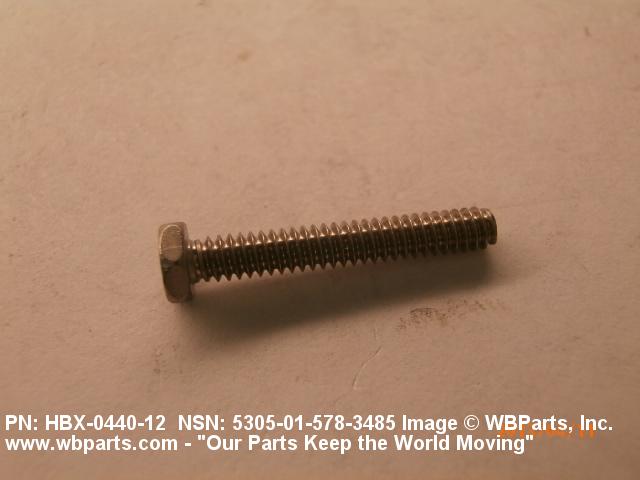

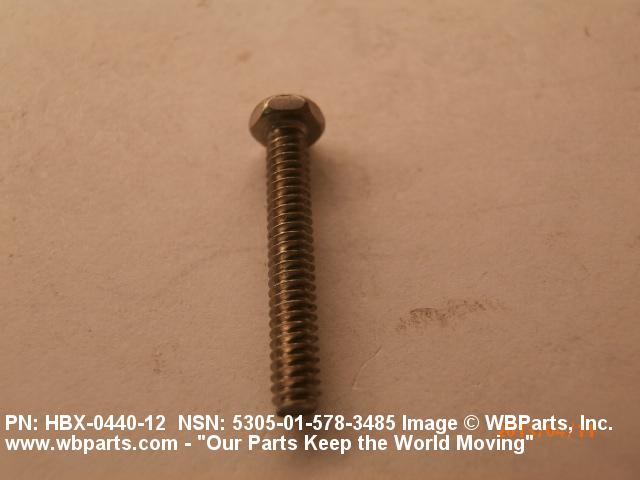

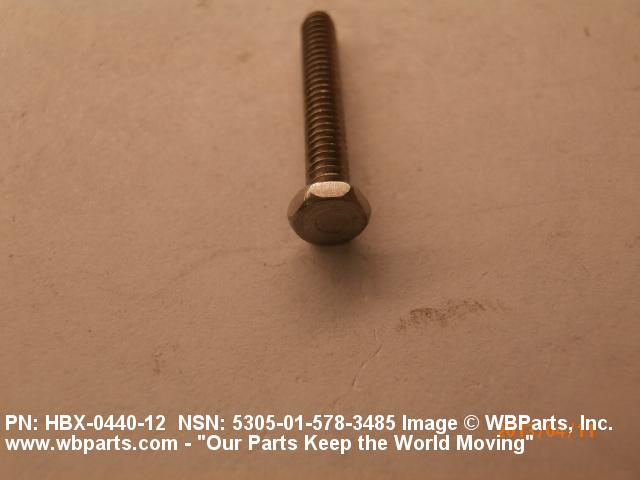

Drawings & Photos | NSN 5305-01-578-3485
Demand History | NSN 5305-01-578-3485
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HBX-0440-12 | 2024-02-44 | 562 | DIBBS |
| HBX-0440-12 | 2020-06-169 | 562 | DIBBS |
| HBX-0440-12 | 2020-03-77 | 562 | DIBBS |
| HBX-0440-12 | 2019-12-350 | 562 | DIBBS |
| HBX-0440-12 | 2019-10-283 | 562 | DIBBS |
| 5305-01-578-3485 | 2015-04-96 | 8 | PT |
| 5305-01-578-3485 | 2015-03-63 | 8 | PT |
| 5305-01-578-3485 | 2014-12-348 | 618 | DIBBS |
| 5305-01-578-3485 | 2014-12-337 | 3 | US |
| 5305-01-578-3485 | 2014-06-168 | 125 | DIBBS |
| 5305-01-578-3485 | 2014-03-85 | 125 | DIBBS |
| 5305-01-578-3485 | 2014-02-55 | 20 | US |
| 5305-01-578-3485 | 2013-07-205 | 125 | DIBBS |
| 5305-01-578-3485 | 2013-07-204 | 125 | DIBBS |
| 5305-01-578-3485 | 2013-04-100 | 125 | DIBBS |
| HBX044012 | 2013-03-66 | 100 | United States |
| HBX044012 | 2012-04-93 | 12 | United States |
| HBX044012 | 2010-10-280 | 8 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-578-3485
Technical Data | NSN 5305-01-578-3485
| Characteristic | Specifications |
|---|---|
| END ITEM IDENTIFICATION | WING FLAP ACTUATOR BRAKE ASSEMBLY P/N SPL-5569-3 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | MACHINE SCREW |
| SPECIAL FEATURES | HEX HEAD |
Restrictions/Controls & Freight Information | NSN 5305-01-578-3485
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096640 | SCREWS, IRON OR STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZE | New Zealand ZF ZG |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-578-3485
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
