NSN 5305-01-566-1418 70-2730196, 70-2730196-1012, 01-566-1418
Product Details | ASSEMBLED WASHER SCREW
5305-01-566-1418 A SCREW, (as modified) to which has been assembled one or more nonremovable washer(s).
Part Alternates: 70-2730196, 70-2730196-1012, 5305-01-566-1418, 01-566-1418, 5305015661418, 7027301961012, 015661418, 702730196
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 AUG 2008 | 01-566-1418 | 06660 ( SCREW, ASSEMBLED WASHER ) |

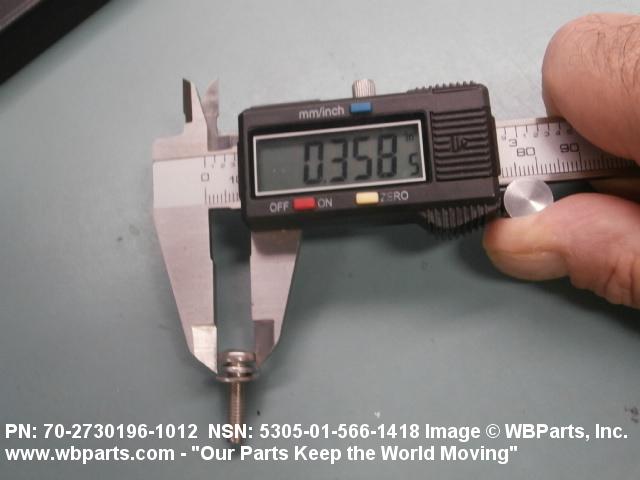

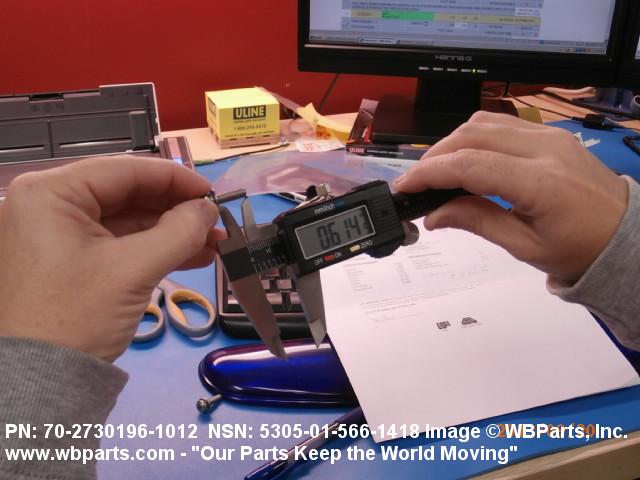

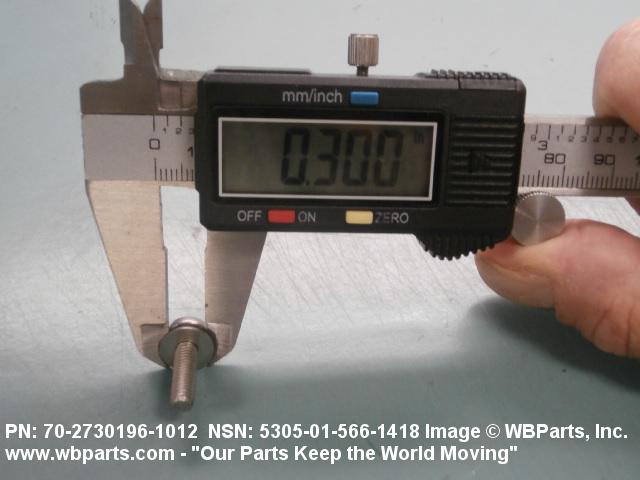

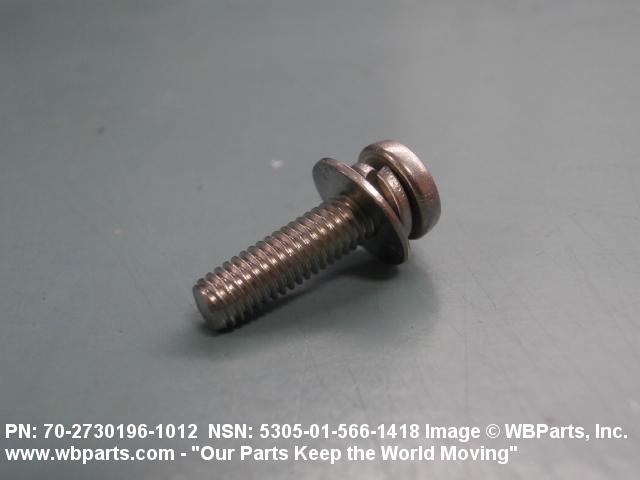

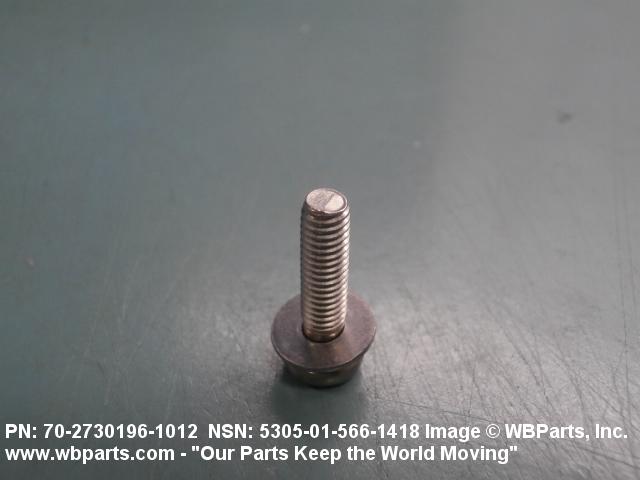

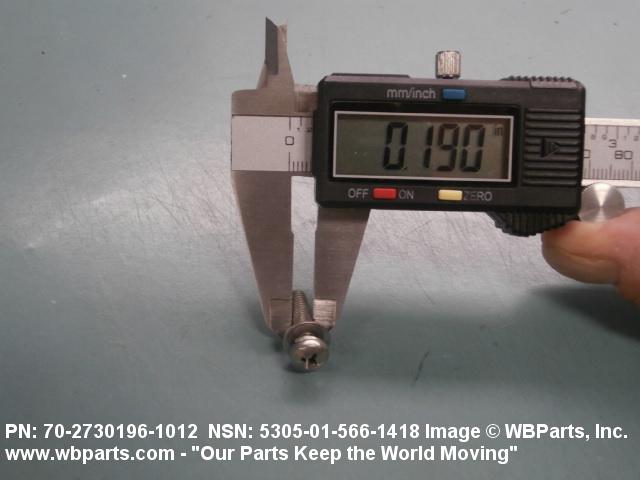

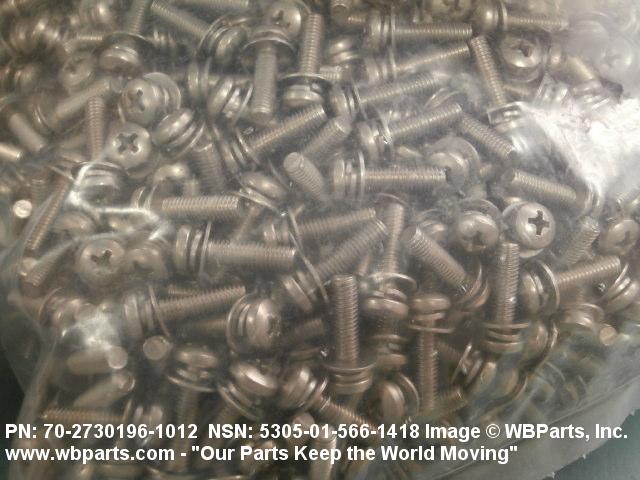

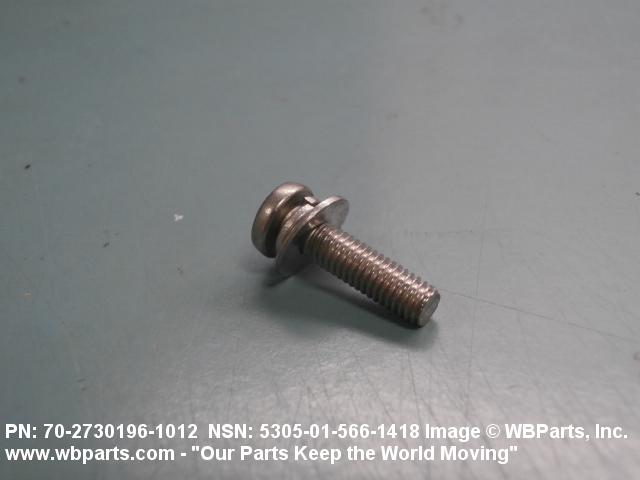

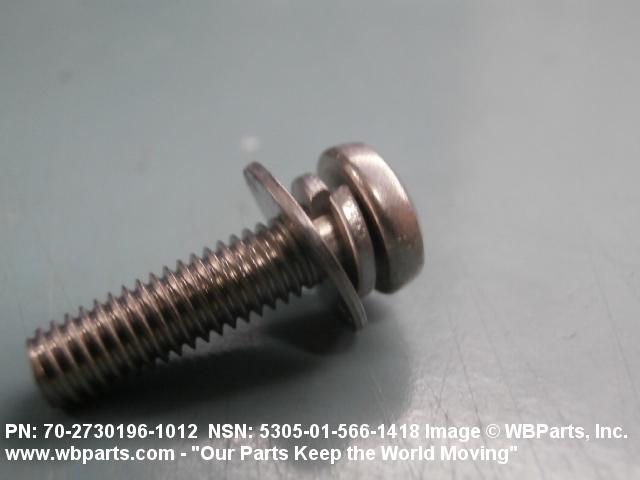

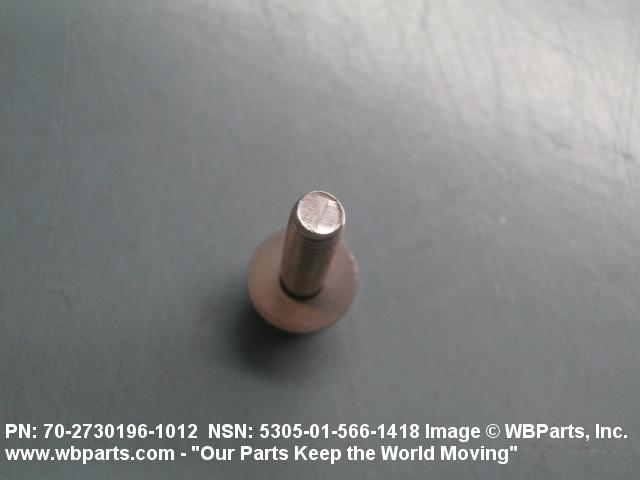

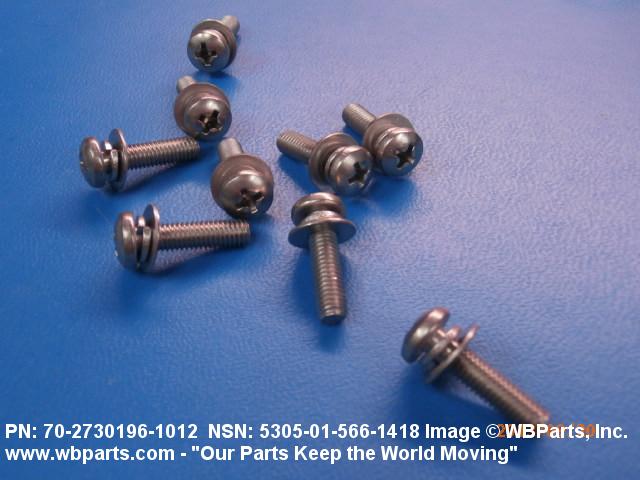

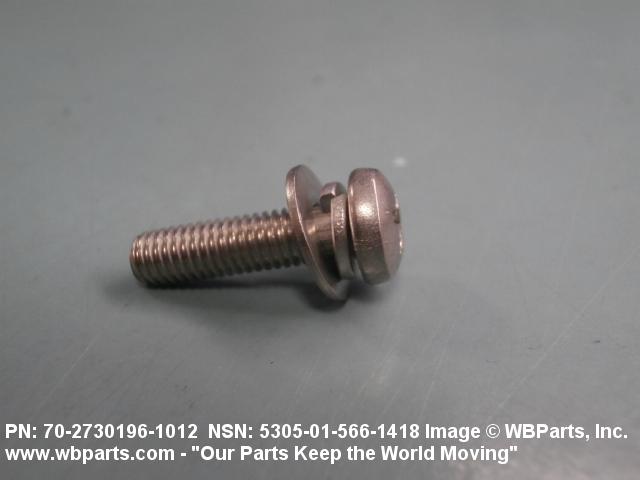

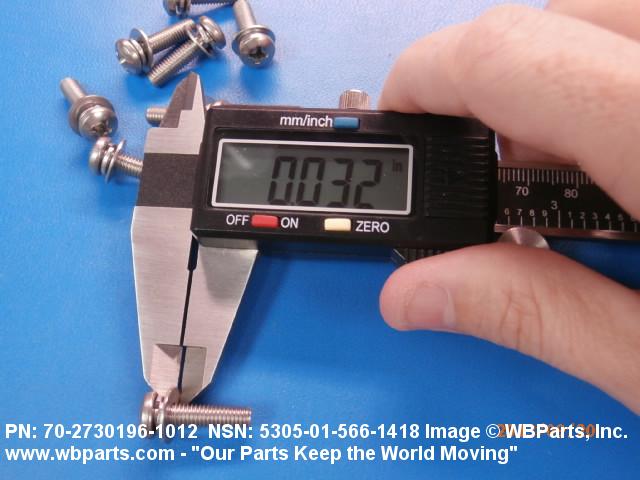

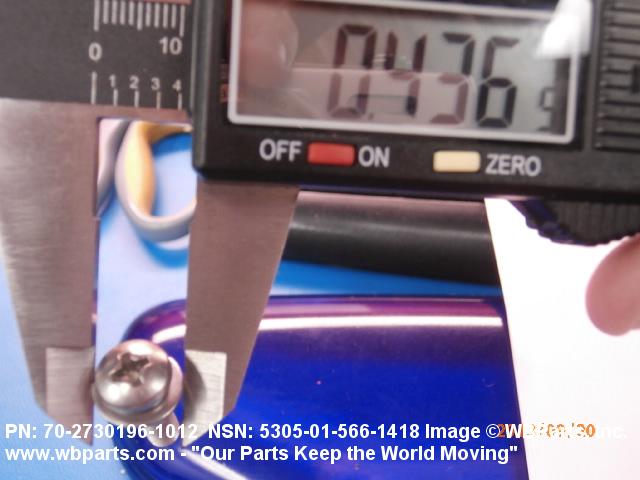

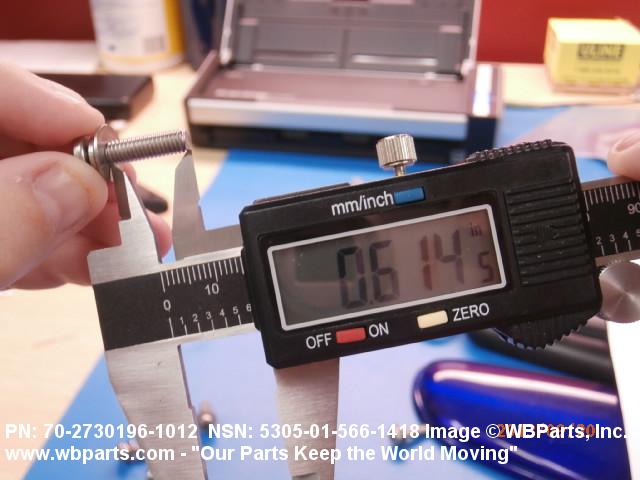

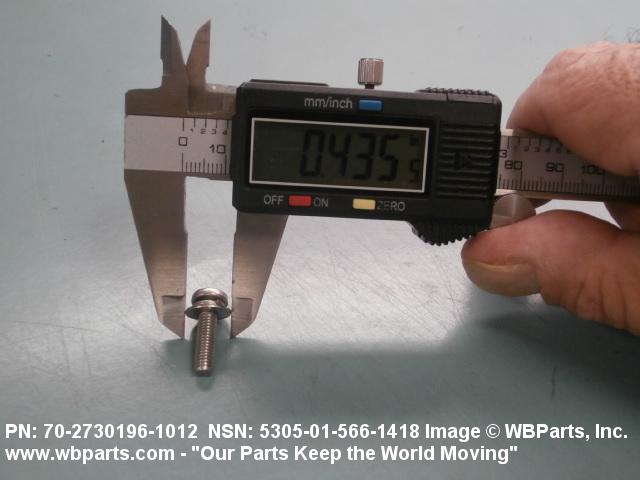

Drawings & Photos | NSN 5305-01-566-1418
Demand History | NSN 5305-01-566-1418
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 70-2730196-1012 | 2022-03-79 | 906 | DIBBS |
| 70-2730196-1012 | 2022-03-67 | 1800 | DIBBS |
| 70-2730196-1012 | 2021-12-342 | 971 | DIBBS |
| 70-2730196-1012 | 2021-10-280 | 30 | DIBBS |
| 70-2730196-1012 | 2021-06-159 | 310 | DIBBS |
| 70-2730196-1012 | 2021-03-70 | 314 | DIBBS |
| 70-2730196-1012 | 2021-02-46 | 120 | DIBBS |
| 70-2730196-1012 | 2021-01-05 | 111 | DIBBS |
| 70-2730196-1012 | 2020-11-309 | 230 | DIBBS |
| 70-2730196-1012 | 2019-11-322 | 125 | DIBBS |
| 70-2730196-1012 | 2019-11-318 | 129 | DIBBS |
| 70-2730196-1012 | 2019-10-279 | 171 | DIBBS |
| 70-2730196-1012 | 2019-09-273 | 178 | DIBBS |
| 5305-01-566-1418 | 2019-04-120 | 10000 | US |
| 5305-01-566-1418 | 2019-03-65 | 1000 | US |
| 5305-01-566-1418 | 2016-04-119 | 46 | DIBBS |
| 5305-01-566-1418 | 2016-04-111 | 46 | DIBBS |
| 5305-01-566-1418 | 2016-03-84 | 46 | DIBBS |
| 5305-01-566-1418 | 2016-02-56 | 46 | DIBBS |
| 5305-01-566-1418 | 2015-10-277 | 228 | DIBBS |
| 5305-01-566-1418 | 2015-08-228 | 228 | DIBBS |
| 5305-01-566-1418 | 2015-07-182 | 228 | DIBBS |
| 5305-01-566-1418 | 2014-01-21 | 800 | United States |
| 5305-01-566-1418 | 2014-01-17 | 2000 | United States |
| 5305-01-566-1418 | 2013-08-225 | 1358 | United States |
| 5305-01-566-1418 | 2013-06-179 | 1358 | United States |
| 5305-01-566-1418 | 2010-04-91 | 3000 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-566-1418
Related Products | NSN 5305-01-566-1418
Technical Data | NSN 5305-01-566-1418
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

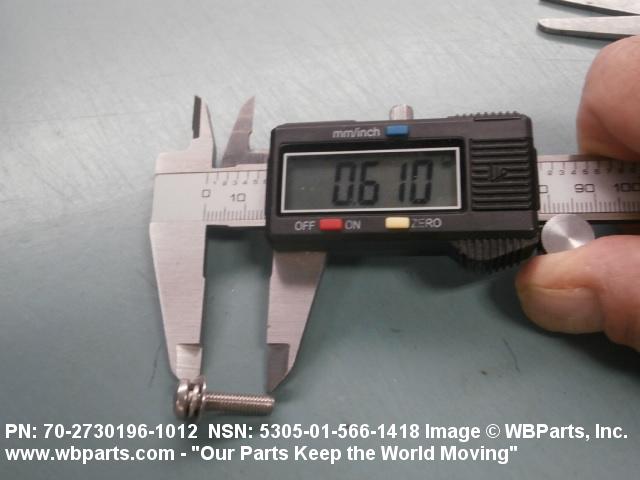

| THREAD LENGTH | 0.610 INCHES NOMINAL |
| FASTENER LENGTH | 0.718 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| MATERIAL | STEEL CORROSION RESISTING SECONDARY WASHER STEEL CORROSION RESISTING PRIMARY WASHER STEEL CORROSION RESISTING FASTENER |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS-QQ-S-763, CLASS 302. COND B ASSN STD SINGLE MATERIAL RESPONSE OR AMS-QQ-S-763, CLASS 304. COND A ASSN STD SINGLE MATERIAL RESPONSE OR AMS-QQ-S-763, CLASS 384. COND A ASSN STD SINGLE MATERIAL RESPONSE SECONDARY WASHER NASM35338 ASSN STD SINGLE MATERIAL RESPONSE PRIMARY WASHER QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE FASTENER |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS-QQ-P-35 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C32 PAN |

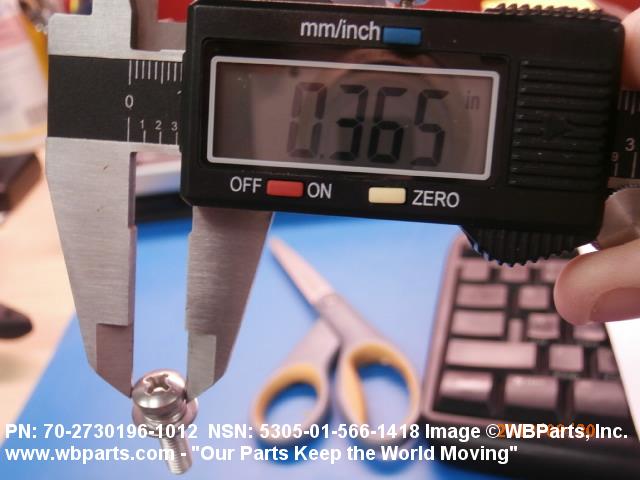

| HEAD DIAMETER | 0.357 INCHES MINIMUM AND 0.373 INCHES MAXIMUM |

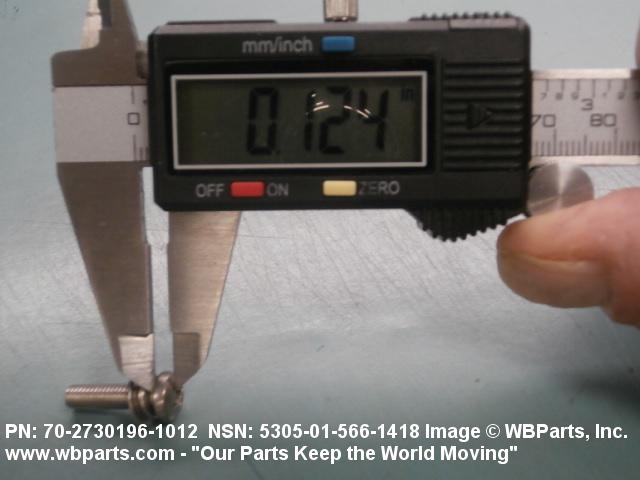

| HEAD HEIGHT | 0.122 INCHES MINIMUM AND 0.132 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D1 CROSS RECESS TYPE 1 |
| WASHER QUANTITY | 2 |
| PRIMARY WASHER STYLE | G9 SPLIT HELICAL RING |
| PRIMARY WASHER OUTSIDE DIAMETER | 0.337 INCHES MAXIMUM |
| PRIMARY WASHER MATERIAL THICKNESS | 0.047 INCHES NOMINAL |
| SECONDARY WASHER RELATIONSHIP TO PRIMARY WASHER | NOT IDENTICAL |
Restrictions/Controls & Freight Information | NSN 5305-01-566-1418
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CL | U.S. Army Communications-Electronics Fort Monmouth, NJ 07703-5006 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-566-1418
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
