NSN 5305-01-561-3885 90822A350, 01-561-3885, 015613885
Product Details | SELF-DRILLING SCREW
5305-01-561-3885 A hardened, externally-threaded fastener with a self-drilling point. It drills, taps and fastens and may have a machine screw thread or a nonmachine screw thread. The threads usually extend from behind the pilot to the bearing surface of the head.
Part Alternates: 90822A350, 5305-01-561-3885, 01-561-3885, 5305015613885, 015613885
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 MAR 2008 | 01-561-3885 | 38031 ( SCREW, SELF-DRILLING ) |
Drawings & Photos | NSN 5305-01-561-3885
Demand History | NSN 5305-01-561-3885
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 90822A350 | 2024-03-72 | 4 | DIBBS |
| 90822A350 | 2024-02-46 | 1 | DIBBS |
| 90822A350 | 2022-05-121 | 5 | DIBBS |
| 90822A350 | 2019-10-289 | 2 | DIBBS |
| 5305-01-561-3885 | 2018-02-46 | 5 | DIBBS |
| 5305-01-561-3885 | 2016-10-278 | 2 | DIBBS |
| 5305-01-561-3885 | 2013-05-151 | 5 | DIBBS |
| 5305-01-561-3885 | 2012-06-166 | 1 | DIBBS |
Cross Reference | NSN 5305-01-561-3885
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 90822A350 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-561-3885
Related Products | NSN 5305-01-561-3885
Technical Data | NSN 5305-01-561-3885
| Characteristic | Specifications |
|---|---|
| FASTENER LENGTH | 0.750 INCHES NOMINAL |
| MATERIAL | STEEL COMP 410 OVERALL |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.141 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.348 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.250 INCHES NOMINAL |

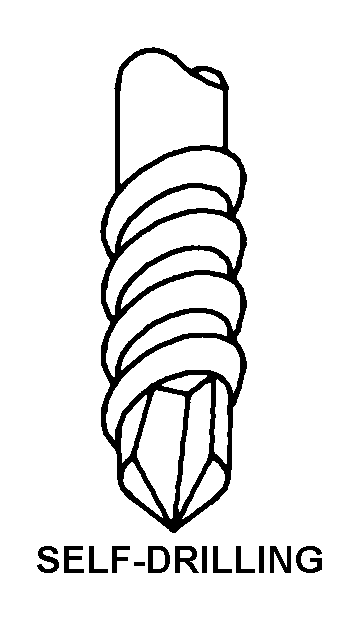

| POINT STYLE | F33 SELF-DRILLING |
| PILOT LENGTH | 0.188 INCHES NOMINAL |
| SPECIAL FEATURES | ITEM HAS UNSLOTTED HEAD; DRAWING STATES DRILL POINT NUMBER 2 |
Restrictions/Controls & Freight Information | NSN 5305-01-561-3885
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096640 | SCREWS, IRON OR STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-561-3885
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PG : Package |
