NSN 5305-01-540-2416 246179428747, 24617-9428747, 01-540-2416
Product Details | SETSCREW
5305-01-540-2416 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: 246179428747, 24617-9428747, 5305-01-540-2416, 01-540-2416, 5305015402416, 015402416
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 MAY 2006 | 01-540-2416 | 06672 ( SETSCREW ) |

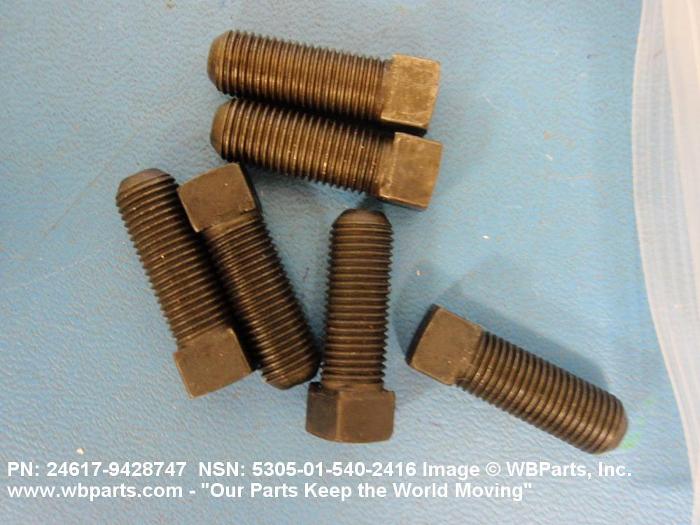

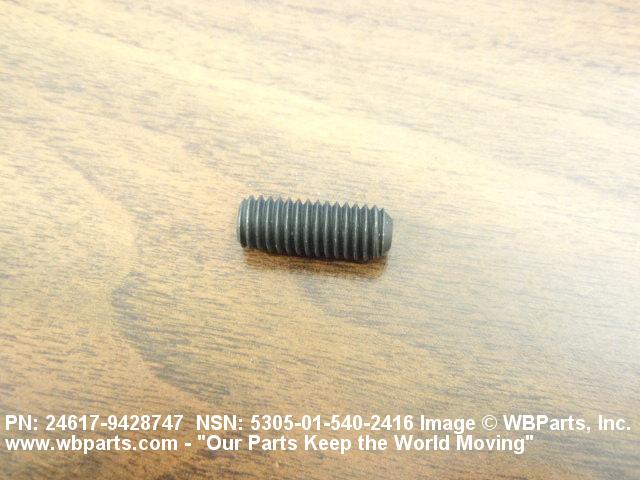

Drawings & Photos | NSN 5305-01-540-2416
Demand History | NSN 5305-01-540-2416
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-540-2416 | 2024-06-179 | 50 | United States |
| 5305-01-540-2416 | 2023-11-332 | 14 | United States |
| 5305-01-540-2416 | 2023-06-167 | 28 | United States |
| 5305-01-540-2416 | 2023-06-167 | 230 | United States |
| 246179428747 | 2023-05-143 | 30 | US |
| 5305-01-540-2416 | 2019-11-329 | 75 | US |
| 5305-01-540-2416 | 2018-01-26 | 2200 | US |
| 5305-01-540-2416 | 2018-01-26 | 2000 | US |
| 5305-01-540-2416 | 2018-01-10 | 188 | US |
| 5305-01-540-2416 | 2017-12-362 | 200 | US |
| 5305-01-540-2416 | 2015-10-288 | 266 | US |
| 5305-01-540-2416 | 2015-10-278 | 1200 | US |
| 246179428747 | 2012-05-143 | 1088 | CN |
| 5305-01-540-2416 | 2012-05-133 | 1088 | US |
| 246179428747 | 2011-12-343 | 24 | US |
| 5305-01-540-2416 | 2011-12-342 | 24 | US |
| 246179428747 | 2011-05-144 | 18 | United States |
| 5305-01-540-2416 | 2011-04-119 | 200 | US |
| 246179428747 | 2010-10-287 | 55 | United States |
| 5305-01-540-2416 | 2010-01-20 | 1100 | United States |
| 5305-01-540-2416 | 2010-01-04 | 7000 | US |
| 246179428747 | 2007-11-311 | 1000 | us |
Cross Reference | NSN 5305-01-540-2416
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 24617-9428747 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-540-2416
Related Products | NSN 5305-01-540-2416
Technical Data | NSN 5305-01-540-2416
| Characteristic | Specifications |
|---|---|
| III END ITEM IDENTIFICATION | 2540-01-535-4500 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SCREW, SET |
Restrictions/Controls & Freight Information | NSN 5305-01-540-2416
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-540-2416
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
