NSN 5305-01-440-9280 M70CR4206E, M70CR420-6E, NM270CR420K6E
Product Details | SETSCREW
5305-01-440-9280 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: M70CR4206E, M70CR420-6E, NM270CR420K6E, 5305-01-440-9280, 01-440-9280, 5305014409280, 014409280
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 JAN 1997 | 01-440-9280 | 06672 ( SETSCREW ) |
Drawings & Photos | NSN 5305-01-440-9280
Demand History | NSN 5305-01-440-9280
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-440-9280 | 2016-06-166 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-440-9280
Technical Data | NSN 5305-01-440-9280
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| FASTENER LENGTH | 0.375 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.125 INCHES NOMINAL |
| LOCKING FEATURE | PELLET THREADS |

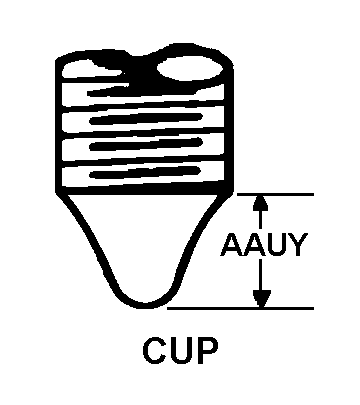

| POINT STYLE | F12 CUP |
Restrictions/Controls & Freight Information | NSN 5305-01-440-9280
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-440-9280
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
