NSN 5305-01-440-8708 FRW75004B3DL, FRW7500-4-B-3DL, FT1500423DL
Product Details | PANEL FASTENER SCREW
5305-01-440-8708 A headed, threaded fastening device with special square threads, which is designed to be attached to a panel by means of a retaining washer. The screw fastener is used in conjunction with a speed nut to facilitate fastening two items.
Part Alternates: FRW75004B3DL, FRW7500-4-B-3DL, FT1500423DL, FT1500-4-2-3DL, 11438307125, 11438307-125, 5305-01-440-8708, 01-440-8708, 5305014408708, 014408708
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 JAN 1997 | 01-440-8708 | 19665 ( SCREW, PANEL FASTENER ) |

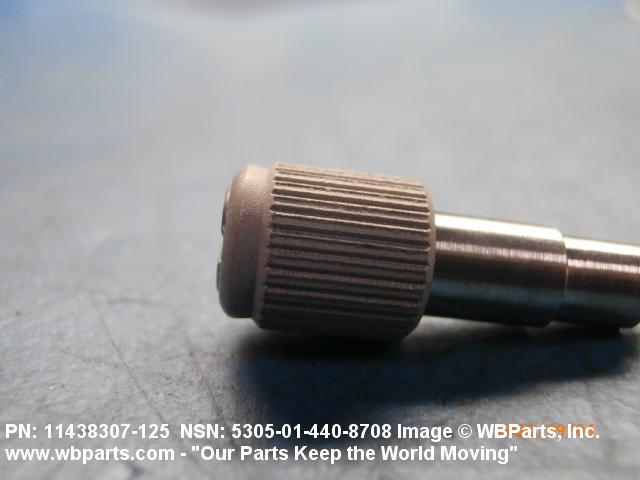

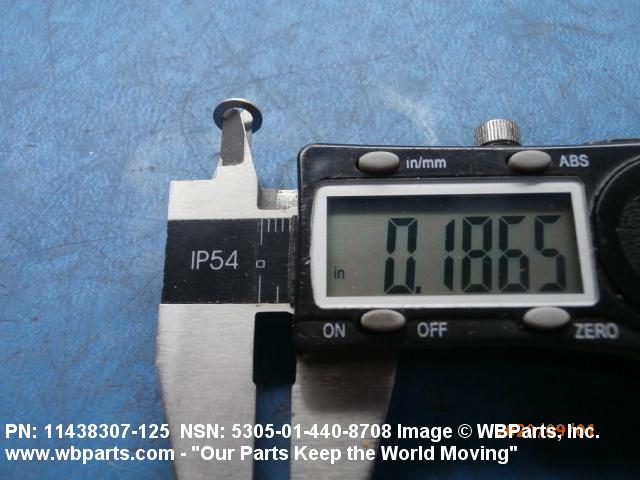

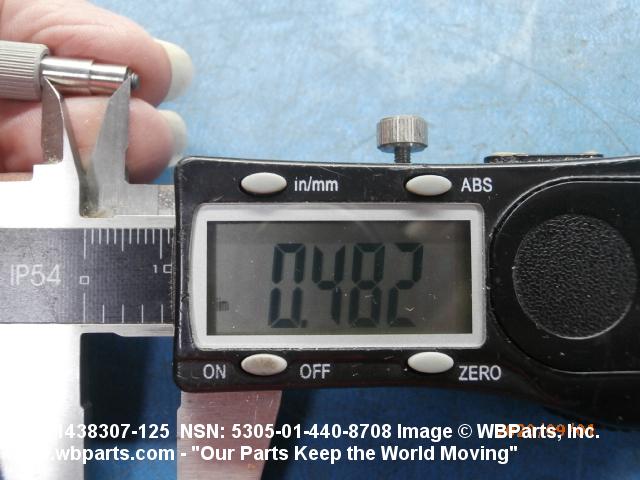

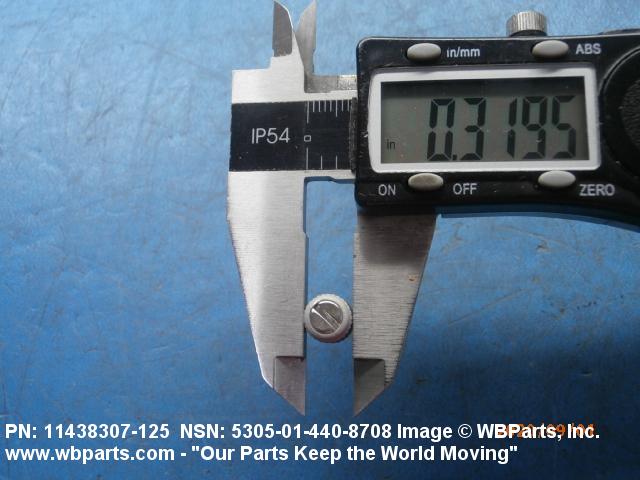

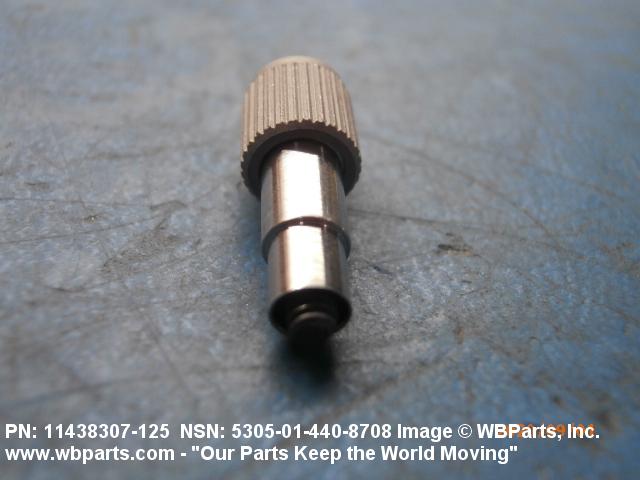

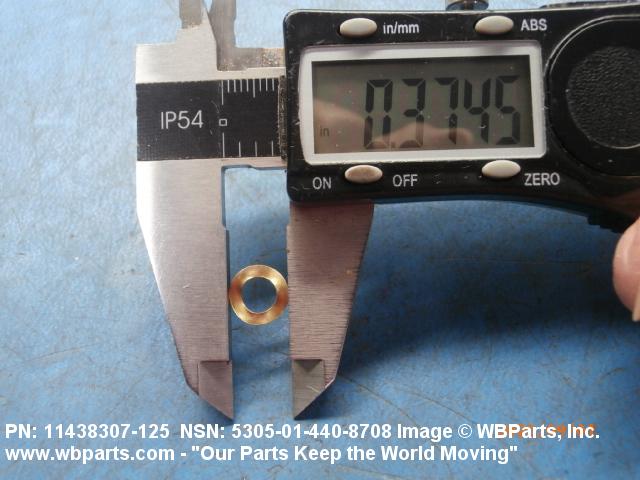

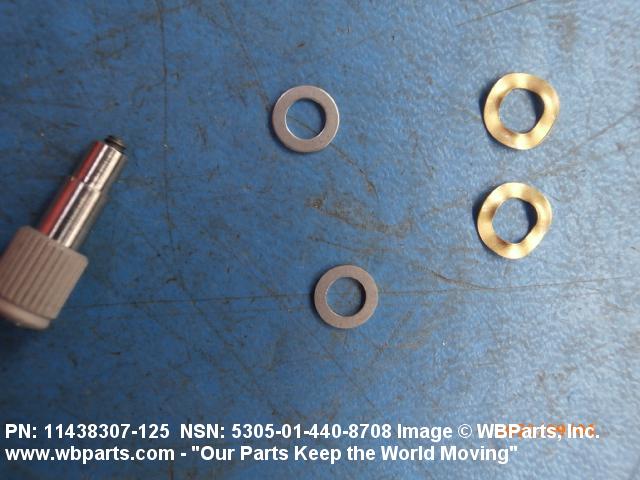

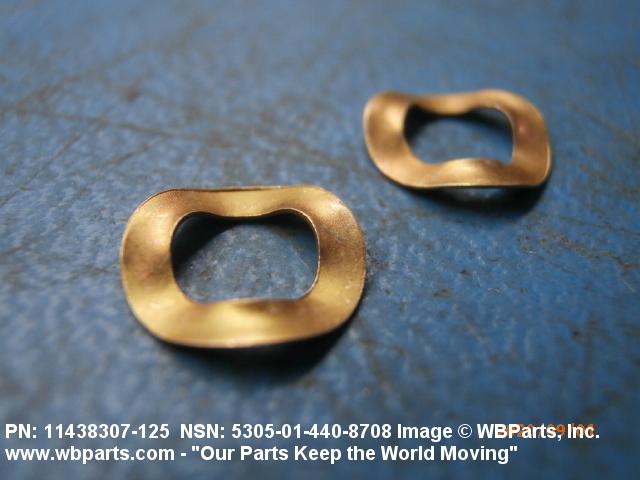

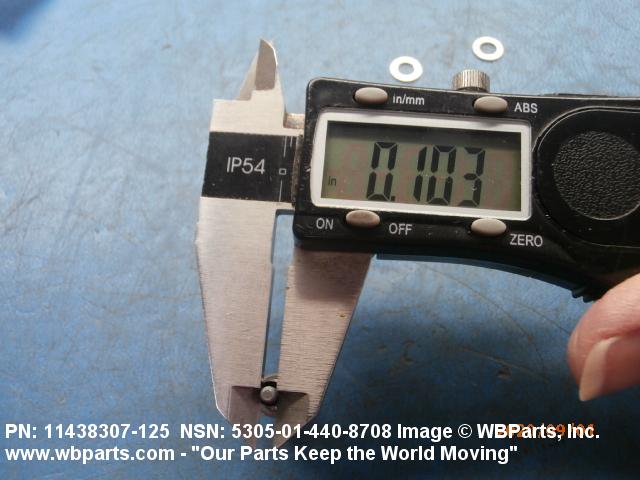

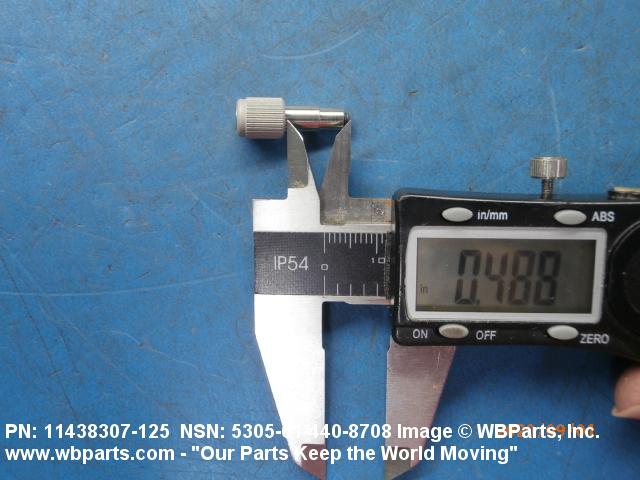

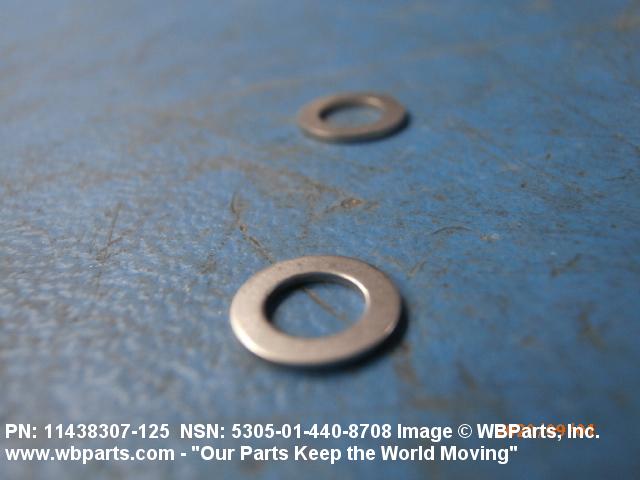

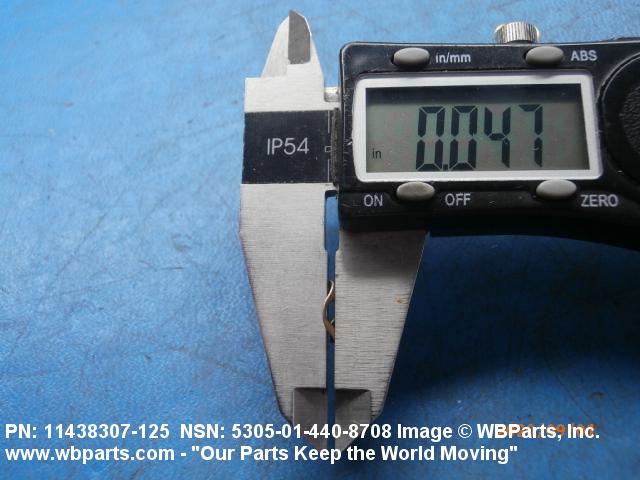

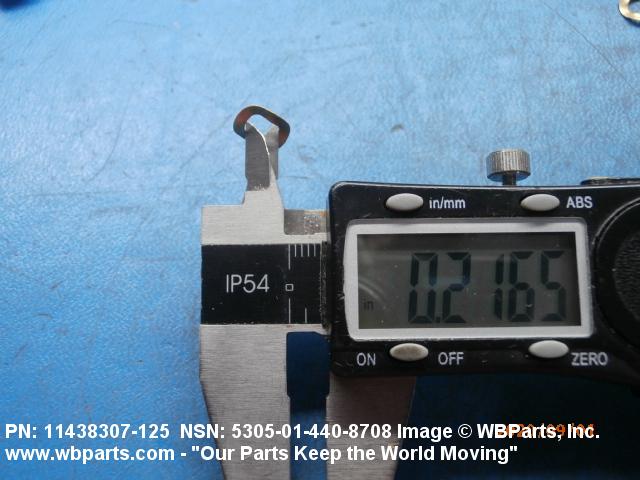

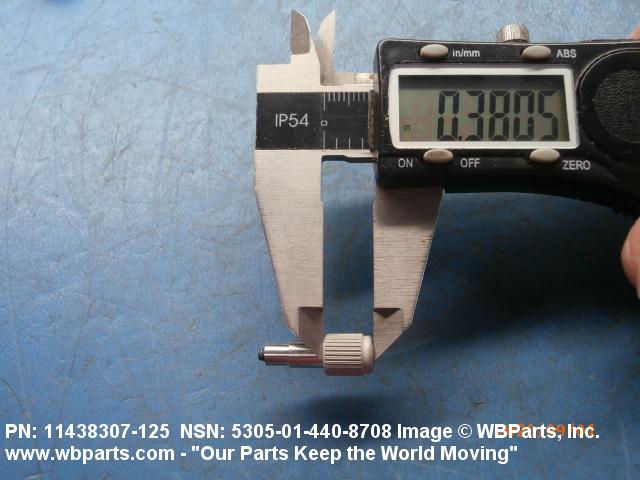

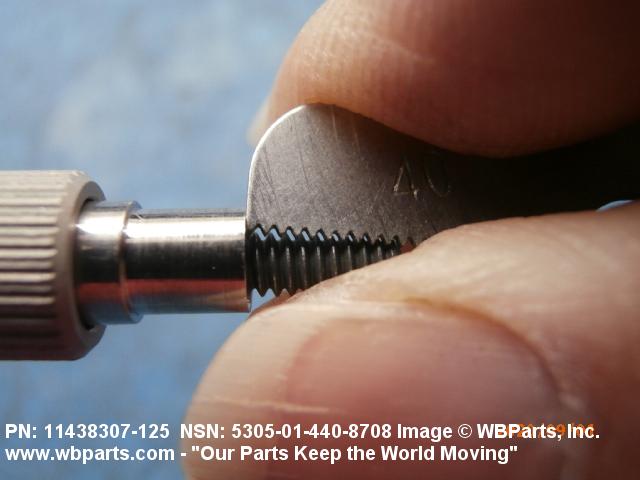

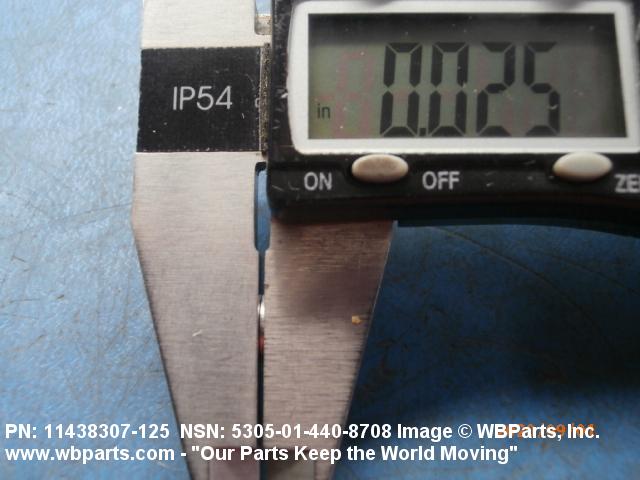

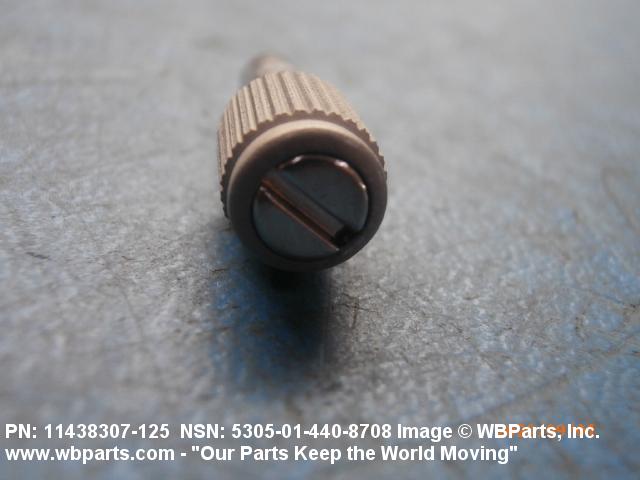

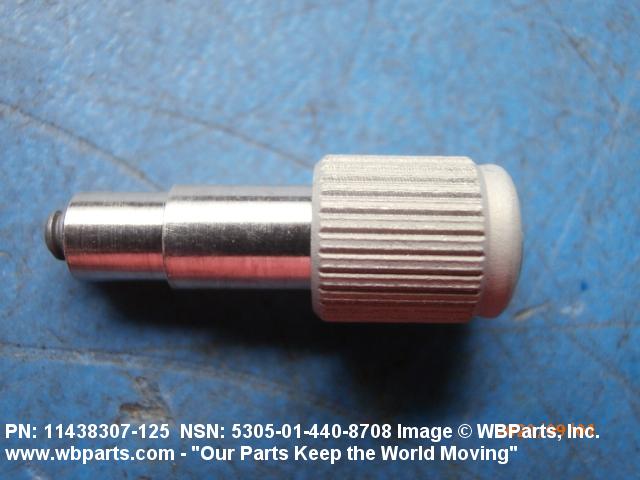

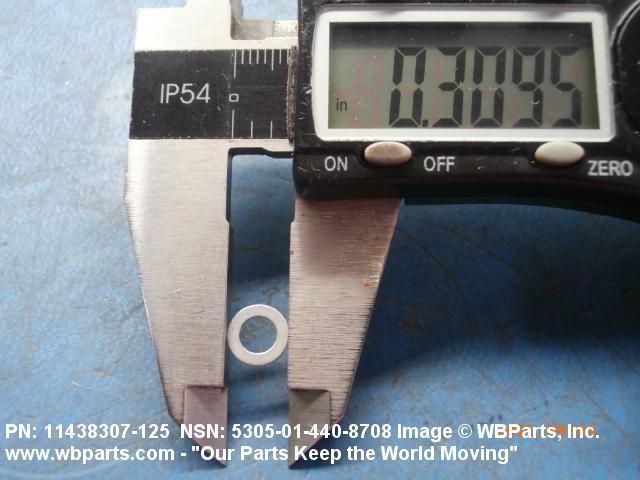

Drawings & Photos | NSN 5305-01-440-8708
Demand History | NSN 5305-01-440-8708
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-440-8708 | 2023-06-156 | 4 | Taiwan |
| 5305-01-440-8708 | 2021-01-07 | 180 | Taiwan |
| 5305-01-440-8708 | 2020-09-255 | 32 | Taiwan |
| 5305-01-440-8708 | 2020-08-225 | 76 | Taiwan |
| 5305-01-440-8708 | 2020-06-182 | 108 | MANUAL |
| 5305-01-440-8708 | 2017-07-204 | 67 | DIBBS |
| 5305-01-440-8708 | 2015-11-313 | 200 | DIBBS |
| 5305-01-440-8708 | 2015-07-210 | 114 | DIBBS |
| 5305-01-440-8708 | 2015-06-158 | 86 | DIBBS |
| 5305-01-440-8708 | 2014-10-282 | 51 | DIBBS |
| 5305-01-440-8708 | 2014-09-271 | 51 | DIBBS |
| 5305-01-440-8708 | 2013-09-254 | 82 | DIBBS |
| 5305-01-440-8708 | 2013-04-99 | 70 | DIBBS |
| 5305-01-440-8708 | 2012-05-150 | 555 | DIBBS |
| 5305-01-440-8708 | 2011-10-286 | 57 | DIBBS |
| 5305-01-440-8708 | 2011-09-257 | 140 | DIBBS |
| 5305-01-440-8708 | 2011-08-217 | 5 | DIBBS |
| 5305-01-440-8708 | 2011-02-35 | 9 | DIBBS |
| 5305-01-440-8708 | 2011-01-07 | 3 | DIBBS |
| 5305-01-440-8708 | 2010-12-353 | 15 | DIBBS |
| 5305-01-440-8708 | 2010-12-345 | 132 | DIBBS |
| 5305-01-440-8708 | 2009-04-105 | 125 | DIBBS |
| 5305-01-440-8708 | 2008-12-353 | 21 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-440-8708
Related Products | NSN 5305-01-440-8708
Technical Data | NSN 5305-01-440-8708
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD DIAMETER | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 3A |
| THREAD LENGTH | 0.471 INCHES NOMINAL |
| FASTENER LENGTH | 0.471 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A-493 CL 300 SERIES ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C100 KNURLED NO. 5 |
| HEAD DIAMETER | 0.325 INCHES NOMINAL |
| HEAD HEIGHT | 0.373 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D21 WITHOUT INTERNAL DRIVE |
Restrictions/Controls & Freight Information | NSN 5305-01-440-8708
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-440-8708
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
