NSN 5305-01-419-4465 NAS8201A10, 01-419-4465, 014194465
Product Details | MACHINE SCREW
5305-01-419-4465 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: NAS8201A10, 5305-01-419-4465, 01-419-4465, 5305014194465, 014194465
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 SEP 1995 | 01-419-4465 | 06657 ( SCREW, MACHINE ) |

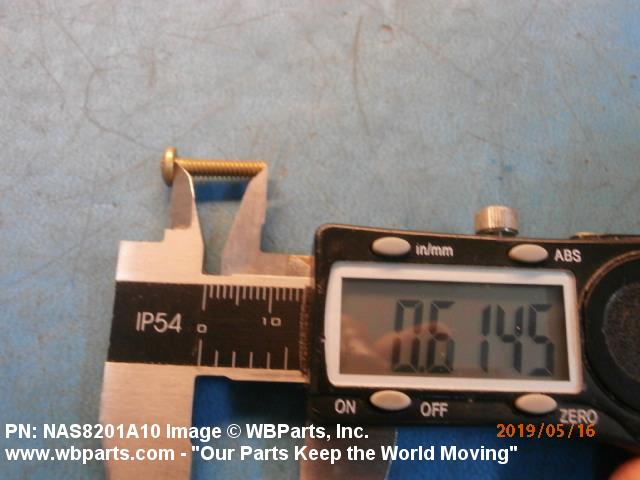

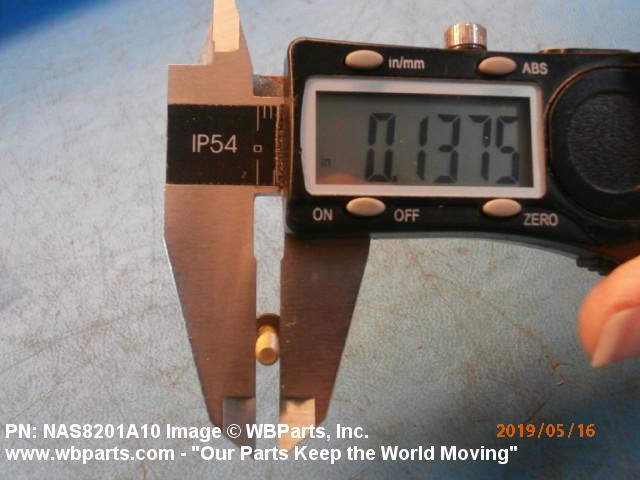

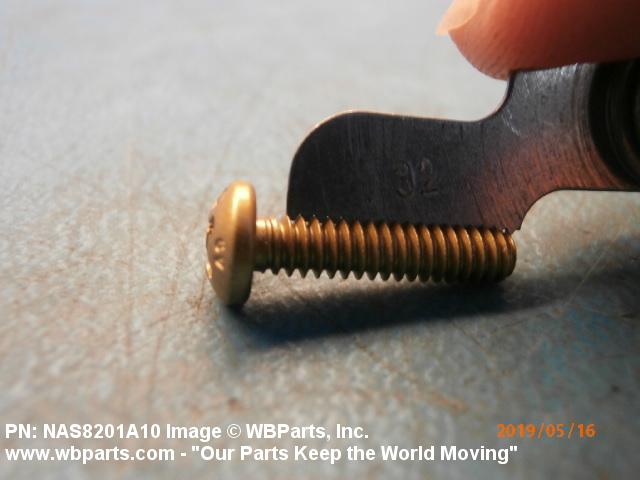

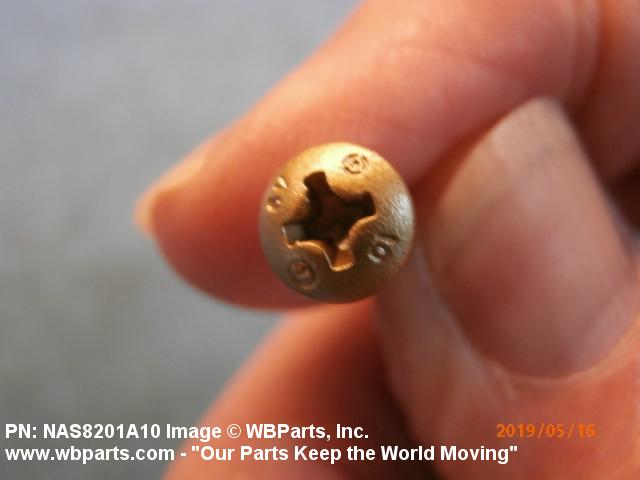

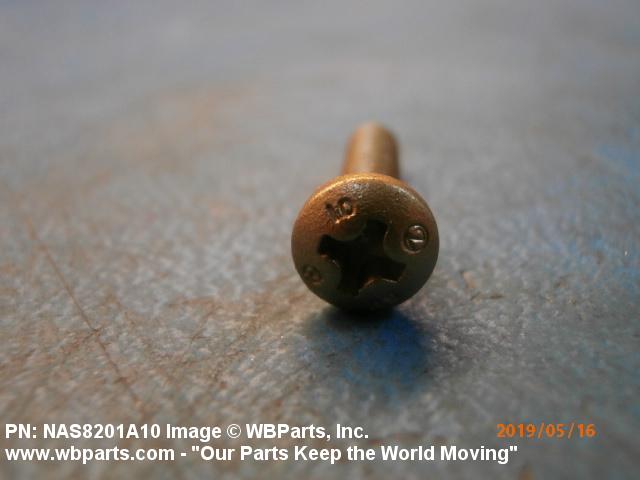

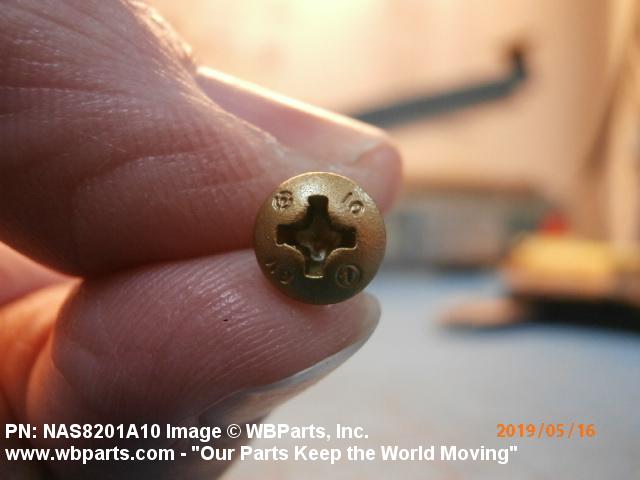

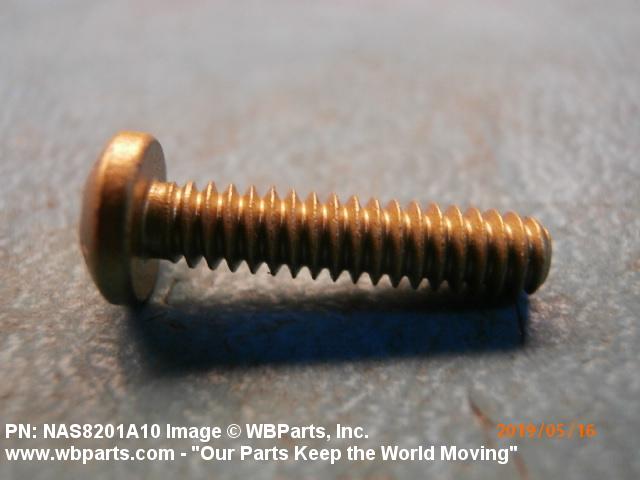

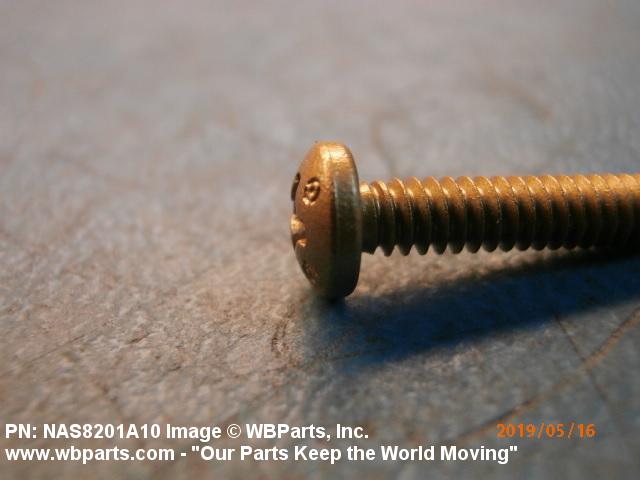

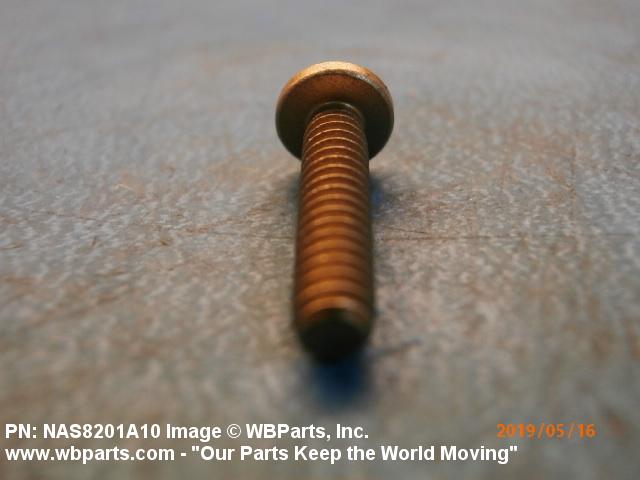

Drawings & Photos | NSN 5305-01-419-4465
Demand History | NSN 5305-01-419-4465
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS8201A10 | 2019-04-05 | 250 | United States |
| NAS8201A10 | 2019-02-27 | 250 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-419-4465
Technical Data | NSN 5305-01-419-4465
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJC |
| NOMINAL THREAD DIAMETER | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.458 INCHES MINIMUM |

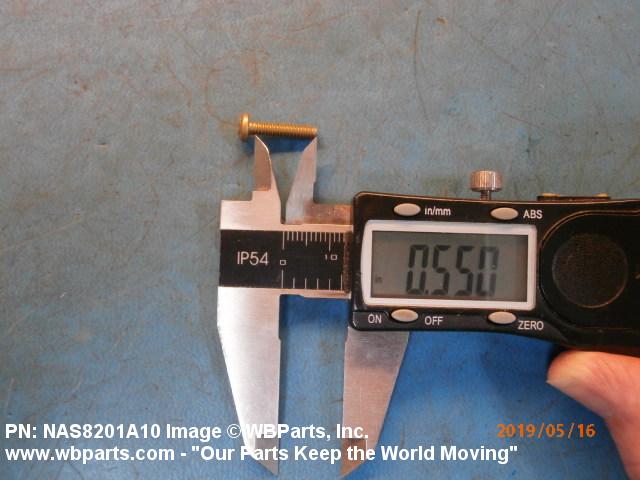

| FASTENER LENGTH | 0.530 INCHES MINIMUM AND 0.560 INCHES MAXIMUM |
| SCREW MATERIAL | TITANIUM ALLOY UNS R56400 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4928 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 4967 ASSN STD SINGLE MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | ALUMINUM |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | NAS 4006 ASSN STD SINGLE TREATMENT RESPONSE |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A23 PAN |

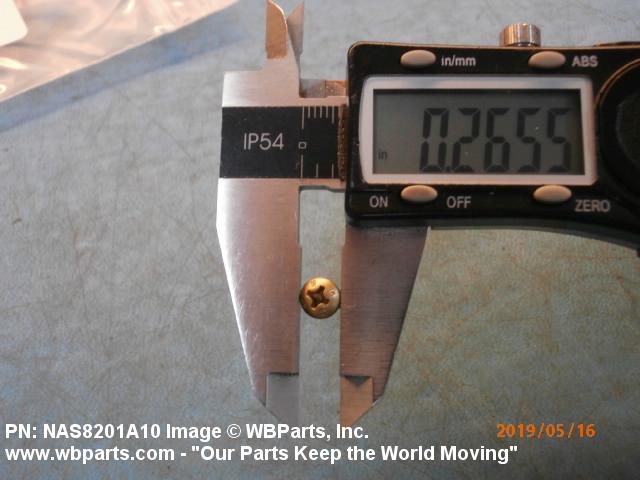

| HEAD DIAMETER | 0.256 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |

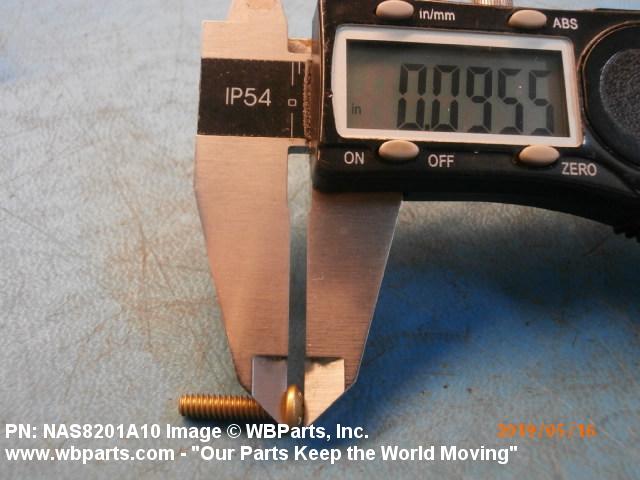

| HEAD HEIGHT | 0.087 INCHES MINIMUM AND 0.097 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
| SPECIFICATION/STANDARD DATA | 80205-NAS8201 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
