Product Details | MACHINE SCREW
5305-01-408-8469 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: 99450022, 994-5002-2, 5305-01-408-8469, 01-408-8469, 5305014088469, 014088469
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 FEB 1995 | 01-408-8469 | 06657 ( SCREW, MACHINE ) |
Drawings & Photos | NSN 5305-01-408-8469
Cross Reference | NSN 5305-01-408-8469
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 994-5002-2 | 81579 | MASON ELECTRIC COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-408-8469
Technical Data | NSN 5305-01-408-8469
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.280 INCHES NOMINAL |
| FASTENER LENGTH | 0.280 INCHES NOMINAL |
| SCREW MATERIAL | STEEL COMP 303 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-764, COMP 303 FED SPEC SINGLE MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | PASSIVATE AND OXIDE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE AND MIL-C-13924 MIL SPEC SINGLE TREATMENT RESPONSE |
| COLOR | BLACK |

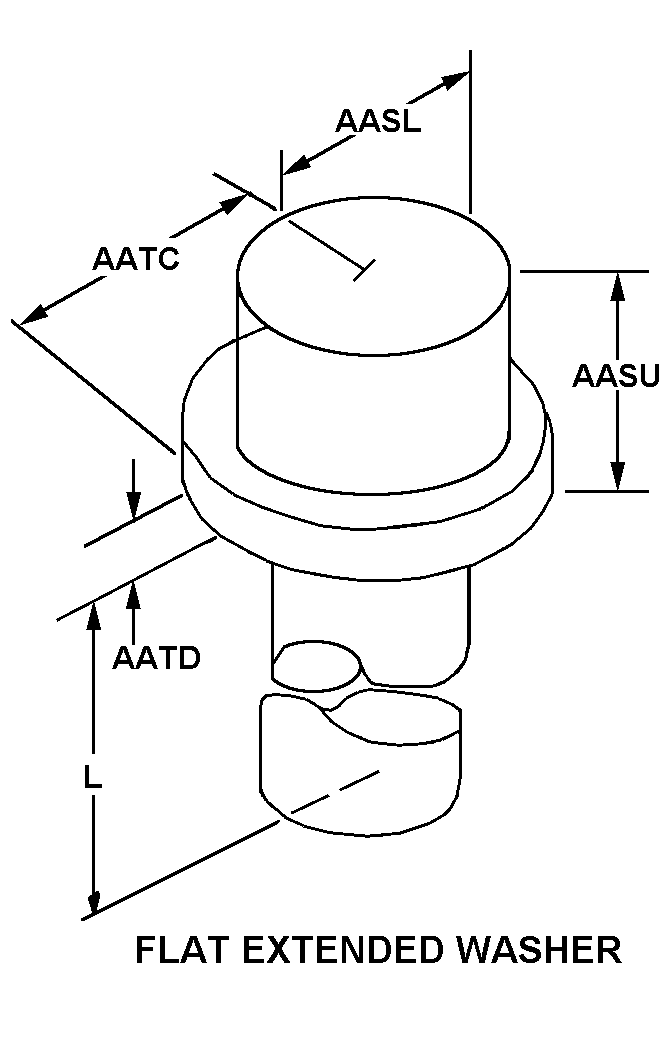

| HEAD STYLE | A54 FLAT EXTENDED WASHER |
| HEAD DIAMETER | 0.179 INCHES MINIMUM AND 0.181 INCHES MAXIMUM |
| HEAD HEIGHT | 0.138 INCHES MINIMUM AND 0.139 INCHES MAXIMUM |
| EXTENDED WASHER DIAMETER | 0.276 INCHES MINIMUM AND 0.279 INCHES MAXIMUM |
| EXTENDED WASHER THICKNESS | 0.060 INCHES MINIMUM AND 0.065 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | B10 SLOT |
