NSN 5305-01-399-0161 NAS1096224, NAS1096-2-24, NAS18010824
Product Details | MACHINE SCREW
5305-01-399-0161 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: NAS1096224, NAS1096-2-24, NAS18010824, NAS1801-08-24, 5305-01-399-0161, 01-399-0161, 5305013990161, 013990161
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 NOV 1994 | 01-399-0161 | 06657 ( SCREW, MACHINE ) |

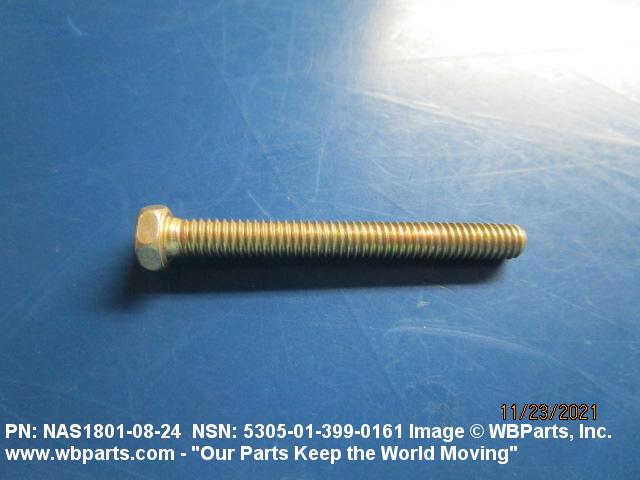

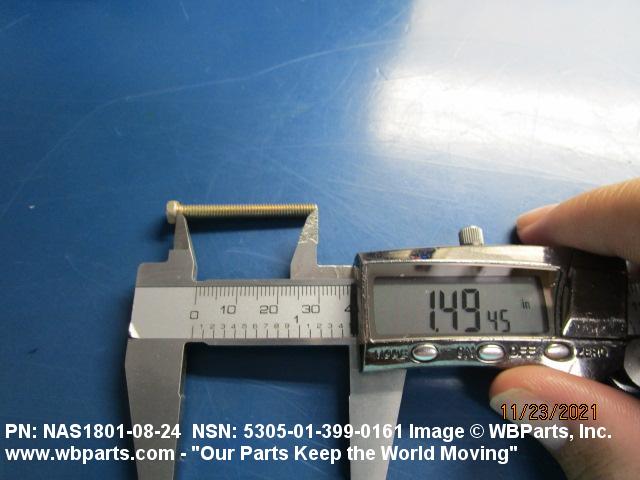

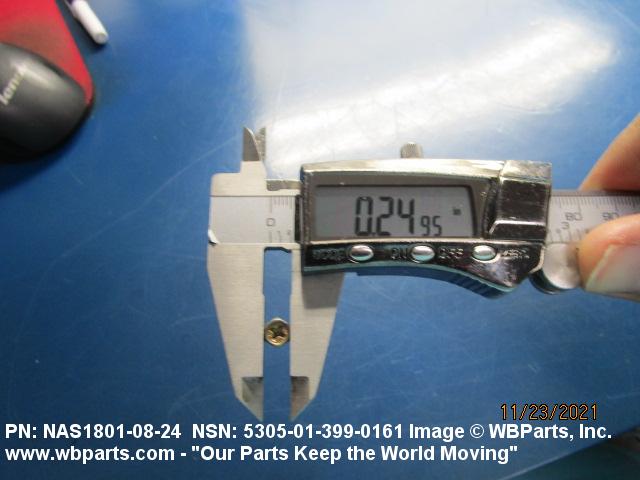

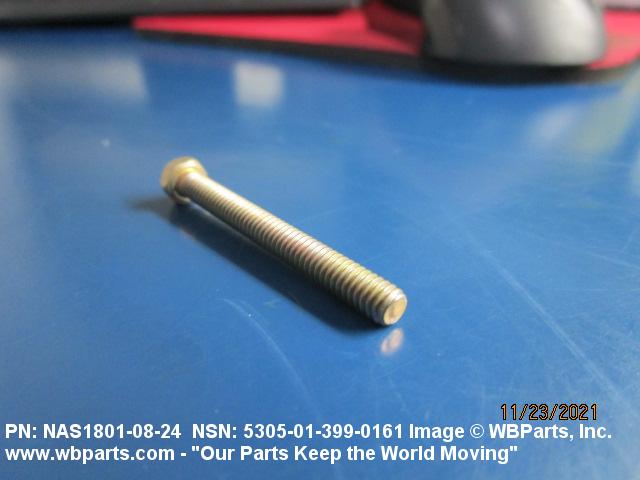

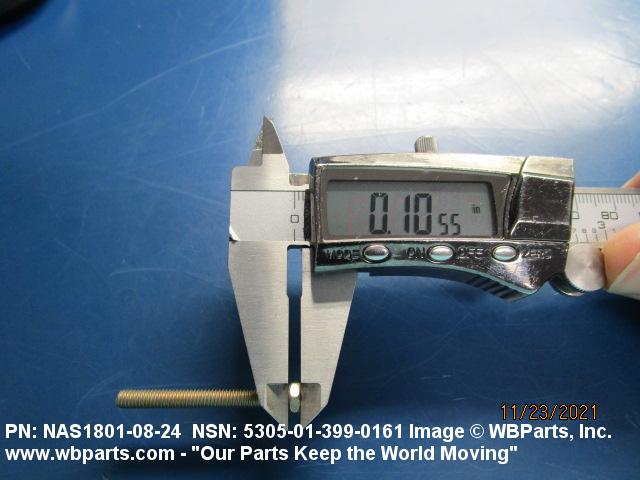

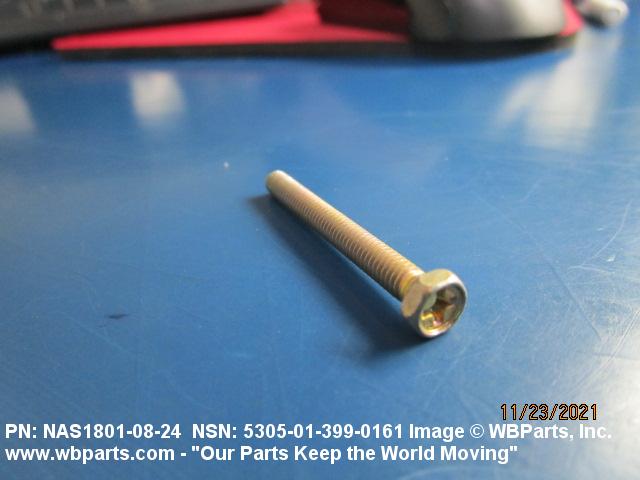

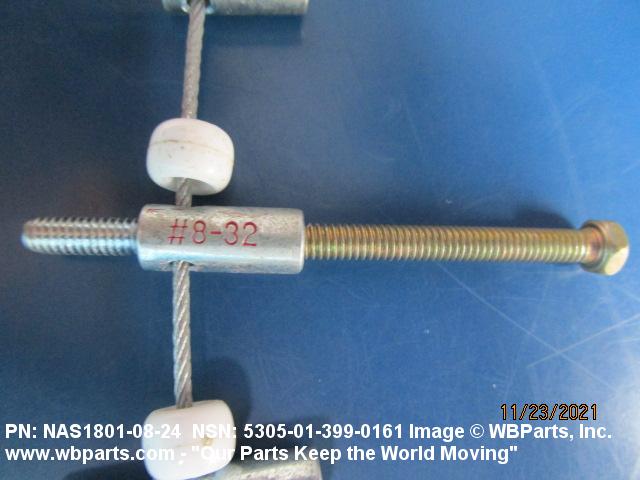

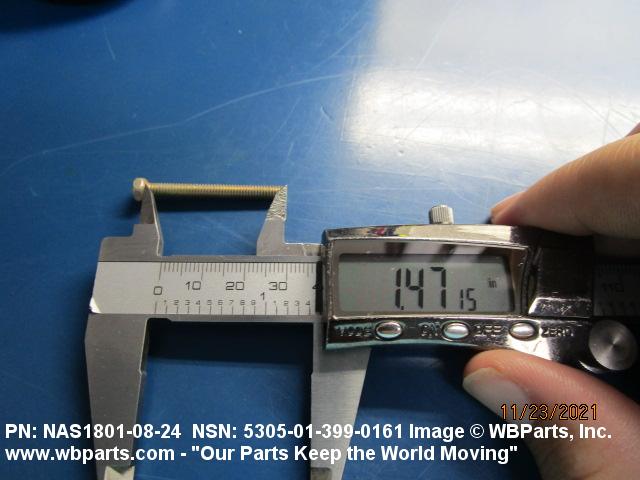

Drawings & Photos | NSN 5305-01-399-0161
Demand History | NSN 5305-01-399-0161
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-399-0161 | 2024-05-142 | 290 | DIBBS |
| 5305-01-399-0161 | 2023-10-296 | 234 | DIBBS |
| 5305-01-399-0161 | 2021-11-320 | 100 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-399-0161
Related Products | NSN 5305-01-399-0161
Technical Data | NSN 5305-01-399-0161
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.420 INCHES MINIMUM AND 1.499 INCHES MAXIMUM |
| FASTENER LENGTH | 1.484 INCHES MINIMUM AND 1.531 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL COMP E4340 OR STEEL COMP 8740 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR AMS 6322 ASSN STD 2ND MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A3 DISHED HEXAGON |
| HEAD HEIGHT | 0.096 INCHES MINIMUM AND 0.110 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.243 INCHES MINIMUM AND 0.251 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
| BEARING SURFACE OF HEAD SURFACE FINISH | 63.0 MICROINCHES |
| THREAD SURFACE FINISH | 32.0 MICROINCHES |
| SPECIFICATION/STANDARD DATA | 80205-NAS1801 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
