NSN 5305-01-377-9355 0257965, 722-010-212, 01-377-9355
Product Details | SETSCREW
5305-01-377-9355 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: 0257965, 722-010-212, 5305-01-377-9355, 01-377-9355, 5305013779355, 013779355, 722010212
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 AUG 1993 | 01-377-9355 | 06672 ( SETSCREW ) |

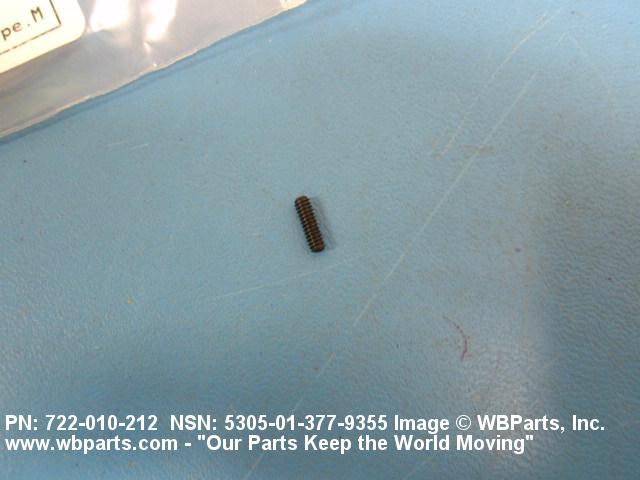

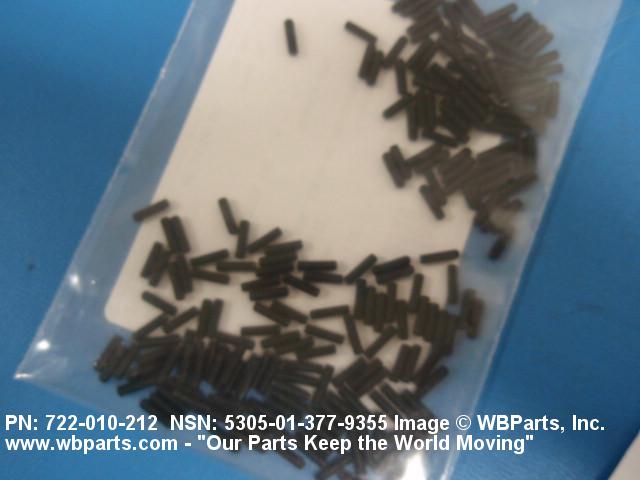

Drawings & Photos | NSN 5305-01-377-9355
Demand History | NSN 5305-01-377-9355
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 722-010-212 | 2023-06-177 | 112 | DIBBS |
| 722-010-212 | 2021-04-112 | 128 | DIBBS |
| 722-010-212 | 2021-04-101 | 128 | DIBBS |
| 722-010-212 | 2019-11-318 | 110 | DIBBS |
| 722-010-212 | 2019-02-51 | 59 | DIBBS |
| 5305-01-377-9355 | 2018-06-159 | 51 | DIBBS |
| 5305-01-377-9355 | 2018-05-151 | 51 | DIBBS |
| 5305-01-377-9355 | 2011-08-213 | 154 | DIBBS |
| 5305-01-377-9355 | 2009-06-163 | 206 | United States |
| 5305-01-377-9355 | 2008-12-365 | 170 | DIBBS |
| 5305-01-377-9355 | 2008-12-345 | 170 | DIBBS |
| 5305-01-377-9355 | 2008-12-343 | 23 | DIBBS |
| 5305-01-377-9355 | 2008-11-325 | 23 | DIBBS |
| 5305-01-377-9355 | 2008-05-127 | 14 | DIBBS |
| 5305-01-377-9355 | 2008-03-81 | 1 | DIBBS |
| 5305-01-377-9355 | 2008-03-81 | 2 | DIBBS |
Cross Reference | NSN 5305-01-377-9355
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0257965 | 0B6S1 | INTERNATIONAL BUSINESS MACHINES CORP PARTS ORDER CENTER DEPT E - 54 |
| 722-010-212 | 06641 | CENTURY FASTENERS CORP. |
| 722-010-212 | 07679 | HARDWARE SPECIALTY CO. INC. |
| 722-010-212 | 26055 | PARKER-HANNIFIN CORPORATION DBA ELECTRONICS SYSTEMS DIVISION |
| 722-010-212 | 59211 | PARKER-HANNIFIN CORPORATION DBA CUSTOMER SUPPORT MILITARY |
| 722-010-212 | 84992 | INDUSTRIAL FASTENERS CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-377-9355
Related Products | NSN 5305-01-377-9355
Technical Data | NSN 5305-01-377-9355
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| FASTENER LENGTH | 0.375 INCHES NOMINAL |
| MATERIAL | STEEL COMP 4340 OR STEEL COMP 4140 OR STEEL COMP 8740 OR STEEL COMP 8735 OR STEEL COMP 6150 OVERALL |
| SURFACE TREATMENT | OXIDE OVERALL |
| COLOR | BLACK OVERALL |
| HARDNESS RATING | 45.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM OVERALL |
| HEAD STYLE | C101 HEADLESS |
| INTERNAL DRIVE STYLE | D7 SIX SPLINE |
| SPLINE MINOR DIAMETER | 0.189 INCHES MINIMUM AND 0.194 INCHES MAXIMUM |
| SPLINE MAJOR DIAMETER | 0.228 INCHES MINIMUM AND 0.235 INCHES MAXIMUM |
| POINT STYLE | F20 CUP |
Restrictions/Controls & Freight Information | NSN 5305-01-377-9355
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-377-9355
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
