Product Details | MACHINE SCREW
5305-01-377-1523 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: 64570662, 6457066-2, 5305-01-377-1523, 01-377-1523, 5305013771523, 013771523
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 JUL 1993 | 01-377-1523 | 06657 ( SCREW, MACHINE ) |
Drawings & Photos | NSN 5305-01-377-1523
Cross Reference | NSN 5305-01-377-1523
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6457066-2 | 55974 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-377-1523
Technical Data | NSN 5305-01-377-1523
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.495 INCHES NOMINAL |
| FASTENER LENGTH | 1.375 INCHES NOMINAL |
| SCREW MATERIAL | STEEL COMP 303 OR STEEL COMP 303SE |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | ASTMA582 ASSN STD ALL MATERIAL RESPONSES |
| SCREW SURFACE TREATMENT | PASSIVATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 TY 2 FED SPEC SINGLE TREATMENT RESPONSE |

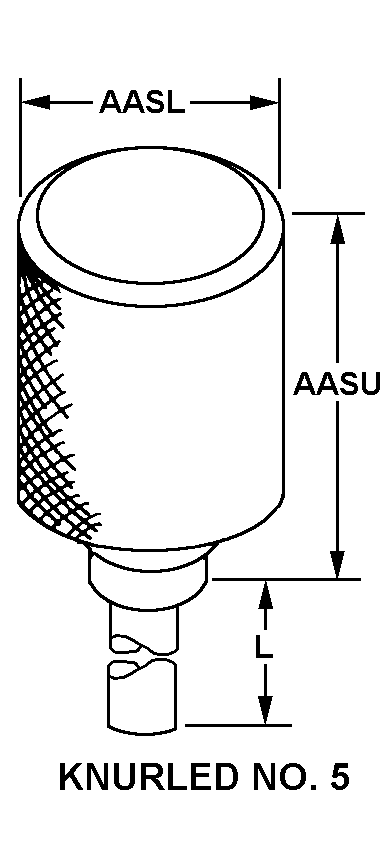

| HEAD STYLE | A58 KNURLED NO. 5 |
