Product Details | MACHINE SCREW

5305-01-371-4282 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: NAS5402U16, 5305-01-371-4282, 01-371-4282, 5305013714282, 013714282

Hardware and Abrasives | Screws

Supply Group (FSG) NSN Assign. NIIN
53 12 FEB 1993 01-371-4282

Drawings & Photos | NSN 5305-01-371-4282


Cross Reference | NSN 5305-01-371-4282

Part Number Cage Code Manufacturer
NAS5402U16 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5305-01-371-4282

Technical Data | NSN 5305-01-371-4282

Characteristic Specifications
THREAD SERIES DESIGNATOR UNJC
NOMINAL THREAD DIAMETER 0.164 INCHES
THREAD QUANTITY PER INCH 32
THREAD CLASS 3A
THREAD DIRECTION RIGHT-HAND
THREAD LENGTH 1.000 INCHES NOMINAL
FASTENER LENGTH 1.000 INCHES MAXIMUM
SCREW MATERIAL IRON ALLOY 660
SCREW SURFACE TREATMENT PASSIVATE
HEAD STYLE A33 FILLISTER
HEAD DIAMETER 0.265 INCHES MINIMUM AND 0.270 INCHES MAXIMUM
HEAD HEIGHT 0.088 INCHES MINIMUM AND 0.102 INCHES MAXIMUM

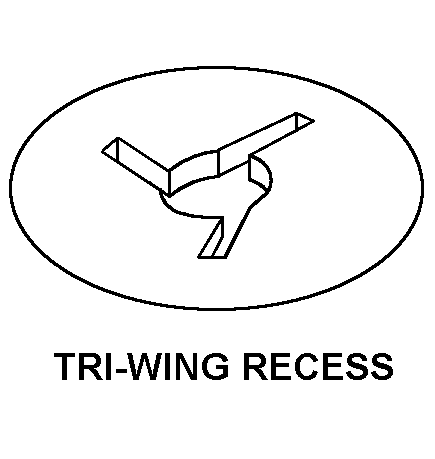

INTERNAL DRIVE STYLE B14 TRI-WING RECESS

Restrictions/Controls & Freight Information | NSN 5305-01-371-4282

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
