NSN 5305-01-371-2855 NAS38448P, NAS384-4-8P, 01-371-2855
Product Details | TAPPING SCREW
5305-01-371-2855 A hardened externally threaded fastener whose thread extends to the bearing surface of the head. The thread may be fluted or otherwise designed to cut or form its own mating thread. Excludes SCREW, ASSEMBLED WASHER.
Part Alternates: NAS38448P, NAS384-4-8P, 5305-01-371-2855, 01-371-2855, 5305013712855, 013712855
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 FEB 1993 | 01-371-2855 | 41756 ( SCREW, TAPPING ) |
Drawings & Photos | NSN 5305-01-371-2855
Cross Reference | NSN 5305-01-371-2855
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS384-4-8P | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-371-2855
Technical Data | NSN 5305-01-371-2855
| Characteristic | Specifications |
|---|---|
| NONMACHINE THREAD STYLE | A13 GIMLET POINT |
| NONMACHINE NOMINAL THREAD DIAMETER | 0.112 INCHES |
| FASTENER LENGTH | 0.500 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |

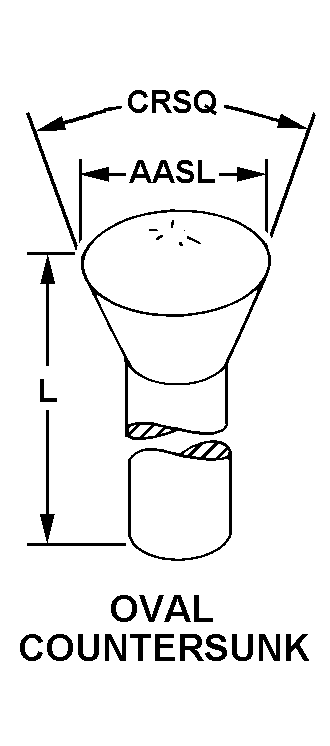

| HEAD STYLE | C54 OVAL COUNTERSUNK |
| HEAD DIAMETER | 0.219 INCHES NOMINAL |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5305-01-371-2855
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
