NSN 5305-01-361-7045 MPS05C010SEM , 1676AS2981, 1676AS298-1
Product Details | ASSEMBLED WASHER SCREW
5305-01-361-7045 A SCREW, (as modified) to which has been assembled one or more nonremovable washer(s).
Part Alternates: MPS05C010SEM , 1676AS2981, 1676AS298-1, 5305-01-361-7045, 01-361-7045, 5305013617045, 013617045
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 JUL 1992 | 01-361-7045 | 06660 ( SCREW, ASSEMBLED WASHER ) |

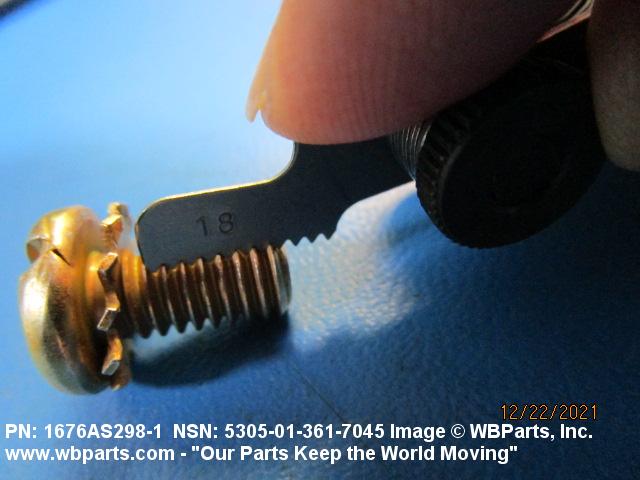

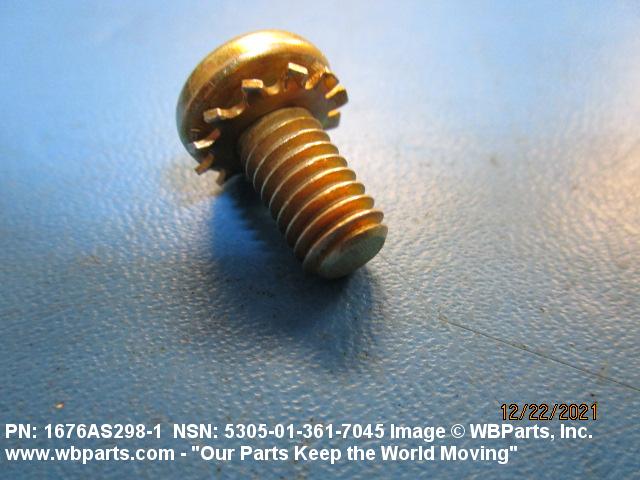

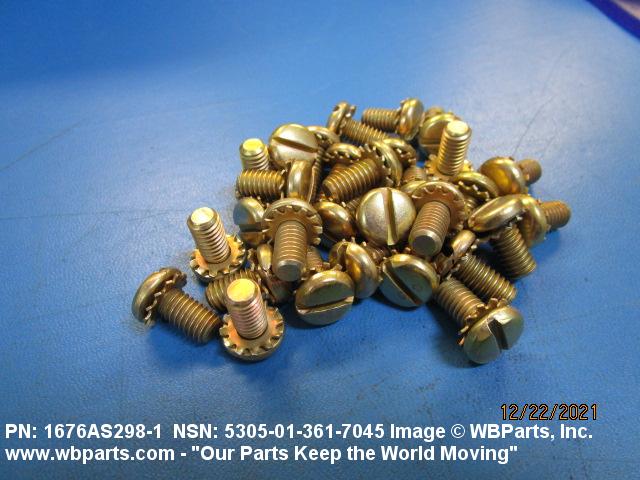

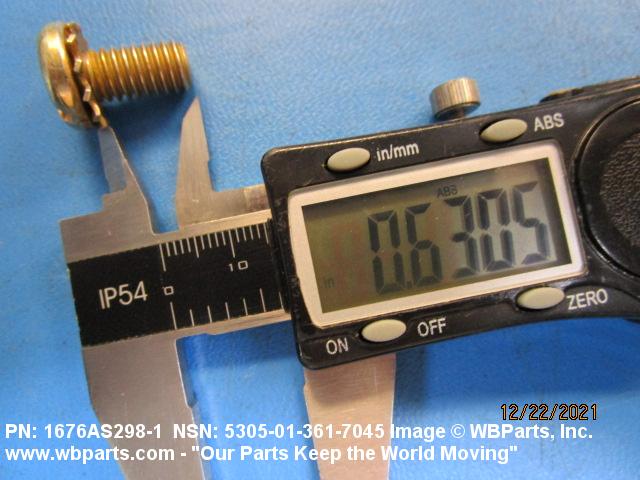

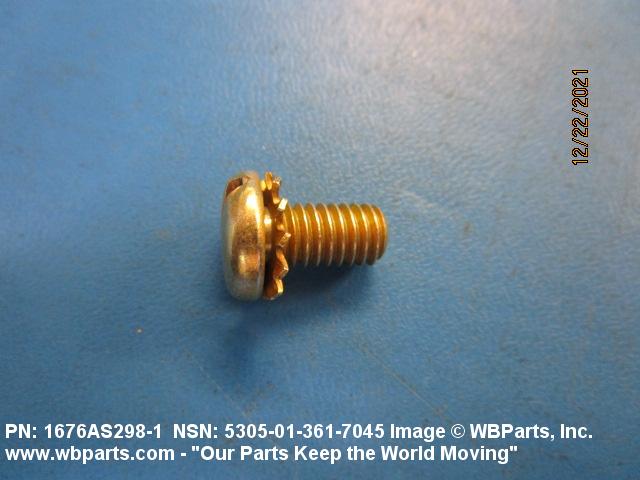

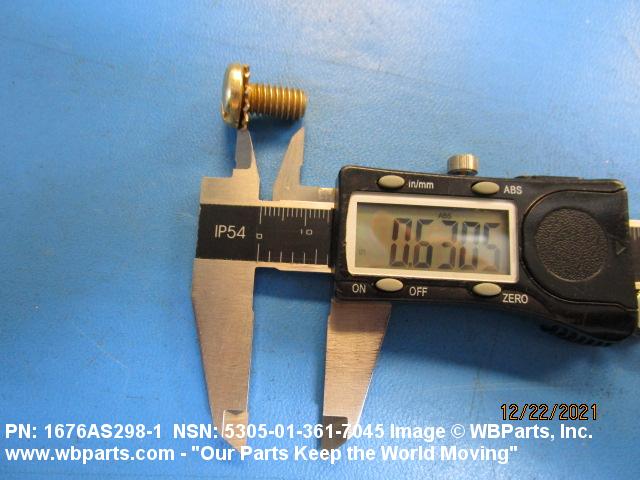

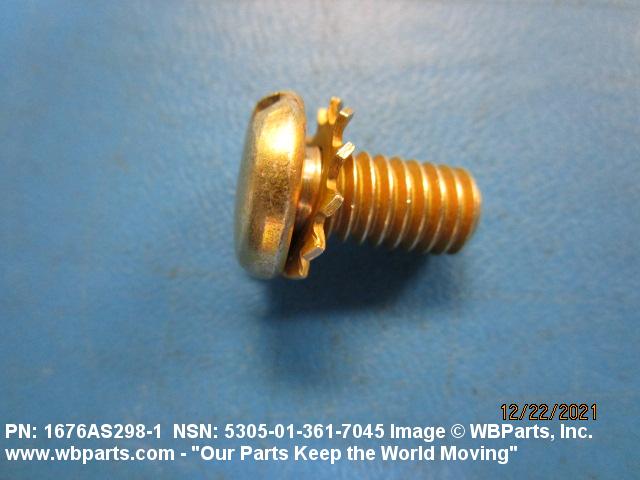

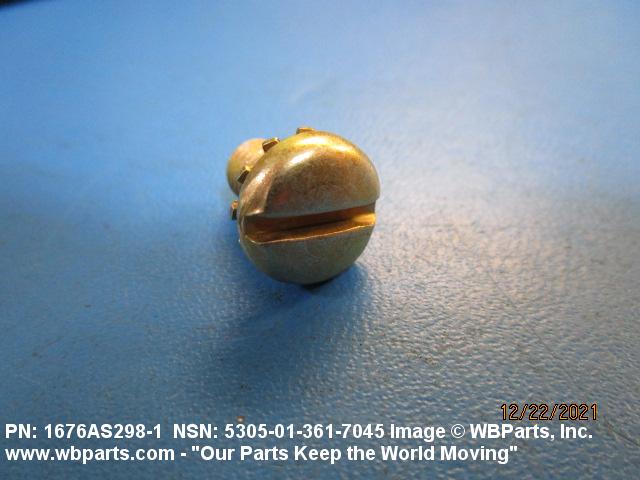

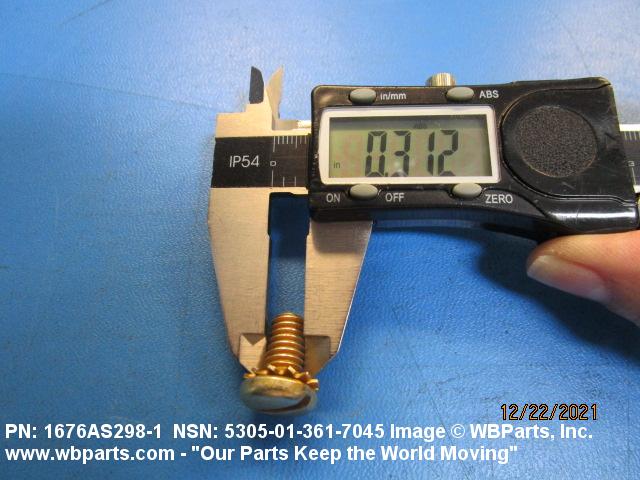

Drawings & Photos | NSN 5305-01-361-7045
Demand History | NSN 5305-01-361-7045
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-361-7045 | 2021-09-270 | 30 | United States |
| MPS05C010SEM | 2021-07-199 | 270 | DIBBS |
| MPS05C010SEM | 2021-03-64 | 249 | DIBBS |
| MPS05C010SEM | 2021-02-57 | 99 | DIBBS |
| MPS05C010SEM | 2021-02-53 | 249 | DIBBS |
| MPS05C010SEM | 2021-02-46 | 99 | DIBBS |
| MPS05C010SEM | 2020-11-321 | 171 | DIBBS |
| MPS05C010SEM | 2020-11-309 | 171 | DIBBS |
| MPS05C010SEM | 2020-02-45 | 111 | DIBBS |
| MPS05C010SEM | 2020-02-37 | 111 | DIBBS |
| MPS05C010SEM | 2020-01-06 | 105 | DIBBS |
| MPS05C010SEM | 2019-12-352 | 105 | DIBBS |
| MPS05C010SEM | 2019-12-351 | 36 | DIBBS |
| 5305-01-361-7045 | 2011-02-53 | 591 | DIBBS |
| 5305-01-361-7045 | 2010-12-347 | 56 | DIBBS |
| 5305-01-361-7045 | 2010-11-305 | 15 | DIBBS |
| 5305-01-361-7045 | 2009-11-324 | 73 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-361-7045
Related Products | NSN 5305-01-361-7045
Technical Data | NSN 5305-01-361-7045
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| FASTENER LENGTH | 0.630 INCHES NOMINAL |
| MATERIAL | STEEL COMP 1010 OR STEEL COMP 1011 OR STEEL COMP 1012 OR STEEL COMP 1013 OR STEEL COMP 1015 OR STEEL COMP 1016 OR STEEL COMP 1017 OR STEEL COMP 1018 OR STEEL COMP 1019 OR STEEL COMP 1020 PRIMARY WASHER STEEL COMP 1115 OR STEEL COMP 1116 OR STEEL COMP 1117 OR STEEL COMP 1118 OR STEEL COMP 1119 OR STEEL COMP 1120 OR STEEL COMP 1132 FASTENER |
| SURFACE TREATMENT | CADMIUM AND PHOSPHATE OVERALL |
| HEAD STYLE | C33 PAN NO. 2 |
| INTERNAL DRIVE STYLE | D14 SLOT |
| WASHER QUANTITY | 1 |
Restrictions/Controls & Freight Information | NSN 5305-01-361-7045
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-361-7045
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
