NSN 5305-01-333-2963 NAS11013HR7, NAS1101-3HR7, 01-333-2963
Product Details | MACHINE SCREW
5305-01-333-2963 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: NAS11013HR7, NAS1101-3HR7, 5305-01-333-2963, 01-333-2963, 5305013332963, 013332963
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 JAN 1991 | 01-333-2963 | 06657 ( SCREW, MACHINE ) |
Drawings & Photos | NSN 5305-01-333-2963
Cross Reference | NSN 5305-01-333-2963
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1101-3HR7 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-333-2963
Technical Data | NSN 5305-01-333-2963
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.345 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
| FASTENER LENGTH | 0.407 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL COMP 4140 OR STEEL COMP E4340 OR STEEL COMP 8740 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5000 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 3RD MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY2 CL2 FED SPEC SINGLE TREATMENT RESPONSE |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A38 FLAT CHAMFER |
| HEAD DIAMETER | 0.296 INCHES MINIMUM |
| HEAD HEIGHT | 0.103 INCHES MINIMUM AND 0.118 INCHES MAXIMUM |

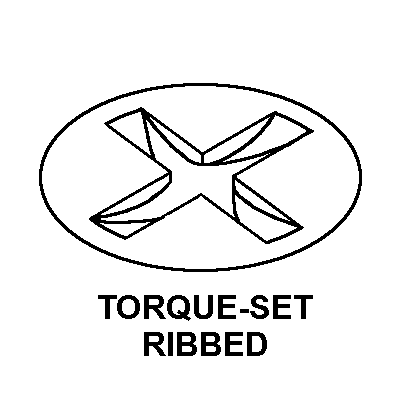

| INTERNAL DRIVE STYLE | B17 TORQUE-SET RIBBED |
| HEAD HOLE CONFIGURATION STYLE | C11 ROUND LONGITUDINAL HOLE |
| HOLE QUANTITY | 2 |
| HOLE DIAMETER | 0.034 INCHES MINIMUM AND 0.042 INCHES MAXIMUM |
| BEARING SURFACE OF HEAD SURFACE FINISH | 32.0 MICROINCHES |
| SHANK SURFACE FINISH | 32.0 MICROINCHES |
| THREAD SURFACE FINISH | 32.0 MICROINCHES |
| SPECIFICATION/STANDARD DATA | 80205-NAS1101 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
