NSN 5305-01-321-8722 5012834, 01-321-8722, 013218722
Product Details | SETSCREW
5305-01-321-8722 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: 5012834, 5305-01-321-8722, 01-321-8722, 5305013218722, 013218722
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 JUN 1990 | 01-321-8722 | 06672 ( SETSCREW ) |
Drawings & Photos | NSN 5305-01-321-8722
Cross Reference | NSN 5305-01-321-8722
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5012834 | 19206 | ARMY, UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-321-8722
Related Products | NSN 5305-01-321-8722
Technical Data | NSN 5305-01-321-8722
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| FASTENER LENGTH | 0.965 INCHES NOMINAL |
| MATERIAL | STEEL COMP 1035 OVERALL |
| HEAD STYLE | C101 HEADLESS |
| INTERNAL DRIVE STYLE | D14 SLOT |

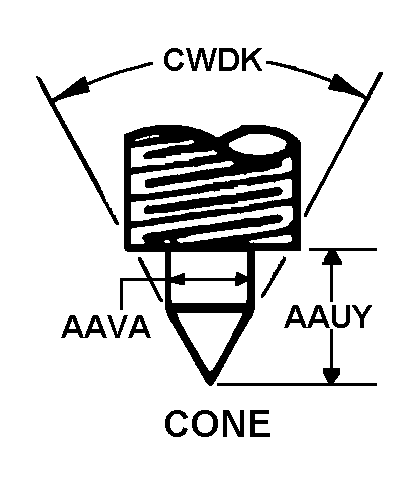

| POINT STYLE | F6 CONE |
| POINT LENGTH | 0.200 INCHES MINIMUM AND 0.230 INCHES MAXIMUM |
| POINT CHAMFER ANGLE | 59.0 DEGREES NOMINAL |
